Hazard Warning Switch: Testing and Inspection

INSPECTION




1. INSPECT HAZARD WARNING SWITCH

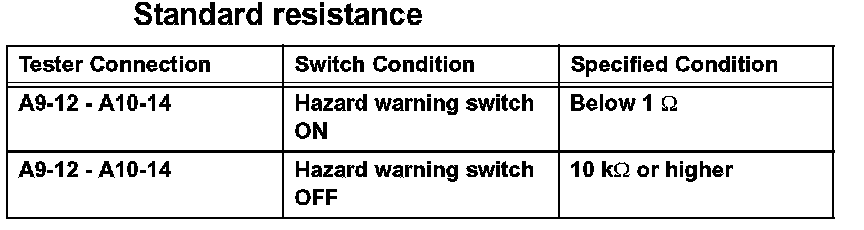

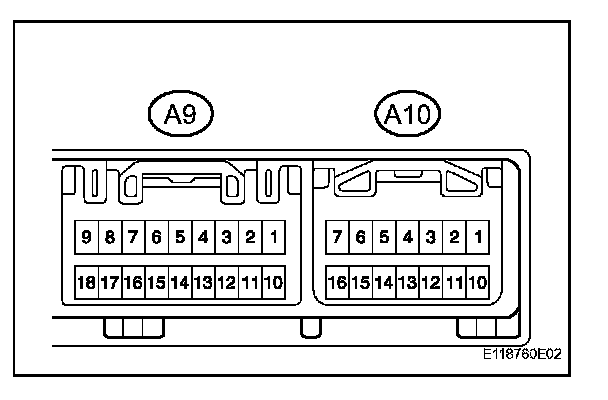

a. Measure the resistance of the switch.

If the result is not as specified, replace the A/C control.
