Rear Speed Sensor
REMOVALHINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed are for the LH side.
1. REMOVE REAR WHEEL
2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST PLATE COVER
4. REMOVE WIND DEFLECTOR BOARD ASSEMBLY
5. REMOVE REAR SEAT HEADREST PLATE
6. REMOVE REAR SEAT HEADREST ASSEMBLY
7. REMOVE REAR SEATBACK ASSEMBLY
8. REMOVE REAR SPEED SENSOR LH
a. Disconnect the sensor and HID connectors.
b. Remove the bolt and 2 nuts, and then disconnect the No. 2 and No. 3 clamps.
c. Remove the resin clamp and clamp bolt, and then disconnect the HID connector.
d. Remove the bolt and then disconnect the No. 1 clamp.

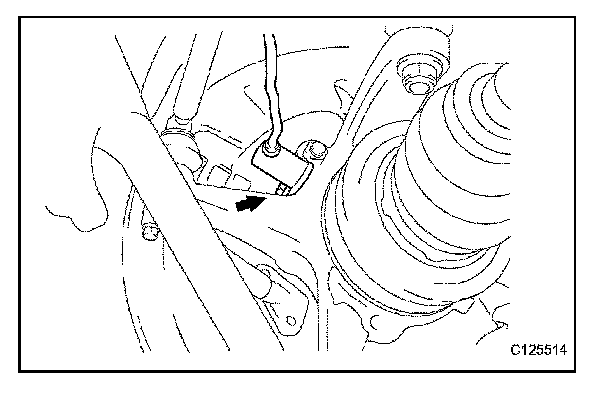

e. Remove the bolt and sensor.
NOTE: Keep the sensor tip free from foreign matter.
9. REMOVE REAR SPEED SENSOR RH
a. Disconnect the sensor connector.
b. Remove the nut, and then disconnect the No. 2 clamp.

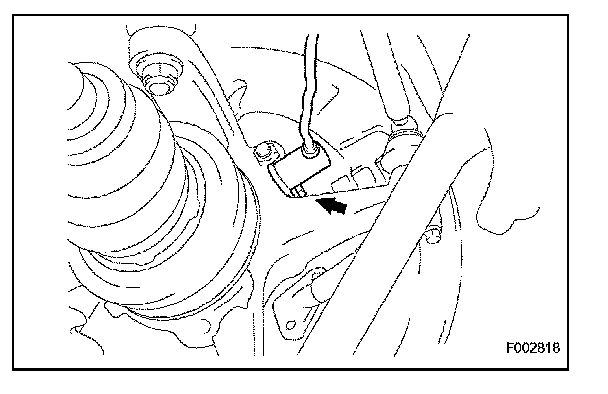

c. Remove the bolt and sensor.
NOTE: Keep the sensor tip free from foreign matter.
INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed are for the LH side.
1. INSTALL REAR SPEED SENSOR RH
a. Install the sensor with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
b. Install the No. 2 clamp with the nut.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)
c. Connect the sensor connector.
2. INSTALL REAR SPEED SENSOR LH

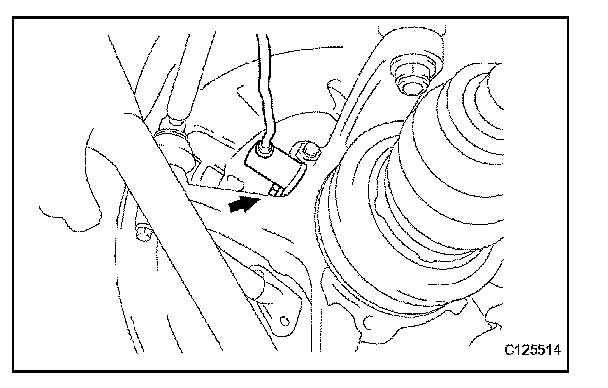

a. Install the sensor with the bolt.
Torque: 8.0 N.m(82 kgf.cm, 71 in.lbf)
b. Install the No. 1 clamp with the bolt.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)
c. Install the No. 2 and No. 3 clamps with the bolt and 2 nuts.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)
d. Connect the HID connector, and then install the resin clamp and clamp bolt.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)
e. Connect the sensor and HID connector.
3. INSTALL REAR SEATBACK ASSEMBLY
4. INSTALL REAR SEAT HEADREST ASSEMBLY
5. INSTALL REAR SEAT HEADREST PLATE
6. INSTALL WIND DEFLECTOR BOARD ASSEMBLY
7. INSTALL REAR SEAT HEADREST PLATE COVER
8. INSTALL REAR SEAT CUSHION ASSEMBLY
9. INSTALL REAR WHEEL
a. Install the wheel with the 5 nuts.
Torque: 103 N.m(1,050 kgf.cm, 76 ft.lbf)
b. Install the ornament with the 10 bolts.
Torque: 20 N.m(204 kgf.cm, 15 ft.lbf)
10. CHECK ABS SPEED SENSOR SIGNAL
a. Check the speed sensor signal.
