Front Speed Sensor
REMOVALHINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed are for the LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT SPEED SENSOR LH

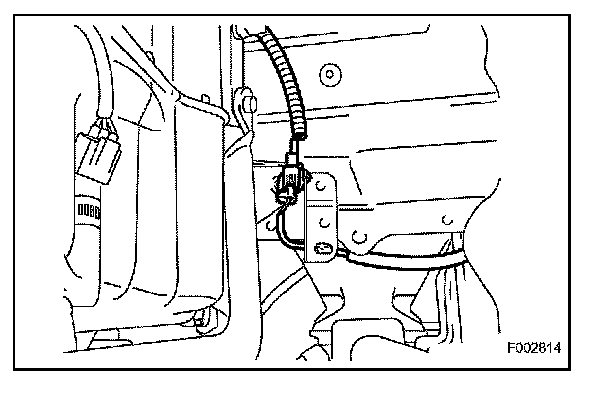

a. Disconnect the sensor connector.

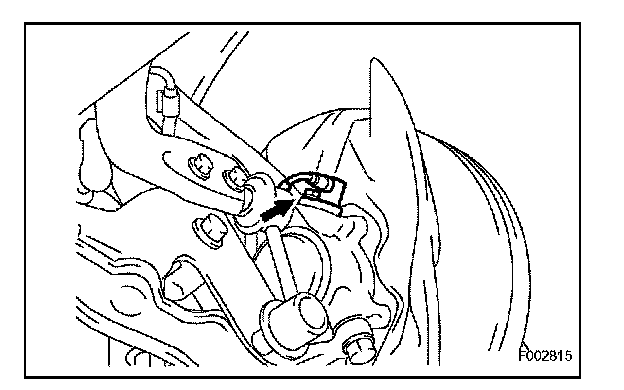

b. Remove the resin clip and 2 clamp bolts holding the sensor harness.
c. Remove the bolt and sensor.
NOTE: Keep the sensor tip free from foreign matter.
INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed are for the LH side.
1. INSTALL FRONT SPEED SENSOR LH
a. Install the sensor with the bolt.
Torque: 8.0 N.m(82 kgf.cm, 71 in.lbf)
b. Install the sensor harness with the 2 clamp bolts and resin clip.
Torque: 5.0 N.m(51 kgf.cm, 44 in.lbf)

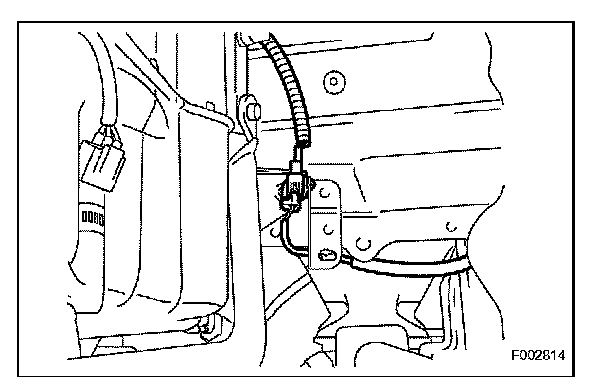

c. Connect the sensor connector.
2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT WHEEL
a. Install the wheel with the 5 nuts.
Torque: 103 N.m(1,050 kgf.cm, 76 ft.lbf)
b. Install the ornament with the 10 bolts.
Torque: 20 N.m(204 kgf.cm, 15 ft.lbf)
4. CHECK ABS SPEED SENSOR SIGNAL
a. Check the ABS speed sensor signal.
