Power Mirror Switch: Testing and Inspection
OUTER MIRROR SWITCHINSPECTION

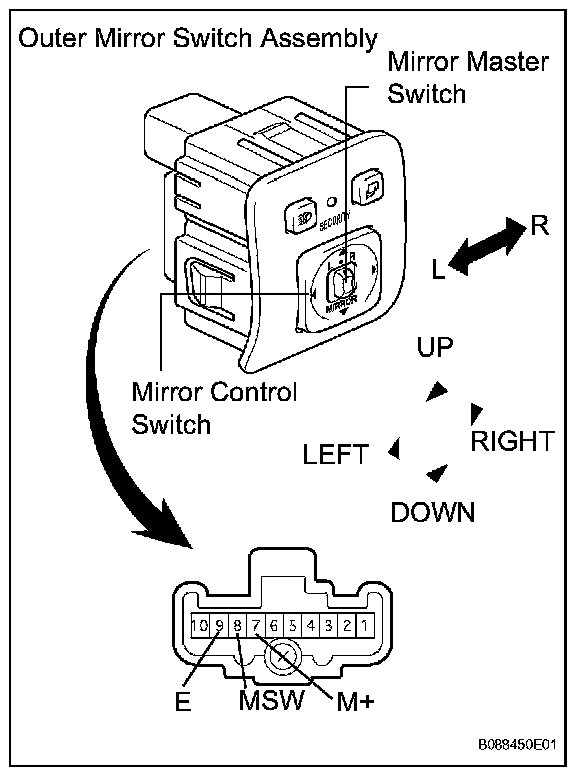

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
a. Select L or R on the mirror master switch.

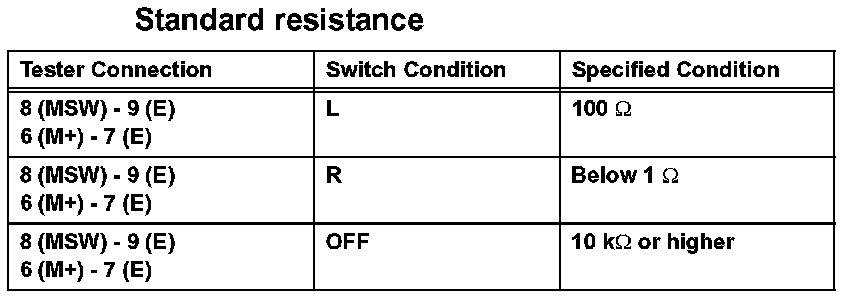

b. Measure the resistance of the mirror master switch.
If the result is not as specified, replace the switch assembly.

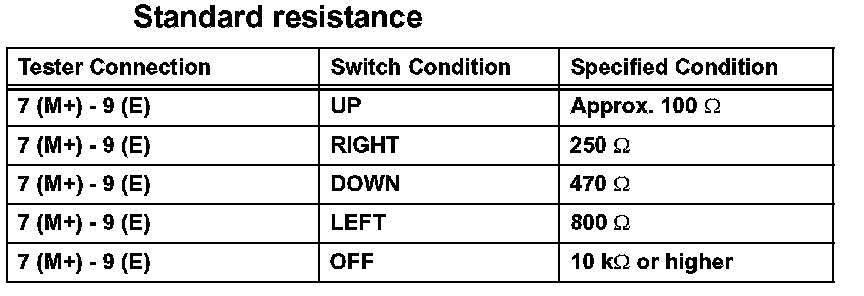

c. Measure the resistance of the mirror control switch.
If the result is not as specified, replace the switch assembly.

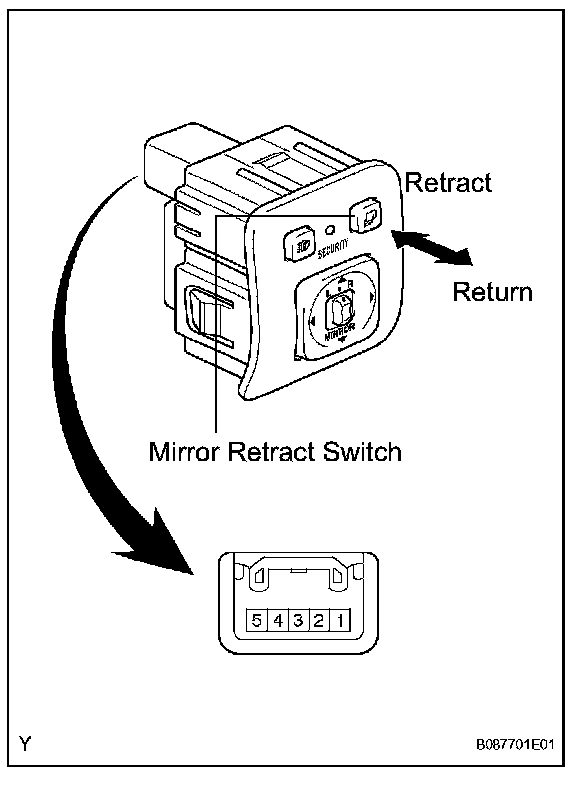

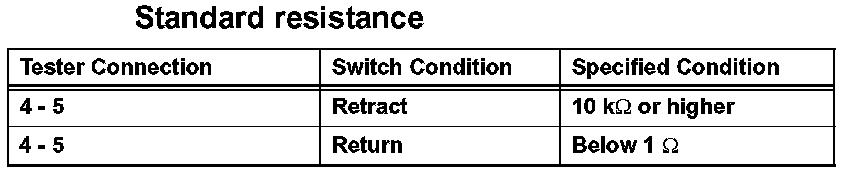

d. Measure the resistance of the retract switch.
If the result is not as specified, replace the switch assembly.
