Tonneau Cover Limit Switch

INSPECTION

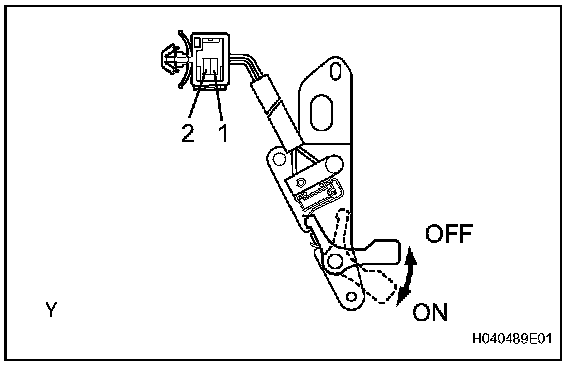

1. INSPECT LIMIT SWITCH ASSEMBLY (TONNEAU COVER SWITCH)

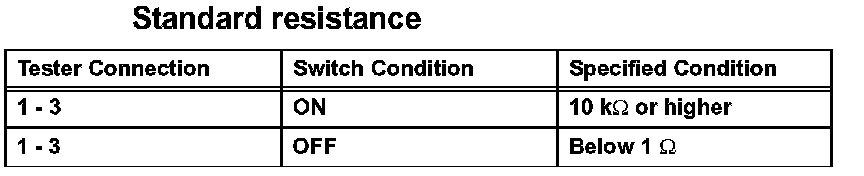

a. Measure the resistance of the switch.

If the is not as specified, replace the limit switch assembly.
