Front Passenger Side Seat Belt Warning Light Malfunction

Front Passenger Side Seat Belt Warning Light Malfunction

DESCRIPTION

The combination meter detects the state of the front seat inner belt RH when the front passenger seat is occupied with the ignition switch ON. If the front passenger seat belt is not fastened, the front passenger seat belt warning light on the front passenger seat belt warning light.

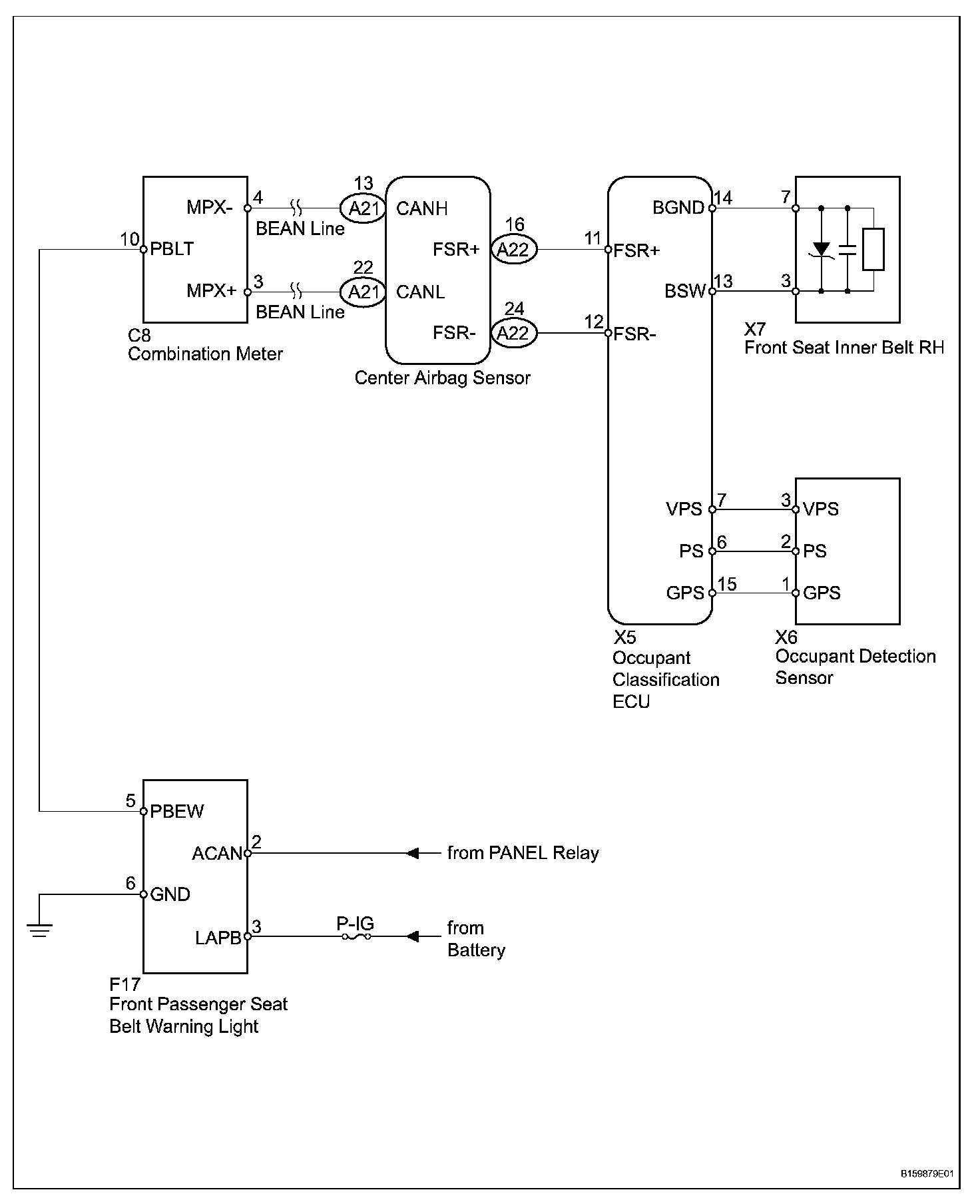

Wiring Diagram:

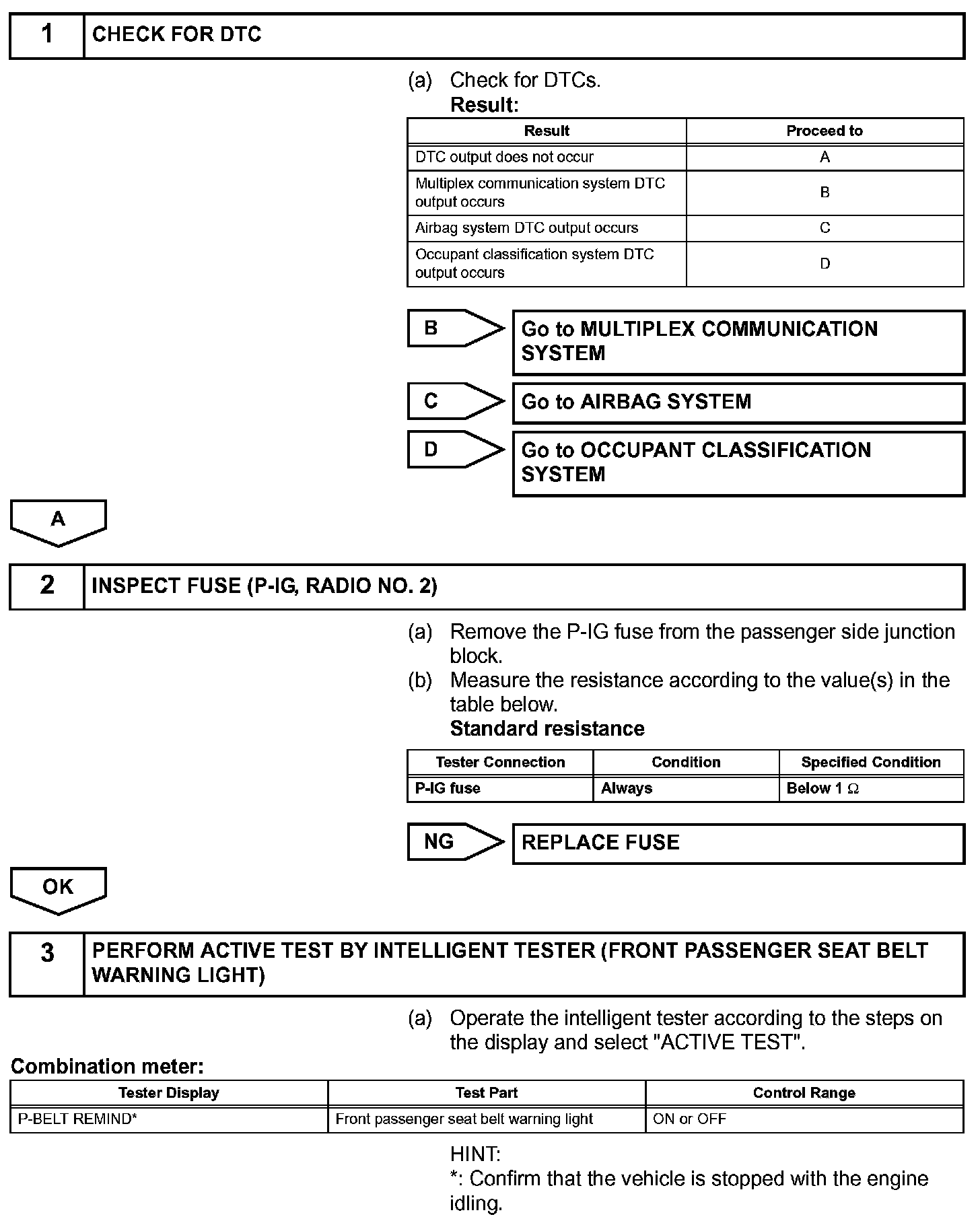

Step 1-3:

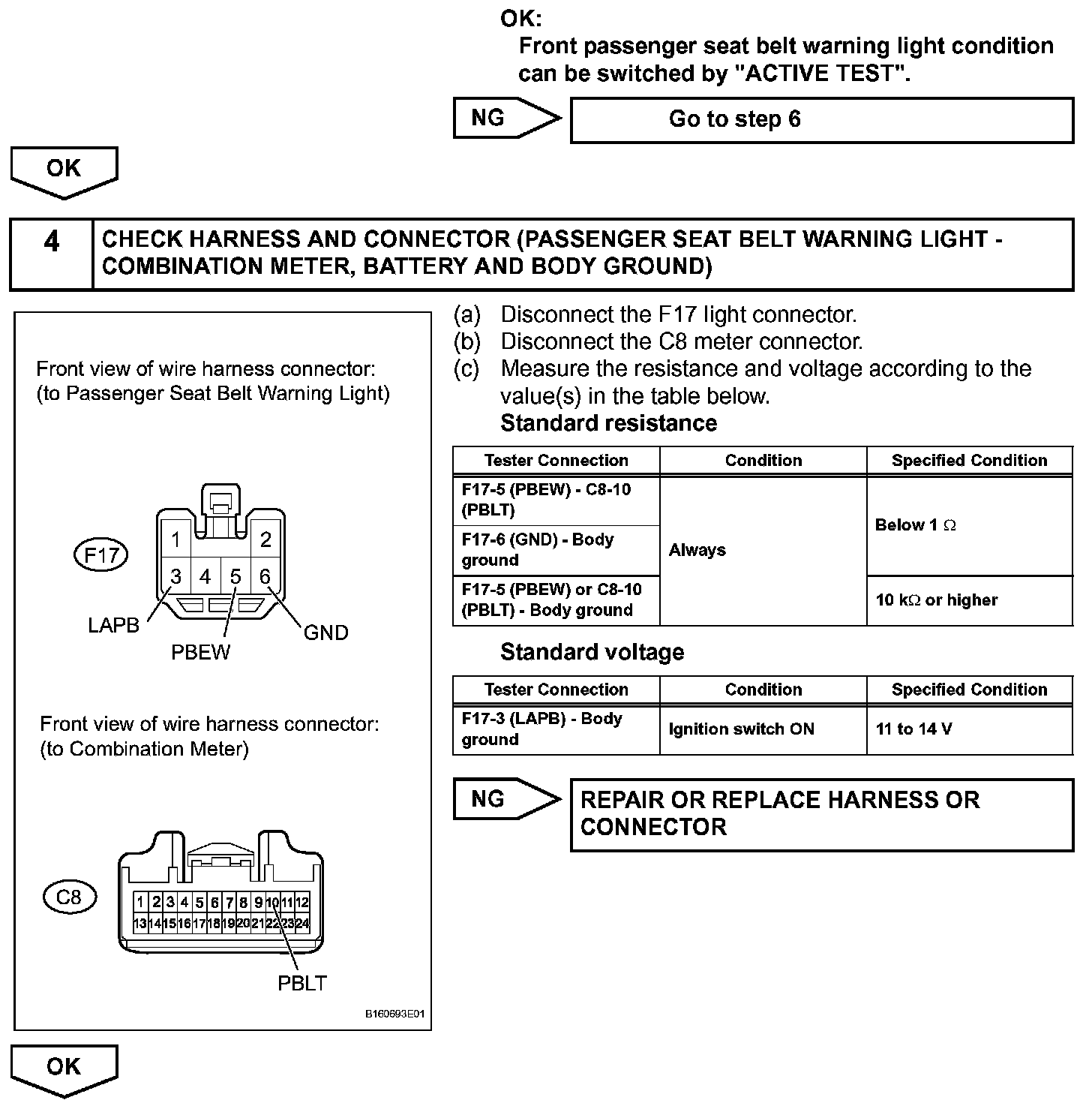

Step 3 (Continued)-4:

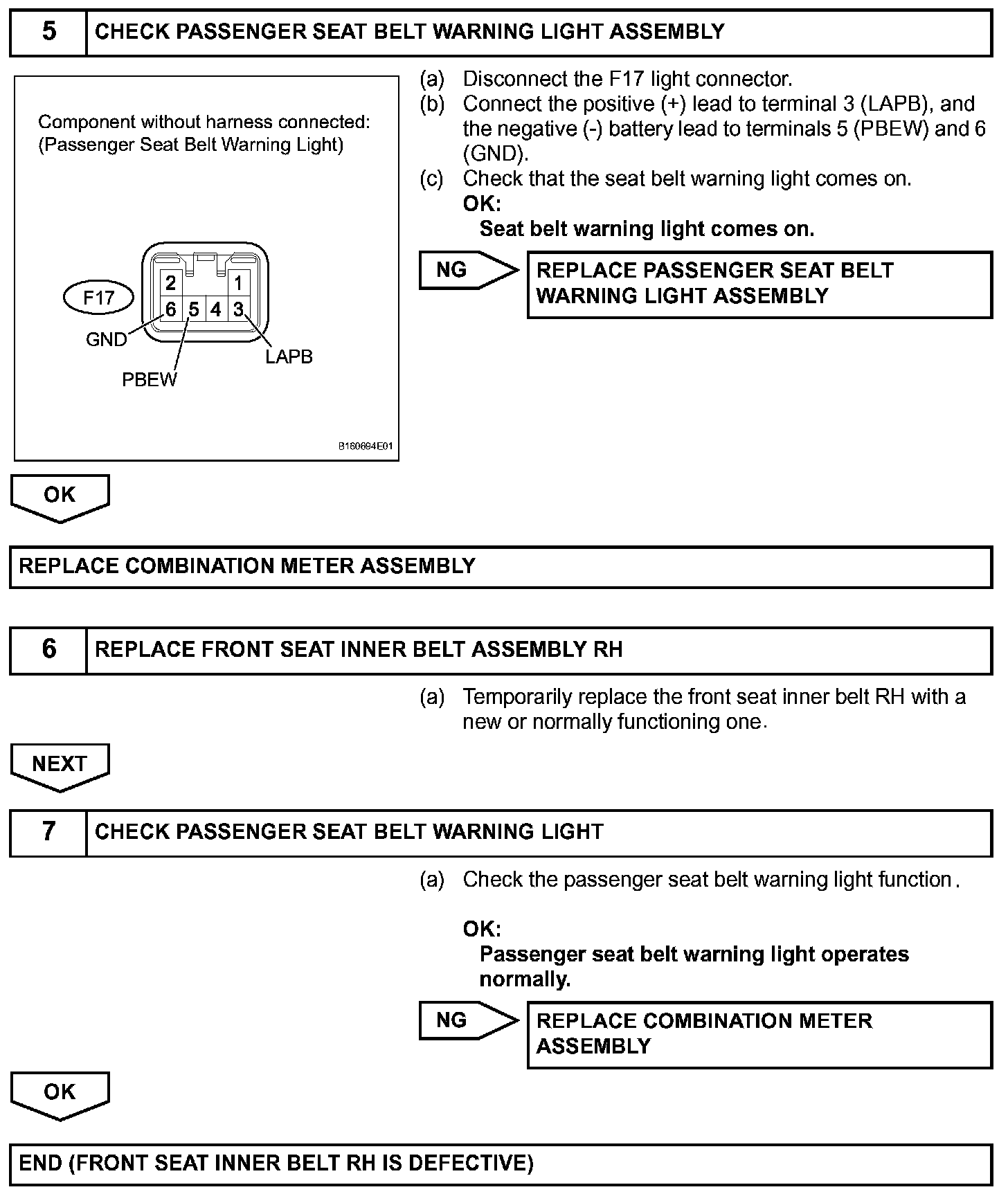

Step 5-7:

INSPECTION PROCEDURE
