Driver Side Seat Belt Warning Light Does Not Operate
Driver Side Seat Belt Warning Light does not OperateDESCRIPTION
When the ignition switch is ON, the center airbag sensor transmits front seat inner belt state signals to the combination meter through BEAN. If the driver seat belt is not fastened, the combination meter blinks the driver seat belt warning light. If the seat belt is fastened, the warning light goes off.

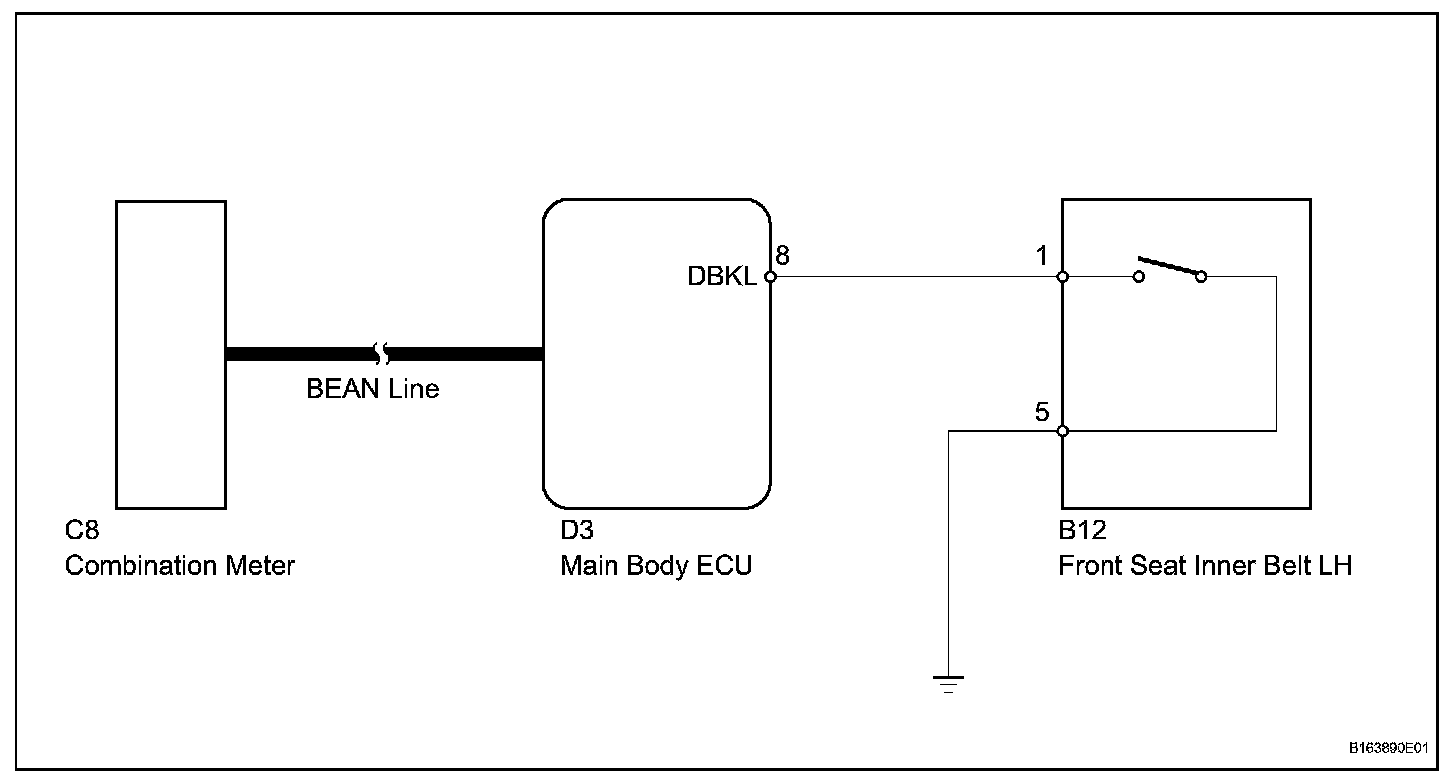

Wiring Diagram:
Step 1-2:

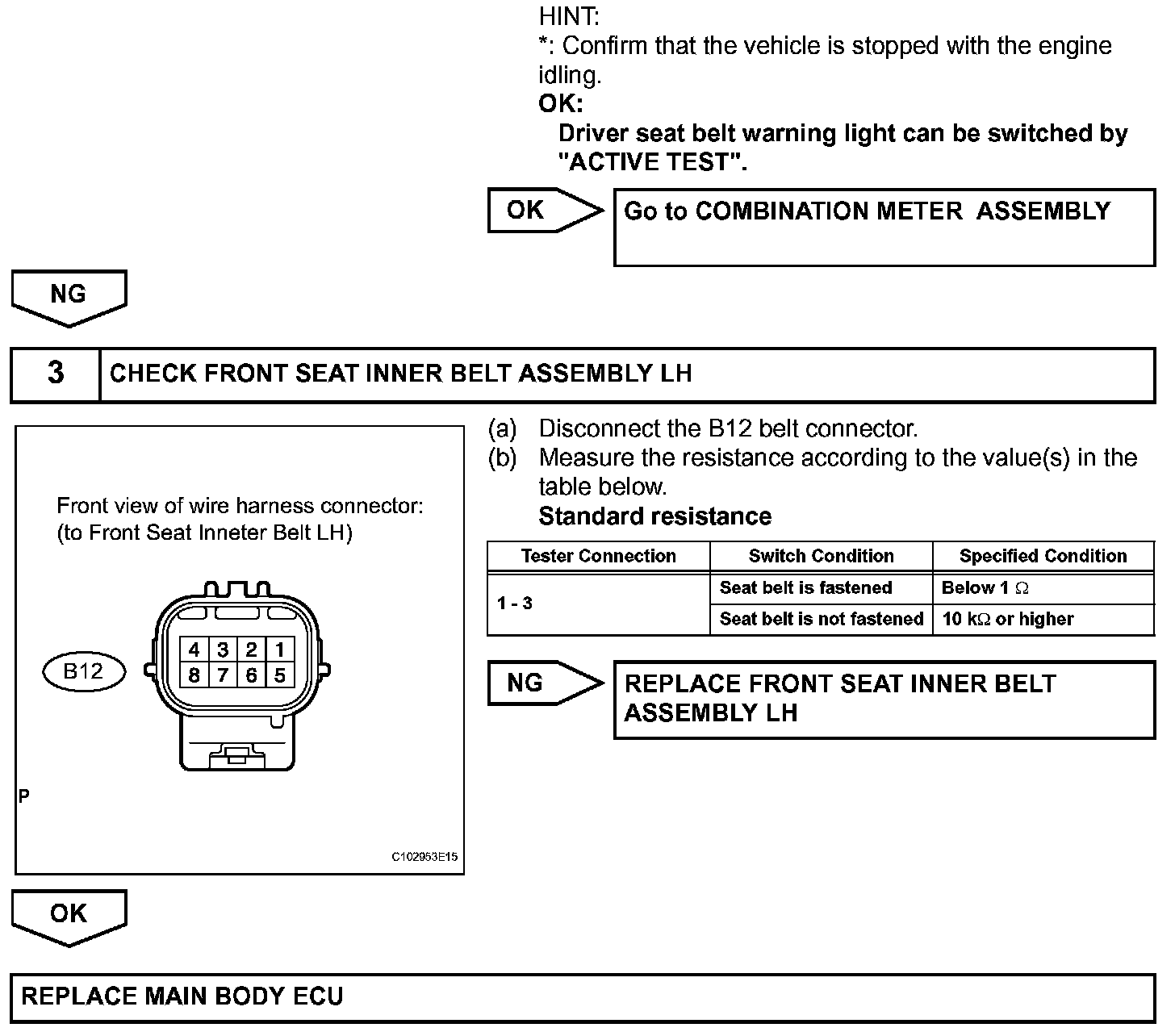

Step 2 (Continued)-3:
INSPECTION PROCEDURE
