Seat Belt Warning System (W/ Occupant Classification System)

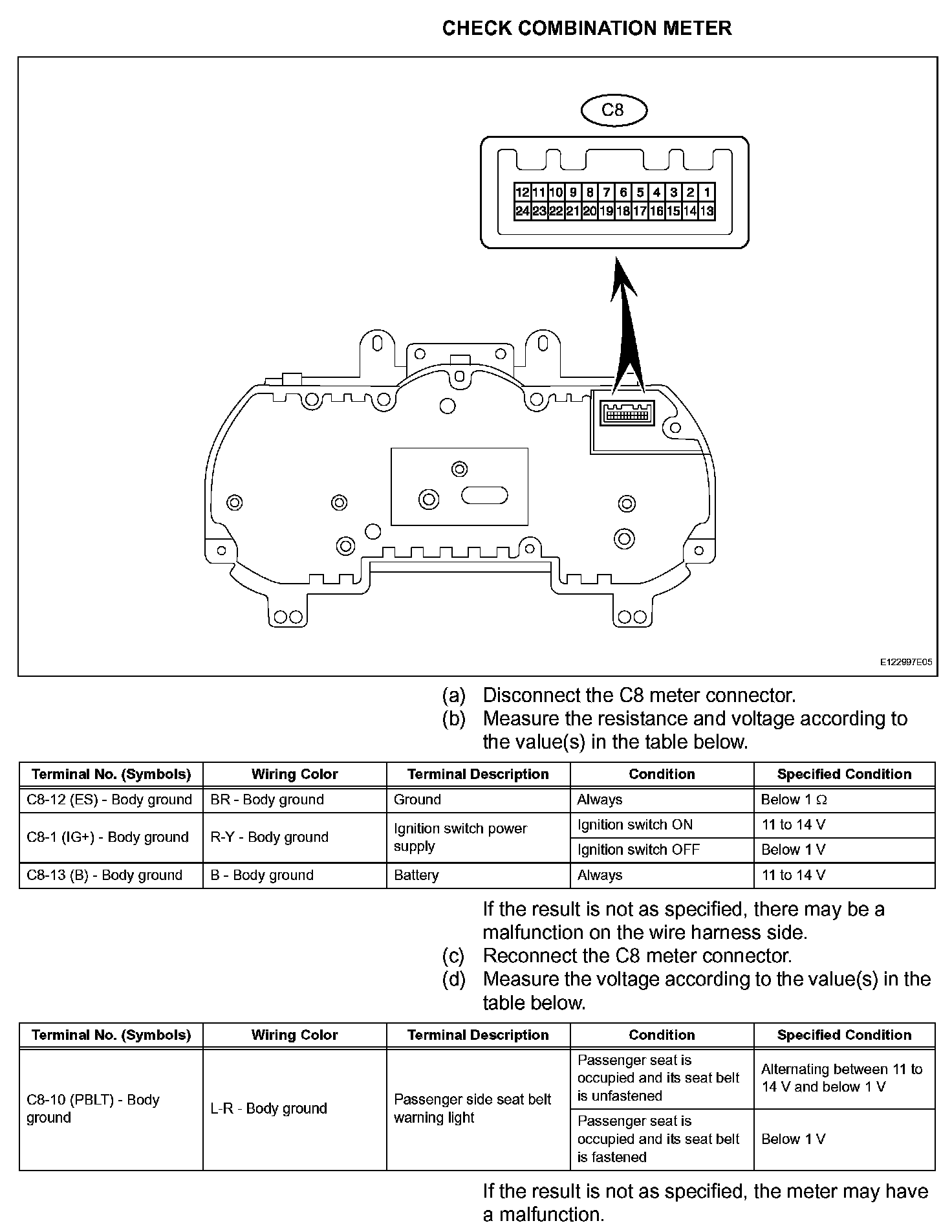

Terminals Of Control Module/Pinouts - Check Combination Meter:

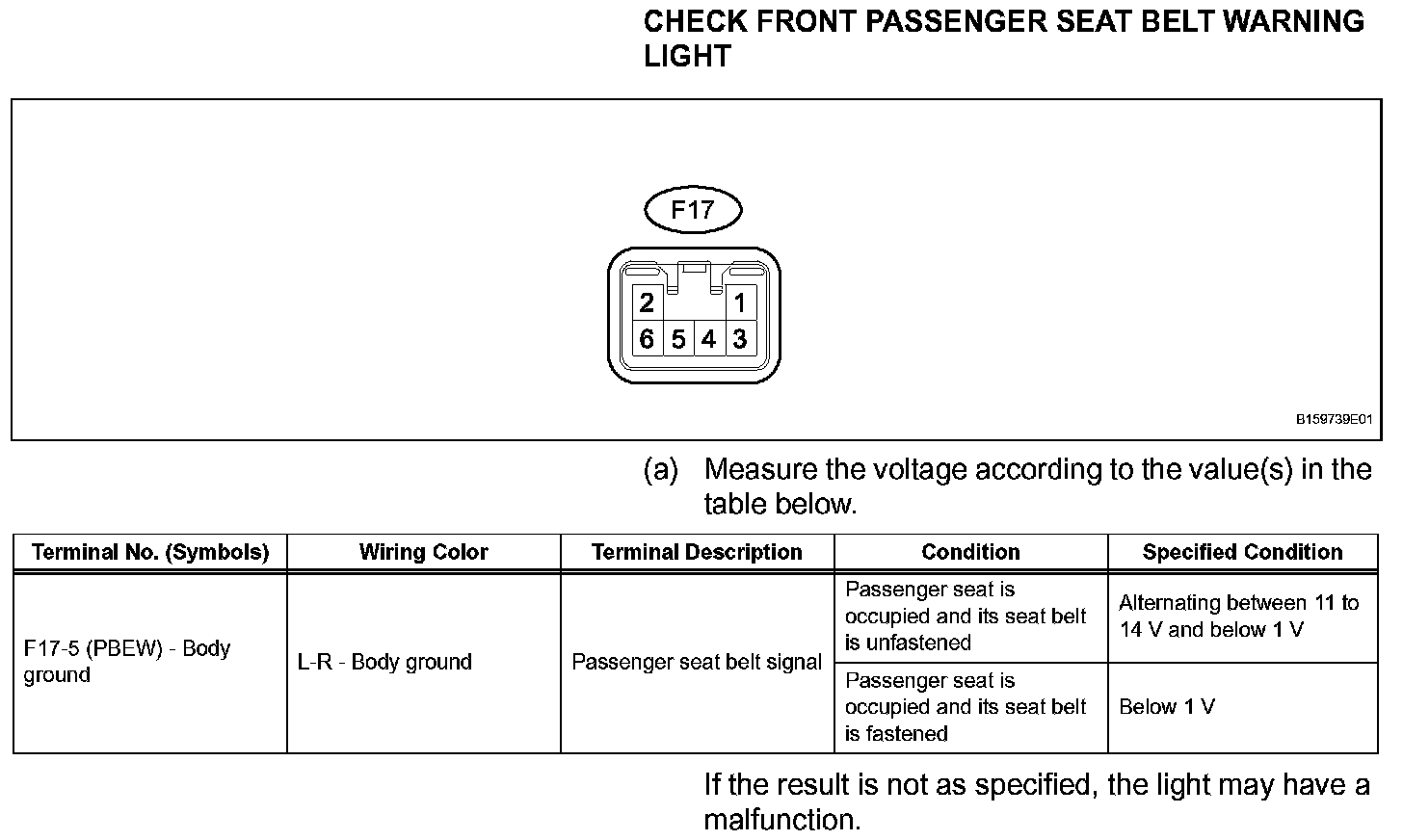

Terminals Of Control Module/Pinouts - Check Front Passenger Seat Belt Warning Light:

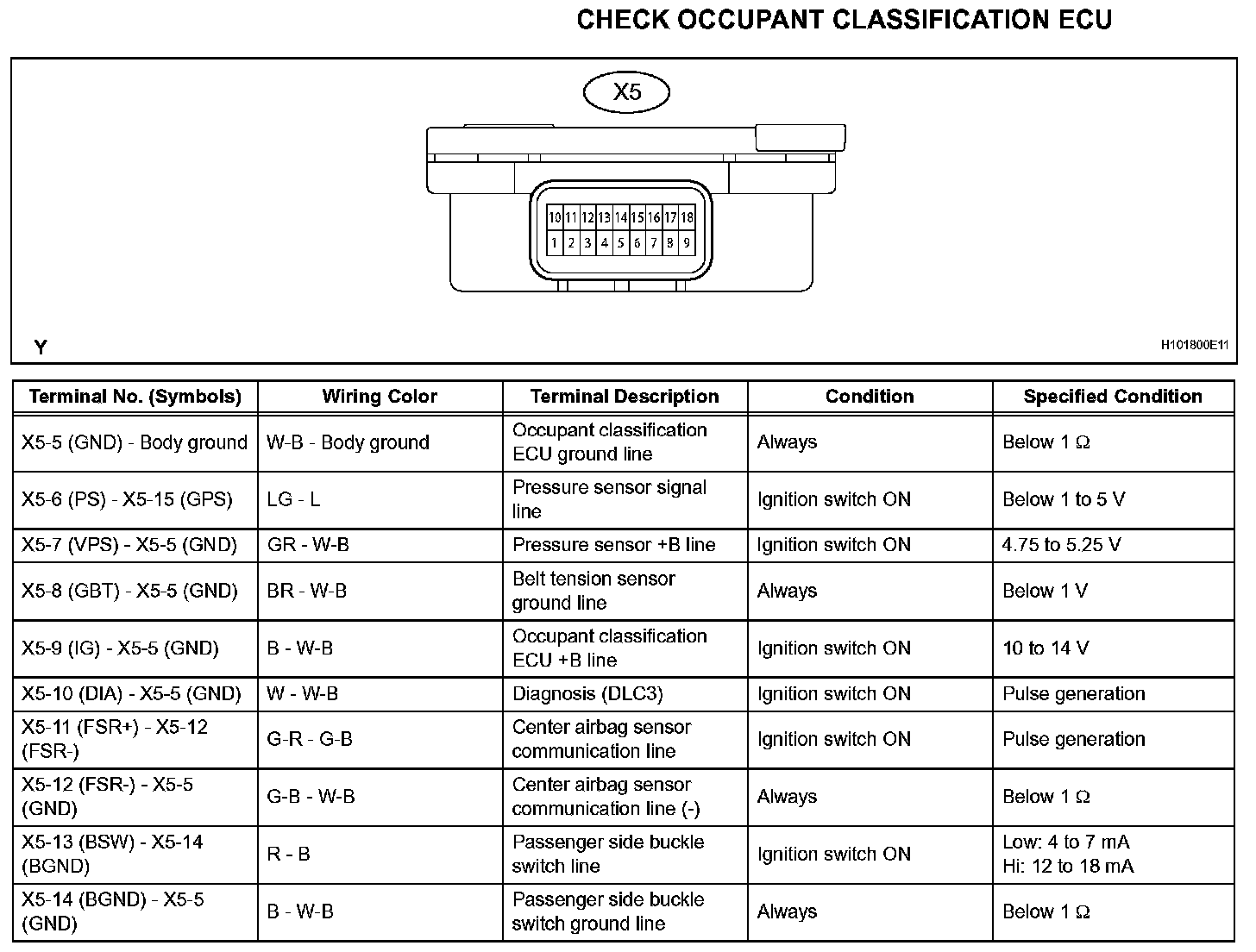

Terminals Of Control Module/Pinouts - Check Occupant Classification ECU (Part 1):

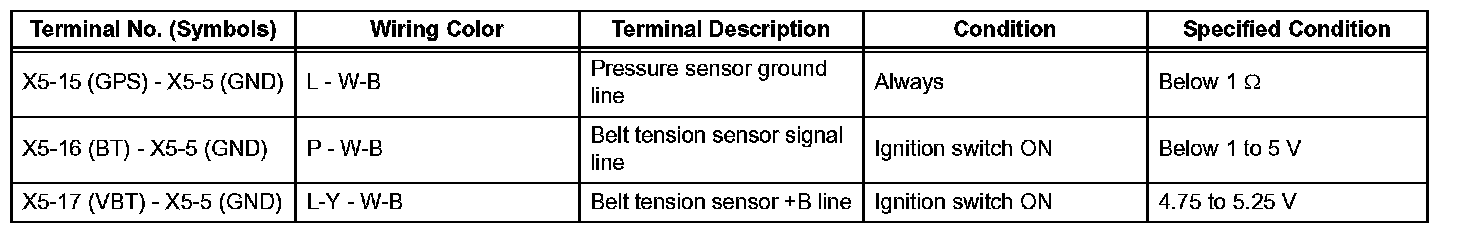

Terminals Of Control Module/Pinouts - Check Occupant Classification ECU (Part 2):

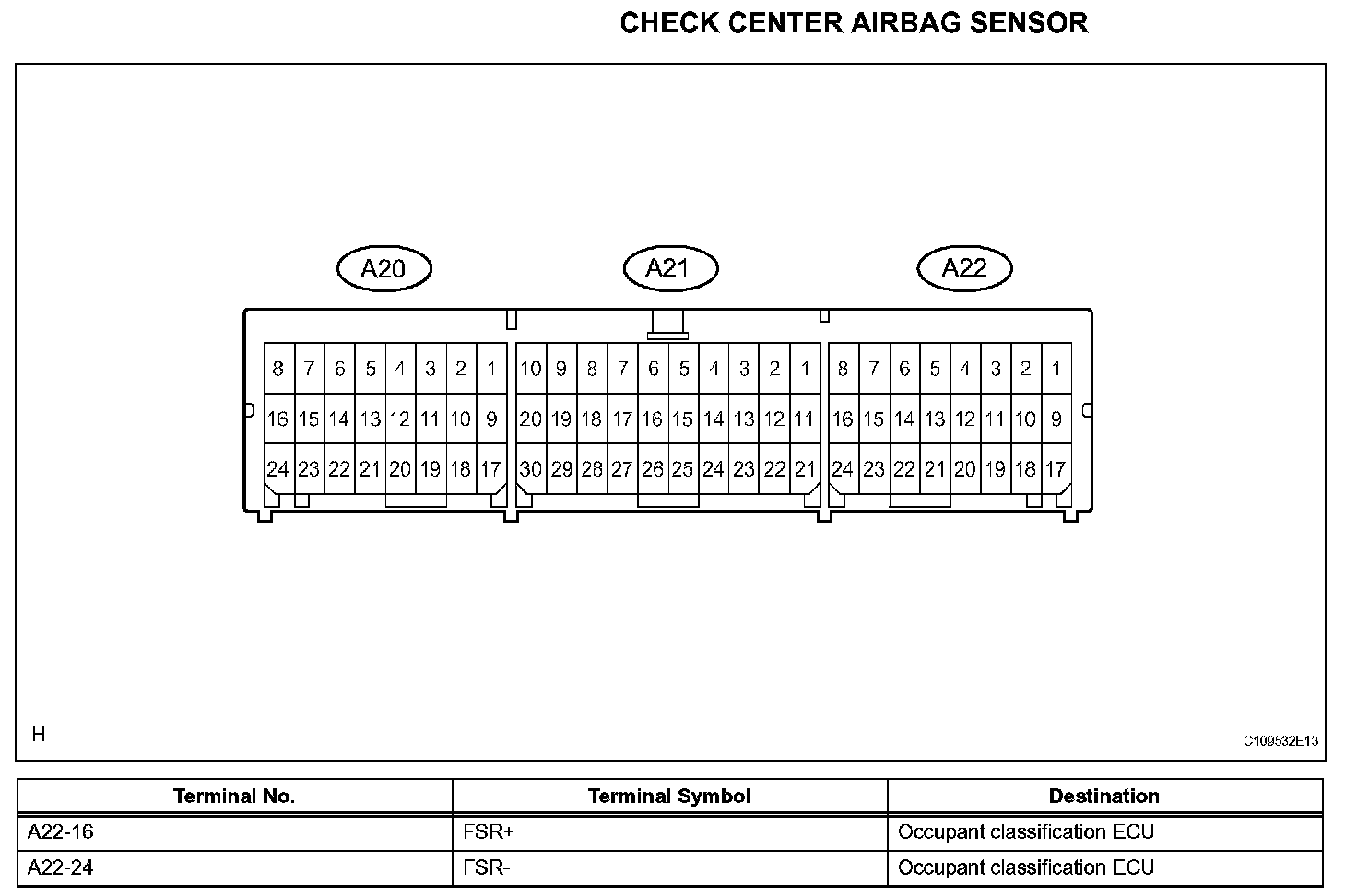

Terminals Of Control Module/Pinouts - Check Center Airbag Sensor:

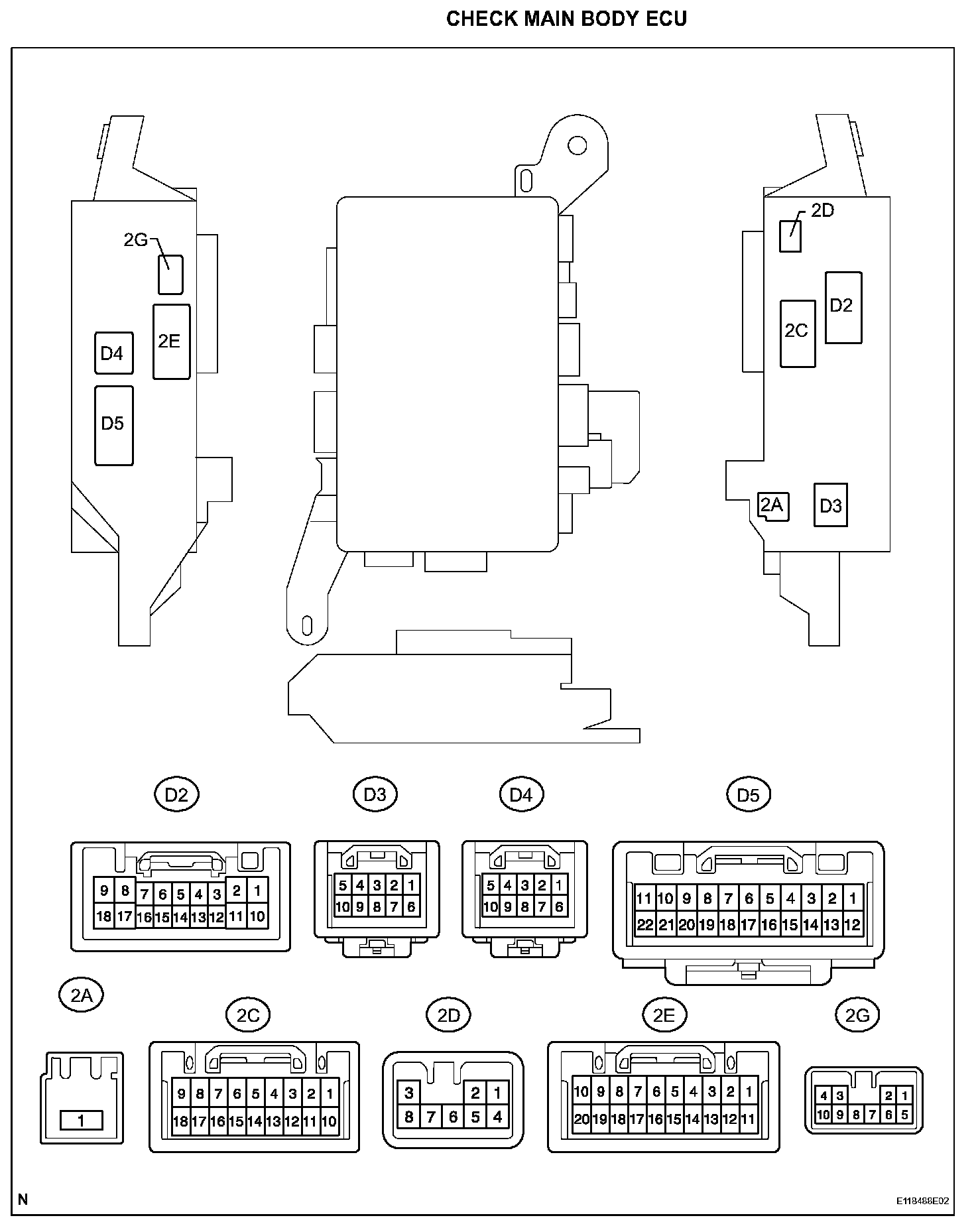

Terminals Of Control Module/Pinouts - Check Main Body ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Main Body ECU (Part 2):
