Component Inspection

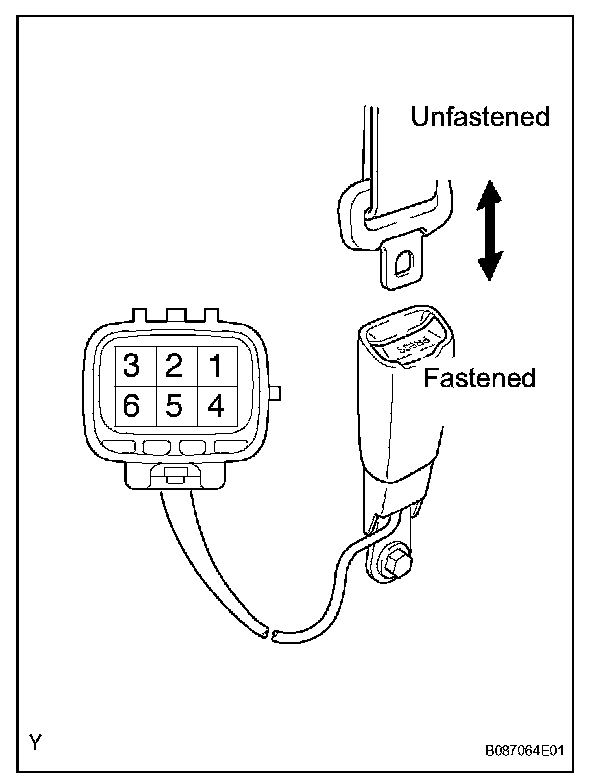

INSPECTION1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

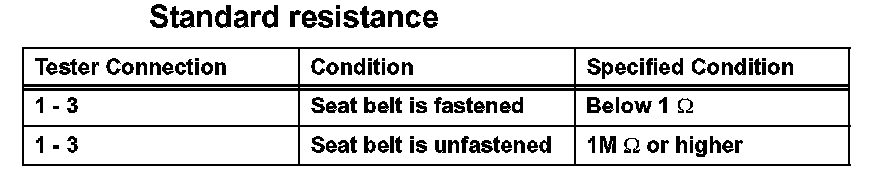

a. Measure the resistance of the buckle switch.
If the result is not as specified, replace the inner belt assembly.
b. Check the front seat inner illumination.

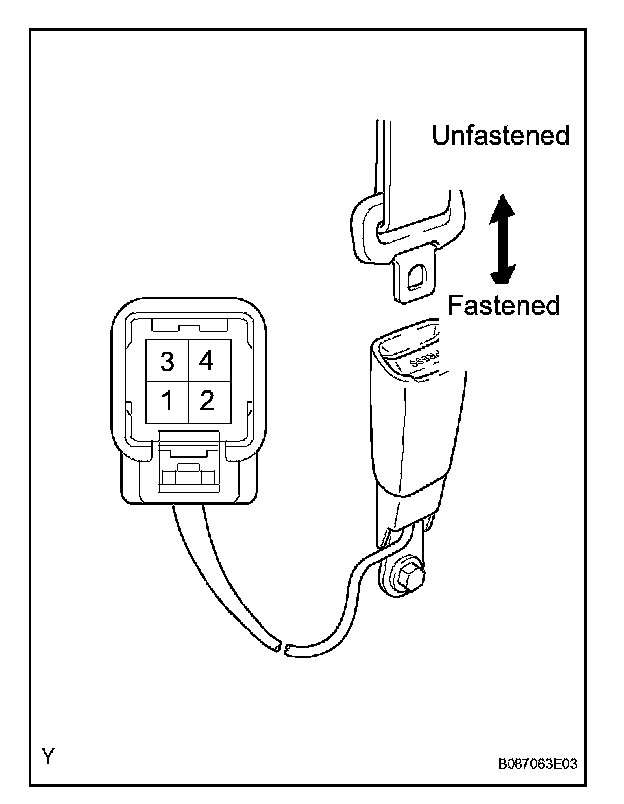

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH

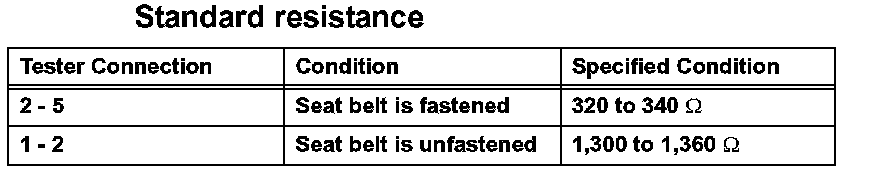

a. Measure the resistance of the buckle switch.
If the result is not as specified, replace the inner belt assembly.
b. Check the front seat inner illumination.

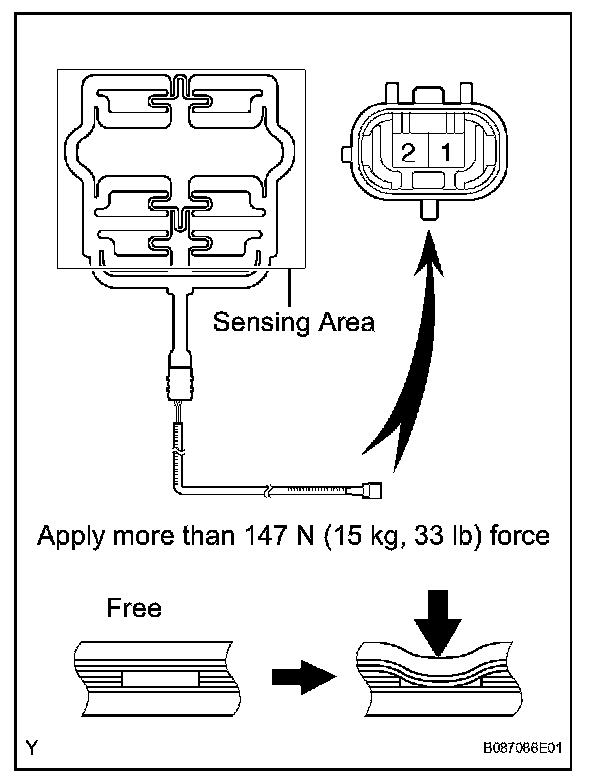

3. INSPECT OCCUPANT DETECTION SENSOR

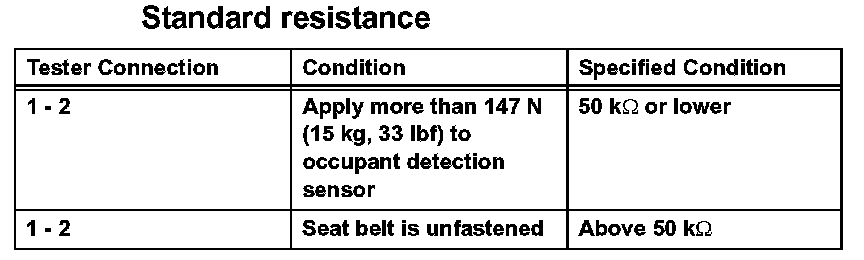

a. Measure the resistance of the buckle switch.
If the result is not as specified, replace the inner belt assembly.
