Rear Seat Outer Belt

INSPECTION

1. INSPECT REAR SEAT OUTER BELT ASSEMBLY

NOTE: Do not disassemble the retractor.

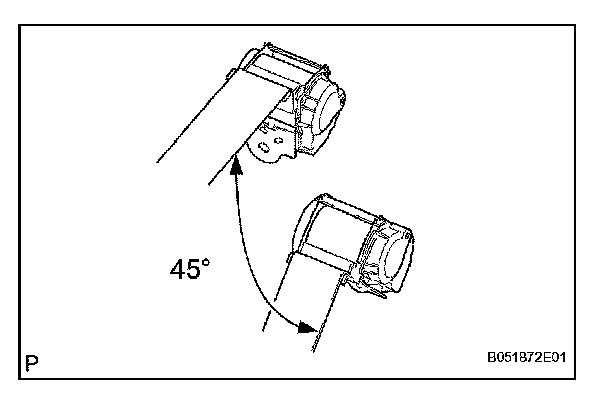

a. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the operation is not as specified, replace the belt.
