REAR SEAT INNER BELT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR SEAT CUSHION ASSEMBLY




2. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

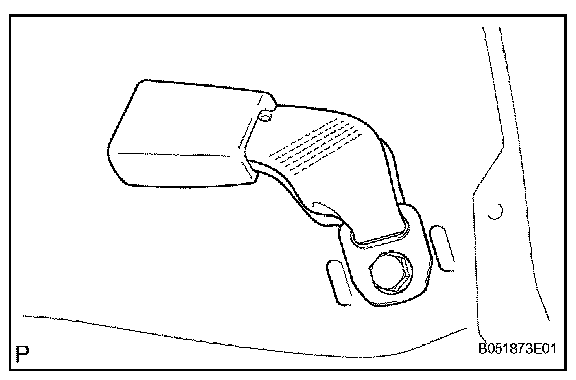

a. Remove the bolt and seat belt.

3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

HINT: Use the same procedures described for the LH side.

INSTALLATION

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH




a. Install the seat belt with the bolt.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

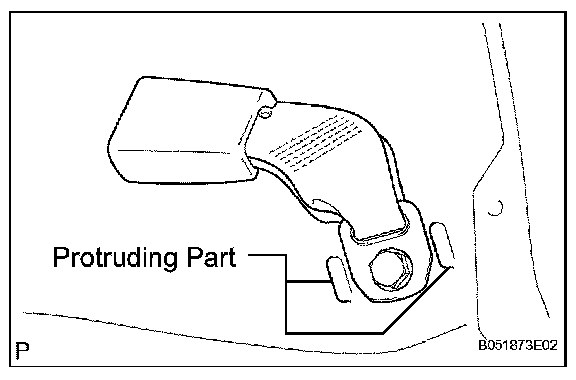

NOTE: Do not overlap the anchor part and protruding part of the floor panel.

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH

HINT: Use the same procedures described for the LH side.

3. INSTALL REAR SEAT CUSHION ASSEMBLY.
