Seat Belt Tensioner Reduction Solenoid: Testing and Inspection

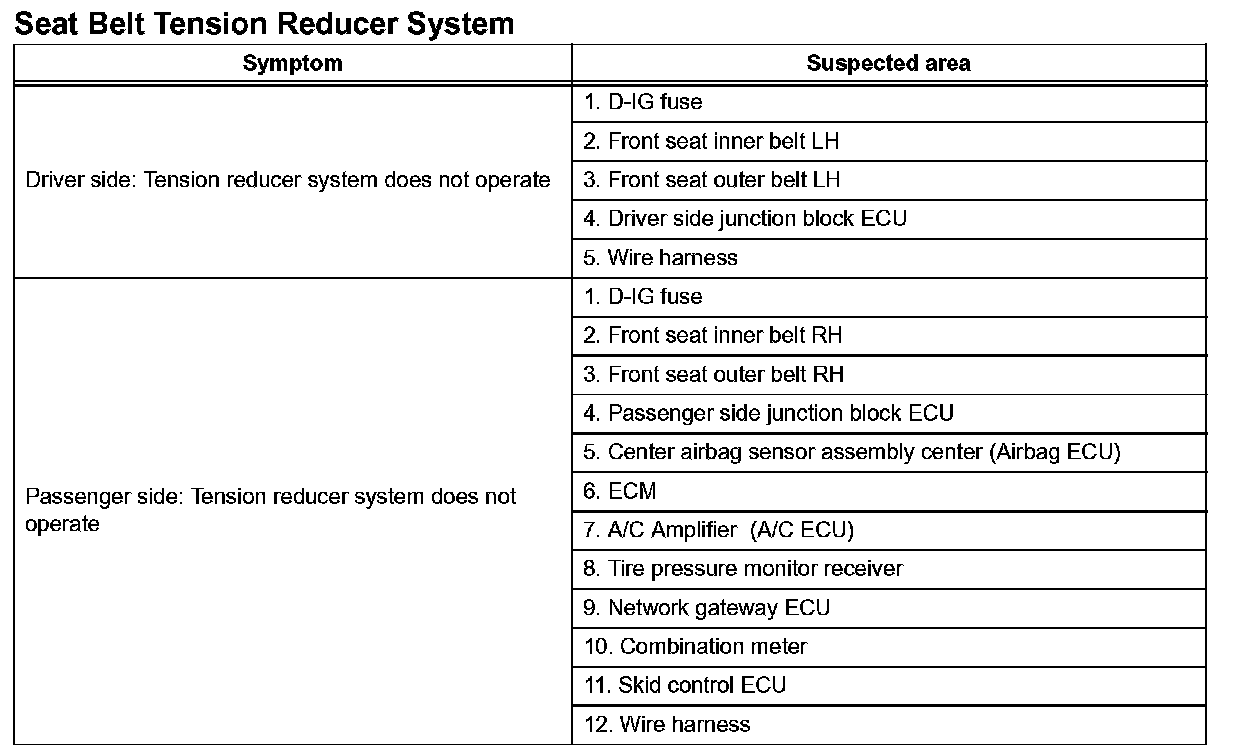

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table - Seat Belt Tension Reducer System:

HINT: Use the table to help determine the cases of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in order they are listed. Replace parts as necessary.
