Driver Side Knee Airbag

ON-VEHICLE INSPECTION

1. CHECK DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)




a. Perform a diagnostic system check.

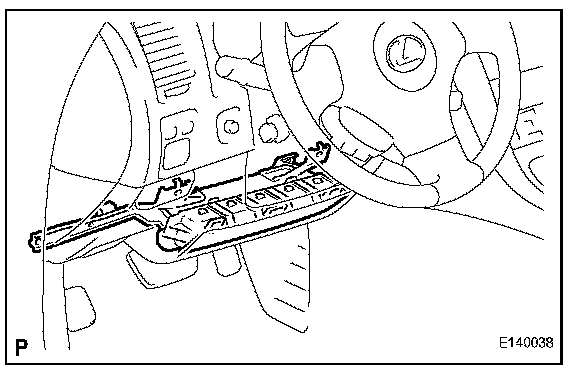

b. With the driver side knee airbag installed on the vehicle, perform a visual check including the following: Cuts, minute cracks or marked discoloration on the driver side knee airbag.

2. CHECK DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)




a. Perform a diagnostic system check.
b. With the driver side knee airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the driver side knee airbag with a new one:
- Cuts, minute cracks or marked discoloration on the driver side knee airbag.
- Cracks or other damage to the connector.
- Deformation or cracks on the instrument panel reinforcement.

CAUTION: For removal and installation procedures of the driver side knee airbag, be sure to follow the correct procedure.
