Front Passenger Side Knee Airbag Assembly

Front Passenger Side Knee Airbag Assembly:

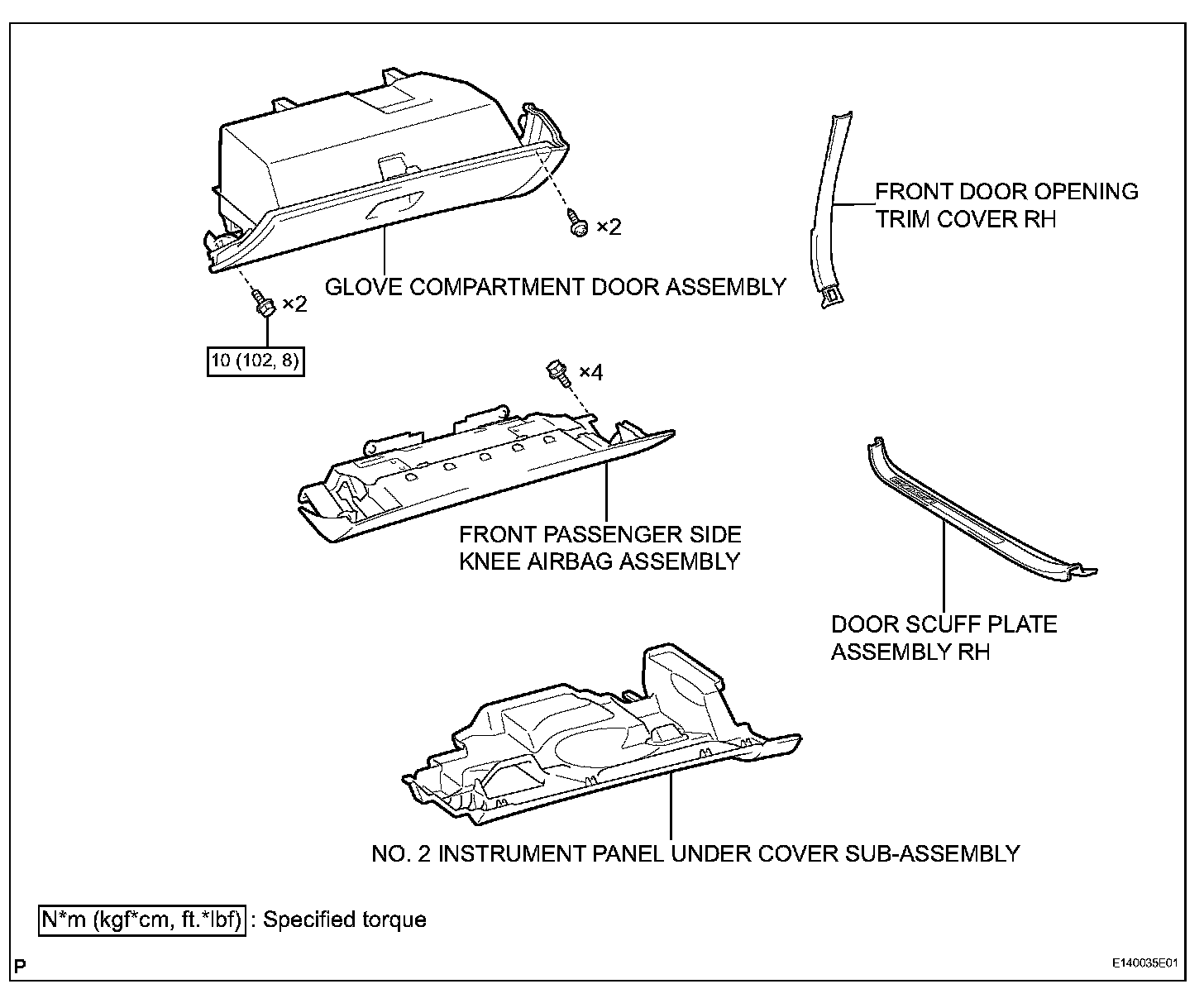

FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
3. REMOVE FRONT DOOR OPENING TRIM COVER RH
4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
6. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

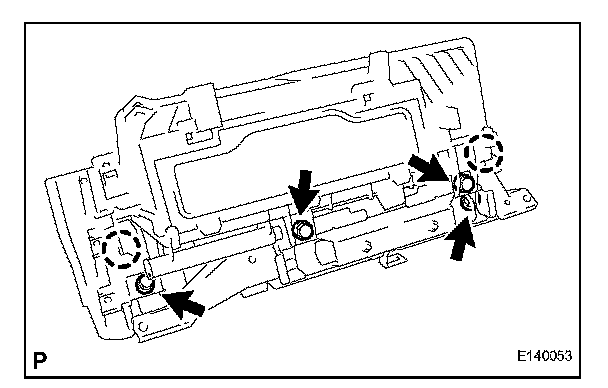

a. Remove the 4 bolts.
b. Detach the 2 claws and remove the front passenger airbag.

INSTALLATION

1. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY




a. Attach the 2 claws and to install the front passenger airbag.
b. Install the 4 bolts.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. INSTALL FRONT DOOR OPENING TRIM COVER RH
5. INSTALL DOOR SCUFF PLATE ASSEMBLY RH
6. CONNECT BATTERY NEGATIVE TERMINAL
7. PERFORM INITIALIZATION

a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT

a. Check the SRS warning light.
