Front Passenger Side Knee Airbag Assembly
DISPOSALHINT: When scrapping a vehicle equipped with the SRS or disposing of the front passenger side knee airbag assembly, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:
- Never dispose of a front passenger side knee airbag assembly that has an unactivated airbag.
- The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
- When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
- When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the front passenger side knee airbag.
- The front passenger side knee airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment-
- Use gloves and safety glasses when handling a front passenger side knee airbag with a deployed airbag.
- Do not apply water to a front passenger side knee airbag assembly with a deployed airbag.
- Always wash your hands with water after completing the operation.
1. DISPOSE OF FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)
HINT: Prepare a battery as the power source to deploy the airbag.

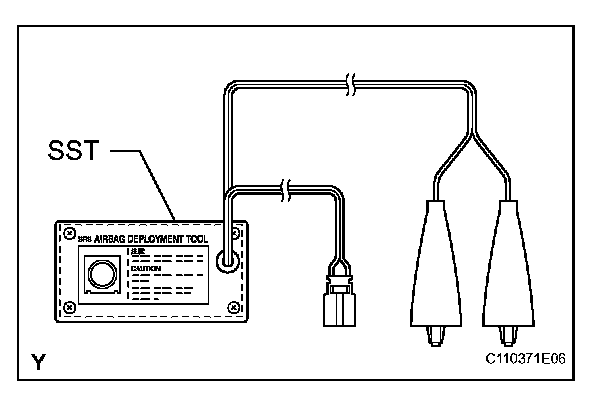

a. Check the function of SST.
b. Read the PRECAUTION, refer to Restraint Systems Service Precautions.
c. Disconnect the cable from the negative battery terminal.
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
d. Remove the front passenger side knee airbag
e. Install SST.
1. Connect the SST connector to the front passenger side knee airbag.
SST 09082-00700, 09082-00770
NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
2. Install the front passenger side knee airbag.
NOTE: Take care not to damage the SST wire harness.
3. Move SST at least 10 m (33 ft.) away from the vehicle front side window.
4. Maintaining enough clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.
5. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the battery negative (-) terminal.
f. Deploy the airbag.
1. Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.
2. Press the SST activation switch and deploy the airbag.
CAUTION:
- When deploying the airbag, make sure that no one is near the vehicle.
- The front passenger side knee airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling a front passenger side knee airbag assembly with a deployed airbag.
- Do not apply water to a front passenger side knee airbag with a deployed airbag.
- Always wash your hands with water after completing the operation.
HINT: The airbag is deployed as the LED of the SST activation switch comes on.
2. DISPOSE OF FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
NOTE: Be sure to follow the procedure detailed below when deploying the airbag.
HINT: Prepare a battery as the power source to deploy the airbag.

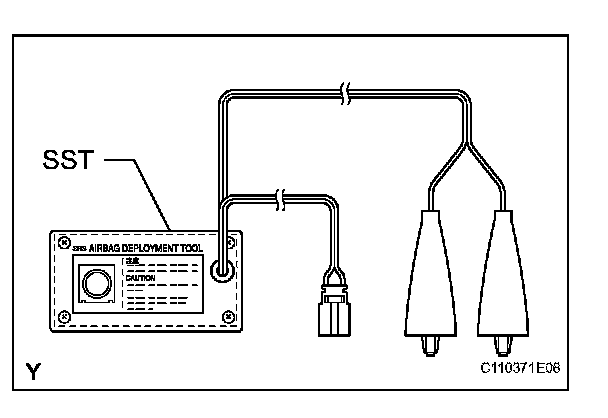

a. Check the function of the SST
b. Remove the front passenger side knee airbag.
CAUTION:
- When removing the front passenger side knee airbag, work must be started 90 seconds after the ignition switch is turned OFF and the negative (-) terminal cable is disconnected from the battery
- When storing the front passenger side knee airbag, keep the airbag deployment side facing upward.
c. Using a service-purpose wire harness for the vehicle, tie down the front passenger side knee airbag assembly to the tire.
Wire harness: Stripped wire harness section 1.25 sq.mm or more (0.0019 sq.in or more)
CAUTION: If the wire harness is too thin or an alternative object is used to tie down the front passenger side knee airbag, it may be snapped by the shock when the airbag is deployed. Always use a wire harness for vehicle use with an area of at least 1.25 sq.mm (0.0019 sq.in.)

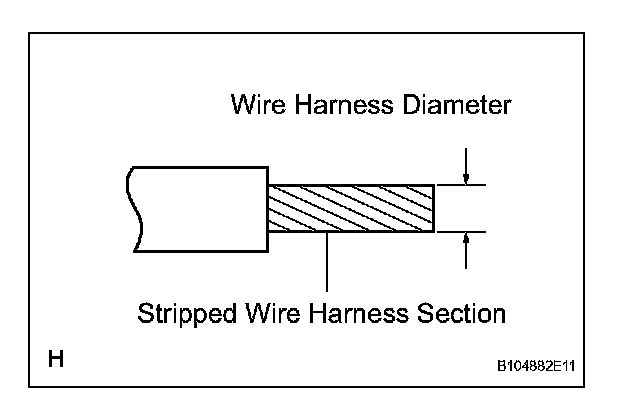

HINT: To calculate the area of the stripped wire harness section:
Area = 3.14 x Sq.(Diameter) divided by 4
1. Position the front passenger side knee airbag inside the tire with the airbag deployment side facing inside.
Tire size: Must exceed the following dimensions
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
2. Tie the front passenger side knee airbag to the tire with several wire harnesses.
CAUTION:
- Make sure that the wire harnesses are tight. If there is slack in the wire harnesses, the front passenger side knee airbag may become loose due to the shock when the airbag is deployed.
- Always tie down the front passenger side knee airbag with the airbag deployment side facing inside the tire.
NOTE: As the tires may be damaged by the airbag deployment, use a tire that you are planning to throw away.
d. Install SST.
1. Connect the SST connector to the front passenger side knee airbag.
SST 09082-00770
e. Place the tires.

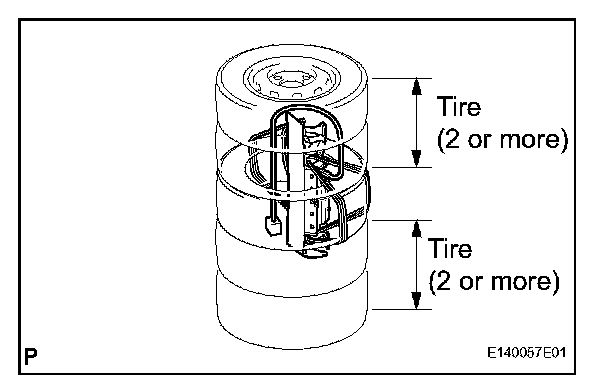

1. Place at least 2 tires under the tire which the front passenger side knee airbag assembly is tied to.
2. Place at least 2 tires over the tire which the front passenger side knee airbag assembly is tied to.The top tire should have a disc wheel installed.
NOTE:
- Do not place the SST connector under the tire because it could be damaged.
- As the disc wheel may be damaged by the airbag deployment, use a disc wheel that you are planning to throw away.
- As the tires may be damaged by the airbag deployment, use a tire that you are planning to throw away.
3. Tie the tires together with 2 wire harnesses.
CAUTION: Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed.
f. Install SST.
1. Connect the SST connector.
SST 09082-00700
NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.
g. Deploy the airbag.

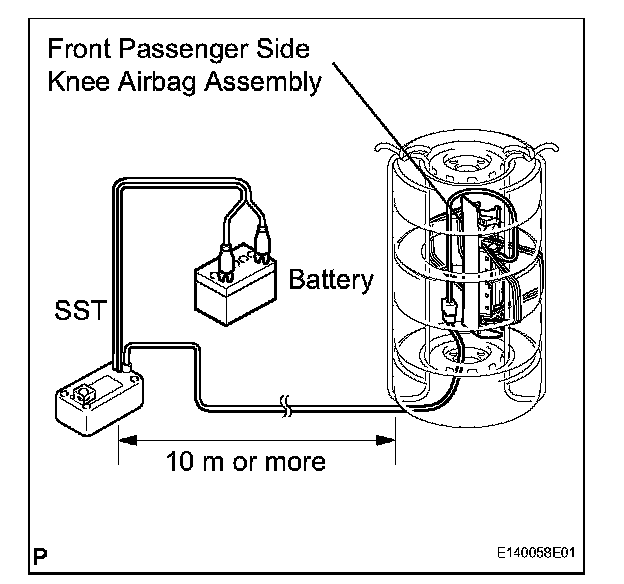

1. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the battery negative (-) terminal.
2. Check that no one is within a 10 m (33 ft.) radius of the tire which the front passenger side knee airbag assembly is tied to.
3. Press the SST activation switch and deploy the airbag.
CAUTION: When deploying the airbag, make sure that no one is near the tire.
HINT: The airbag is deployed as the LED of the SST activation switch comes on.
h. Dispose of the front passenger side knee airbag.
CAUTION:
- The front passenger side knee airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling a front passenger side knee airbag with a deployed airbag.
- Do not apply water to a front passenger side knee airbag with a deployed airbag.
- Always wash your hands with water after completing the operation.
1. Remove the front passenger side knee airbag from the tire.

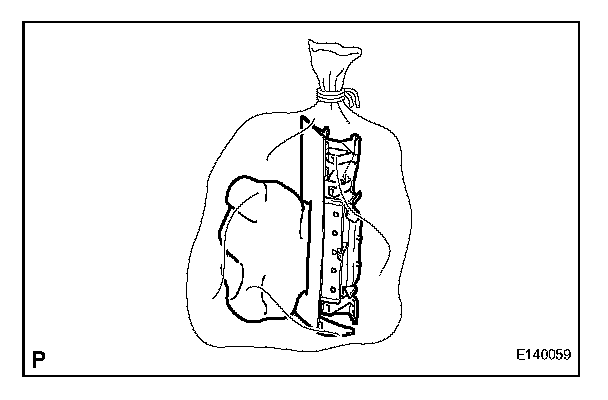

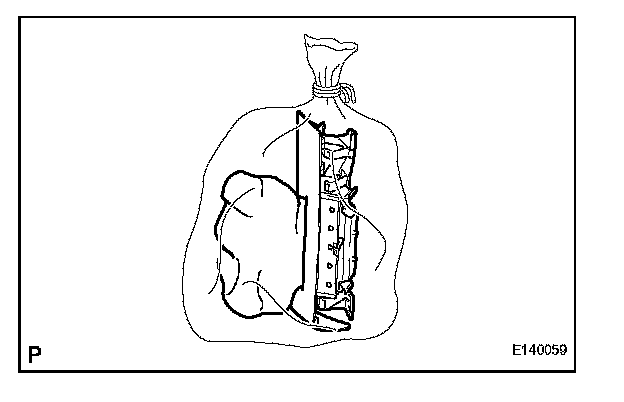

2. Place the front passenger side knee airbag in a plastic bag, tie it tightly and dispose of it in the same way as other general parts.
