Starter Relay: Testing and Inspection

ON-VEHICLE INSPECTION

1. CHECK STARTER RELAY

a. Remove the relay from the engine room No. 2 relay block.

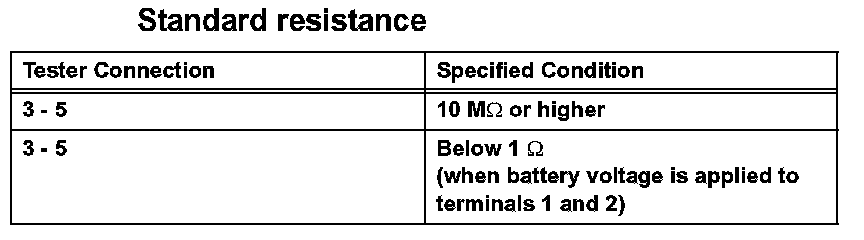

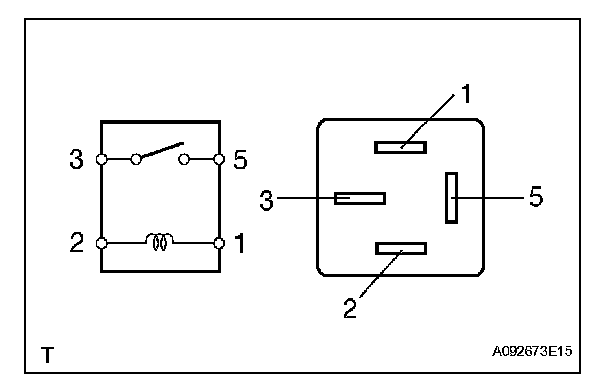

b. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

c. Install the relay.
