Ignition Switch: Testing and Inspection

INSPECTION

1. INSPECT IGNITION SWITCH ASSEMBLY

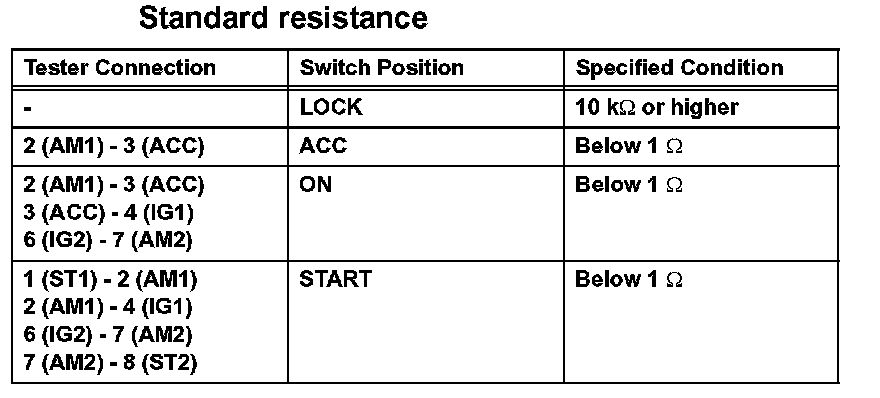

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.
