FAIL-SAFE CHART

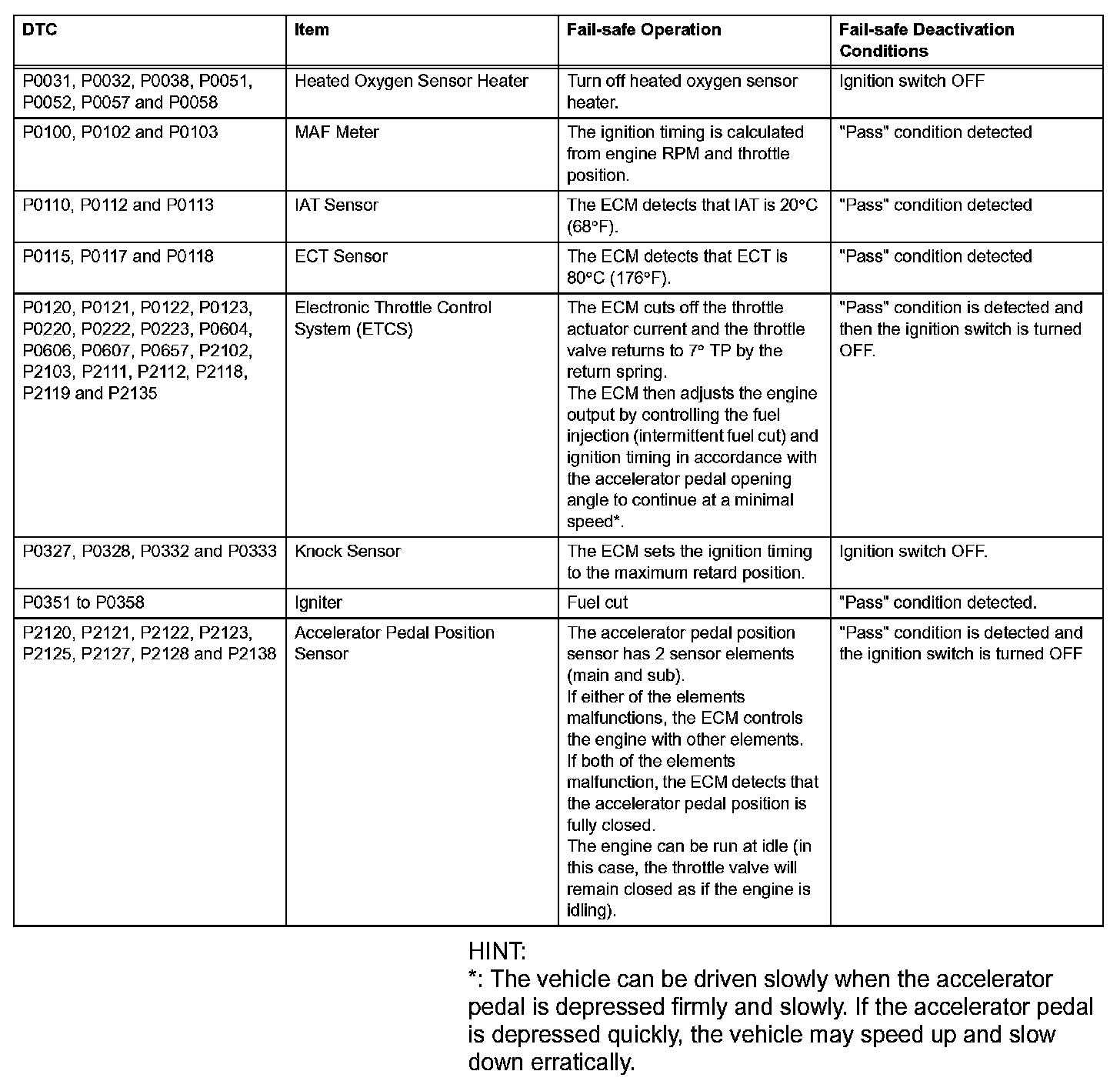

Fail-Safe Chart:
If any of the following codes are recorded, the ECM enters the fail-safe mode.
