Heated Oxygen Sensor (For Sensor 2)

INSPECTION

1. INSPECT HEATED OXYGEN SENSOR

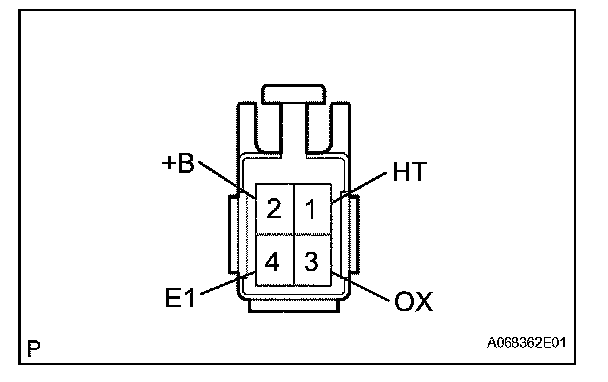

a. Measure the resistance of the sensor.

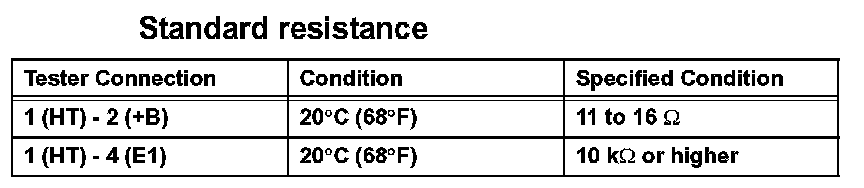

If the resistance is not as specified, replace the sensor.
