Heated Oxygen Sensor (For Sensor 2)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE CONSOLE BOX ASSEMBLY.
a. Remove the console box.

3. REMOVE ENGINE UNDER COVER
4. REMOVE NO. 2 ENGINE UNDER COVER.

5. REMOVE HEATED OXYGEN SENSOR (for Bank 1)
a. Disconnect the sensor connector.
b. Disconnect the grommet and pull the sensor connector out of the cabin through the floor panel.

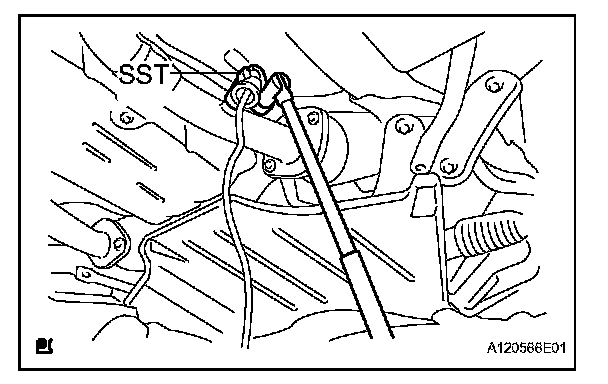

c. Using SST, remove the sensor.

SST 09224-00010

6. REMOVE HEATED OXYGEN SENSOR (for Bank 2)
a. Disconnect the sensor connector.
b. Disconnect the grommet and pull the sensor connector out of the cabin through the floor panel.

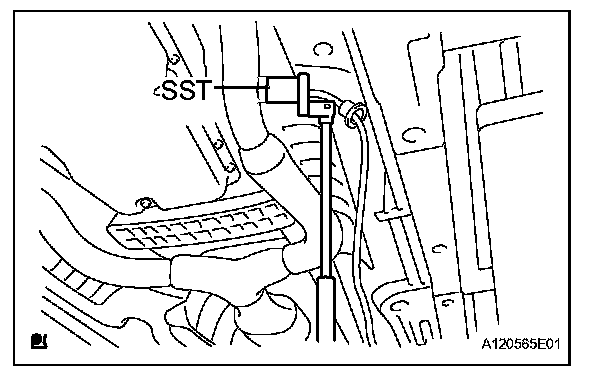

c. Using SST, remove the sensor.

SST 09224-00010

INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

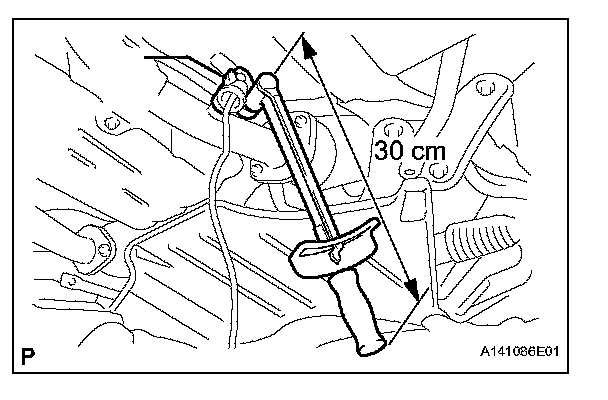

a. Using SST, install the sensor.

SST 09224-00010

Torque:
40 N.m (408 kgf.cm, 30 ft.lbf) for use with SST
44 N.m (449 kgf.cm, 32 ft.lbf) for use without SST

HINT:

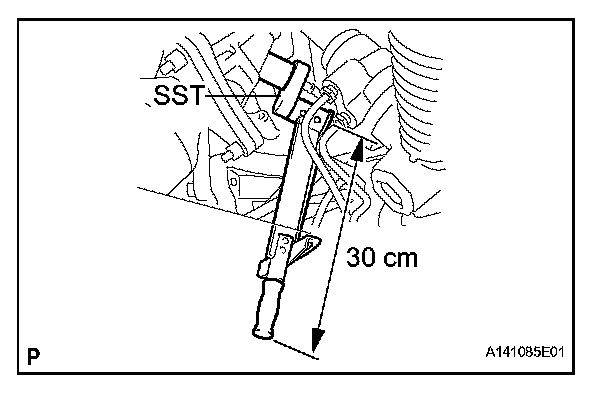

- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
- Make sure SST and wrench are connected in a straight line.

b. Pass the sensor connector through the floor panel and into the cabin, and install the grommet.
c. Connect the sensor connector.

3. INSTALL ENGINE UNDER COVER.
4. INSTALL NO. 2 ENGINE UNDER COVER.

5. INSTALL CONSOLE BOX ASSEMBLY.
a. Install the console box assembly.

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL.

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
