Multiplex Communication System

TERMINALS OF ECU

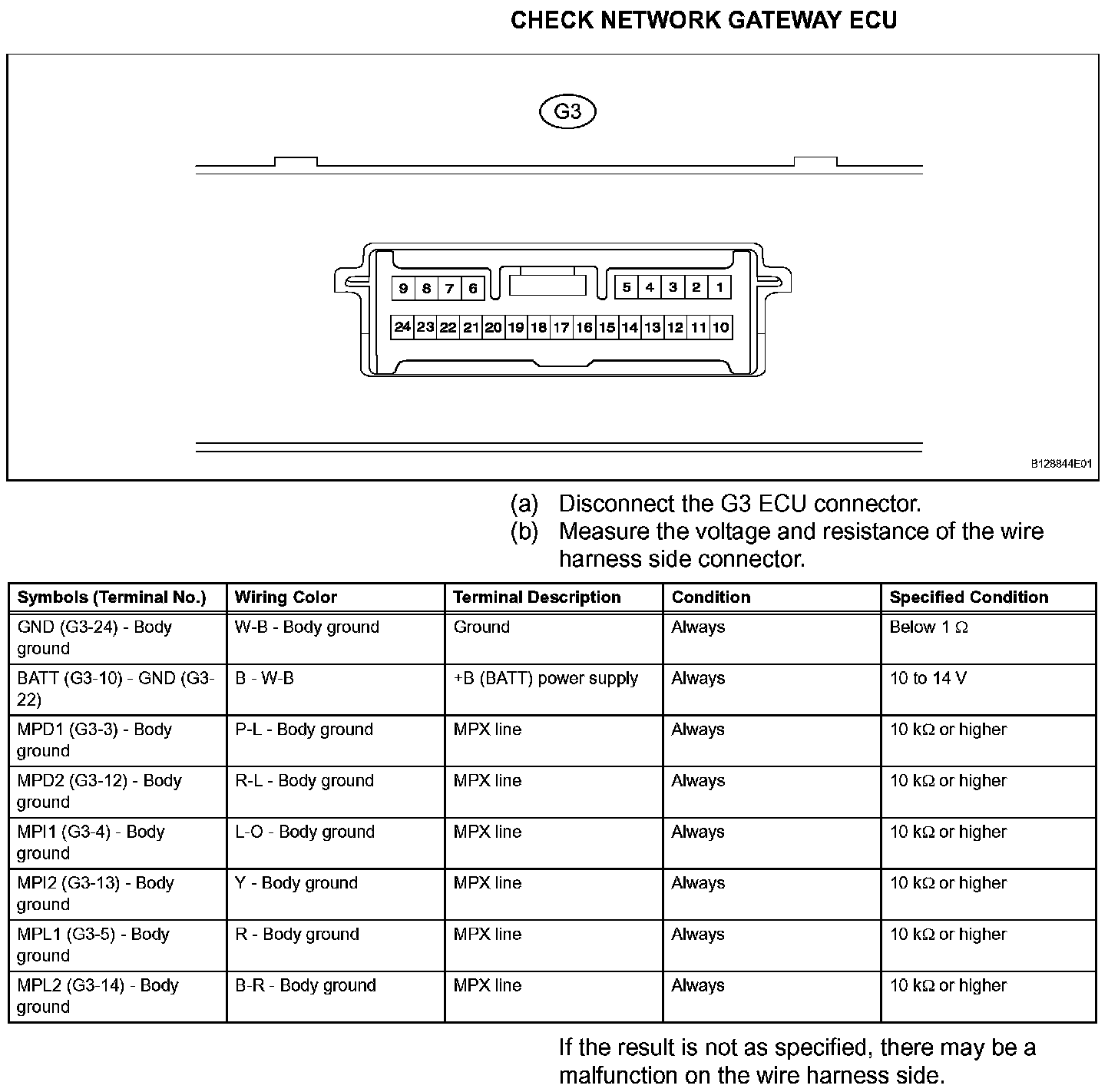

1. CHECK NETWORK GATEWAY ECU

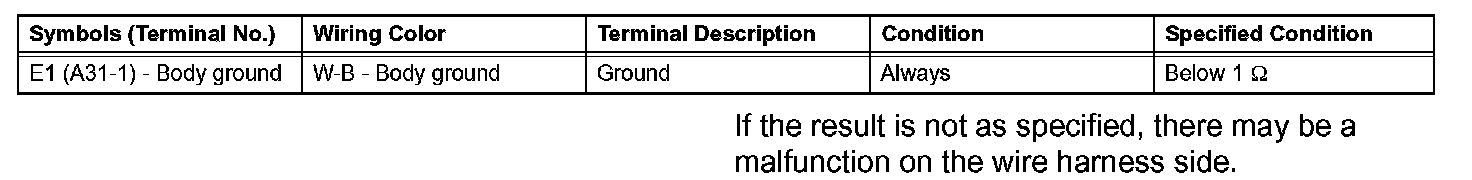

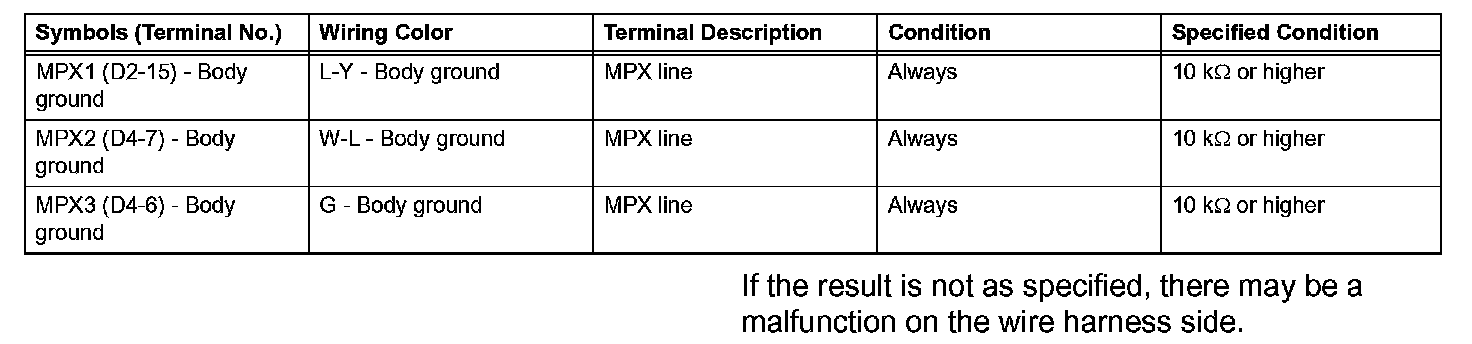

Terminals Of Control Module/Pinouts - Check Network Gateway ECU:

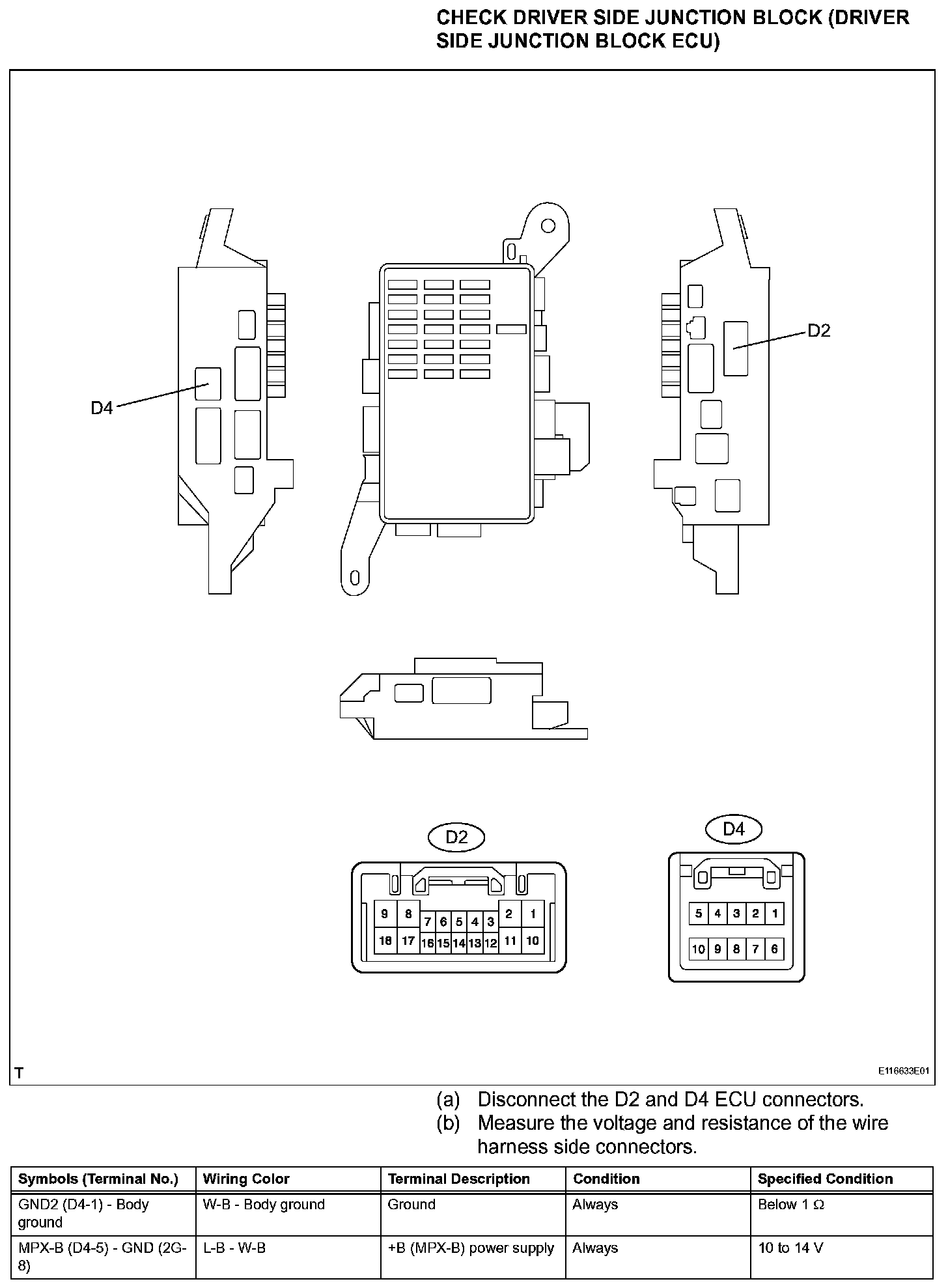

2. CHECK DRIVER SIDE JUNCTION BLOCK (DRIVER SIDE JUNCTION BLOCK ECU)

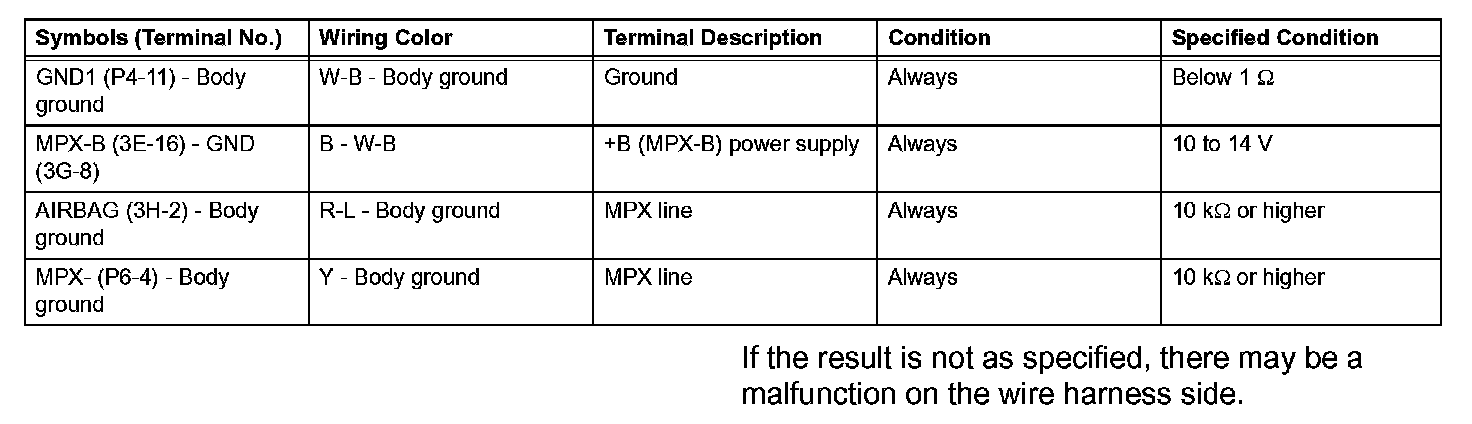

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 2):

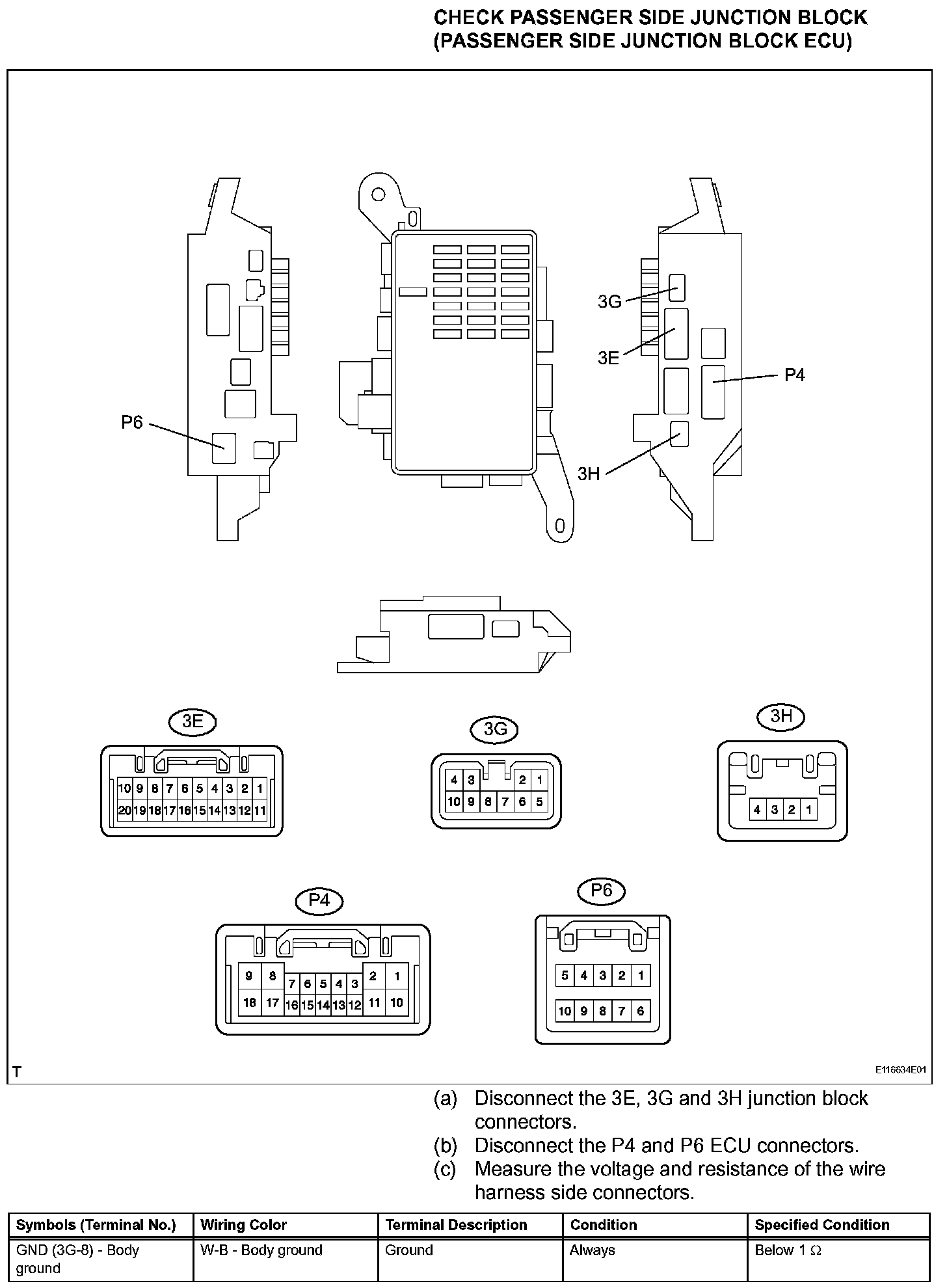

3. CHECK PASSENGER SIDE JUNCTION BLOCK (PASSENGER SIDE JUNCTION BLOCK ECU)

Terminals Of Control Module/Pinouts - Check Passenger Side Junction Block (Passenger Side Junction Block ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Passenger Side Junction Block (Passenger Side Junction Block ECU) (Part 2):

4. CHECK LUGGAGE ROOM JUNCTION BLOCK (LUGGAGE ROOM JUNCTION BLOCK ECU)

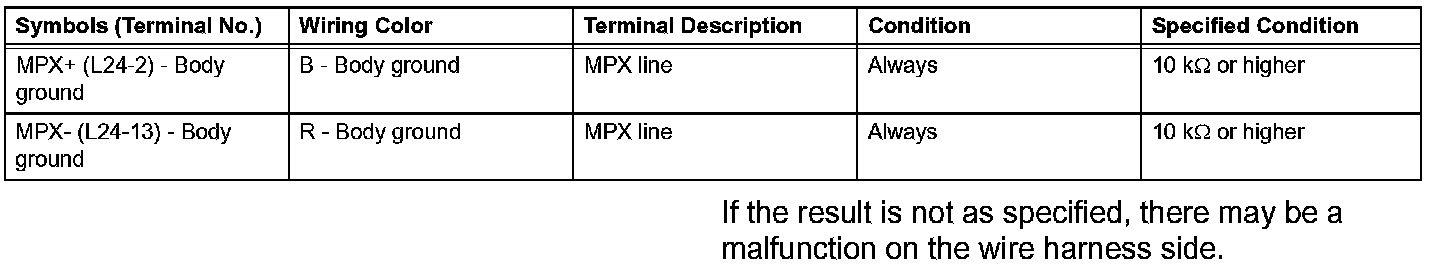

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 2):

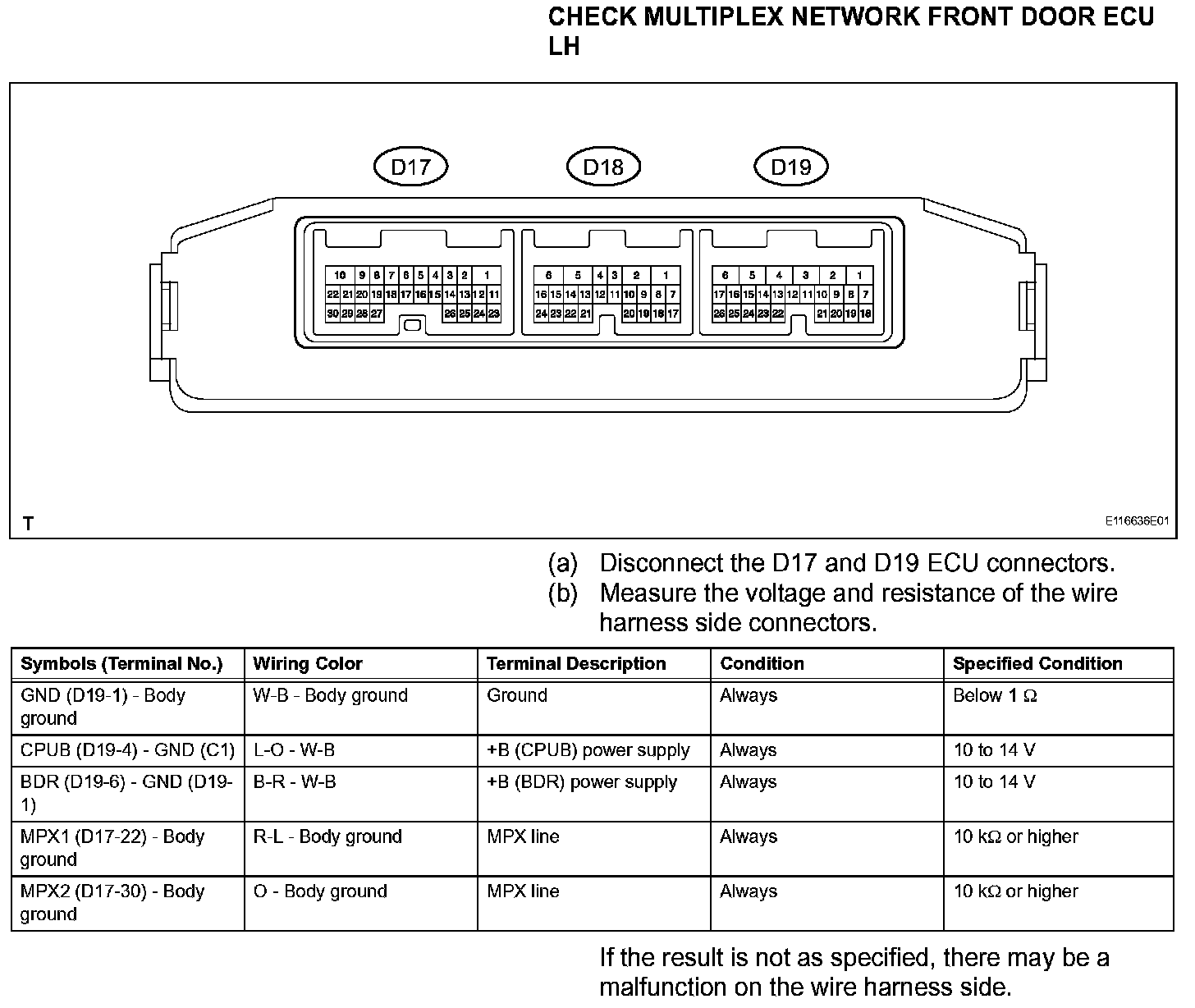

5. CHECK MULTIPLEX NETWORK FRONT DOOR ECU LH

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Door ECU LH:

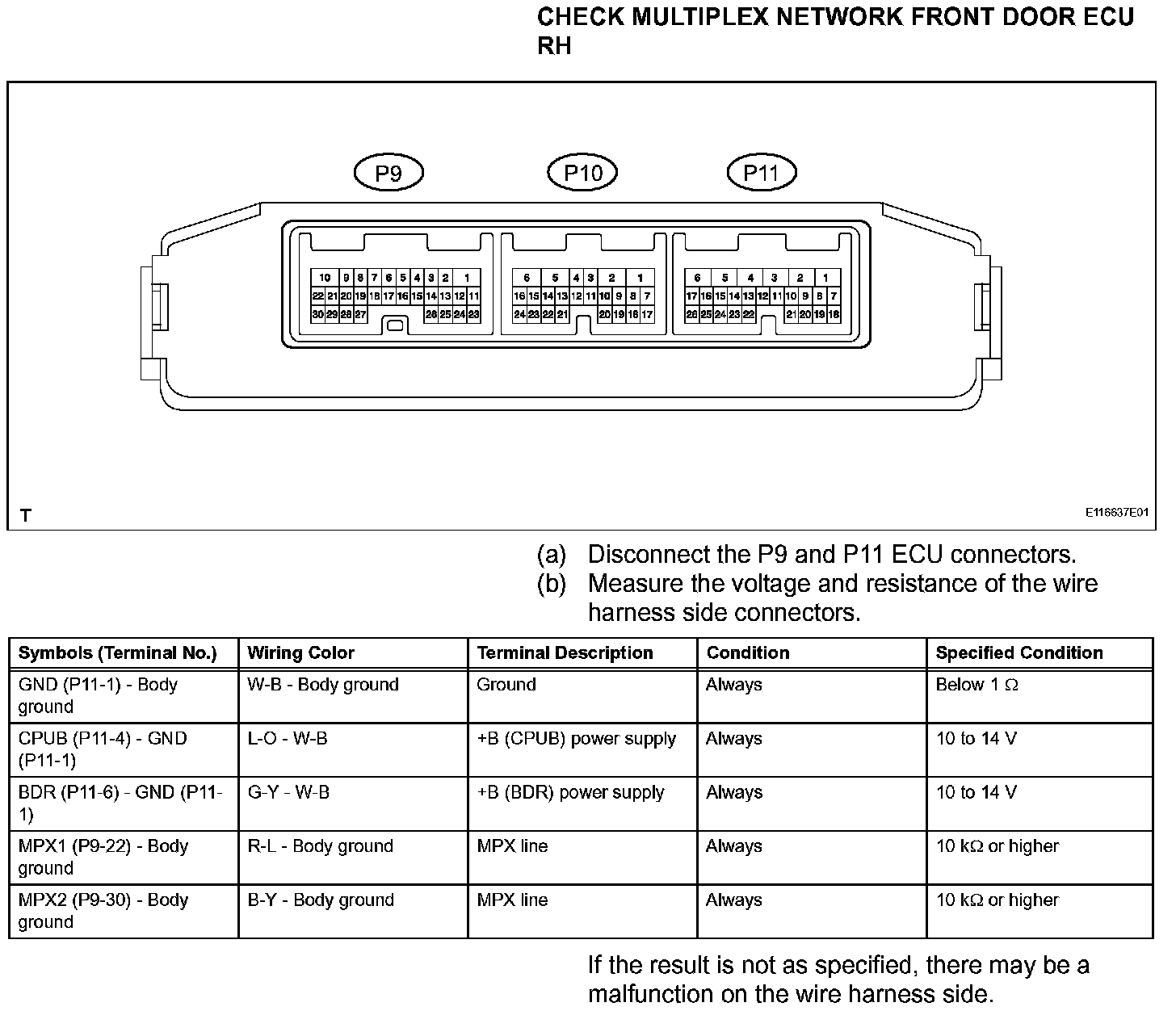

6. CHECK MULTIPLEX NETWORK FRONT DOOR ECU RH

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Door ECU RH:

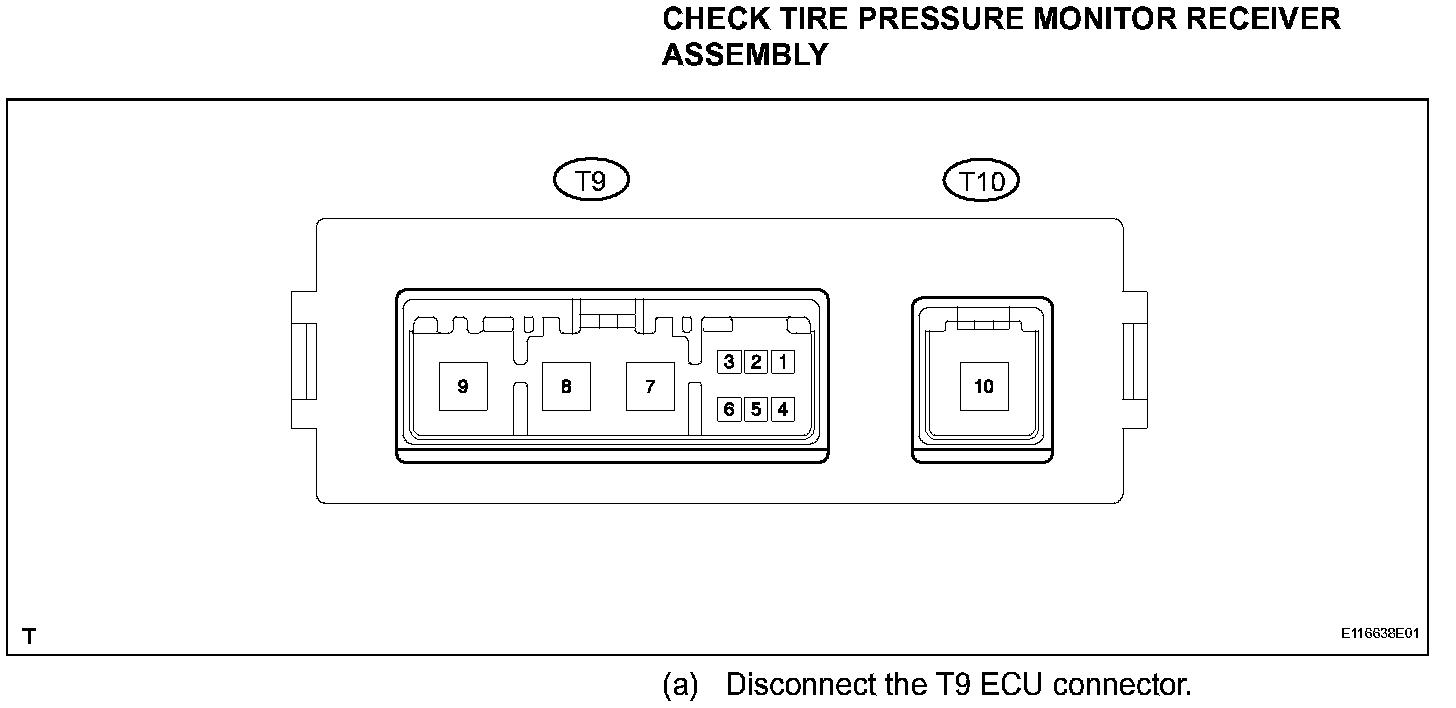

7. CHECK TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

Terminals Of Control Module/Pinouts - Check Tire Pressure Monitor Receiver Assembly (Part 1):

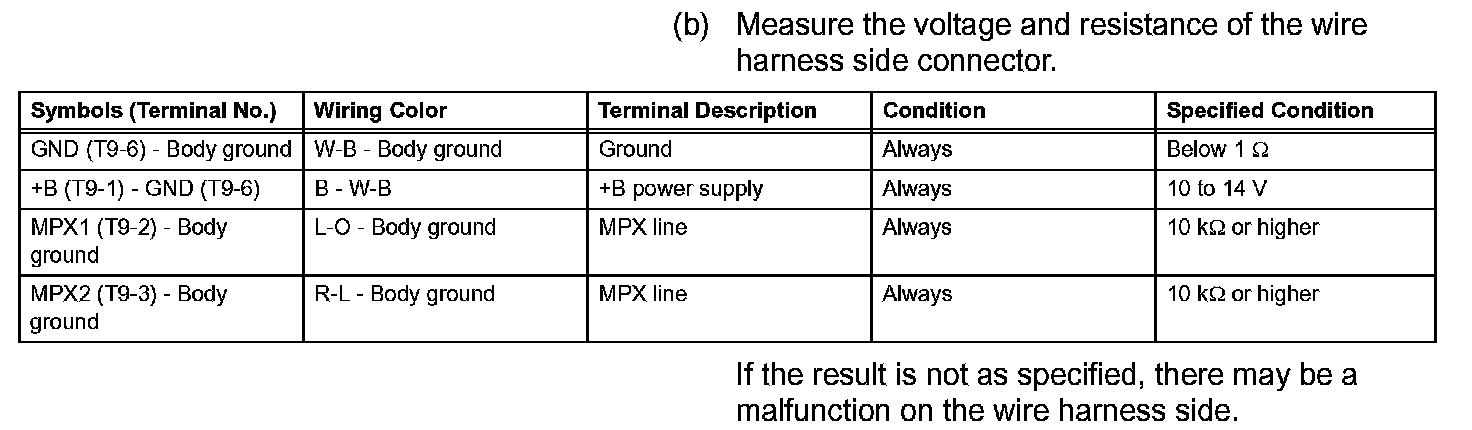

Terminals Of Control Module/Pinouts - Check Tire Pressure Monitor Receiver Assembly (Part 2):

8. CHECK THEFT WARNING ECU

Terminals Of Control Module/Pinouts - Check Theft Warning ECU:

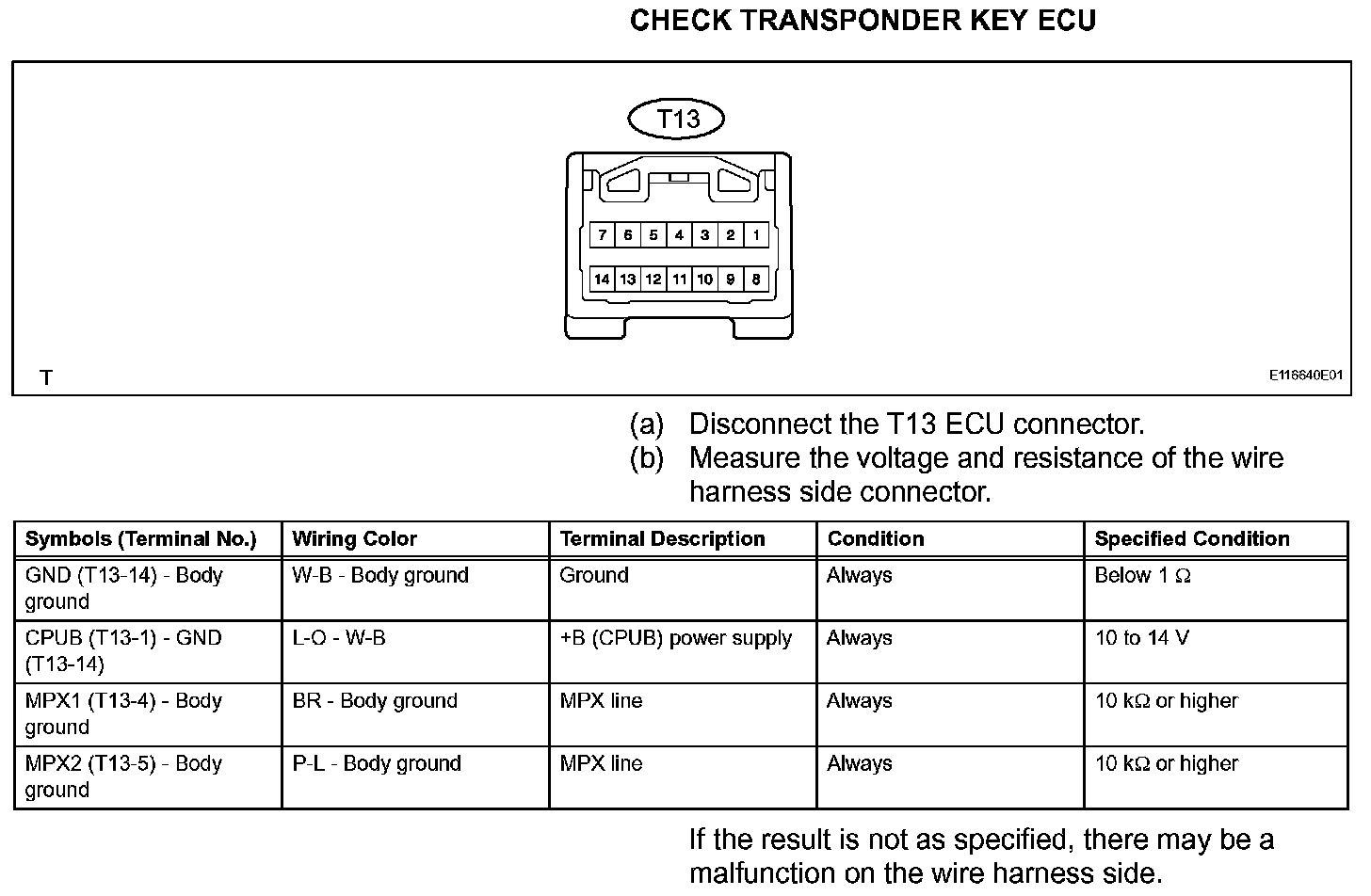

9. CHECK TRANSPONDER KEY ECU

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:

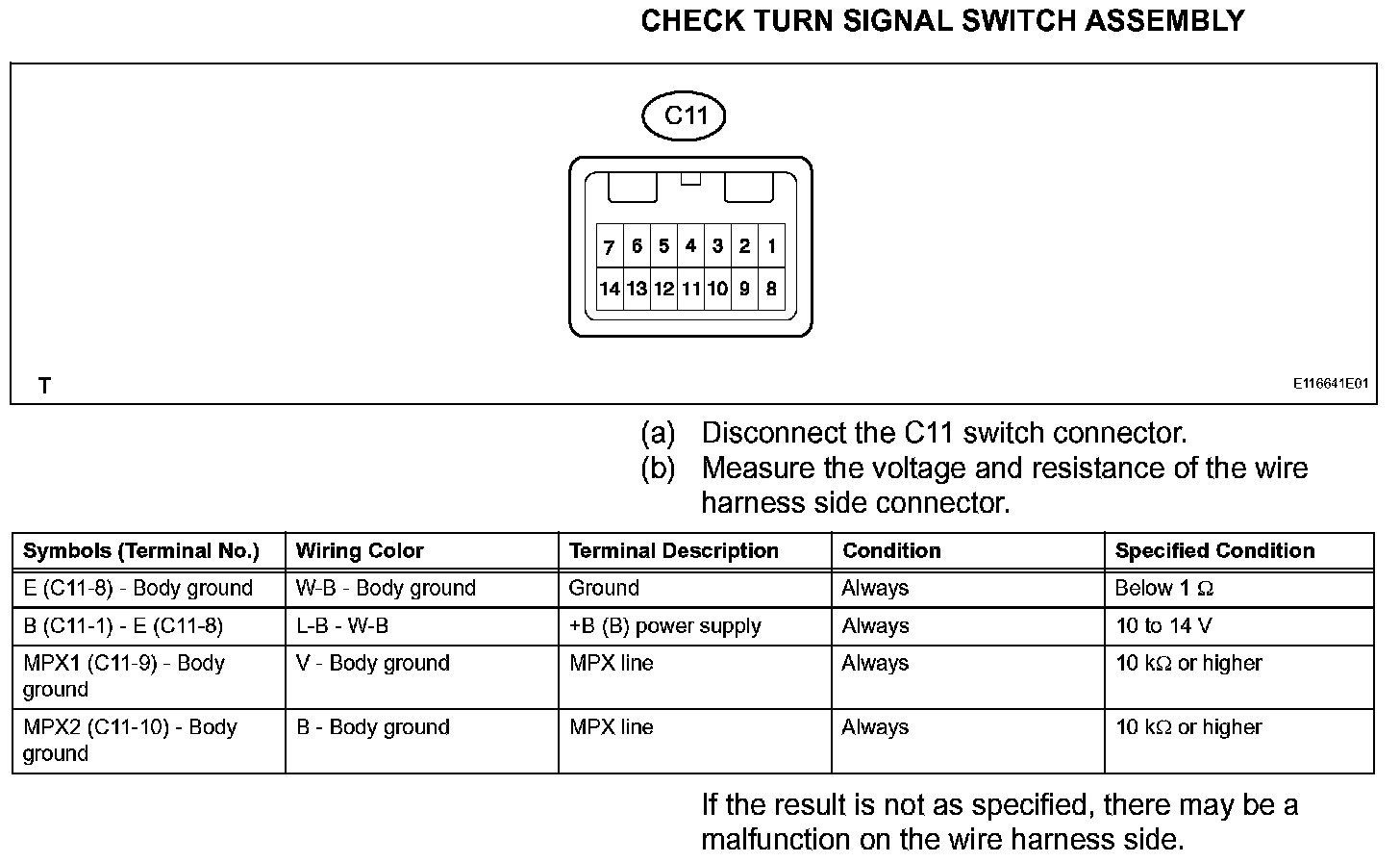

10. CHECK TURN SIGNAL SWITCH ASSEMBLY

Terminals Of Control Module/Pinouts - Check Turn Signal Switch Assembly:

11. CHECK MULTIPLEX NETWORK FRONT LIGHT ECU

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Light ECU:

12. CHECK STEERING PAD SWITCH MODULATOR

Terminals Of Control Module/Pinouts - Check Steering Pad Switch Modulator:

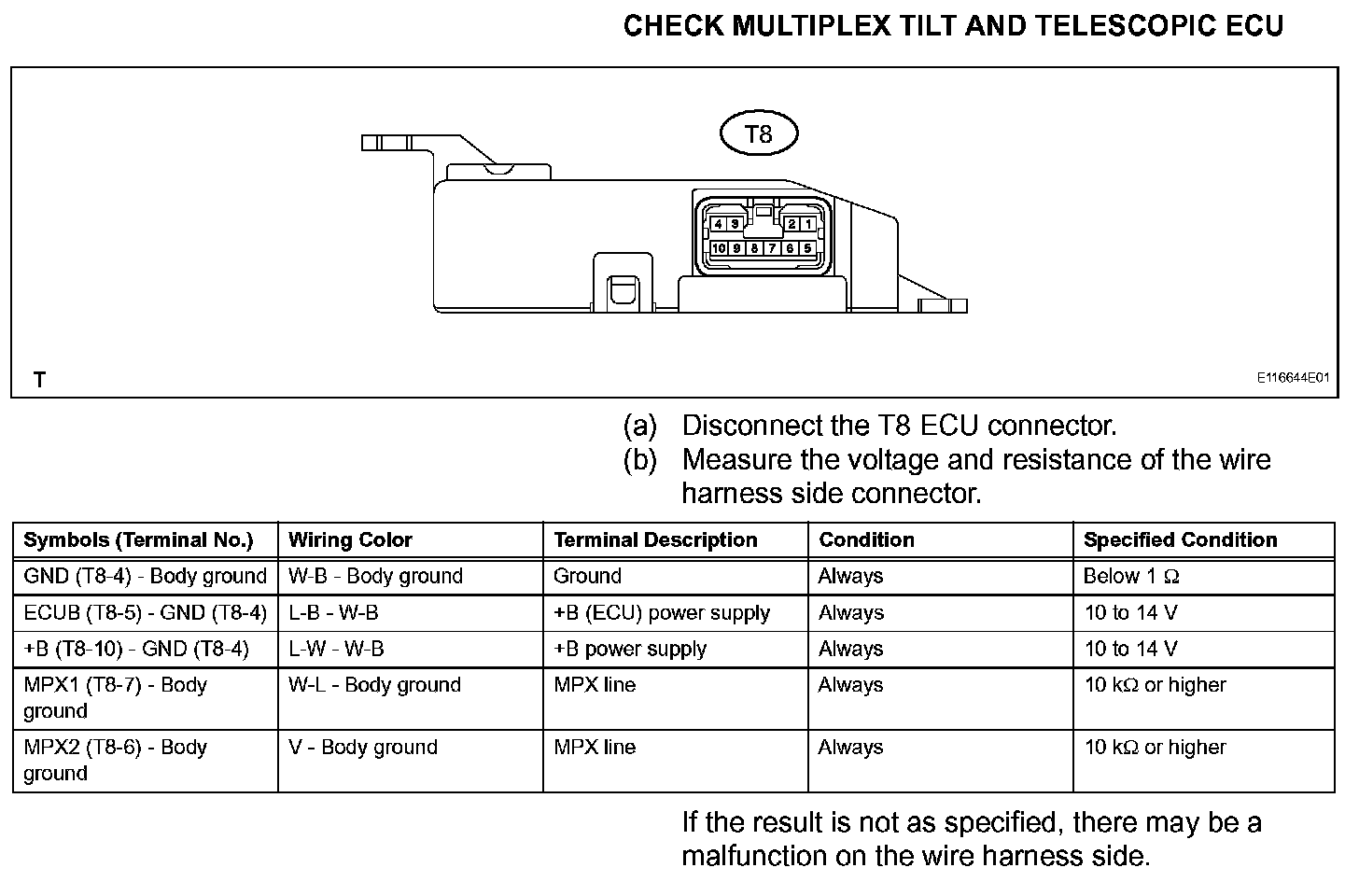

13. CHECK MULTIPLEX TILT AND TELESCOPIC ECU

Terminals Of Control Module/Pinouts - Check Multiplex Tilt And Telescopic ECU:

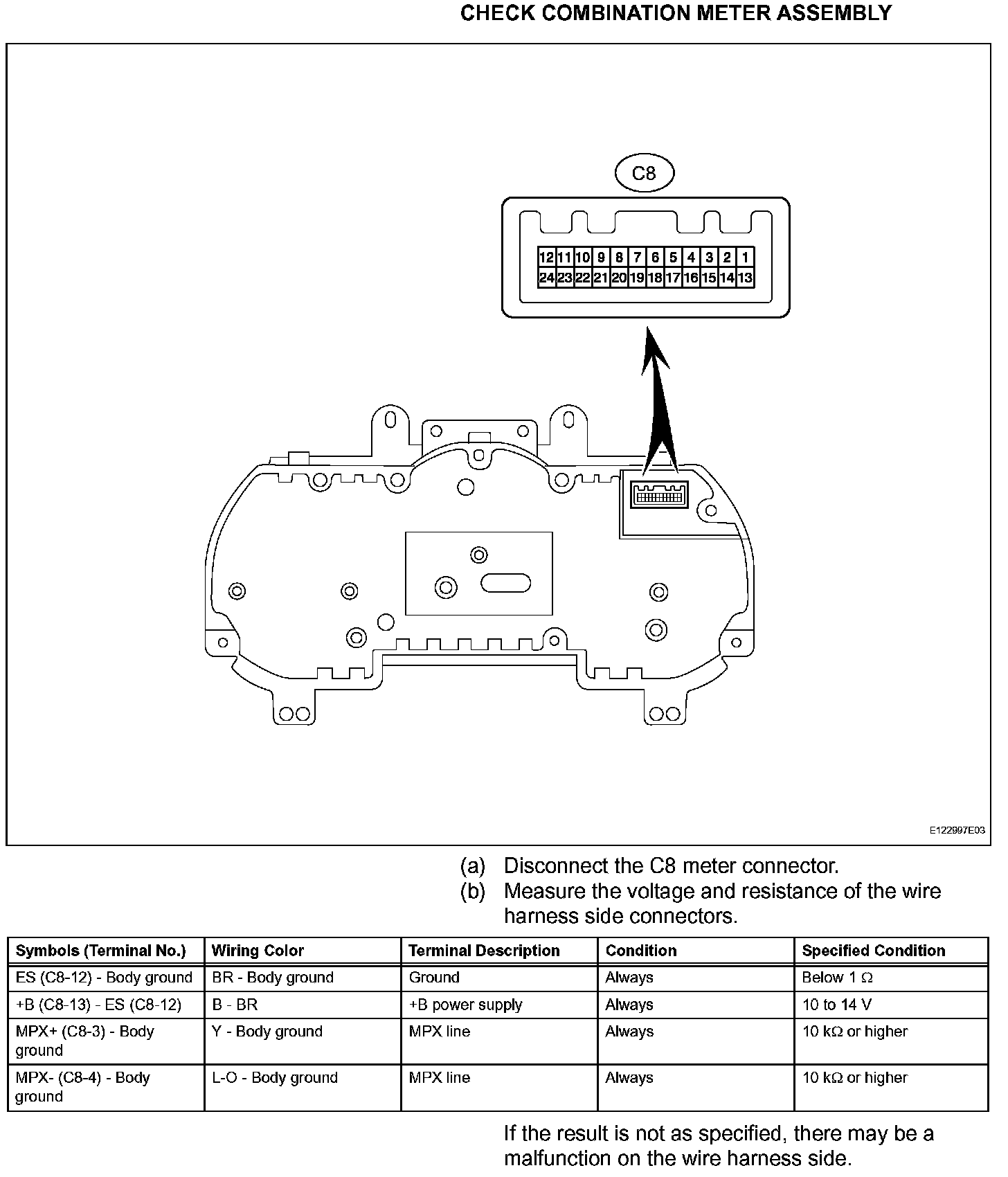

14. CHECK COMBINATION METER ASSEMBLY

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly:

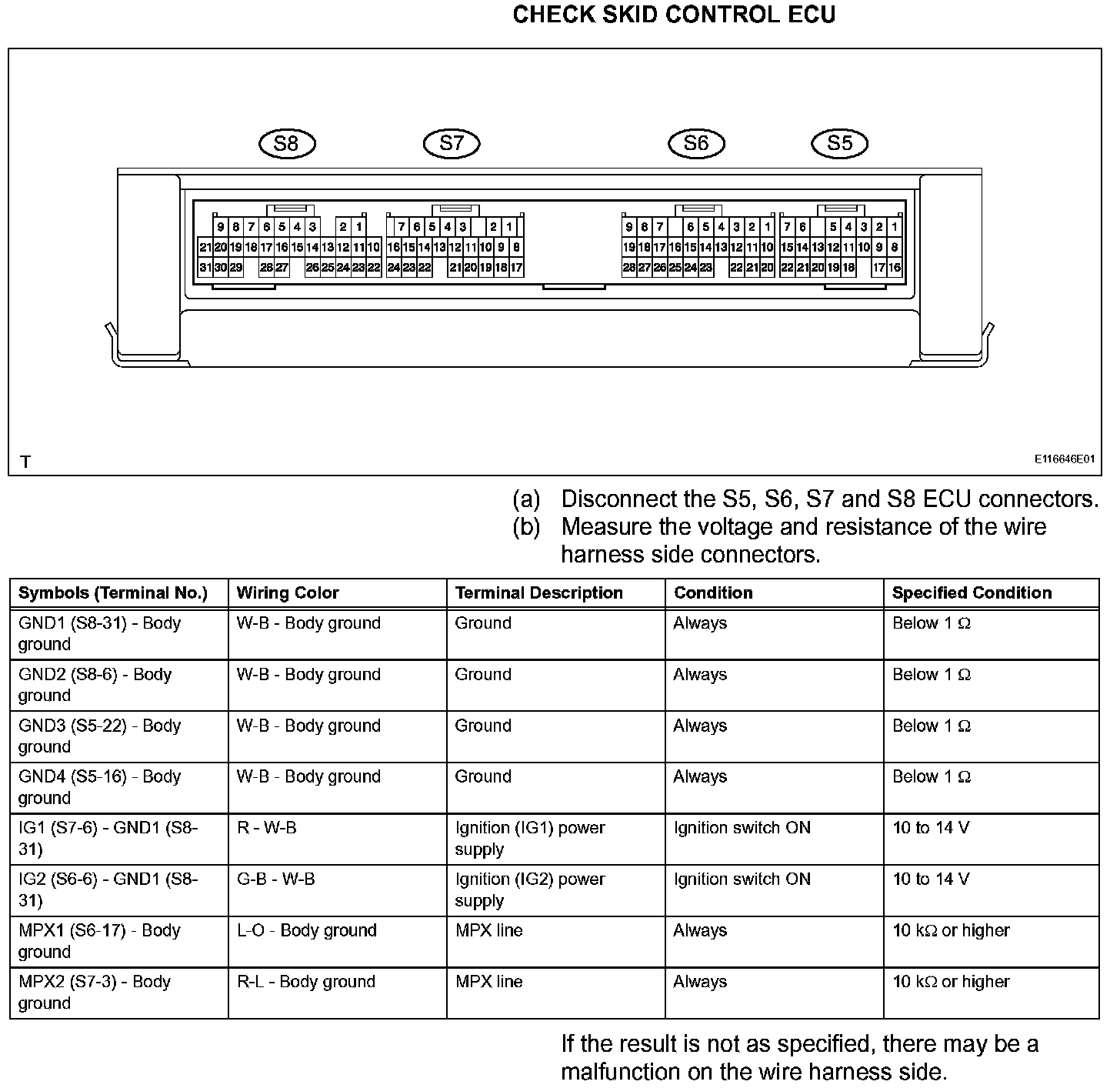

15. CHECK SKID CONTROL ECU

Terminals Of Control Module/Pinouts - Check Skid Control ECU:

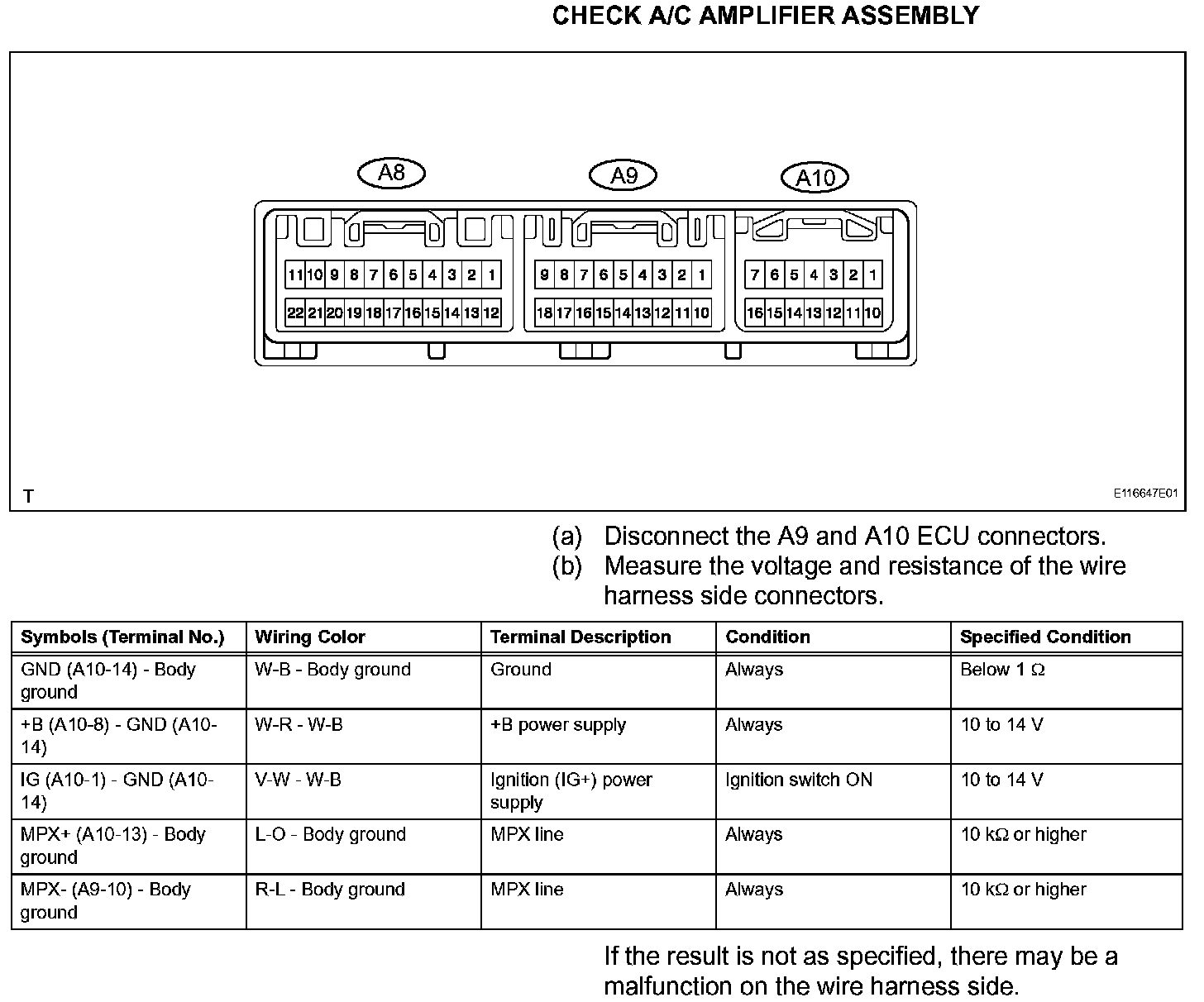

16. CHECK A/C AMPLIFIER ASSEMBLY

Terminals Of Control Module/Pinouts - Check A/C Amplifier Assembly:

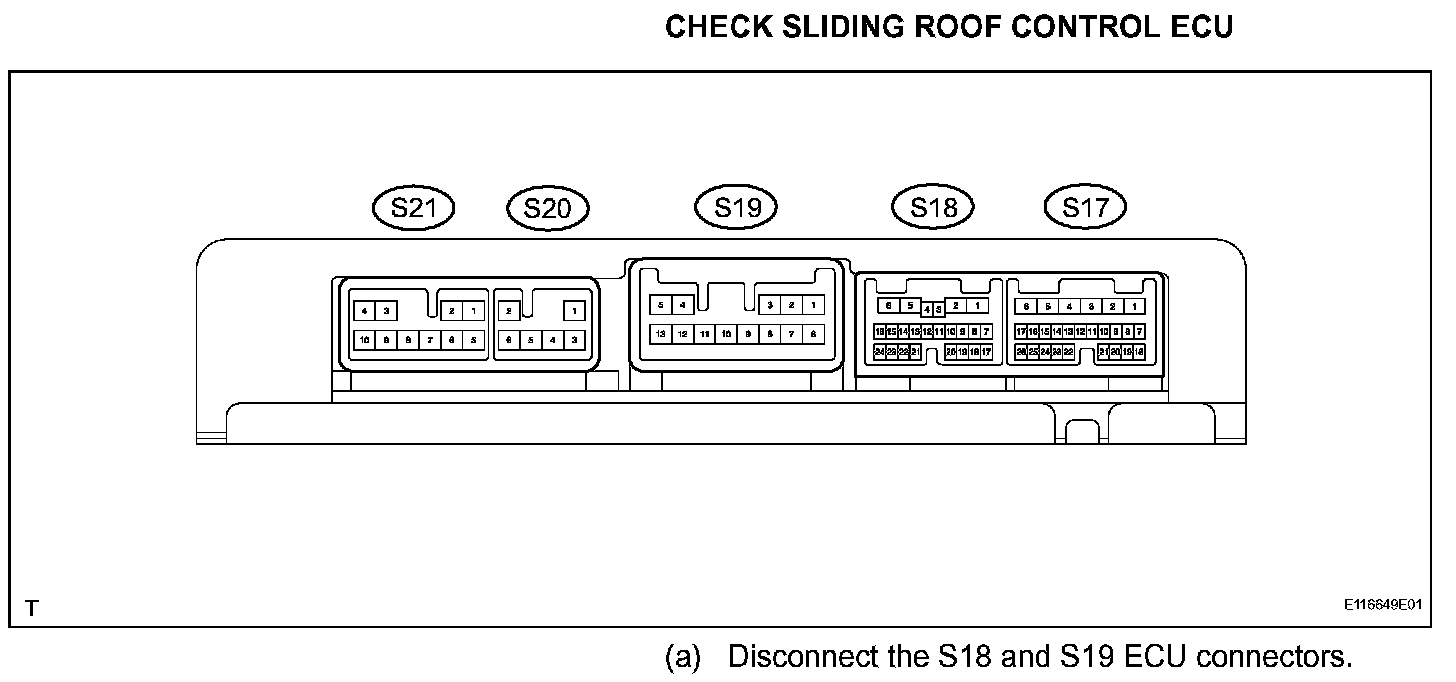

17. CHECK SLIDING ROOF CONTROL ECU

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU (Part 1):

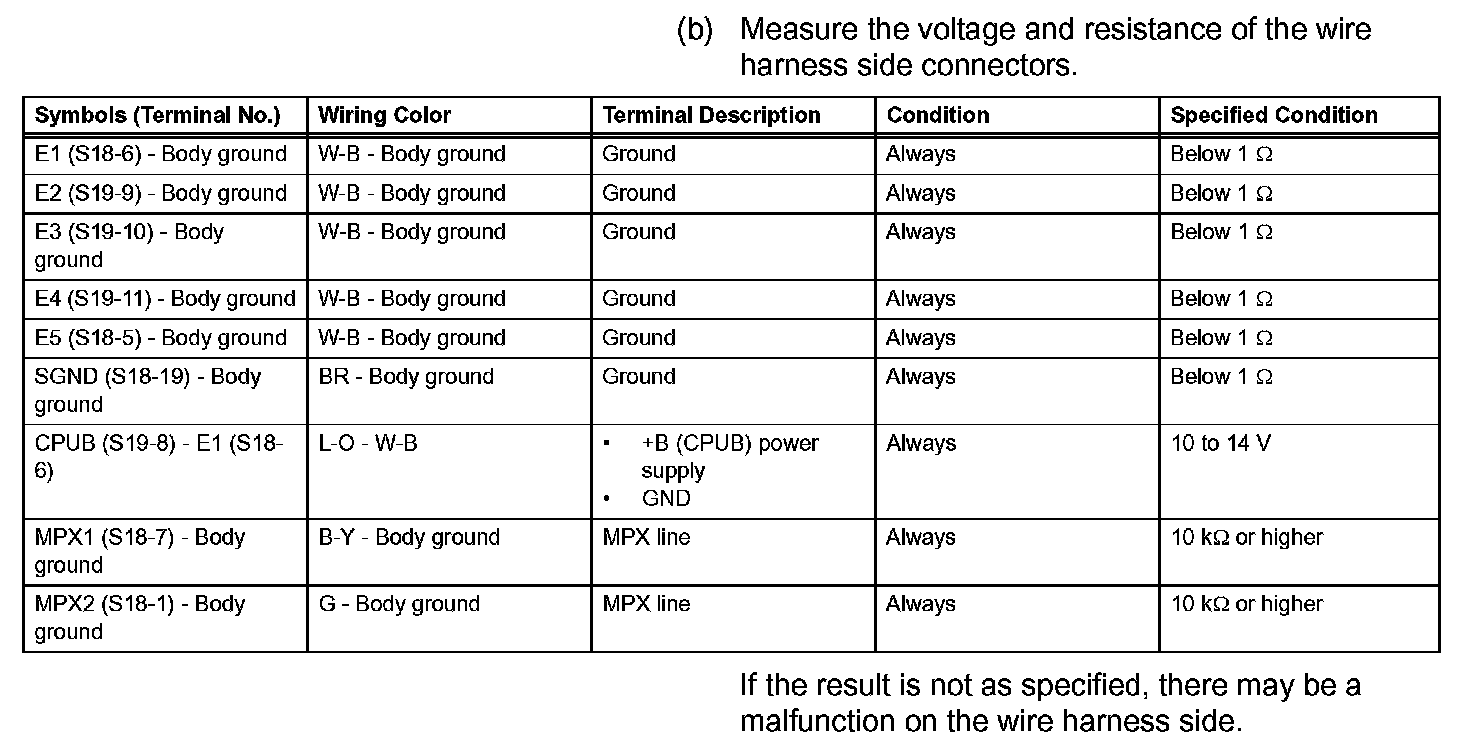

Terminals Of Control Module/Pinouts - Check Sliding Roof Control ECU (Part 2):

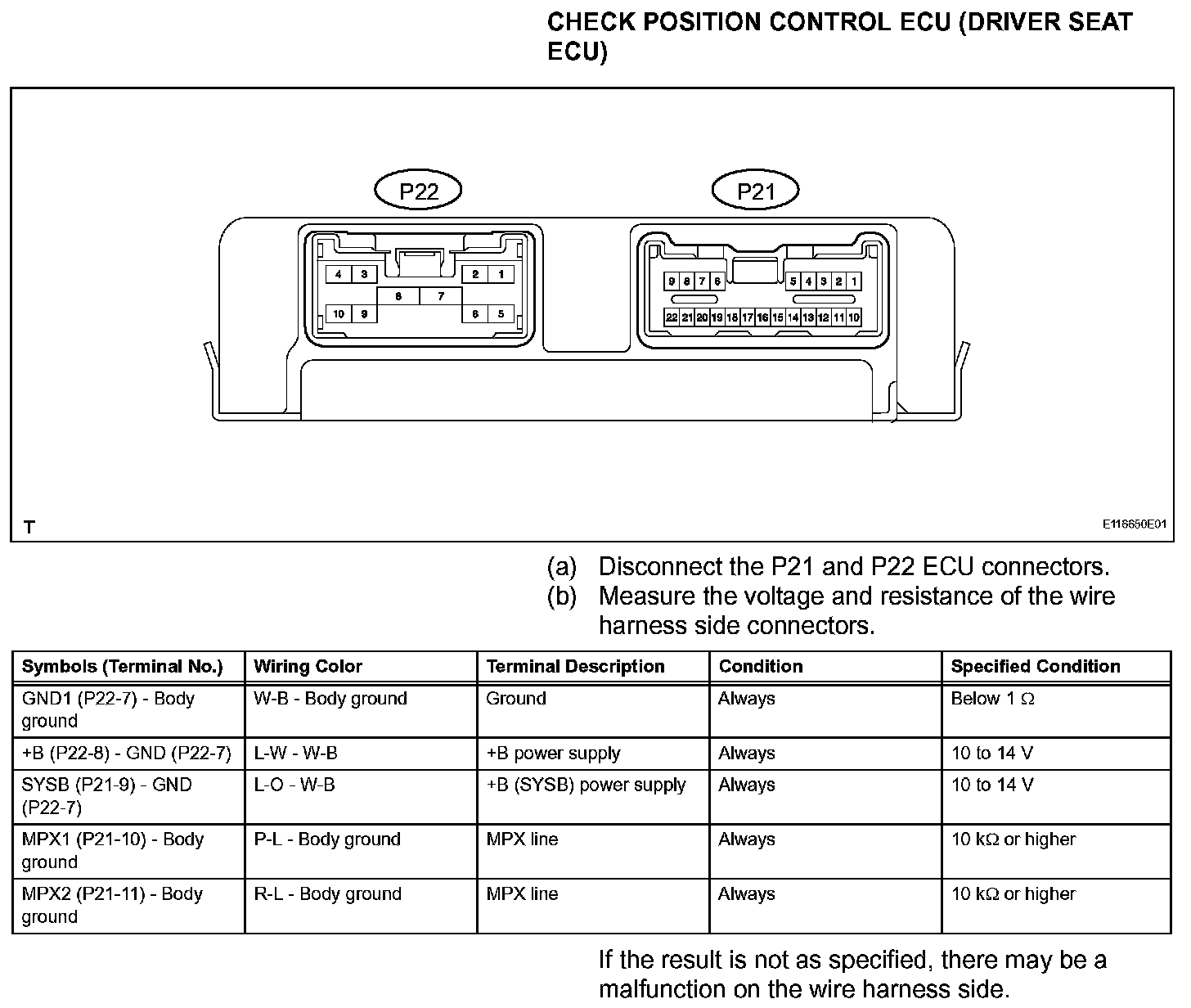

18. CHECK POSITION CONTROL ECU (DRIVER SEAT ECU)

Terminals Of Control Module/Pinouts - Check Position Control ECU (Driver Seat ECU):

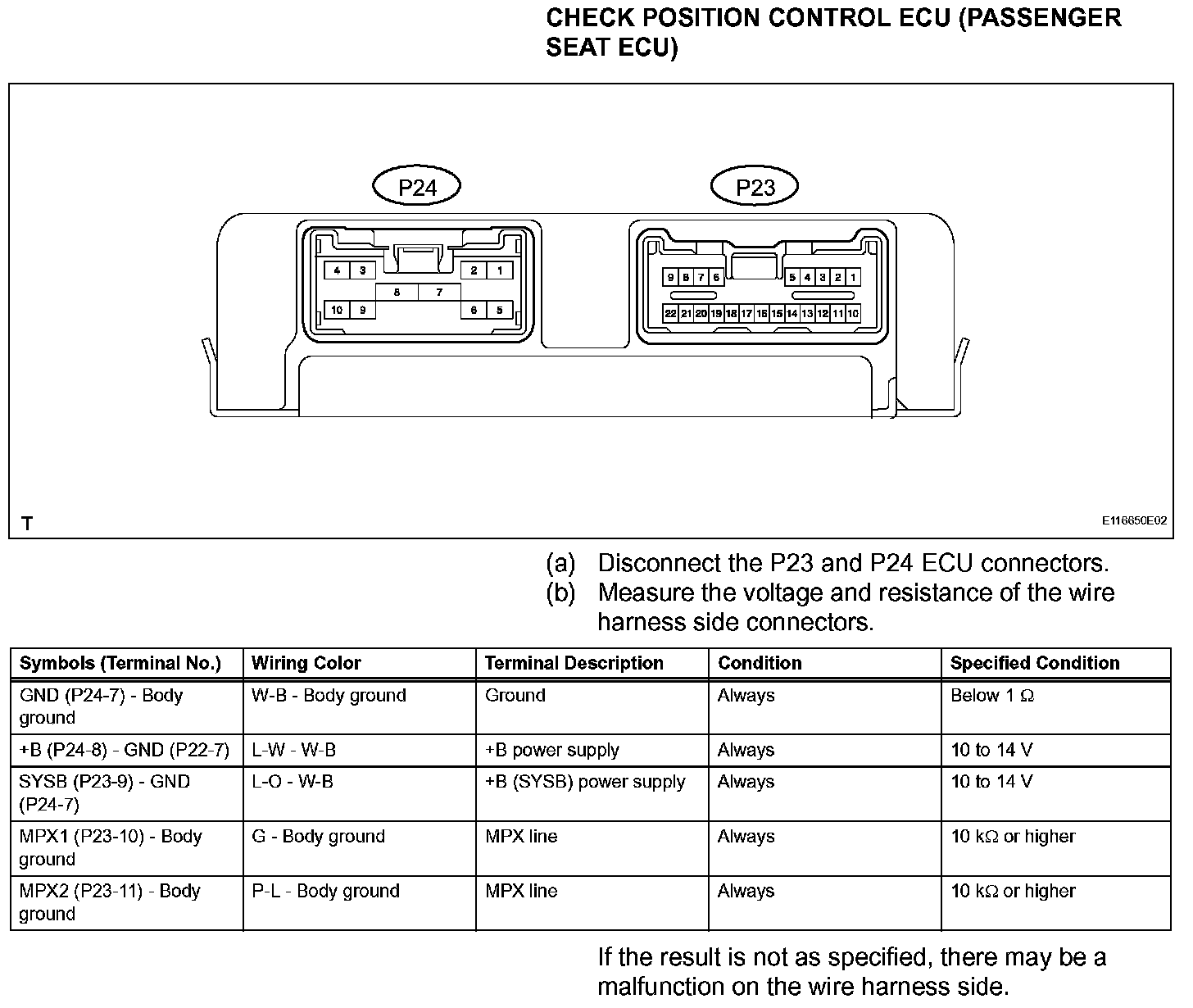

19. CHECK POSITION CONTROL ECU (PASSENGER SEAT ECU)

Terminals Of Control Module/Pinouts - Check Position Control ECU (Passenger Seat ECU):

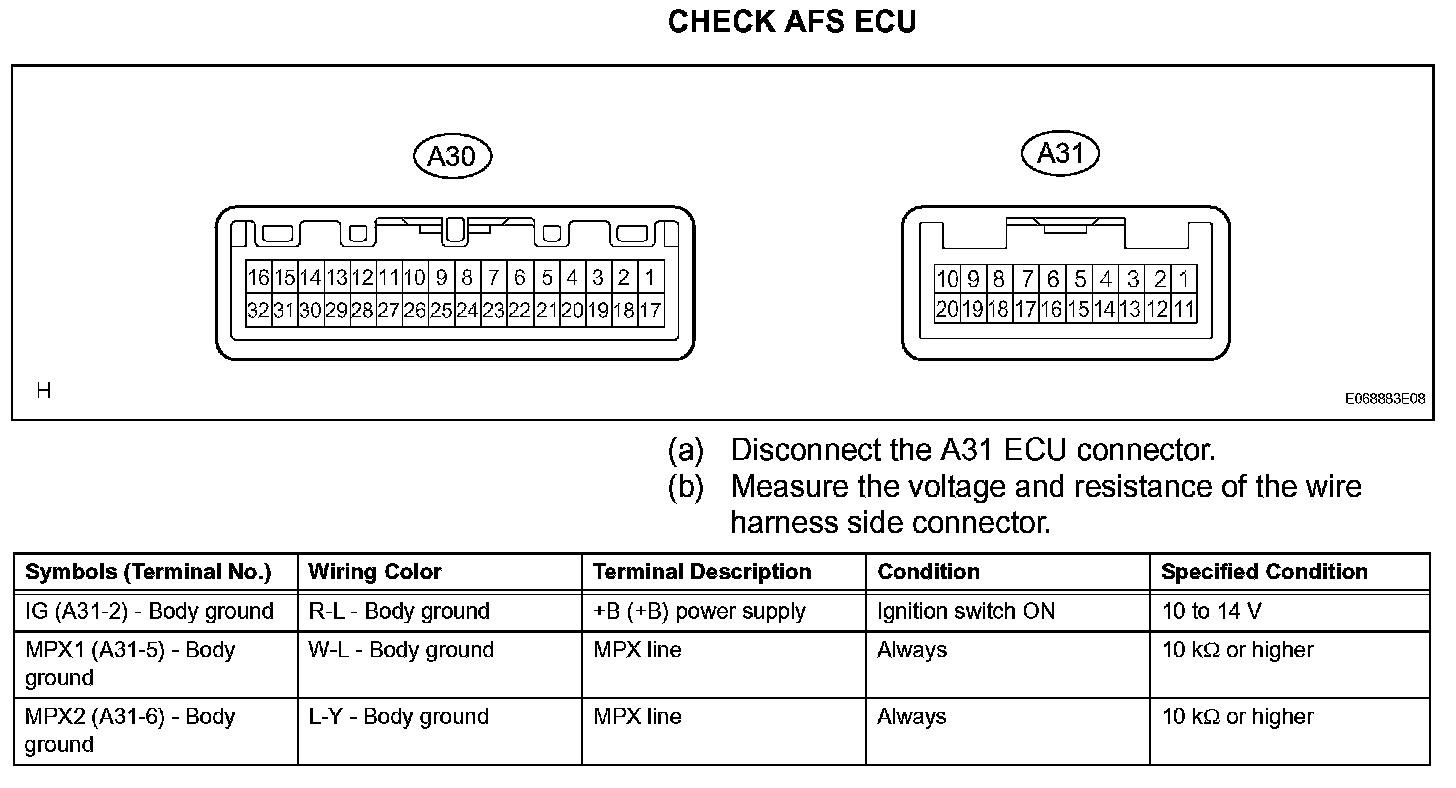

20. CHECK AFS ECU

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 1):

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 2):

21. CHECK AIRBAG ECU

Terminals Of Control Module/Pinouts - Center Airbag Sensor (Part 1):

Terminals Of Control Module/Pinouts - Center Airbag Sensor (Part 2):
