FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

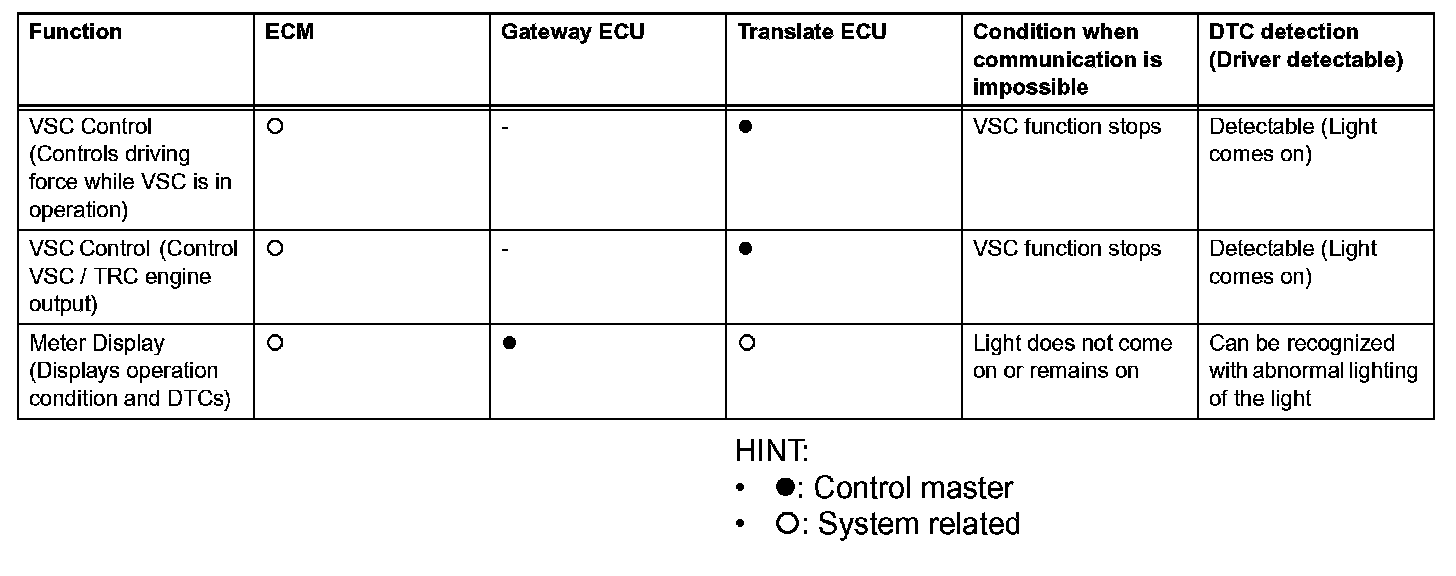

a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.




b. The fail-safe function activates on each system when communication is not possible.
