Translate ECU Communication Stop Mode

Translate ECU Communication Stop Mode

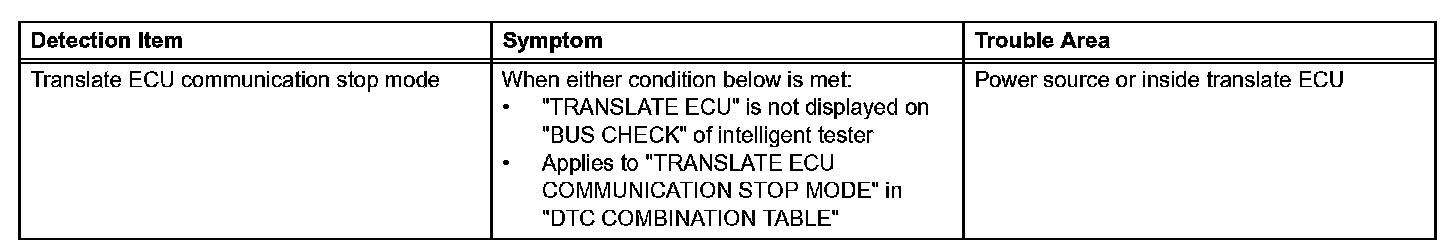

Symptom:

DESCRIPTION

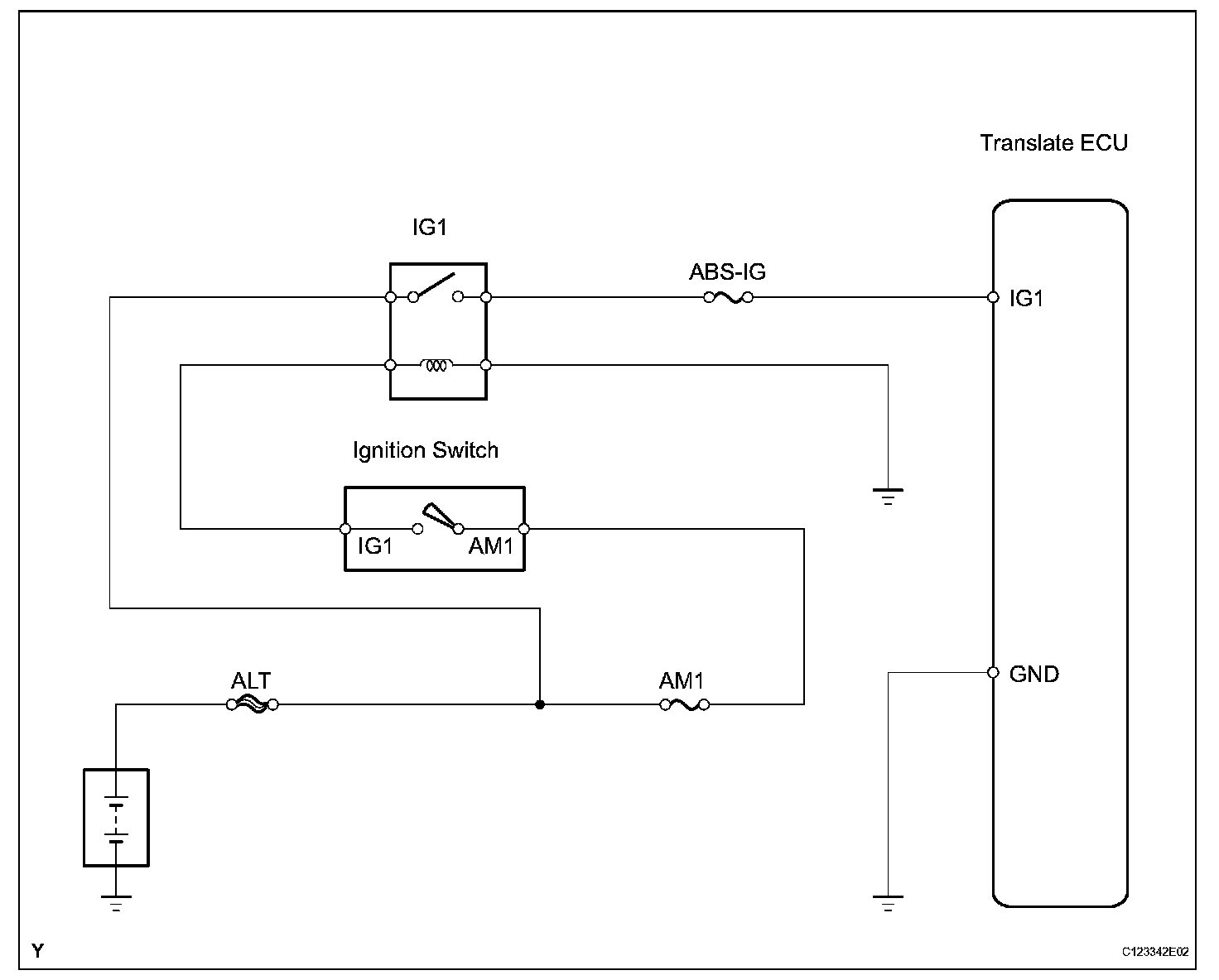

Wiring Diagram:

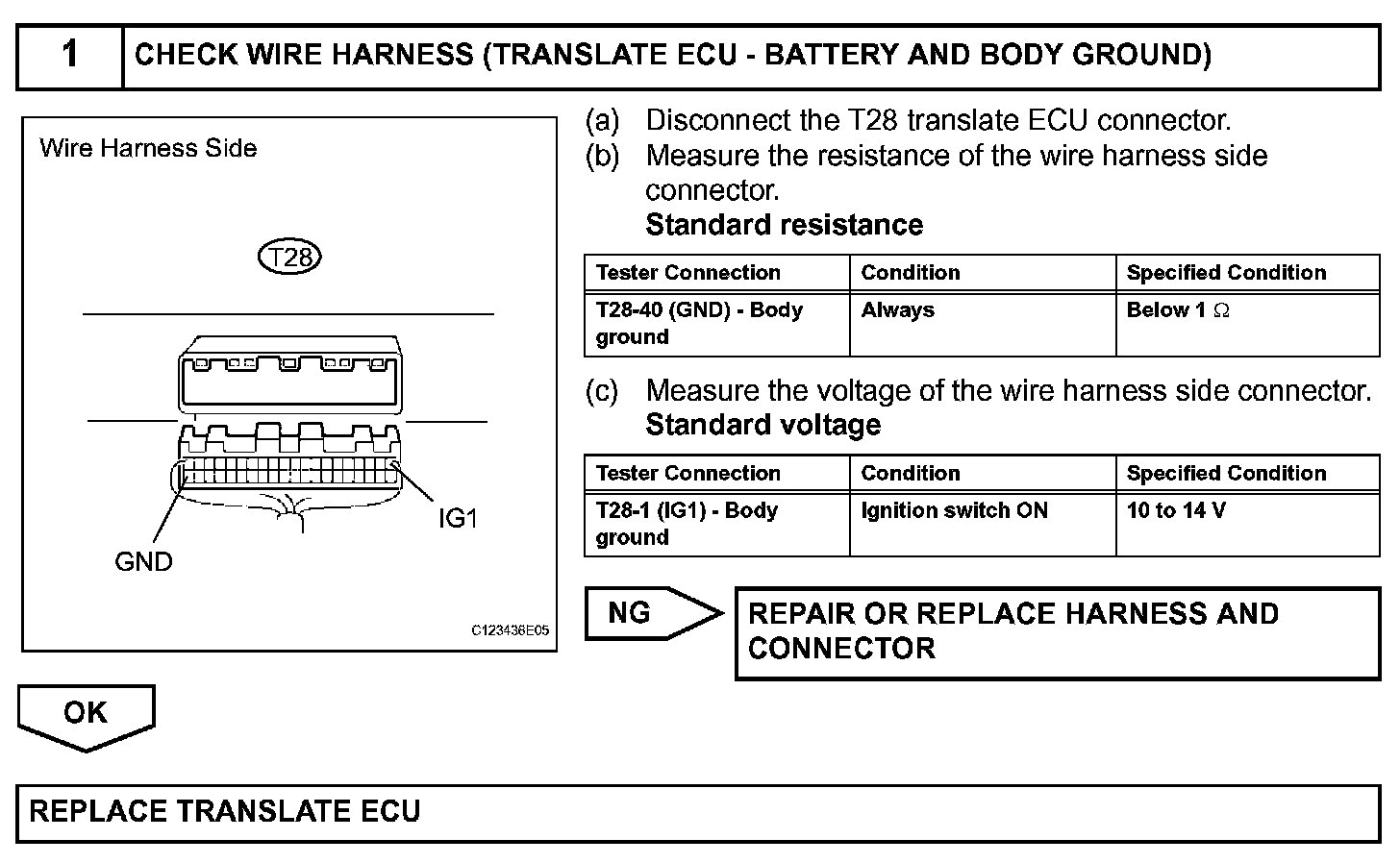

Step 1:

INSPECTION PROCEDURE
