Short to GND in CAN Bus Line

Short to GND in CAN Bus Line

DESCRIPTION

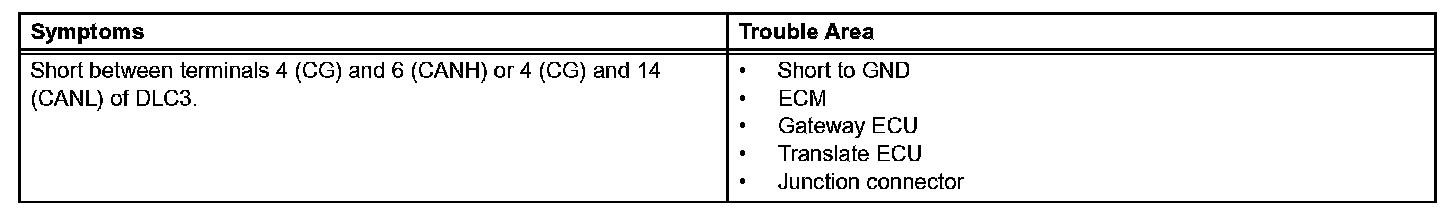

A short to GND may be occurring in the CAN bus line when there is a short between terminals 4 (CG) and 6 (CANH) or terminals 4 (CG) and 14 (CANL) of the DLC3.

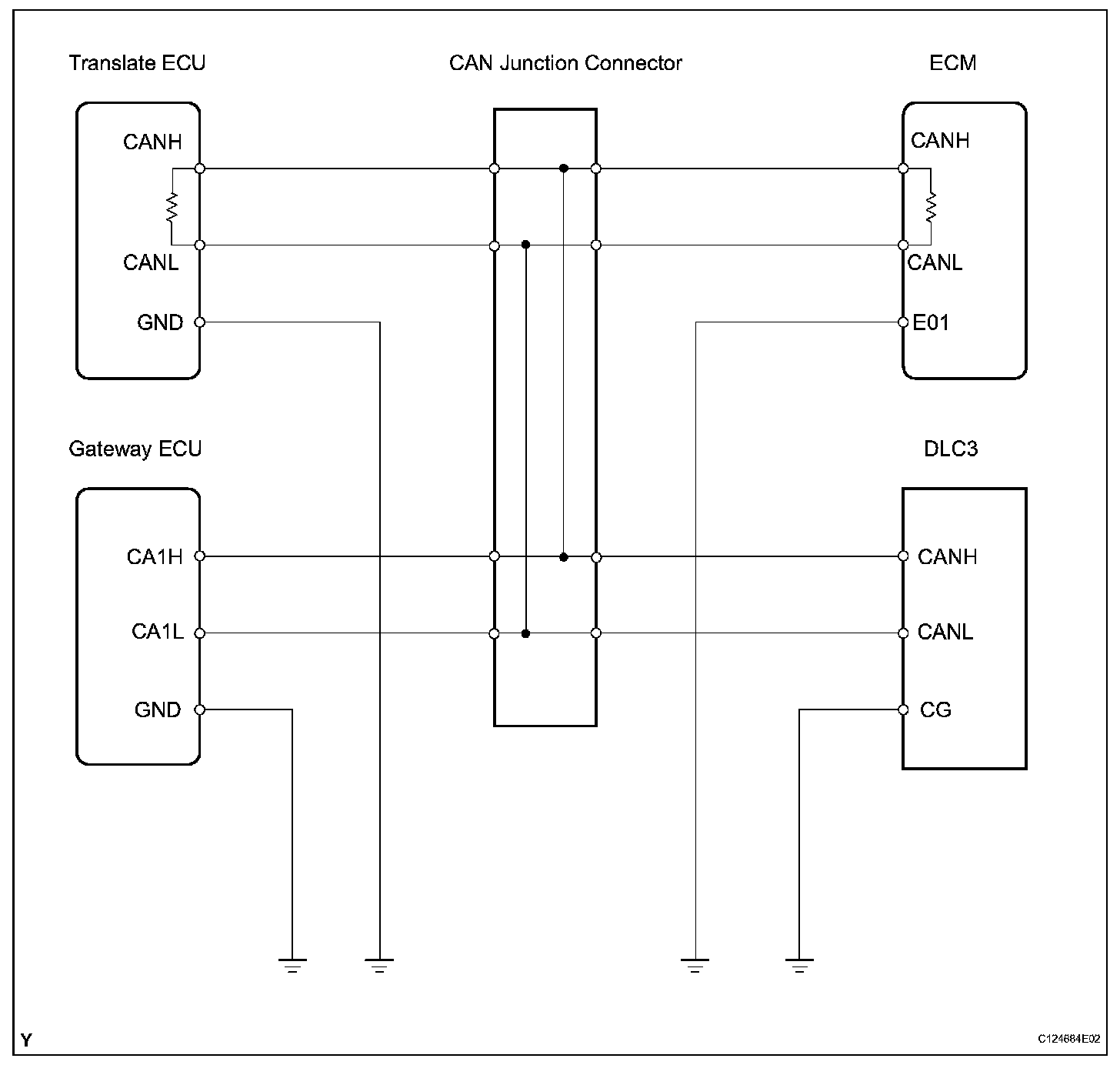

Wiring Diagram:

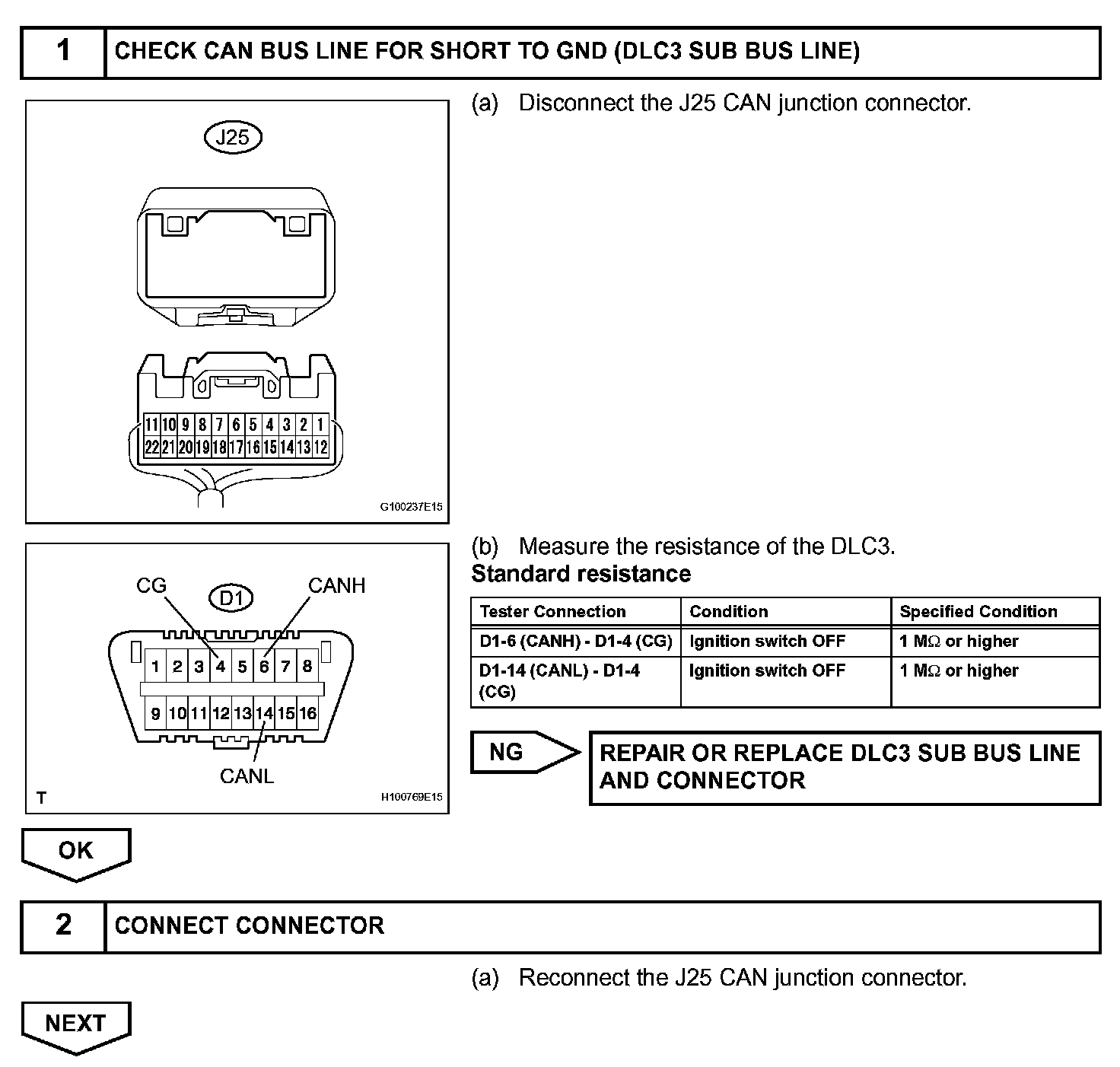

Step 1-2:

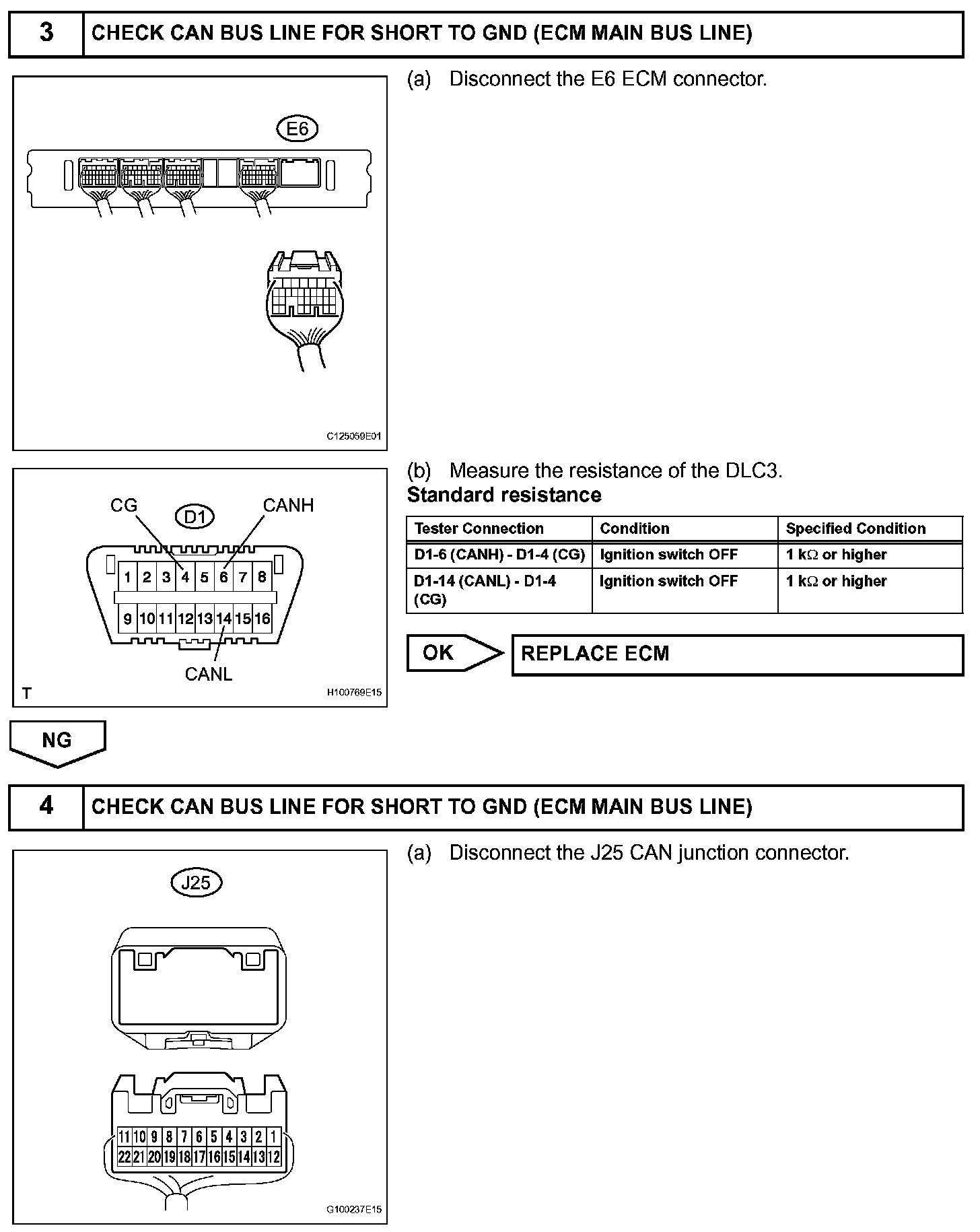

Step 3-4:

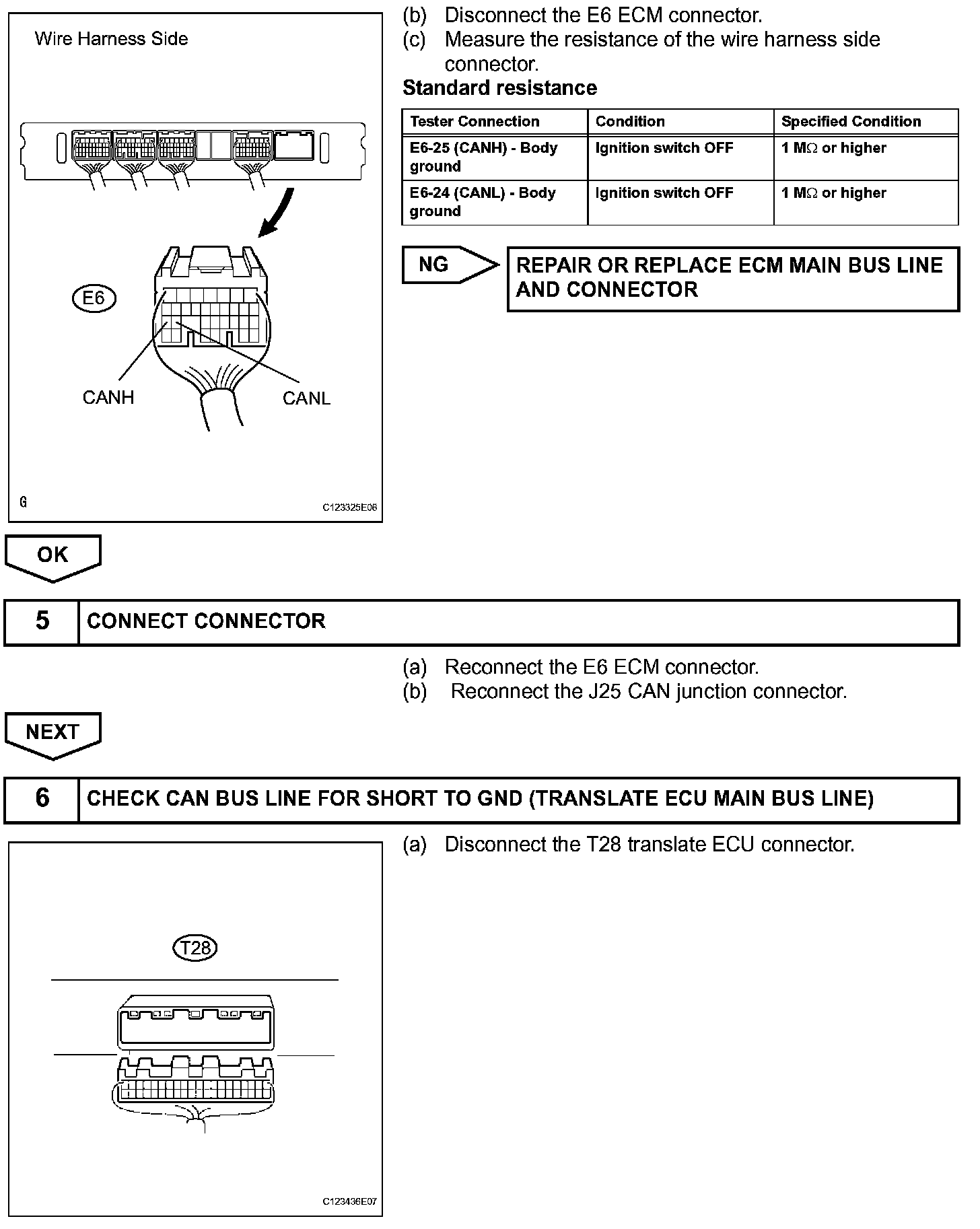

Step 4 (Continued)-6:

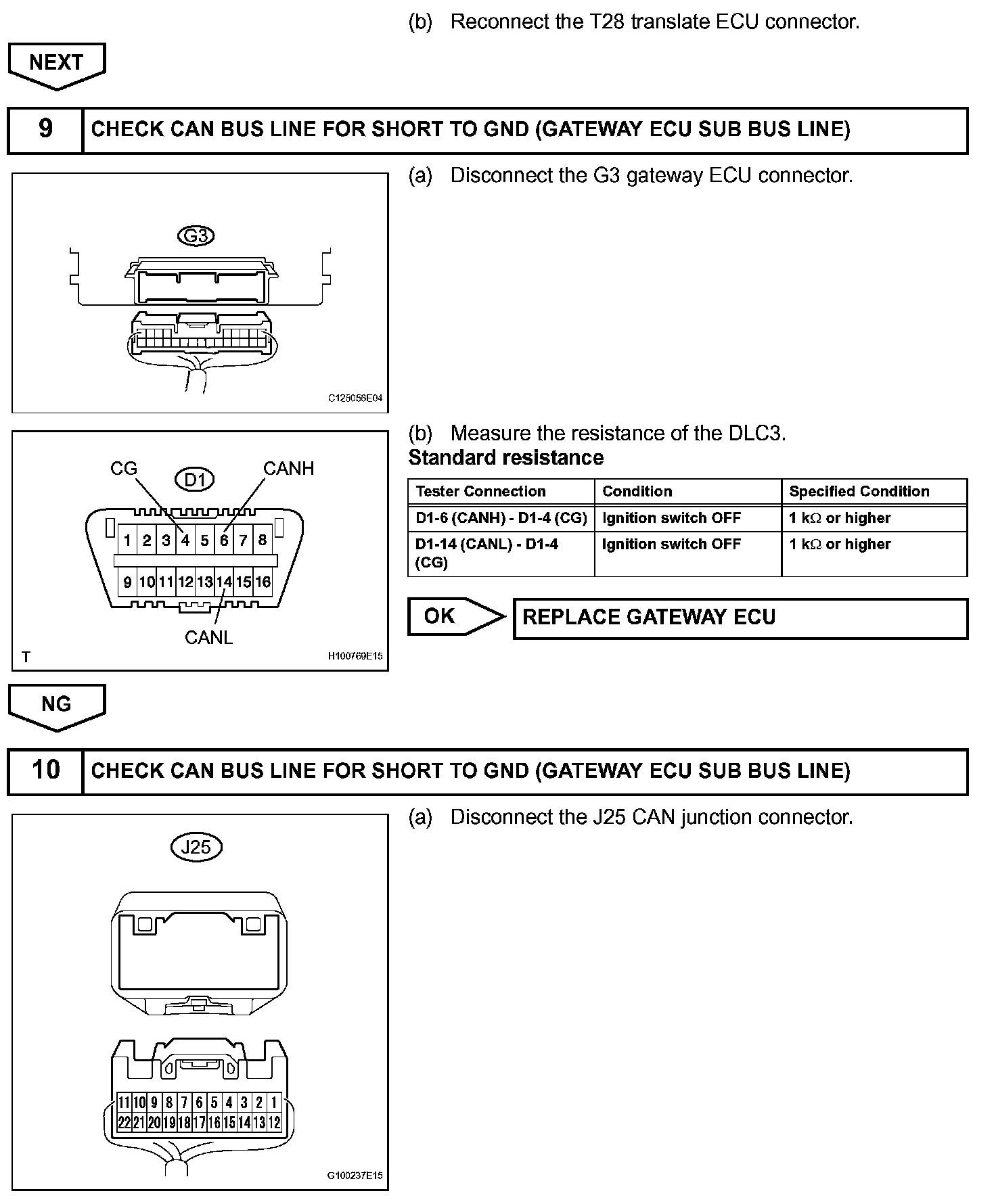

Step 6 (Continued)-8:

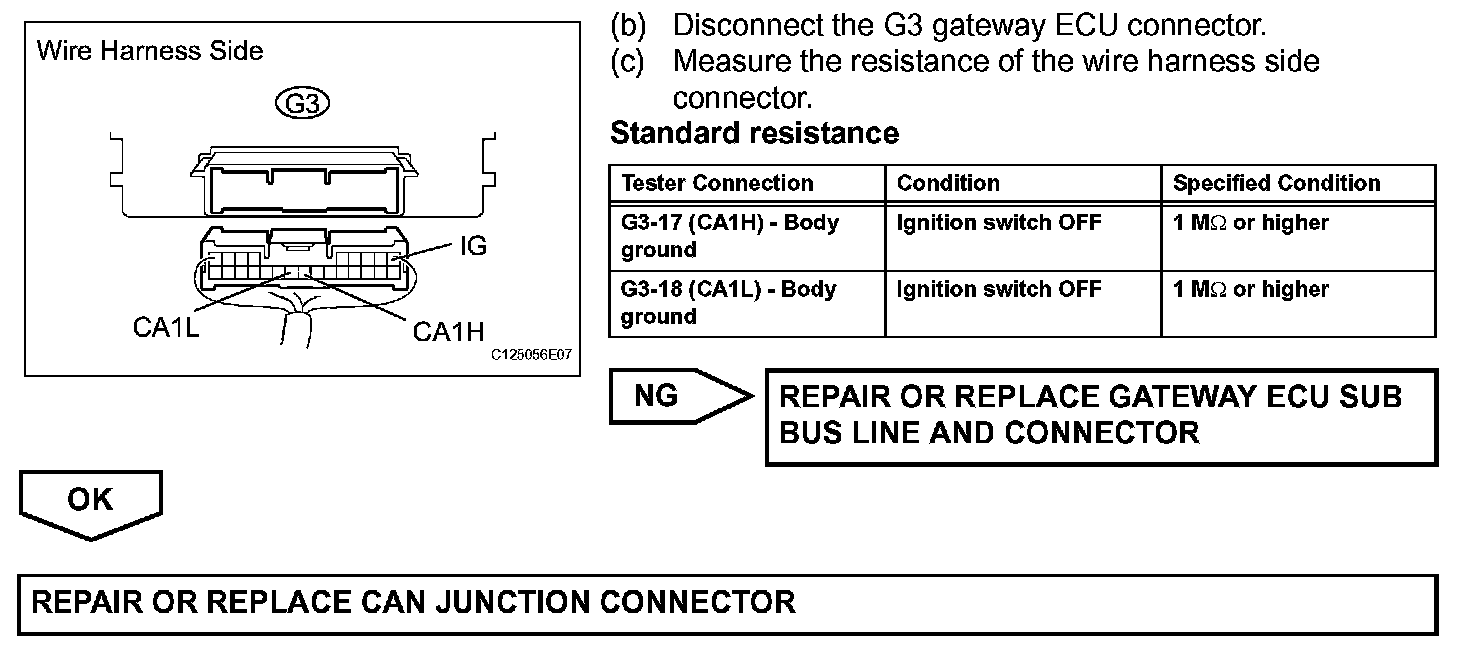

Step 8 (Continued)-10:

Step 10 (Continued):

INSPECTION PROCEDURE
