Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTION

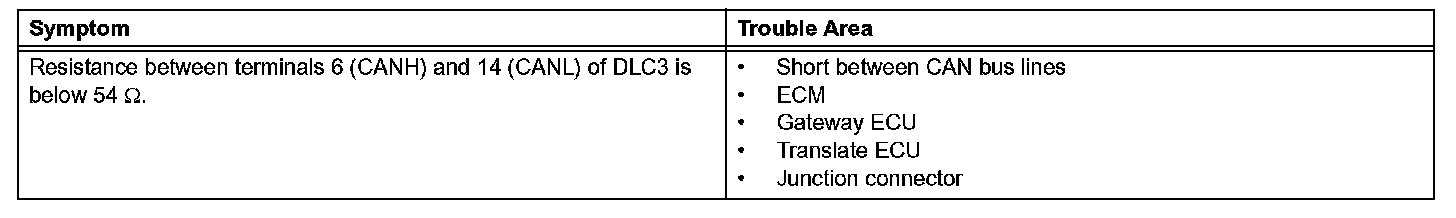

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

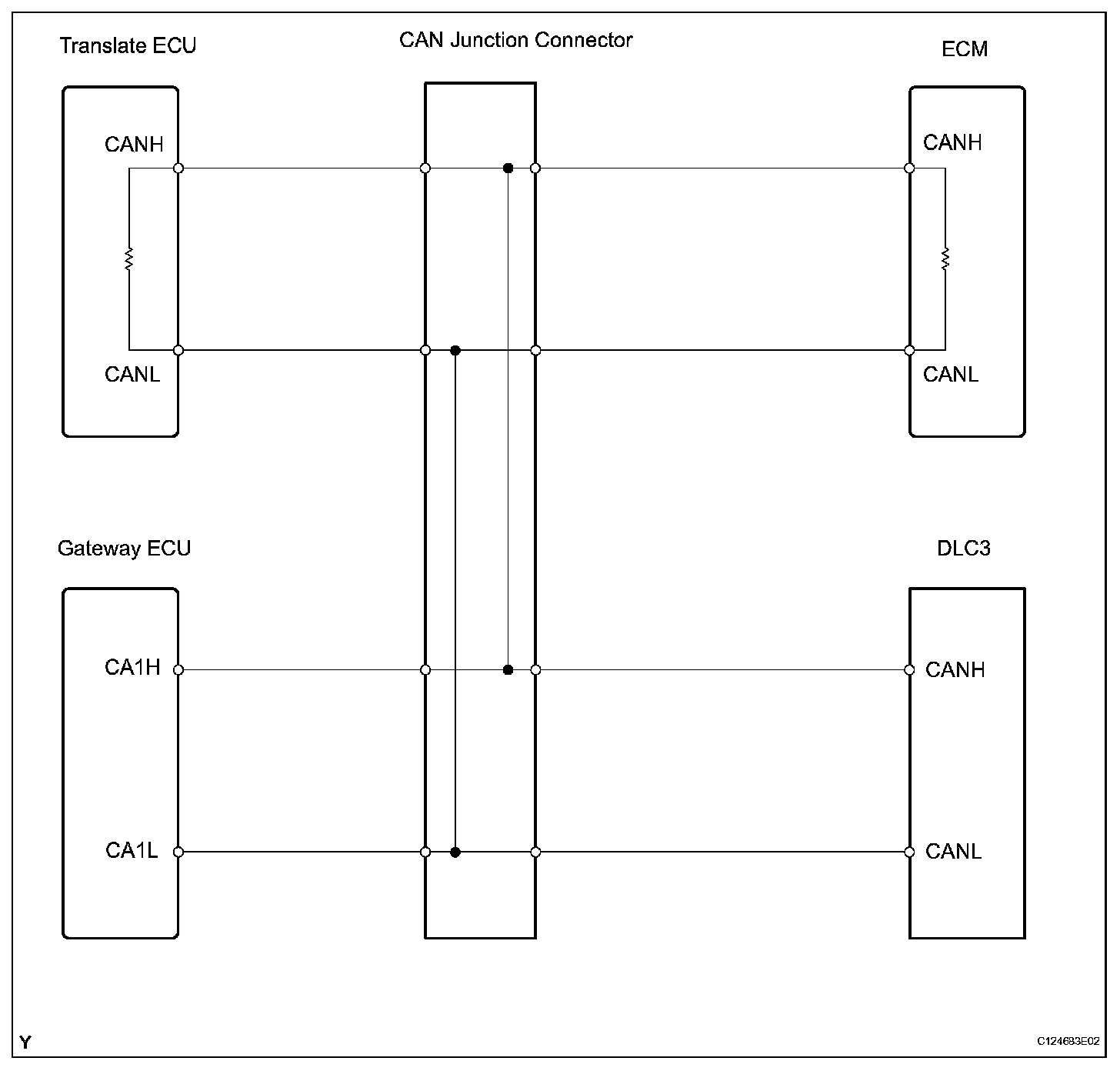

Wiring Diagram:

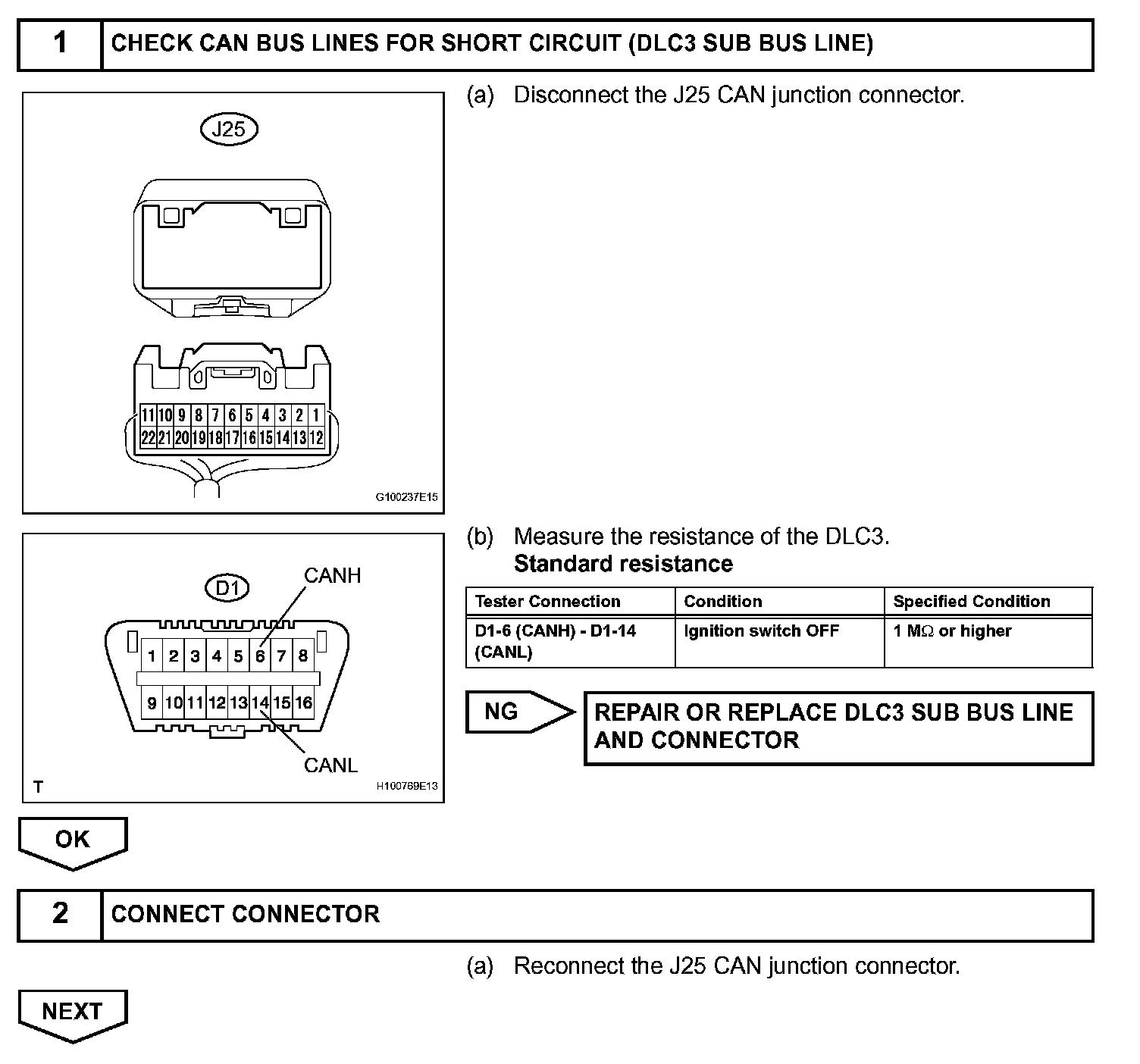

Step 1-2:

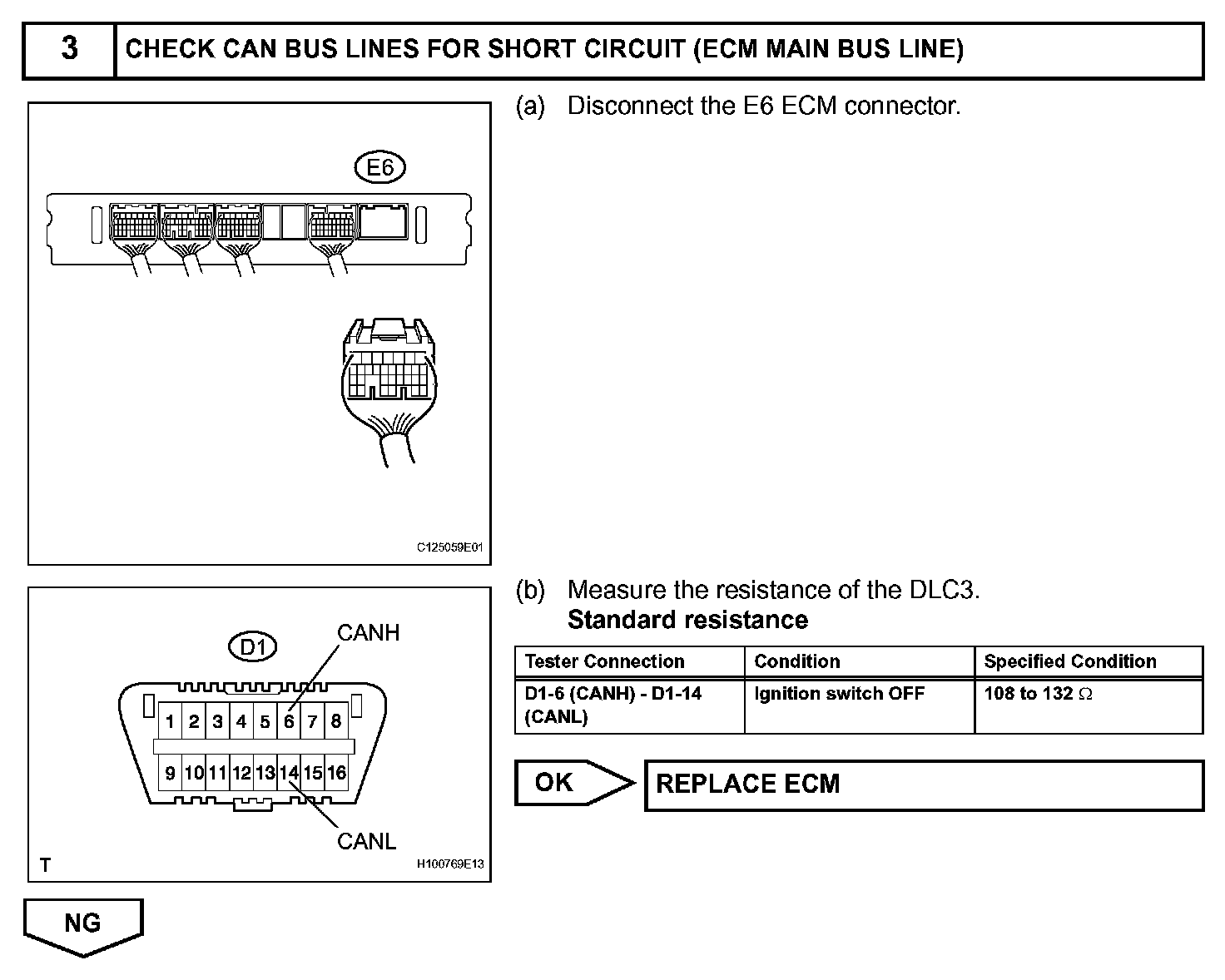

Step 3:

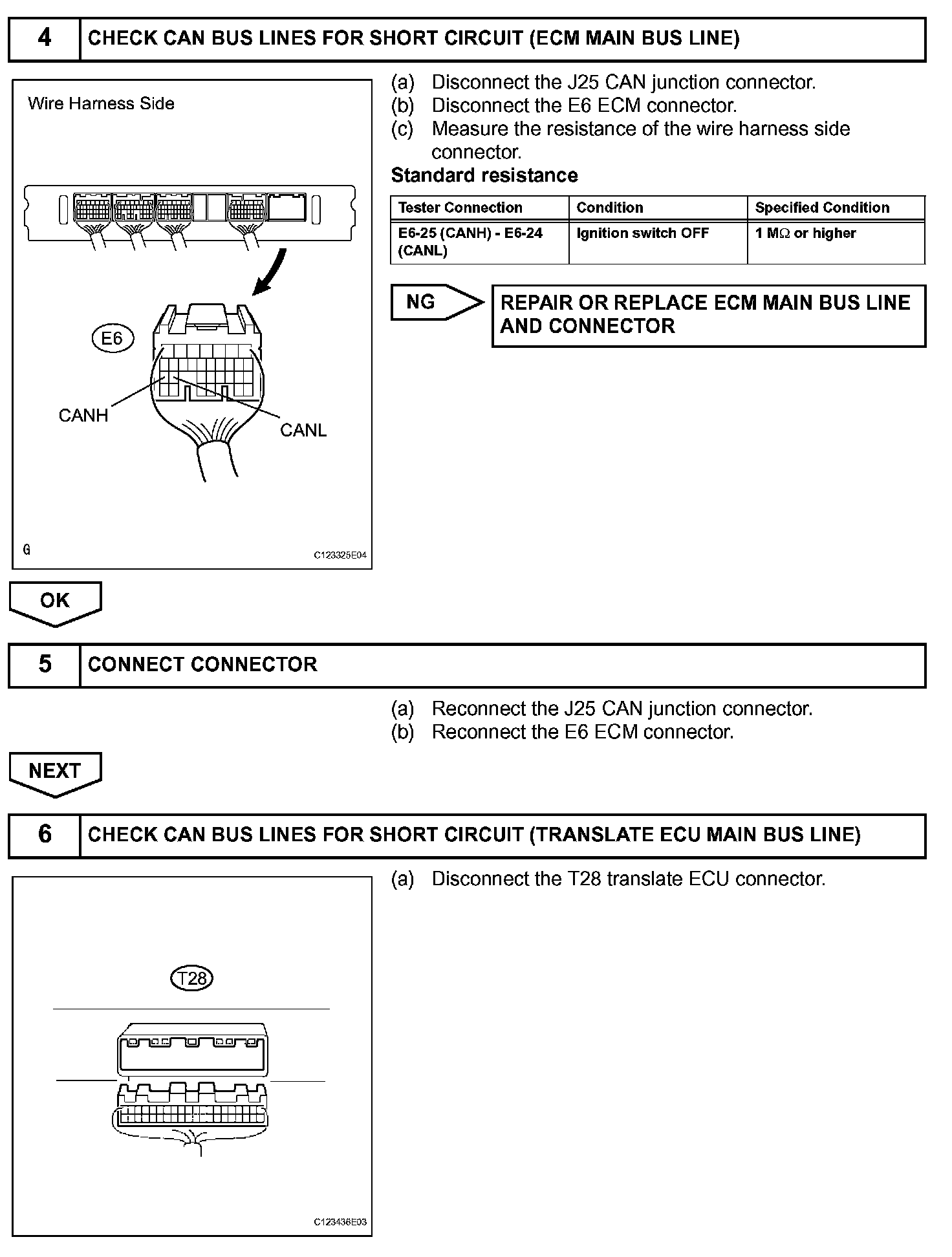

Step 4-6:
Step 6 (Continued)-8:

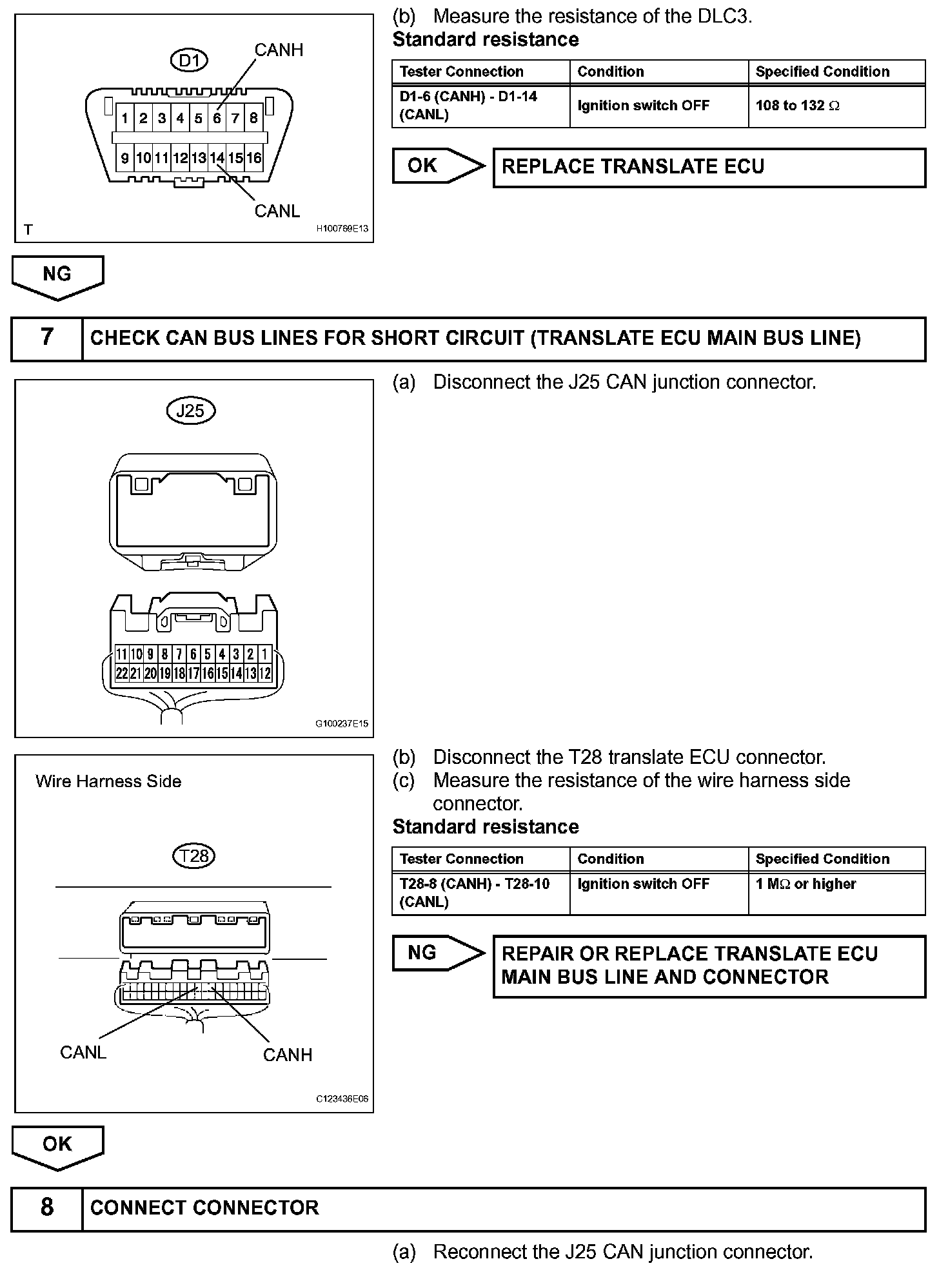

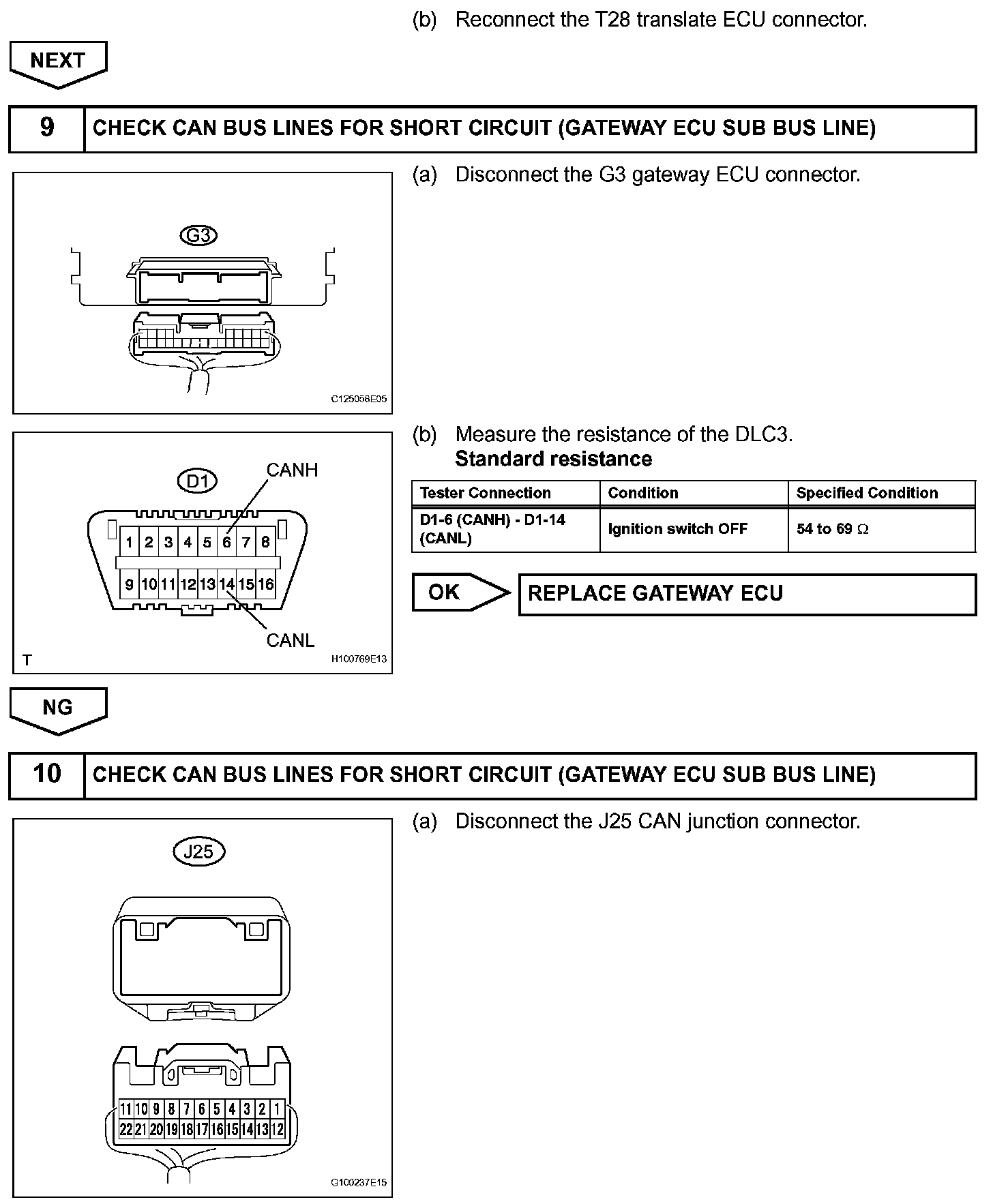

Step 8 (Continued)-10:

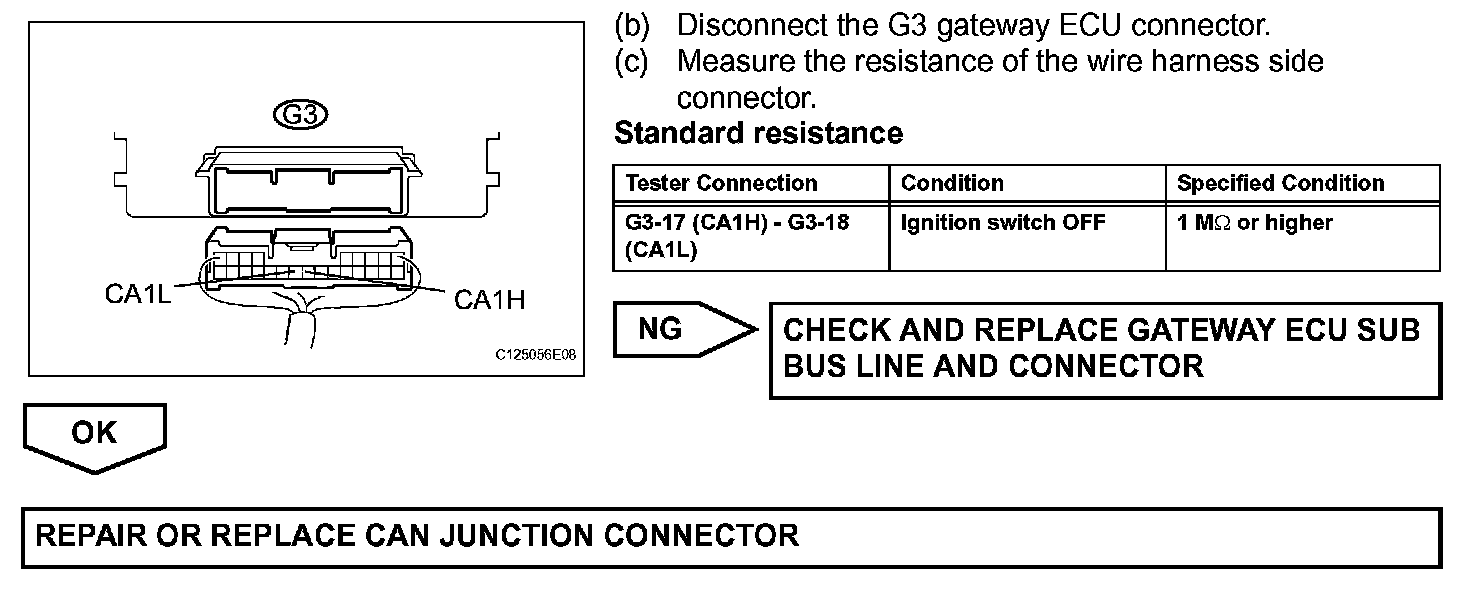

Step 10 (Continued):
INSPECTION PROCEDURE
