Gateway ECU Communication Stop Mode

Gateway ECU Communication Stop Mode

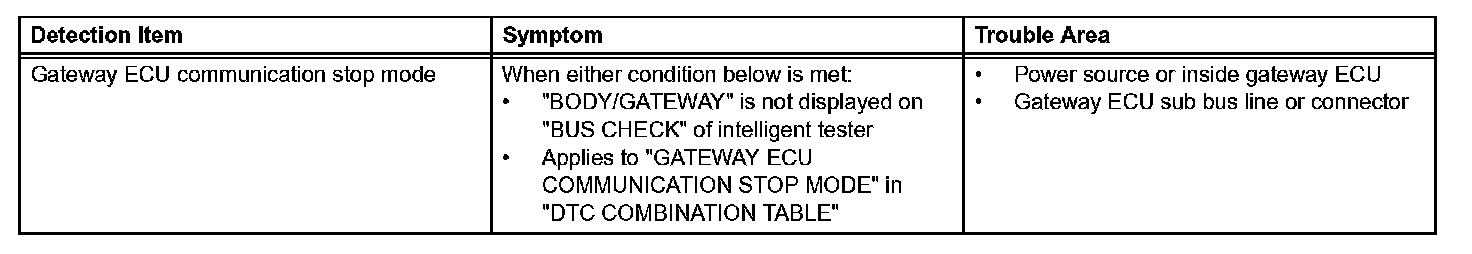

Symptom:

DESCRIPTION

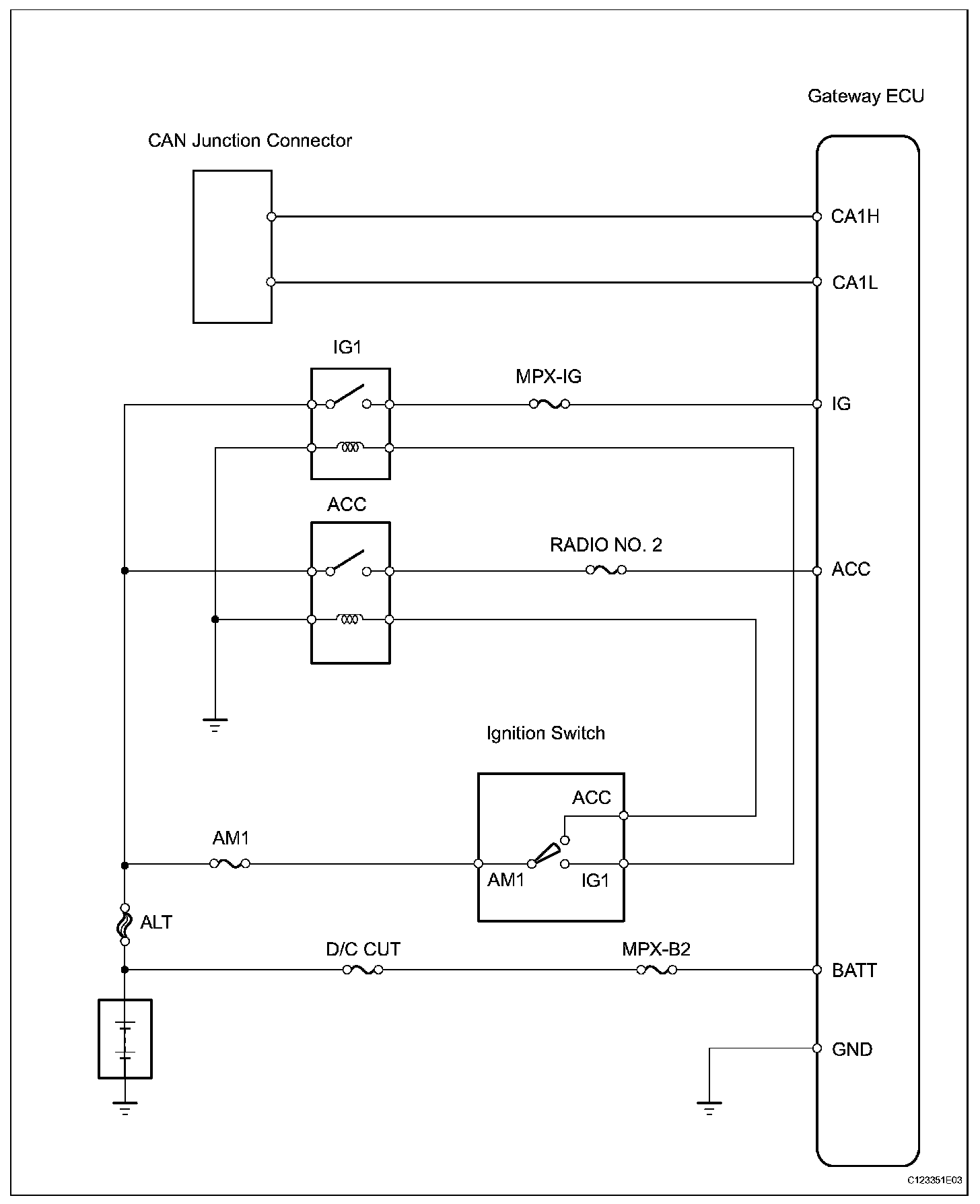

Wiring Diagram:

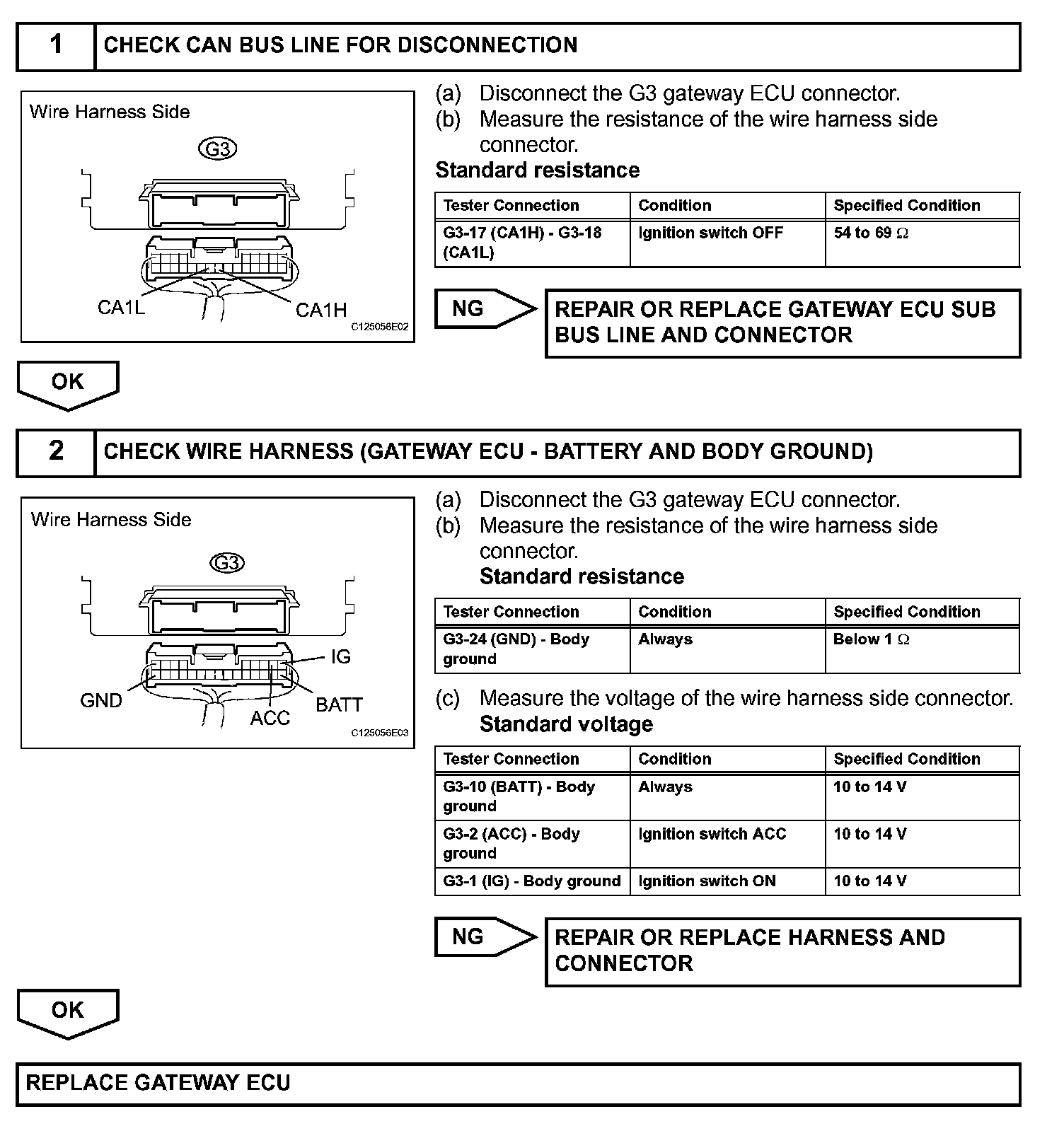

Step 1-2:

INSPECTION PROCEDURE
