ECM Communication Stop Mode
ECM Communication Stop Mode
ECM Communication Stop Mode

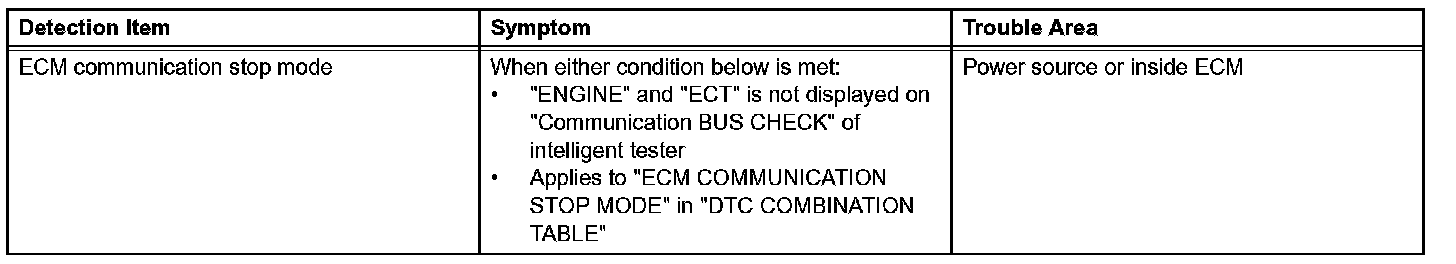

Symptom:
DESCRIPTION

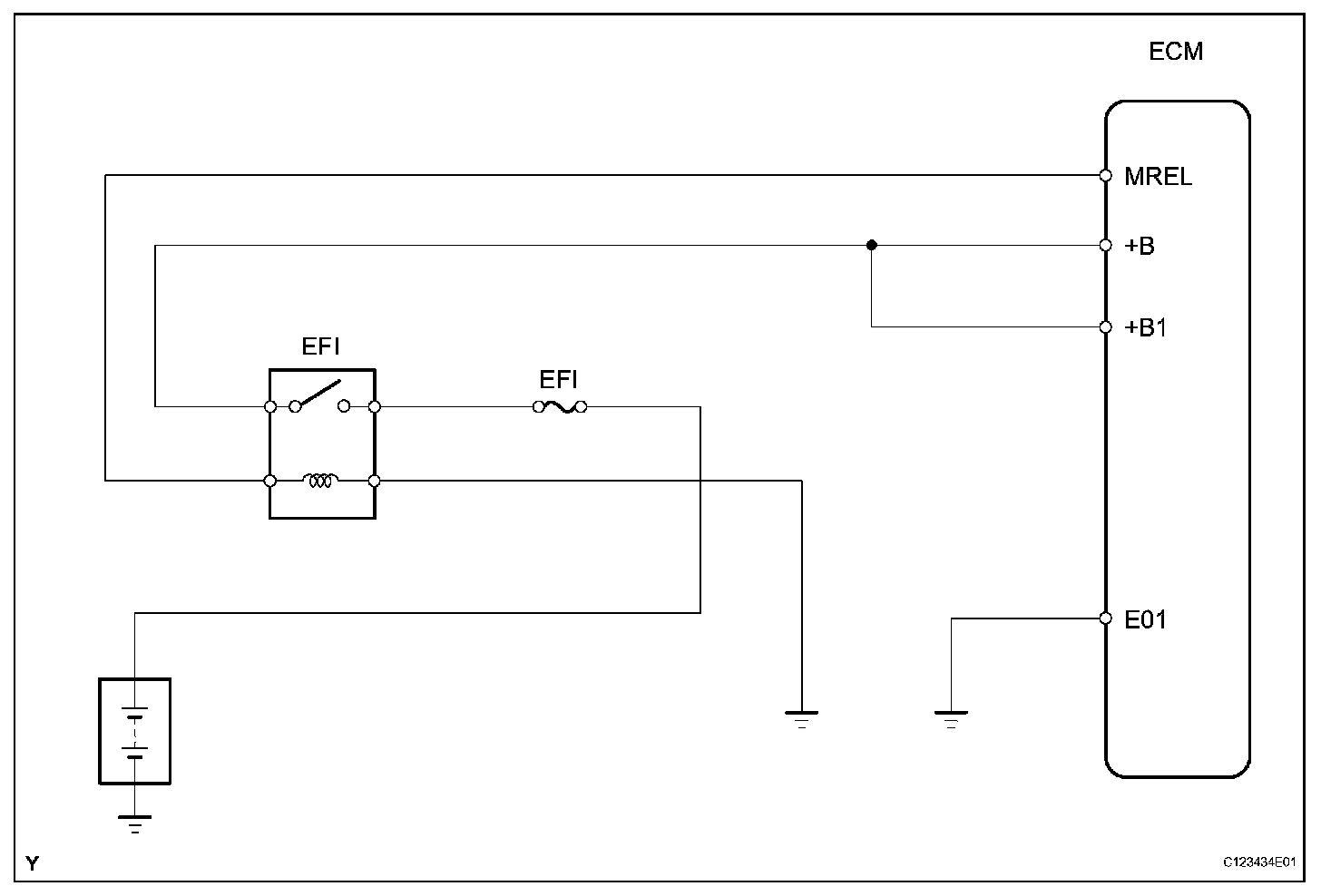

Wiring Diagram:

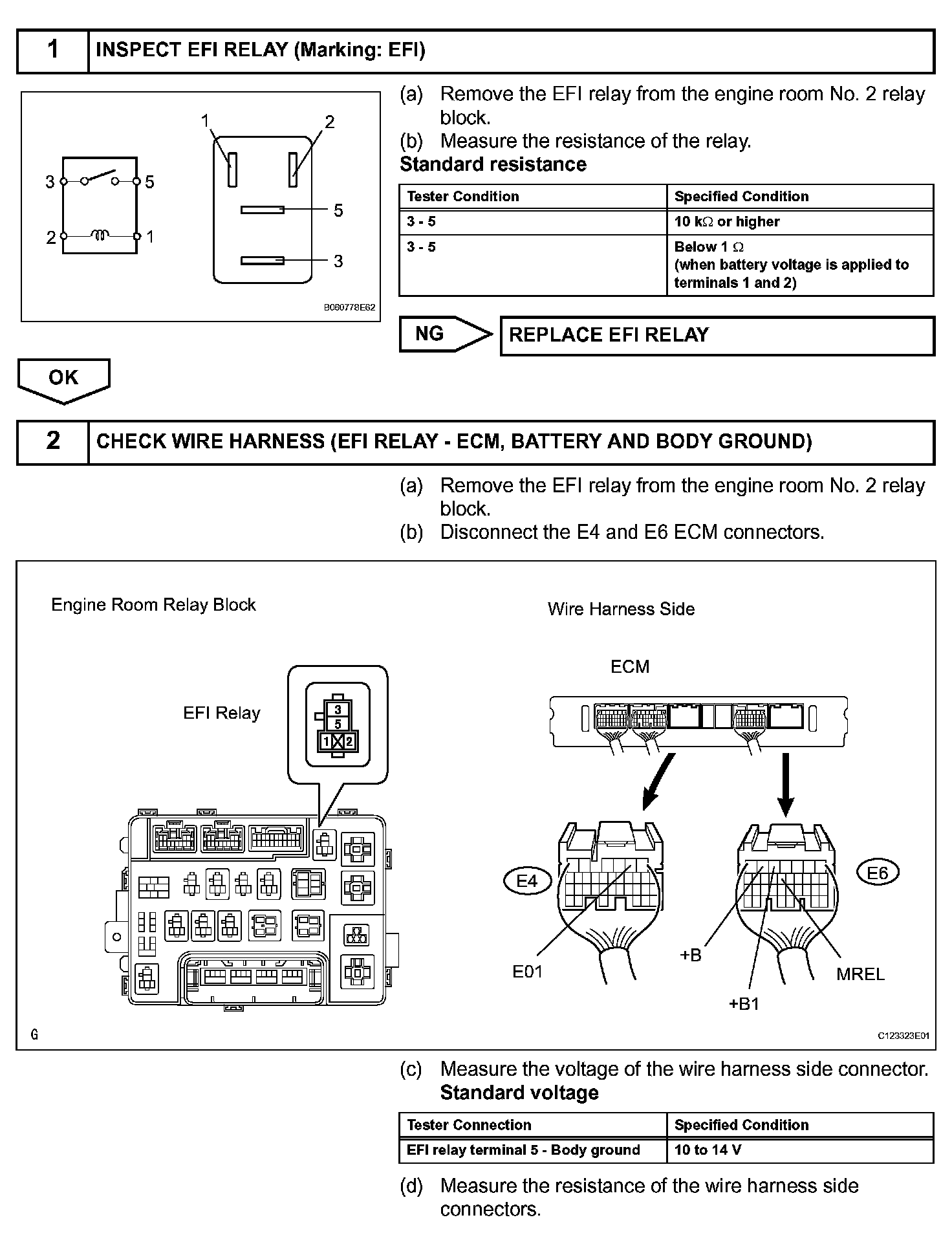

Step 1-2:

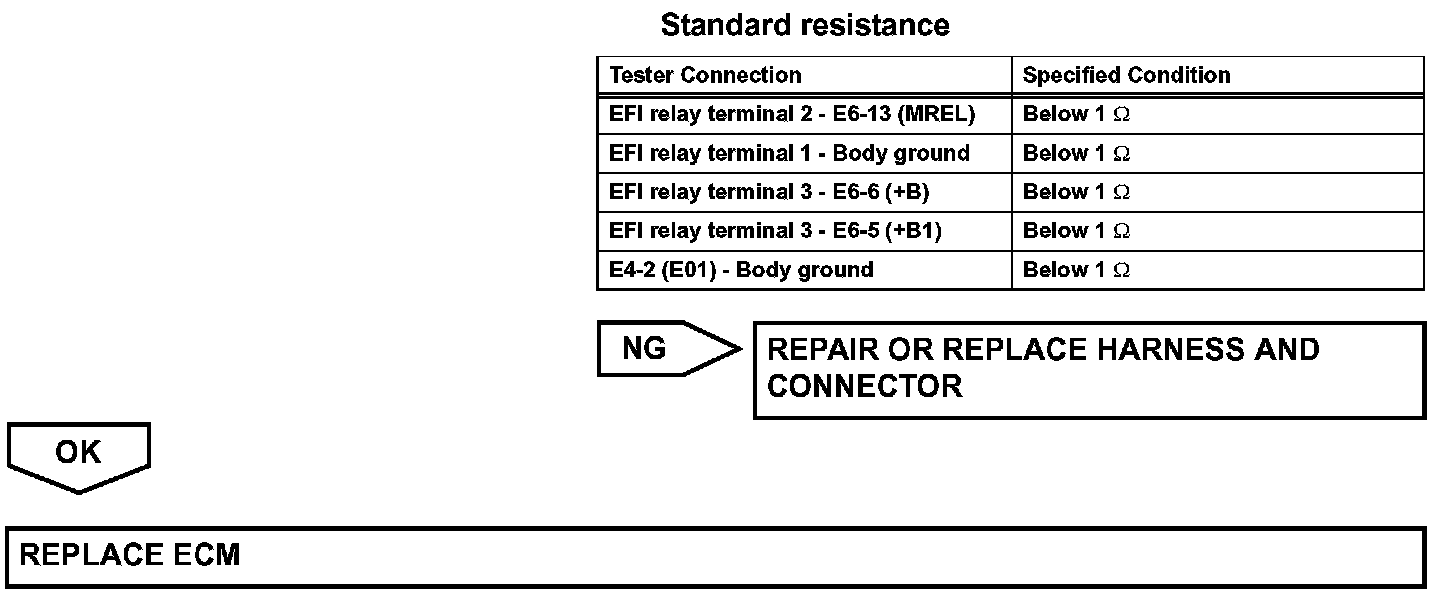

Step 2 (Continued):
INSPECTION PROCEDURE
