Cabin Air Filter / Purifier: Service and Repair

Step 1. Turn the engine switch to LOCK.

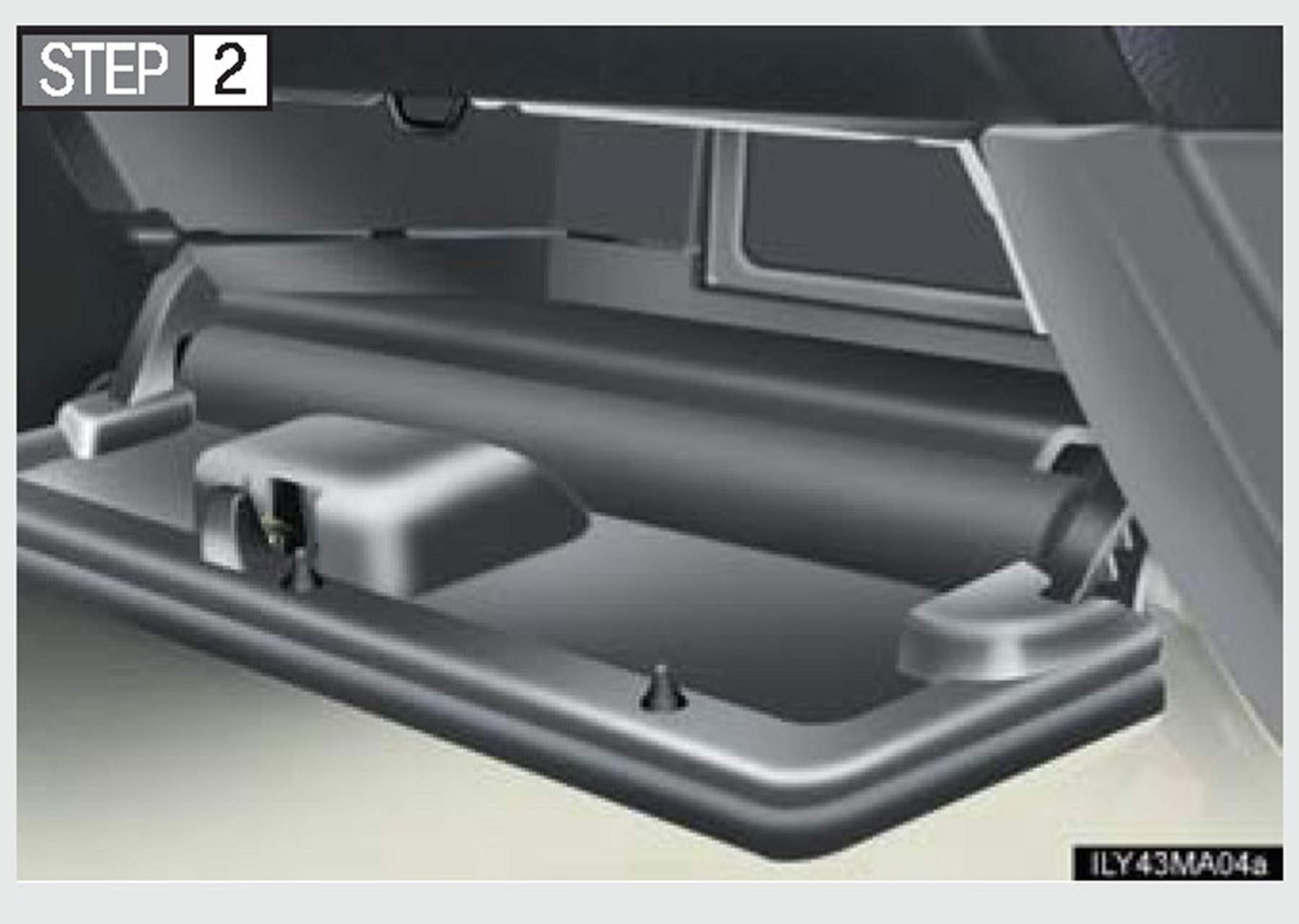

Step 2. Open the glove box.

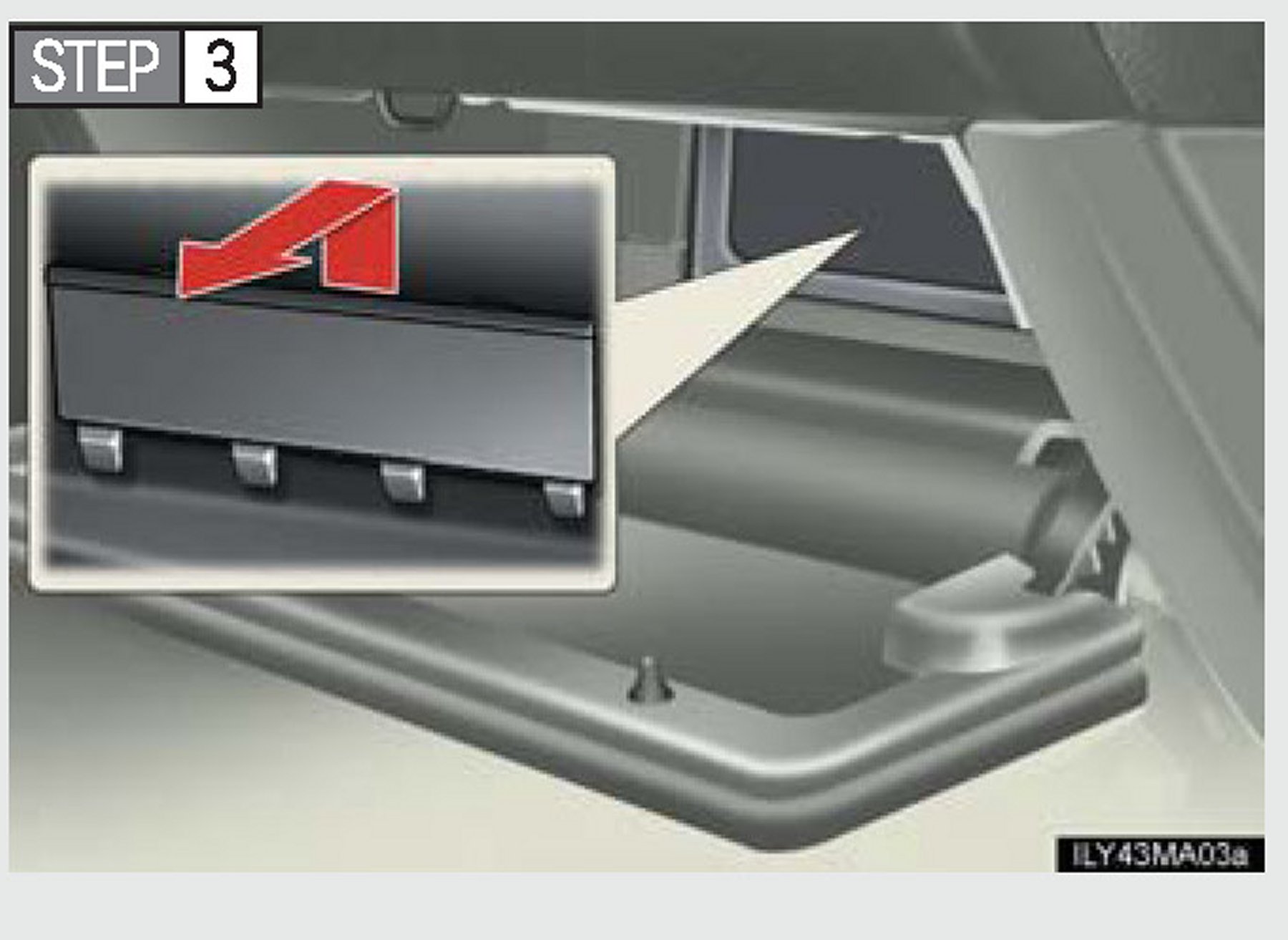

Step 3. Pull the cover.

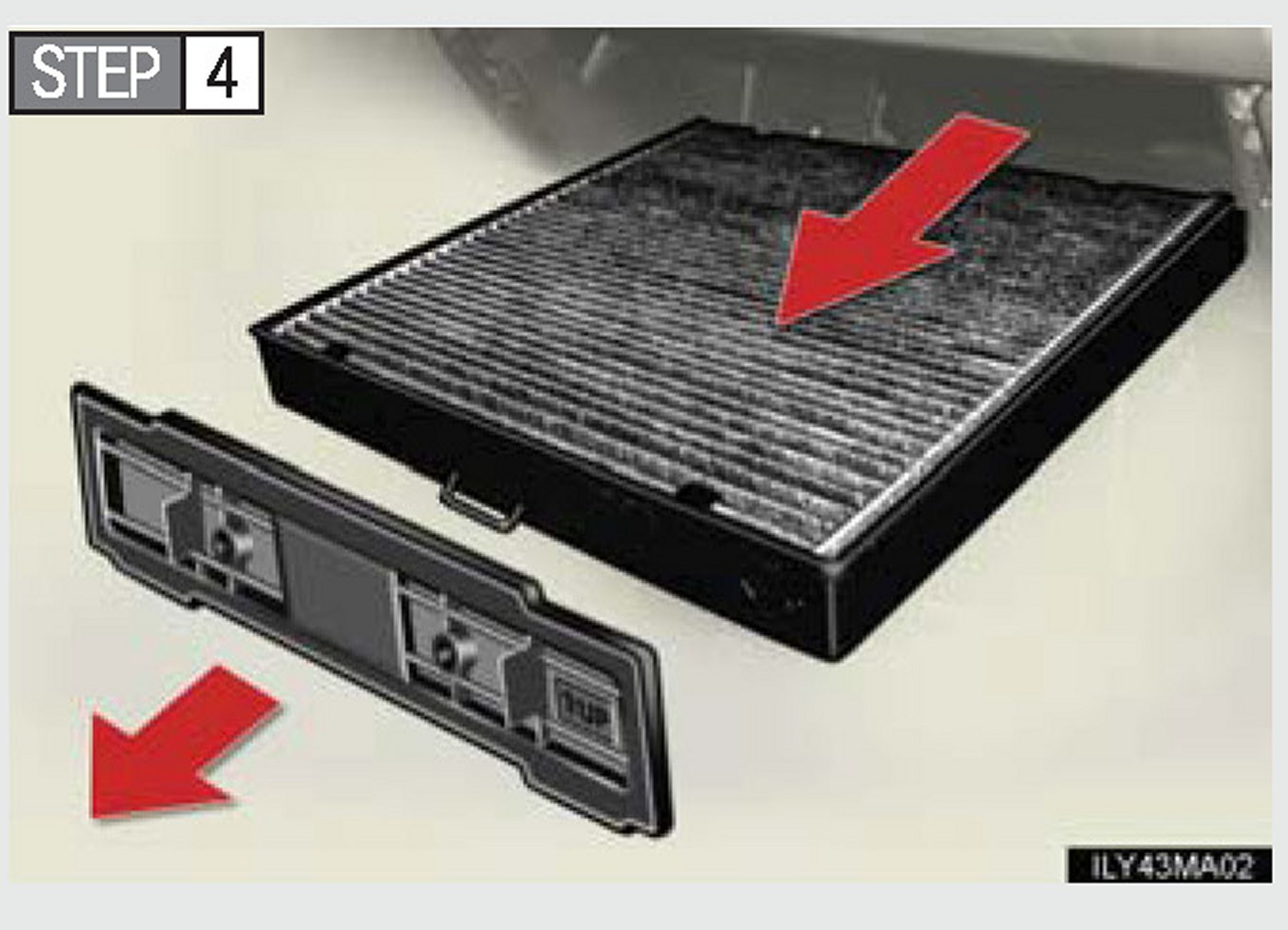

Step 4. Remove the filter cover.

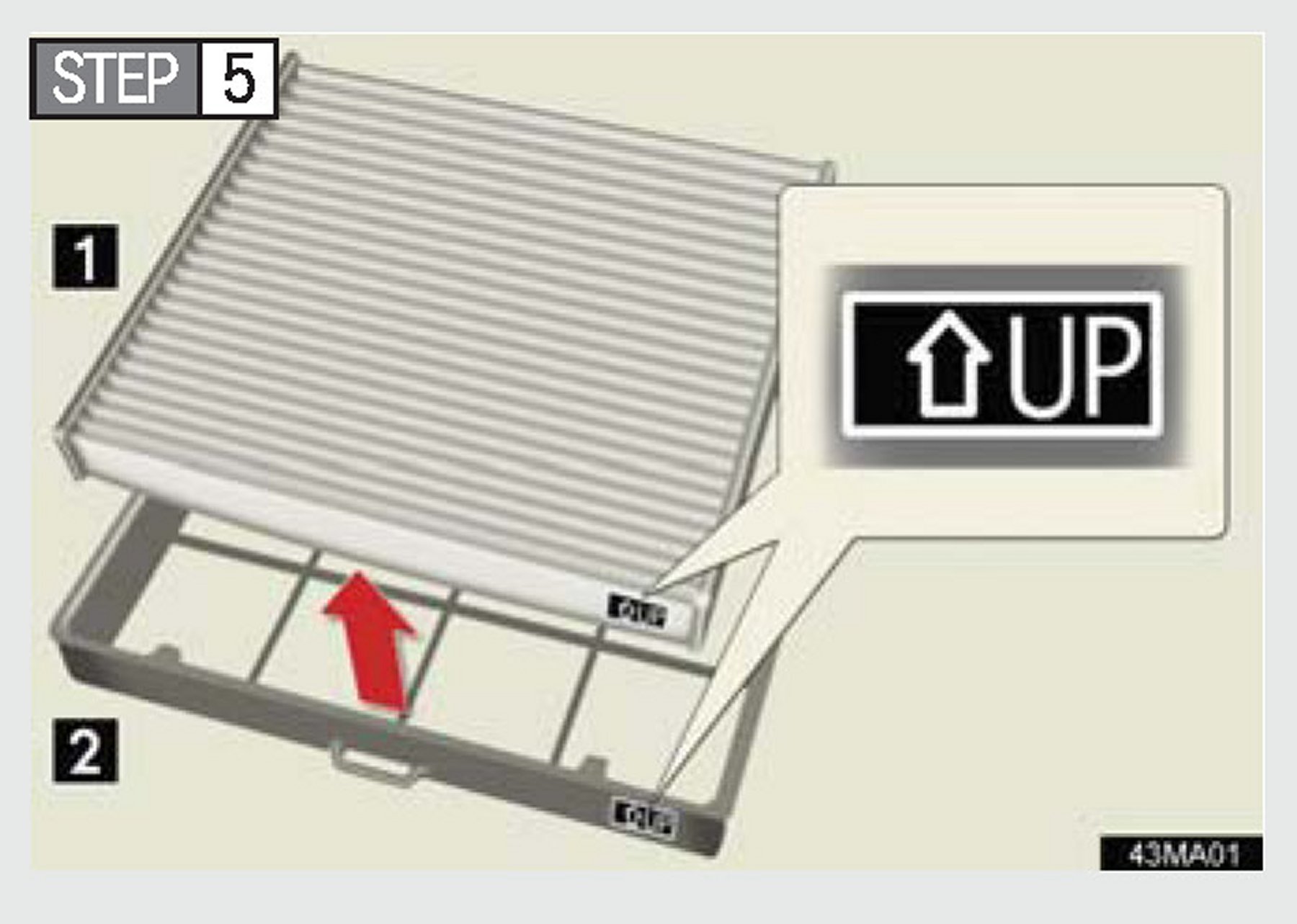

Step 5. Remove the air conditioning filter from the filter case and replace it with a new one. The UP marks shown on the filter and the filter case should be pointing up.

Reverse procedure to install.
