Fail Safe Chart

FAIL-SAFE CHART

1. FAIL-SAFE

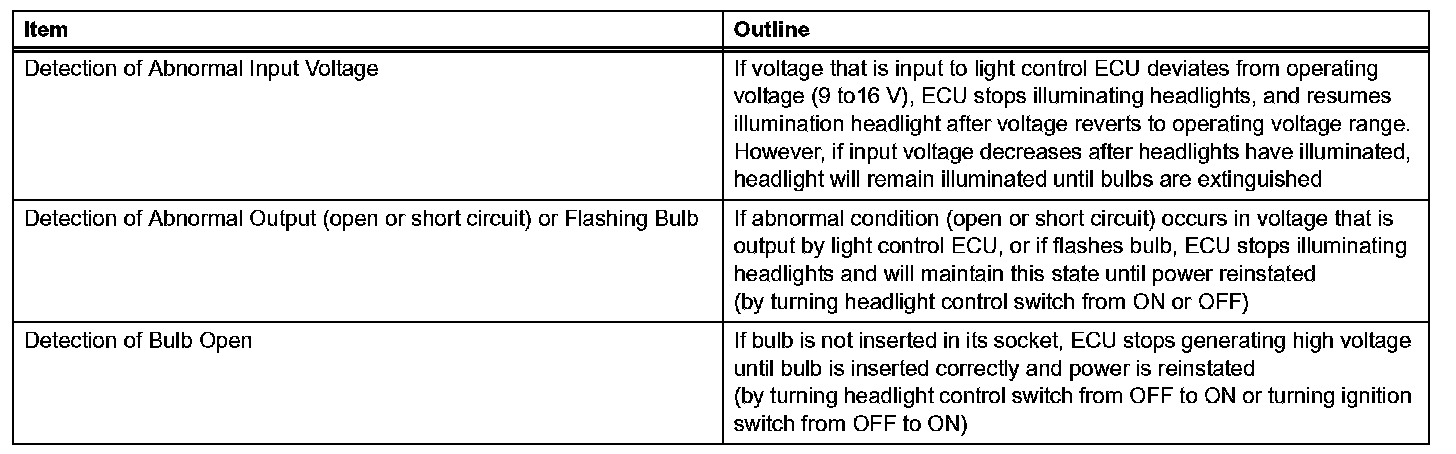

a. Light control ECU
The light control ECU executes the fail-safe actions listed below in accordance with the item that has been detected.

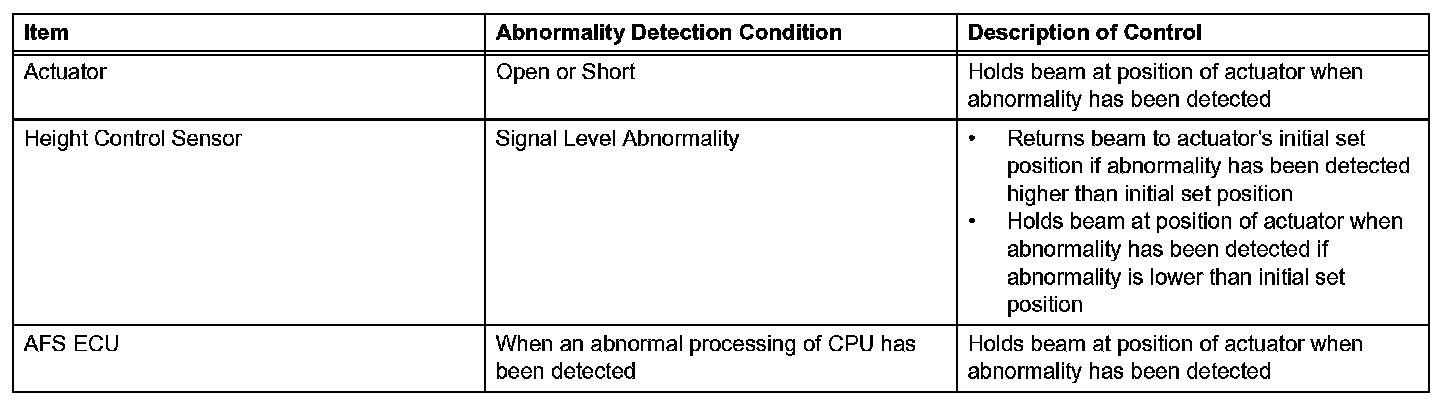

b. Headlight beam level control system




The AFS ECU operates in the fail-safe mode if an abnormal condition such as those listed below has been detected, and illuminates the automatic headlight leveling system warning light in the combination meter.
