Luggage Compartment Door Courtesy Switch Circuit
Luggage Compartment Door Courtesy Switch CircuitDESCRIPTION
The luggage compartment door courtesy switch is built into the luggage compartment door lock.

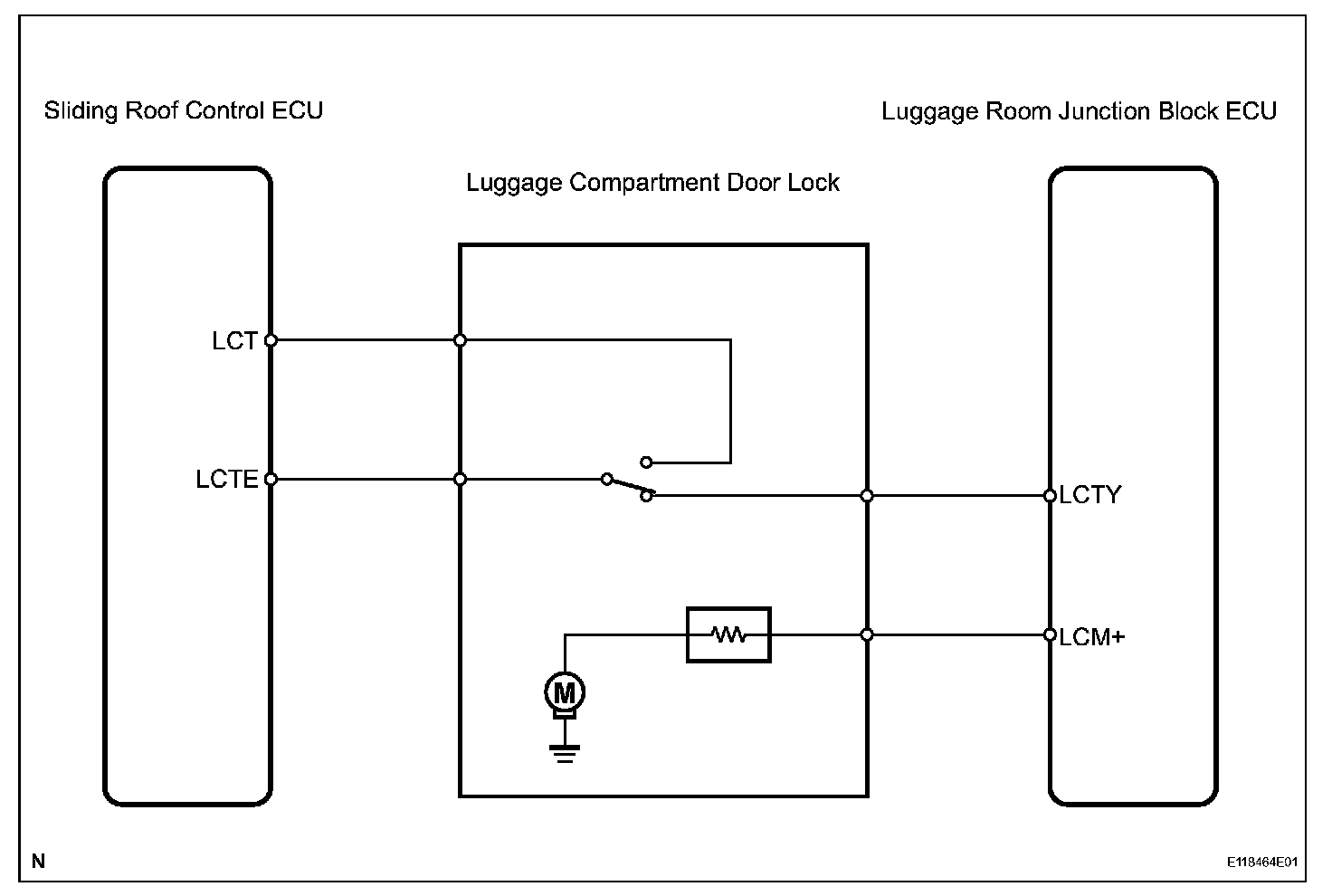

Wiring Diagram:

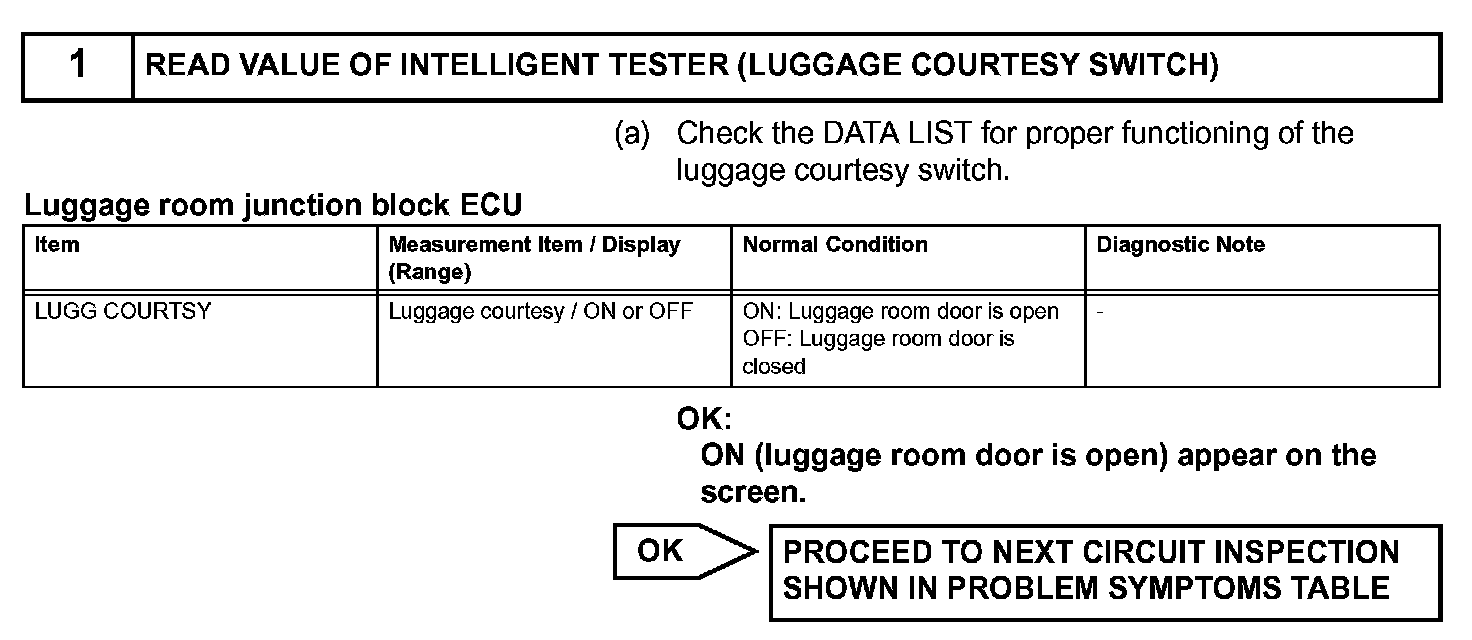

Step 1:

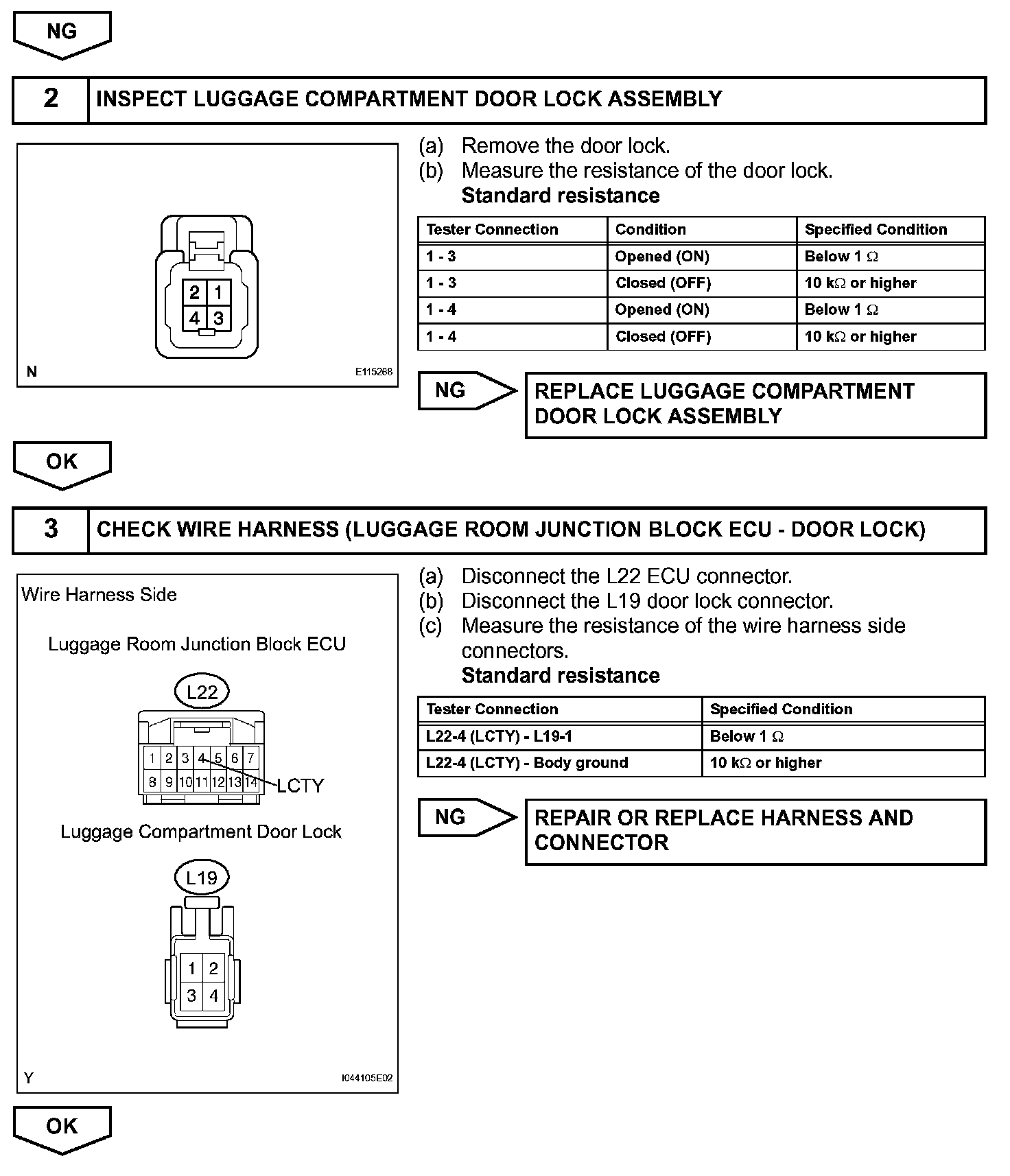

Step 1 (Continued)-3:

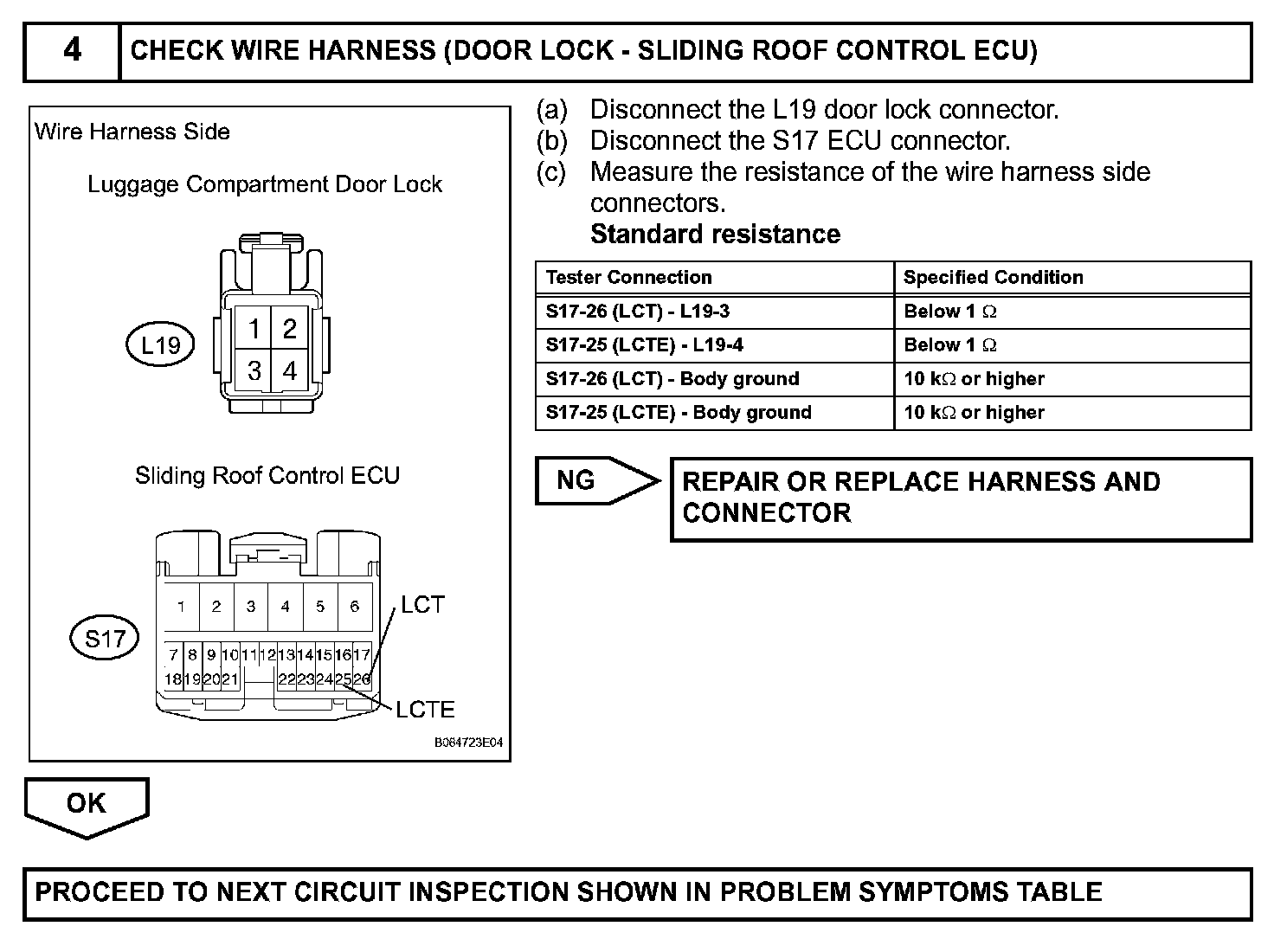

Step 4:
INSPECTION PROCEDURE
