Light Control Switch Circuit
Light Control Switch CircuitDESCRIPTION
This circuit detects the state of the turn signal switch (combination switch) switch and sends it to the driver side junction block ECU.

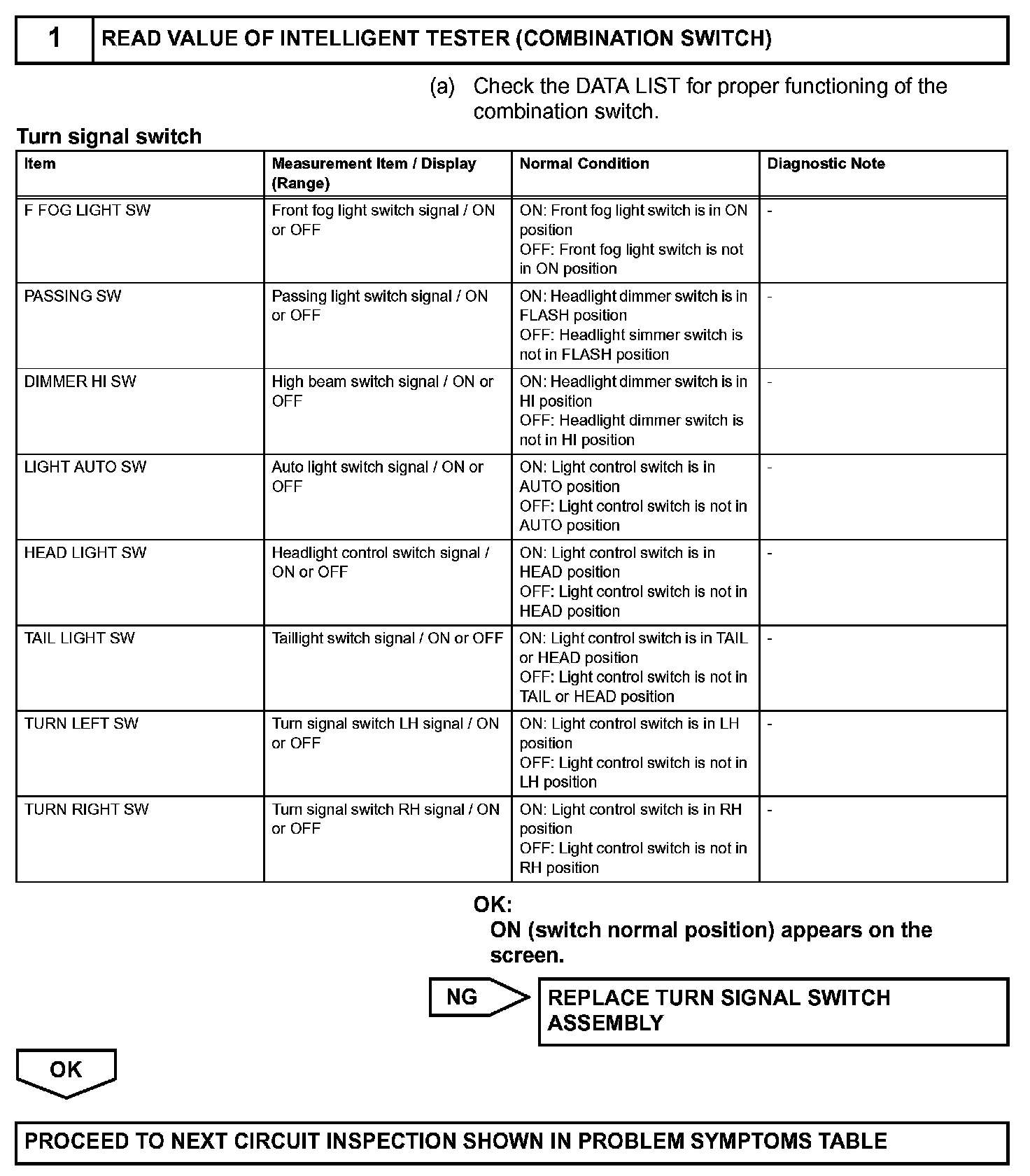

Step 1:
INSPECTION PROCEDURE
DESCRIPTION
This circuit detects the state of the turn signal switch (combination switch) switch and sends it to the driver side junction block ECU.
INSPECTION PROCEDURE
