License Plate Lamp Circuit
License Plate Light CircuitDESCRIPTION
When the light switch TAIL signal is received from the luggage room junction block ECU, the license plate light illuminates.

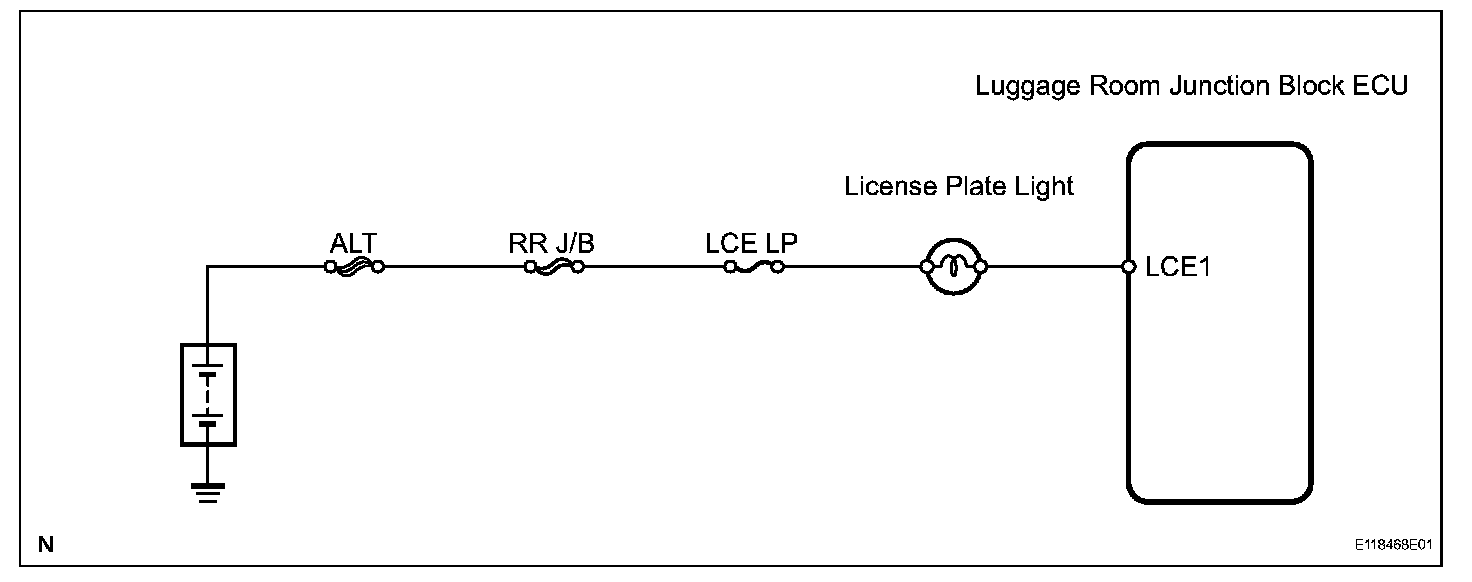

Wiring Diagram:

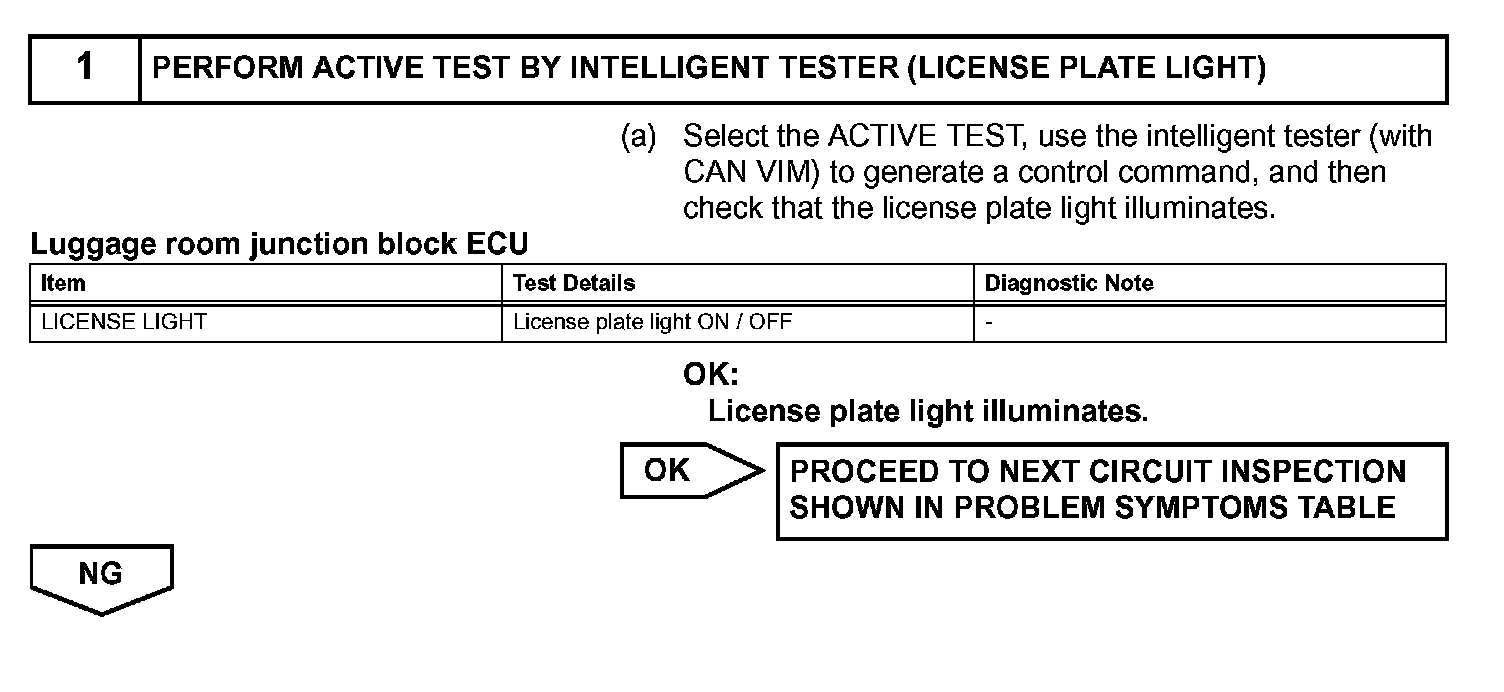

Step 1:

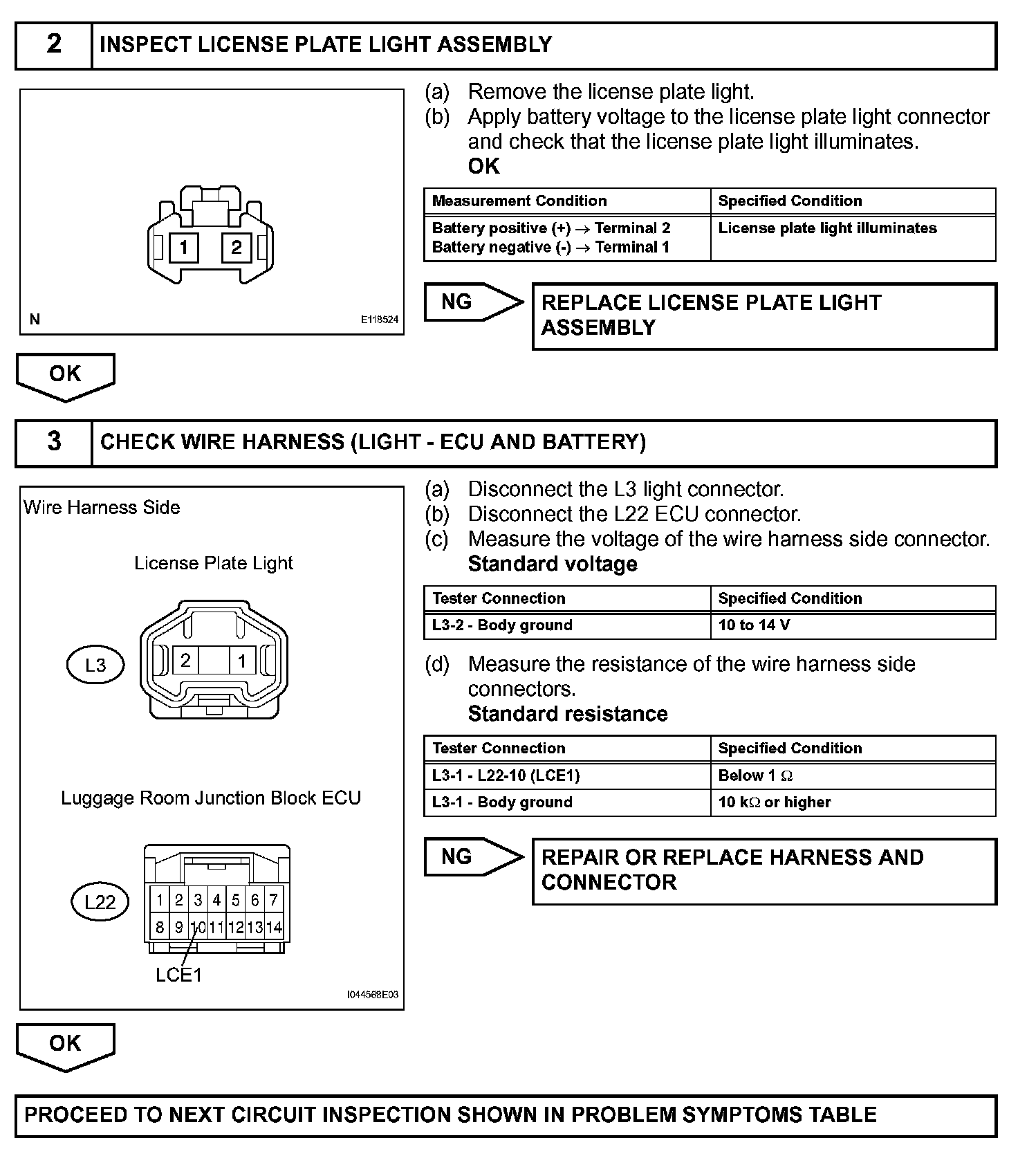

Step 2-3:
INSPECTION PROCEDURE
DESCRIPTION
When the light switch TAIL signal is received from the luggage room junction block ECU, the license plate light illuminates.
INSPECTION PROCEDURE
