High Mounted Stop Lamp Circuit
High Mounted Stop Light CircuitDESCRIPTION
When the brake pedal signal is received from the luggage room junction block ECU, the stop light illuminates.

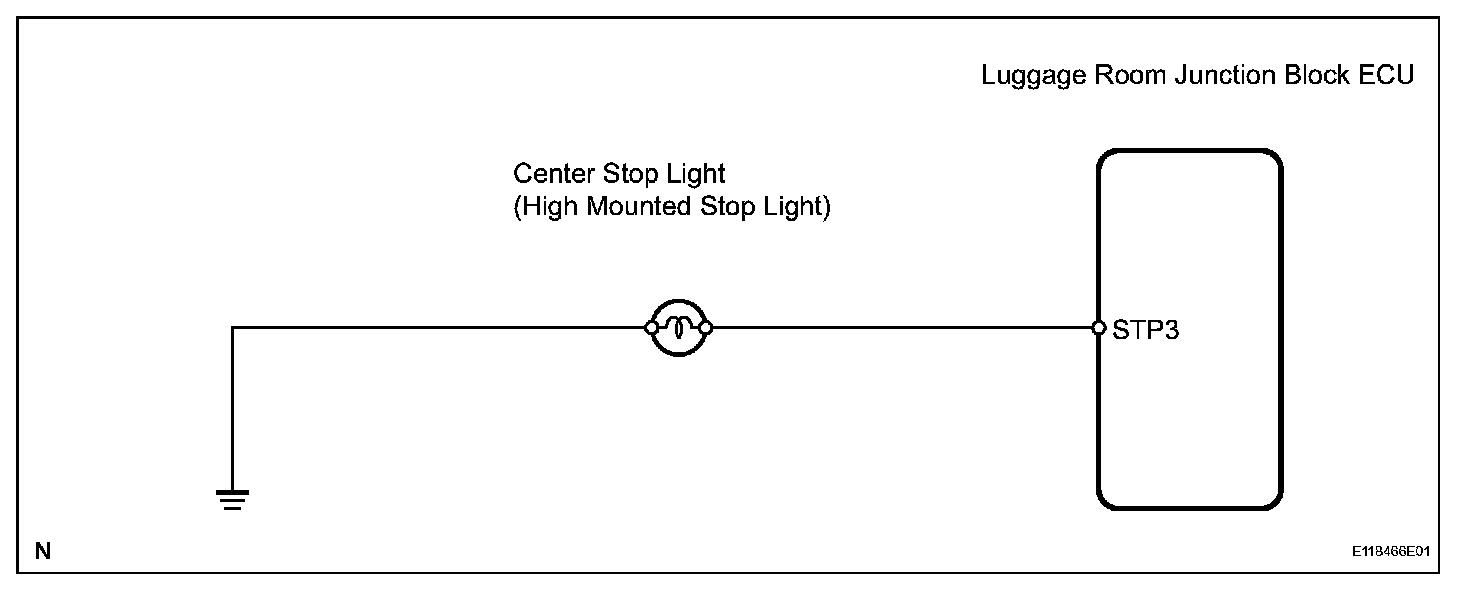

Wiring Diagram:

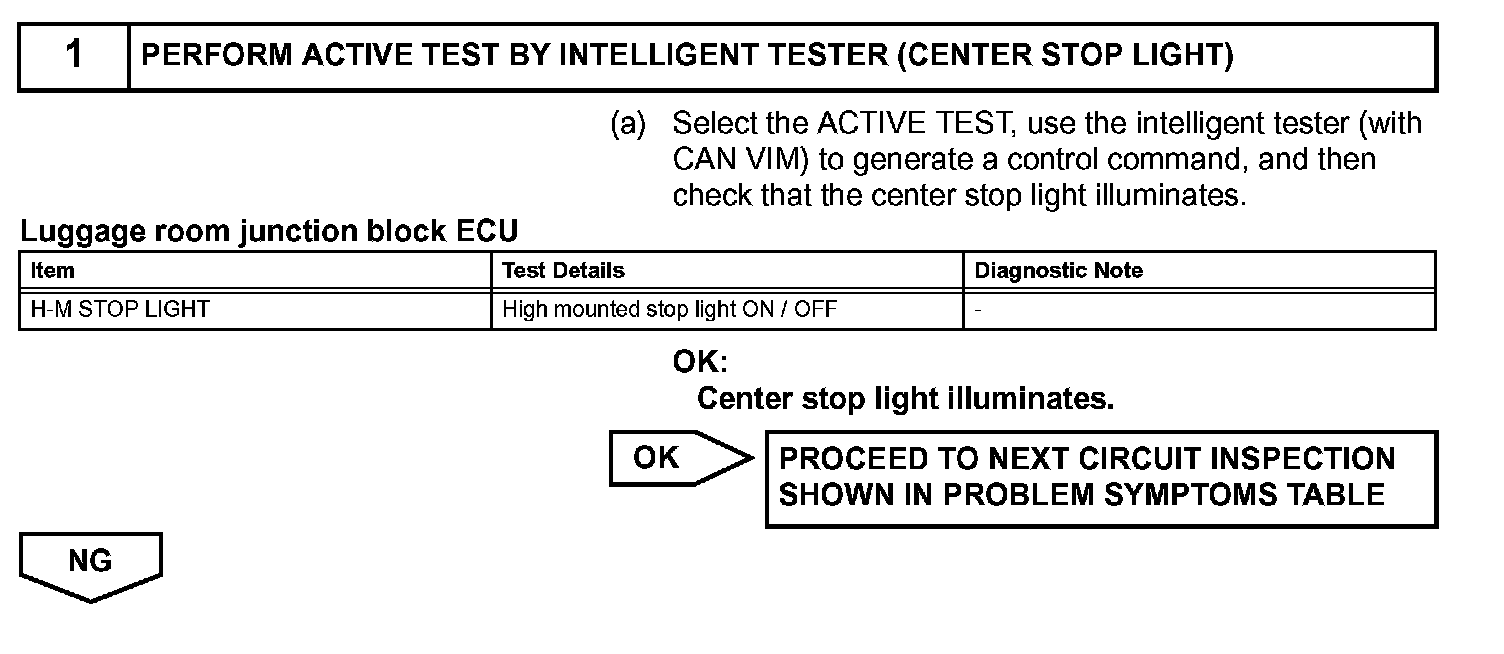

Step 1:

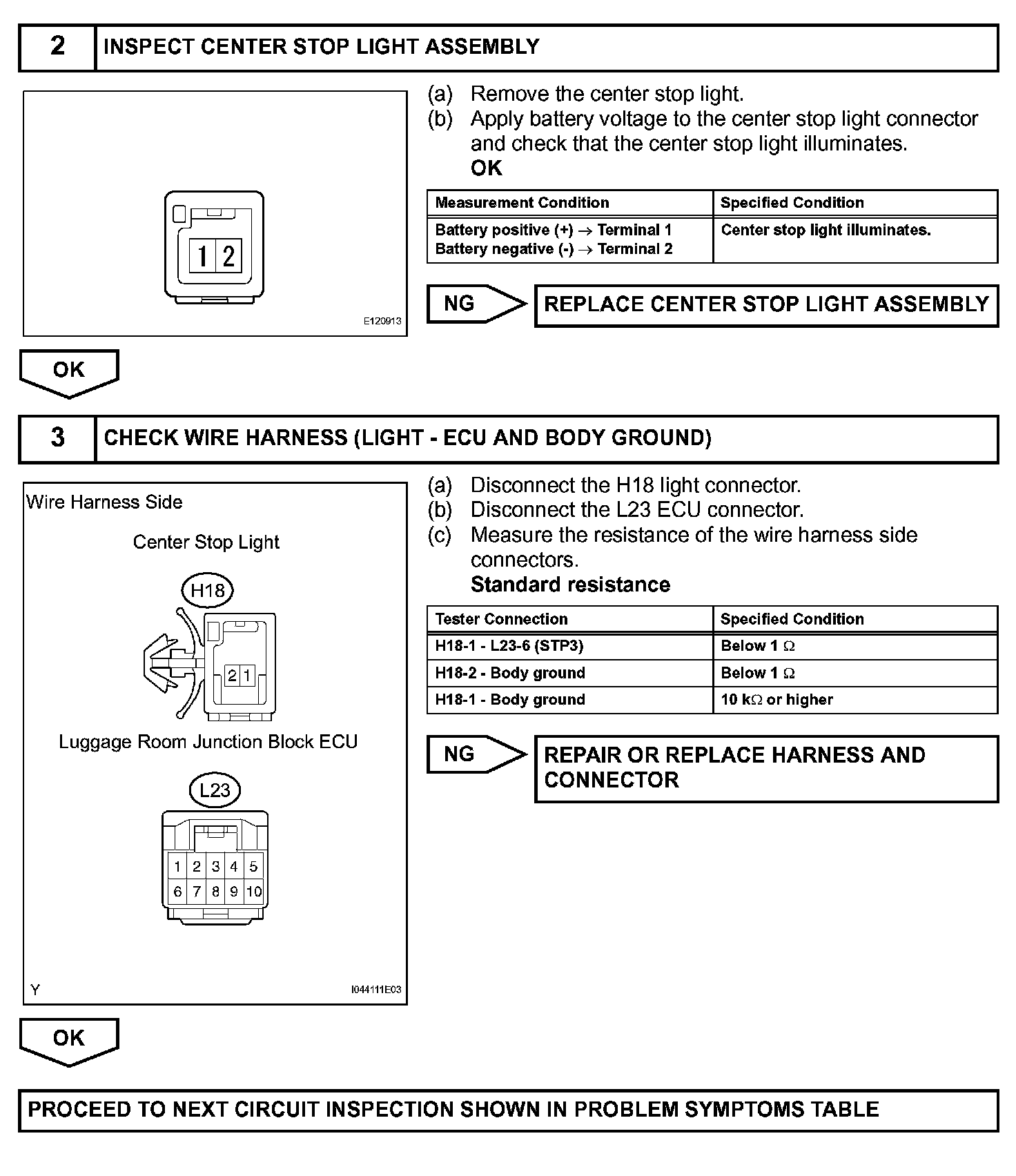

Step 2-3:
INSPECTION PROCEDURE
DESCRIPTION
When the brake pedal signal is received from the luggage room junction block ECU, the stop light illuminates.
INSPECTION PROCEDURE
