Headlight Relay Circuit

Headlight Relay Circuit

DESCRIPTION

The headlight relay is turned "ON" by operating the headlight switch.

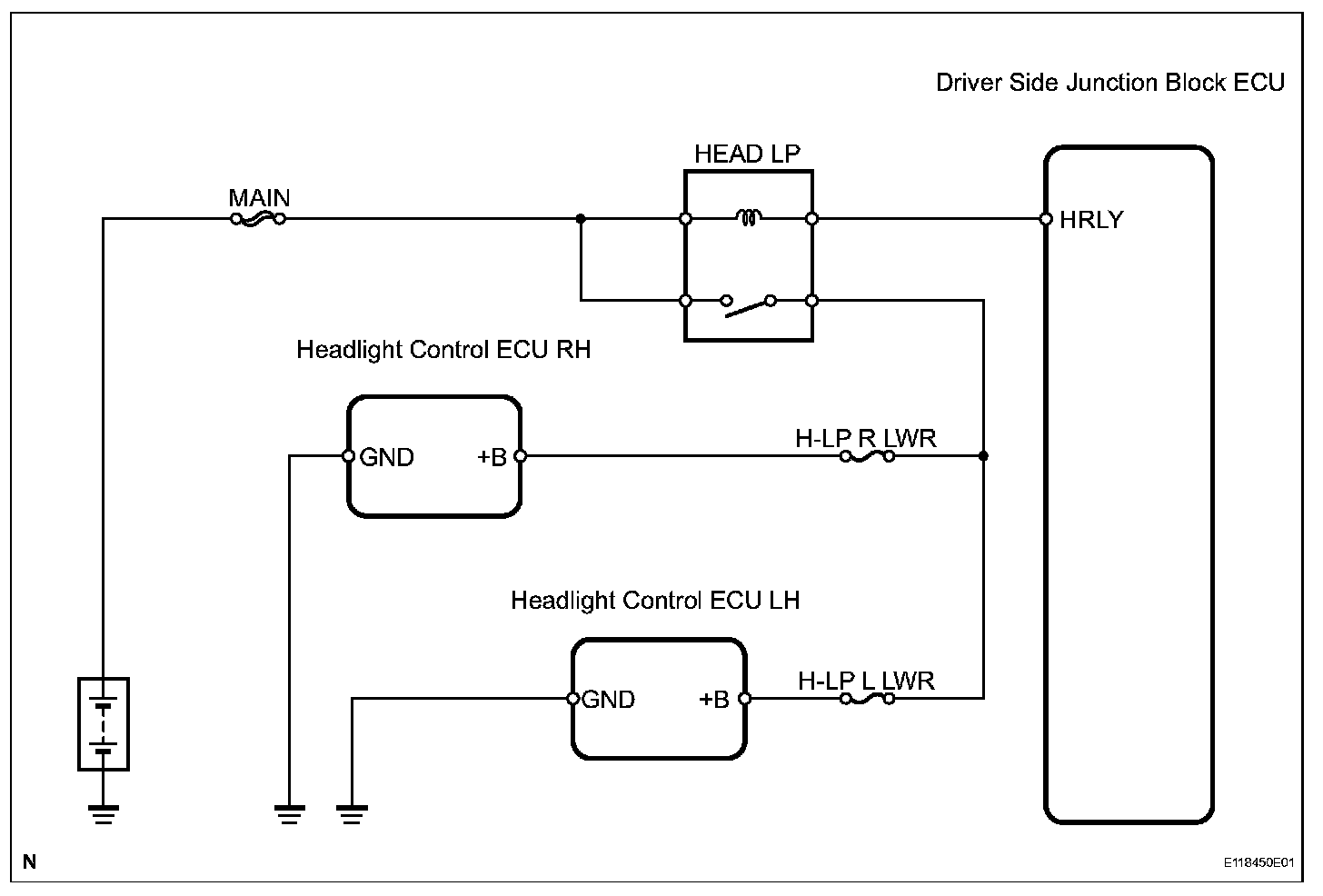

Wiring Diagram:

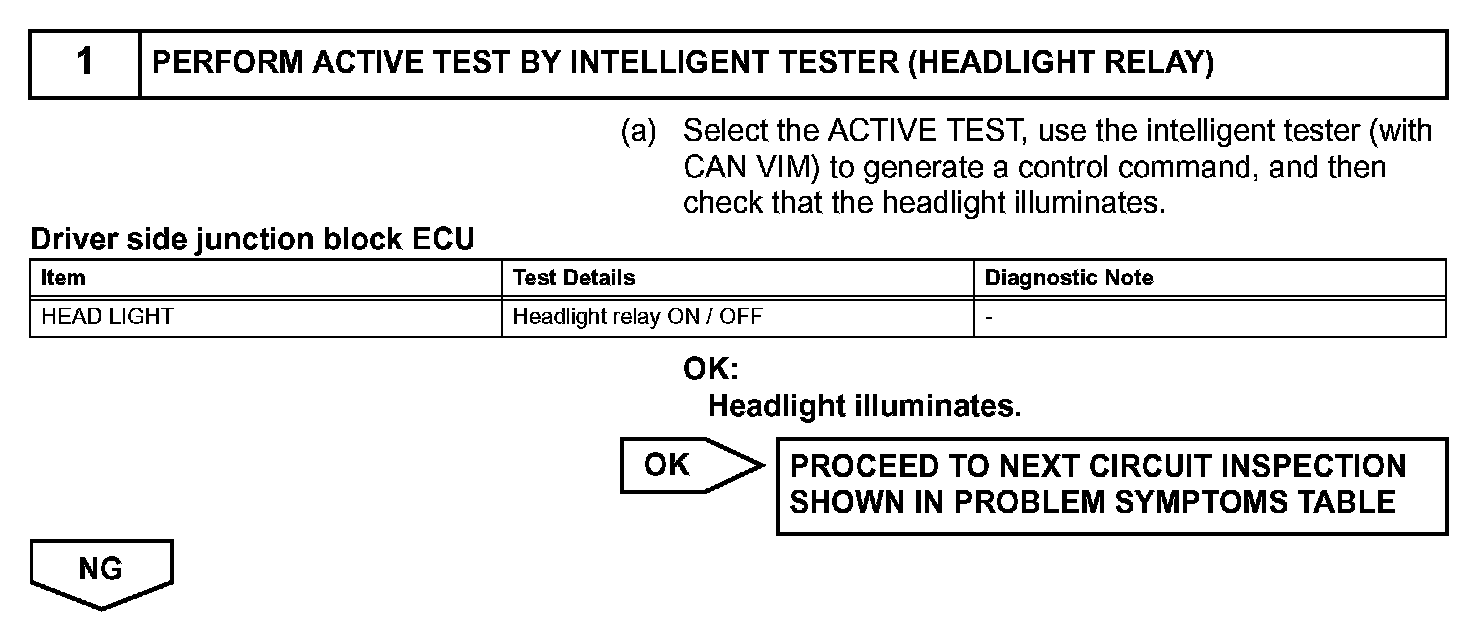

Step 1:

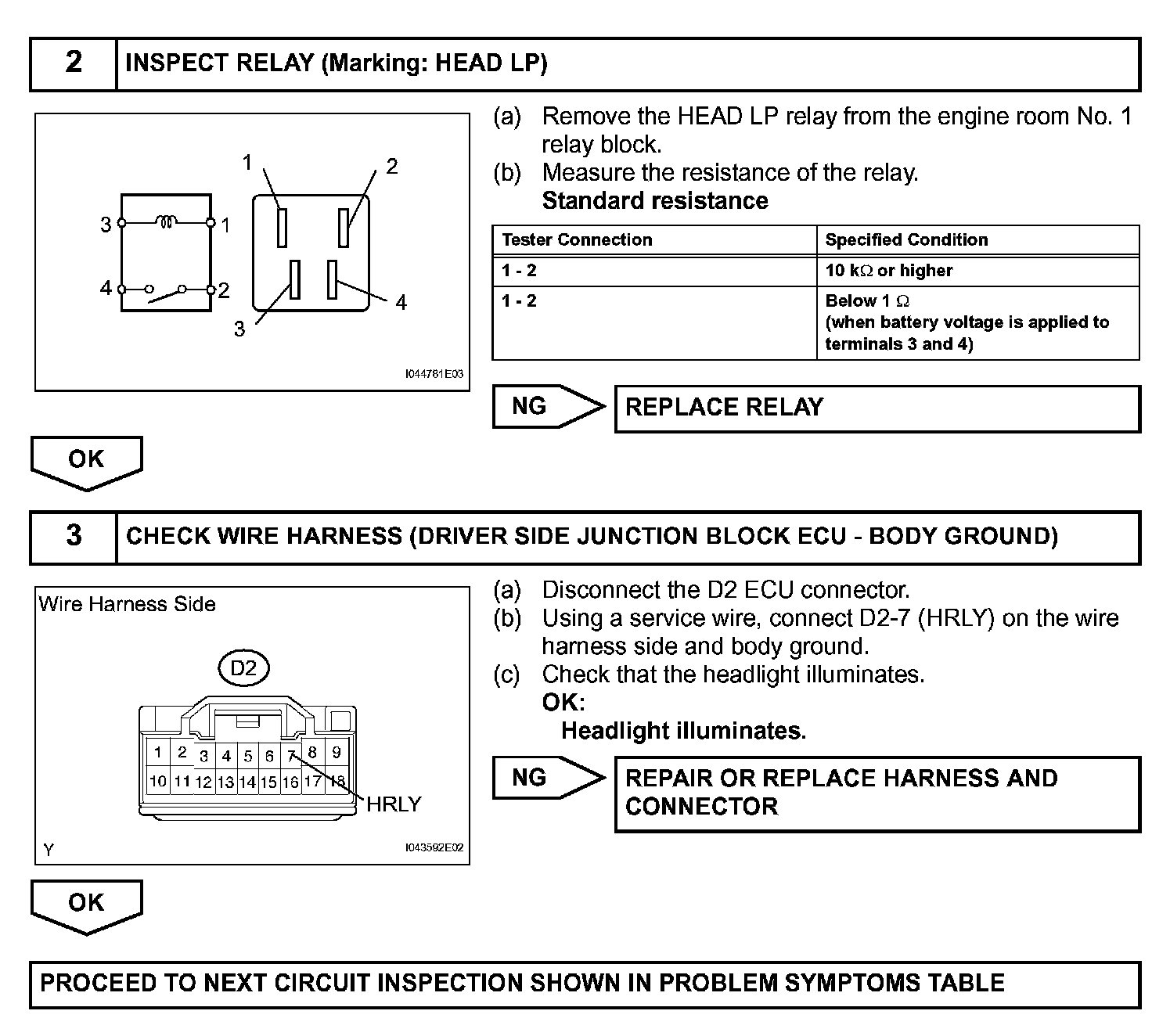

Step 2-3:




INSPECTION PROCEDURE
