Hazard Warning Switch Circuit

Hazard Warning Switch Circuit

DESCRIPTION

The hazard warning switch sends a signal to the driver side junction block ECU.

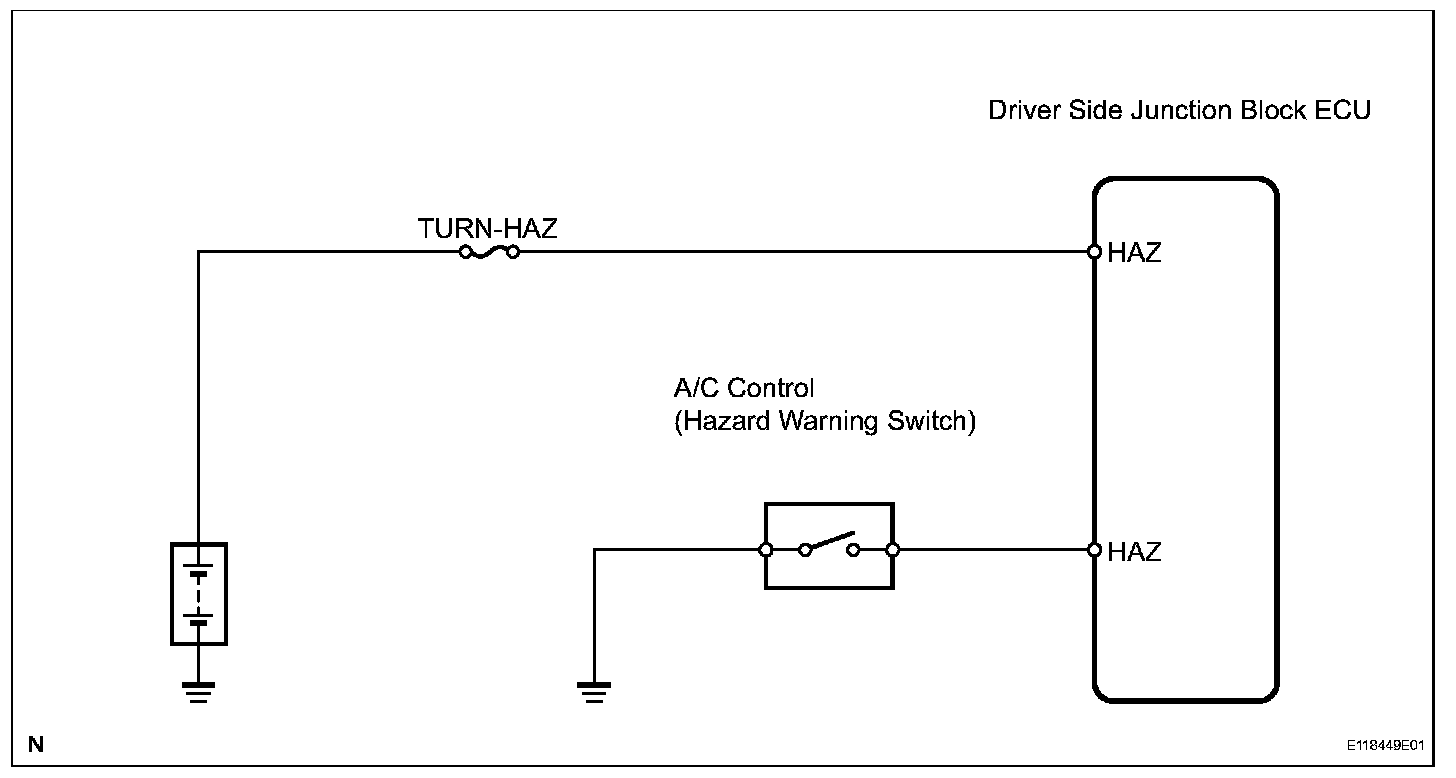

Wiring Diagram:

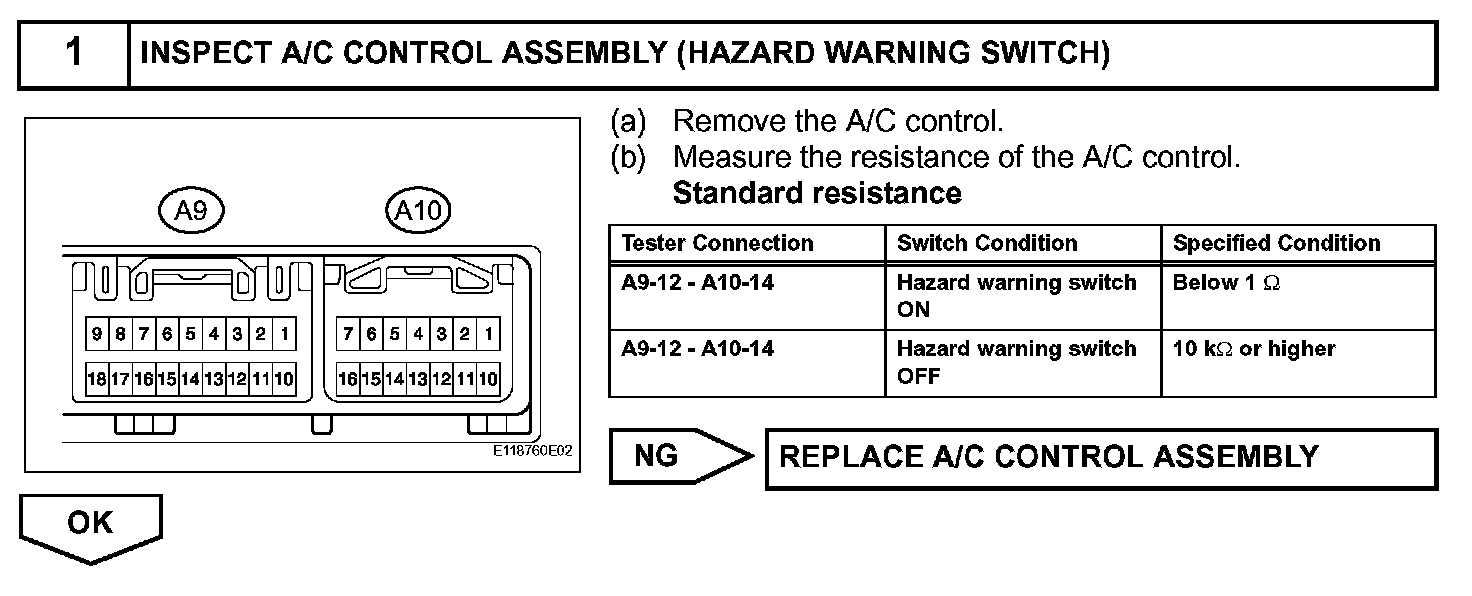

Step 1:

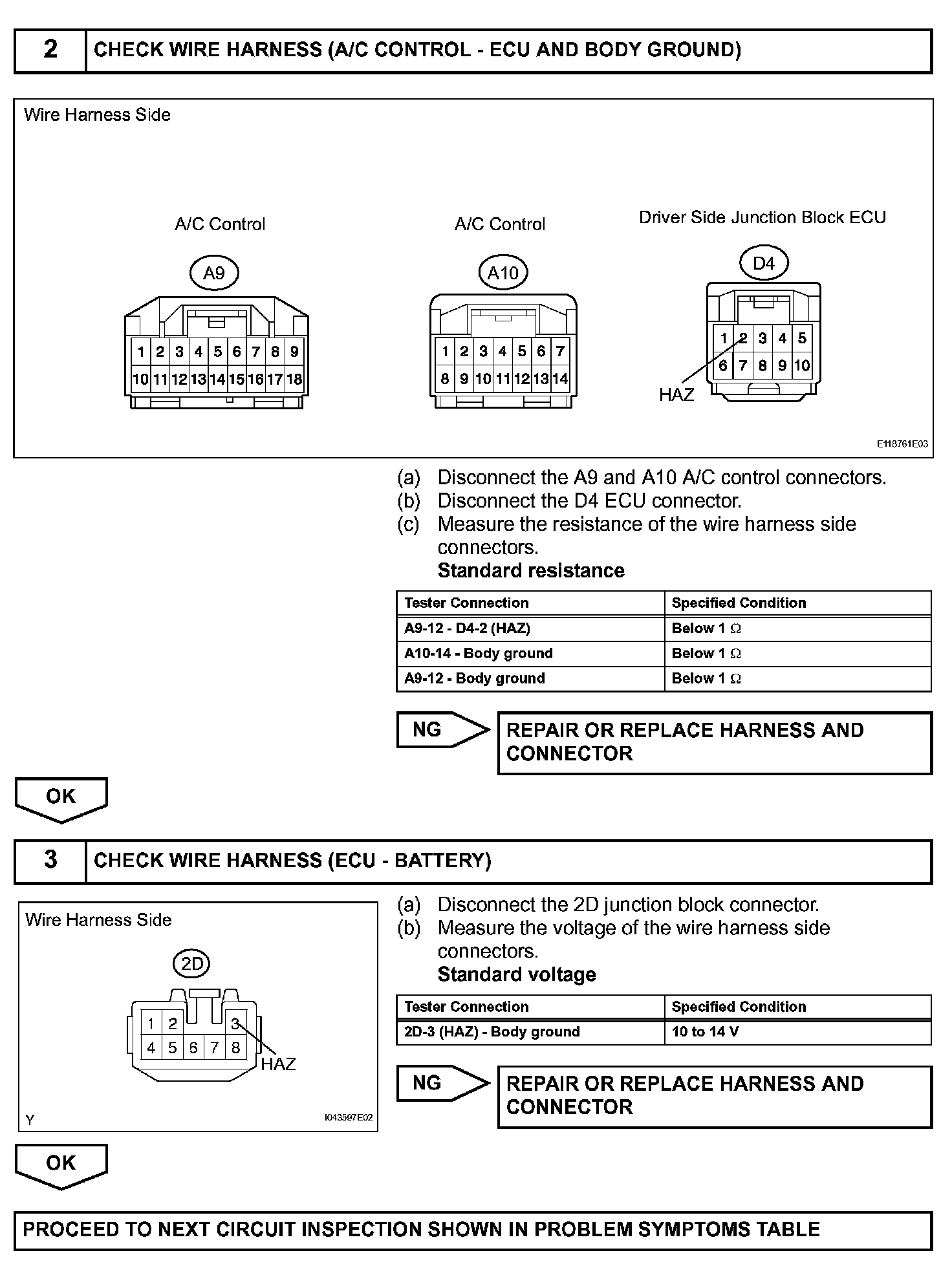

Step 2-3:




INSPECTION PROCEDURE
