Front Side Marker Lamp Circuit

Front Side Marker Light Circuit

DESCRIPTION

The front light ECU receives the taillight switch information from the combination switch, and illuminates the front side marker light.

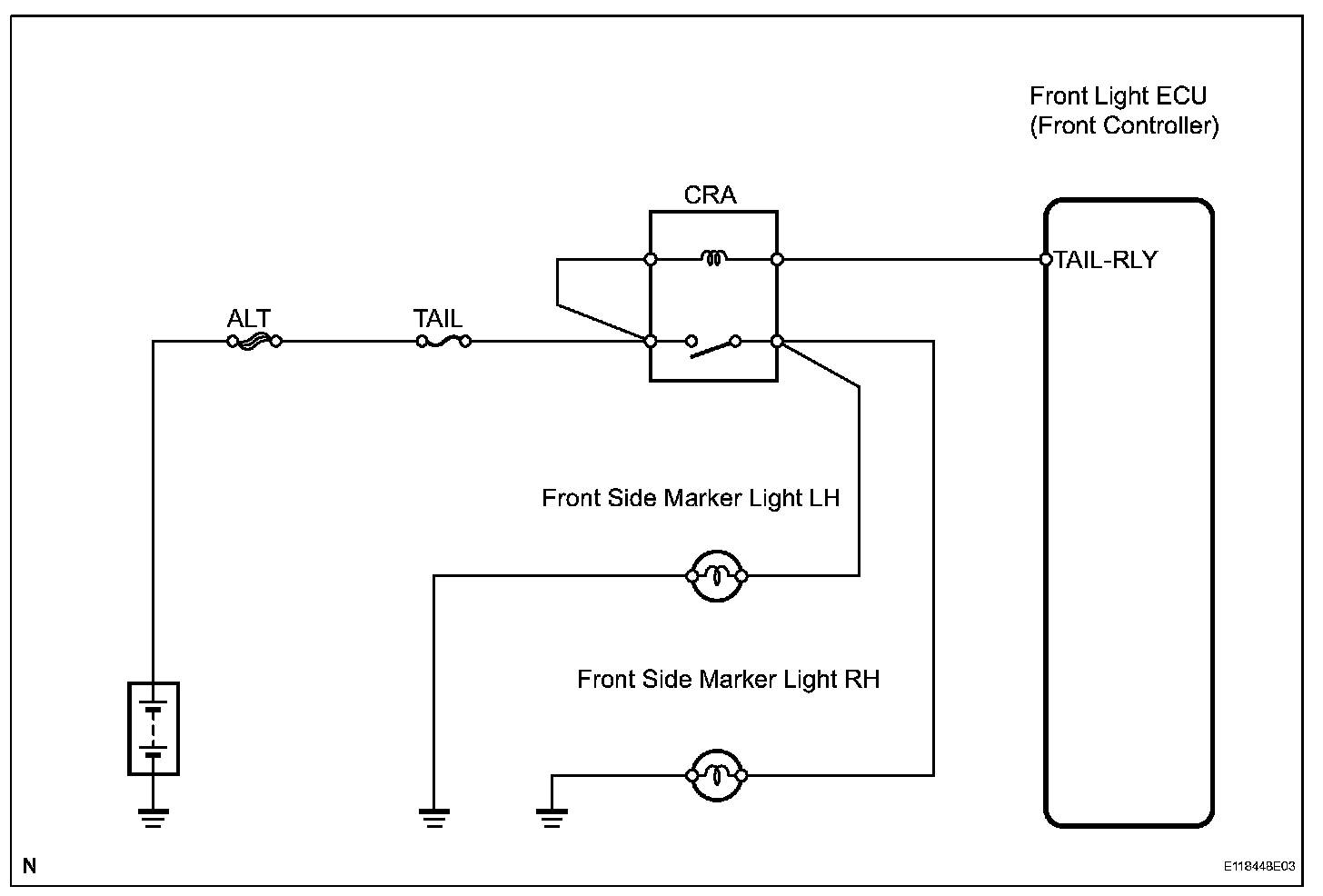

Wiring Diagram:

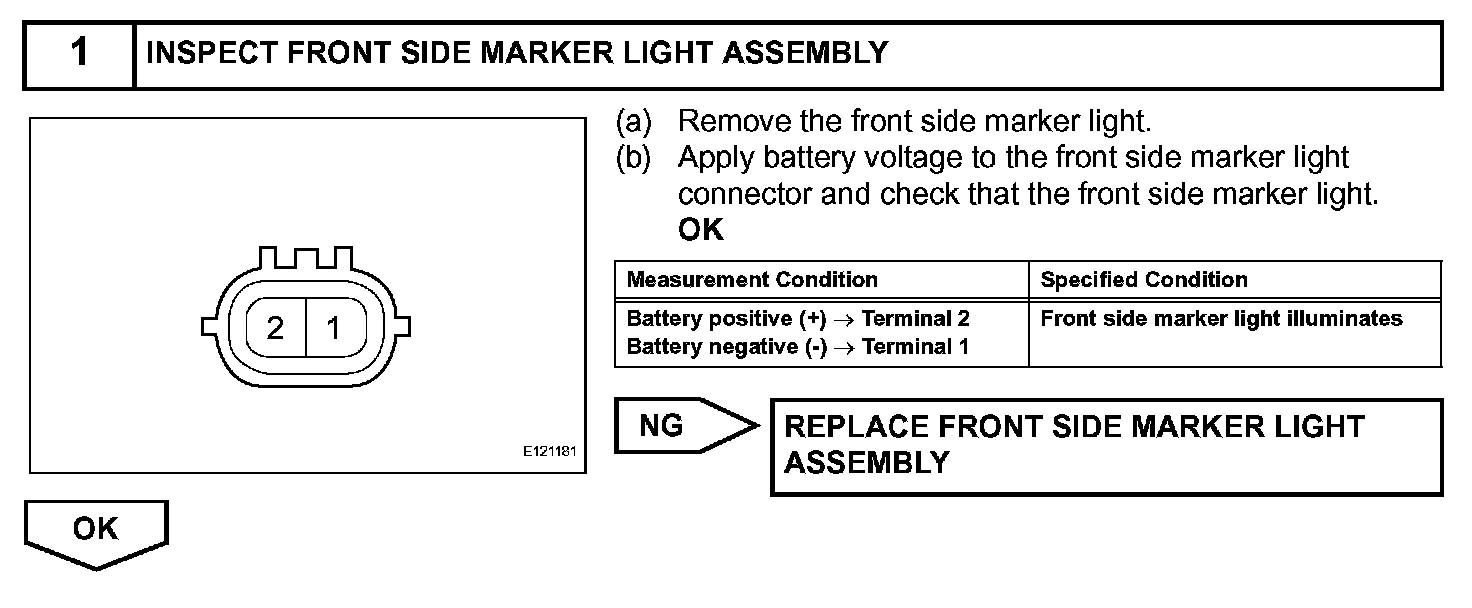

Step 1:

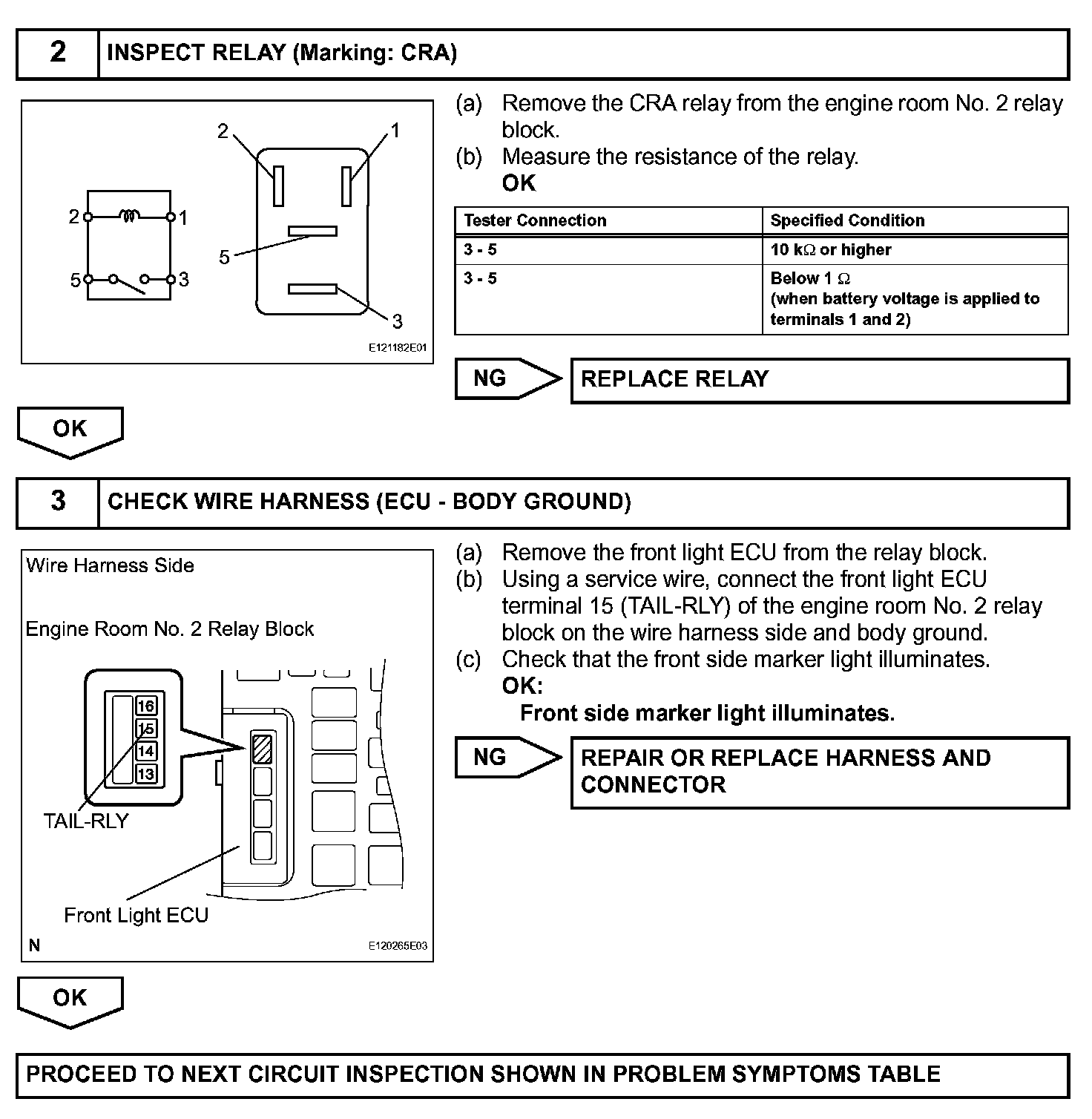

Step 2-3:

INSPECTION PROCEDURE
