Front Fog Lamp Circuit

Front Fog Light Circuit

DESCRIPTION

The front light ECU receives the fog light switch information from the combination switch, and illuminates the fog lights.

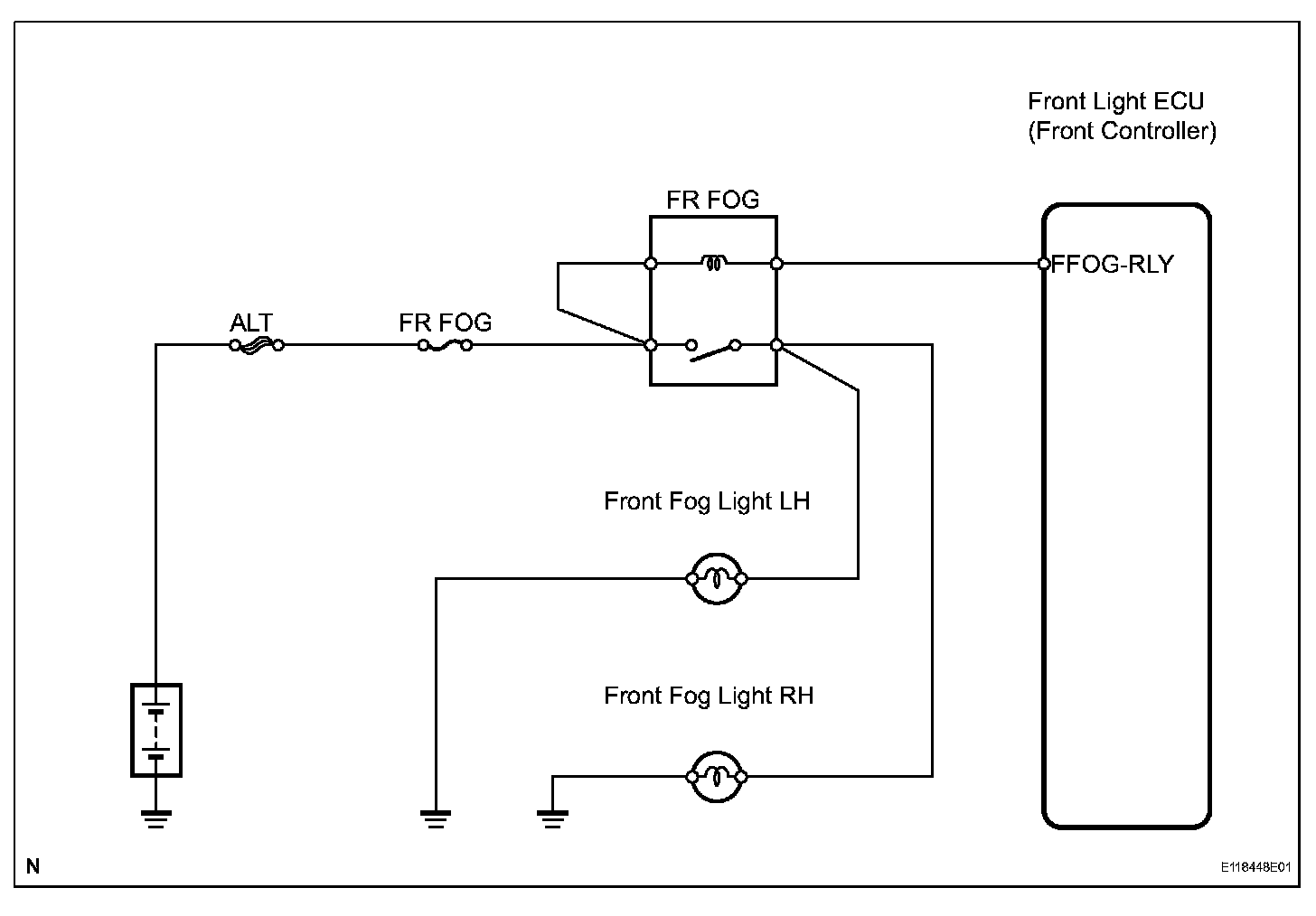

Wiring Diagram:

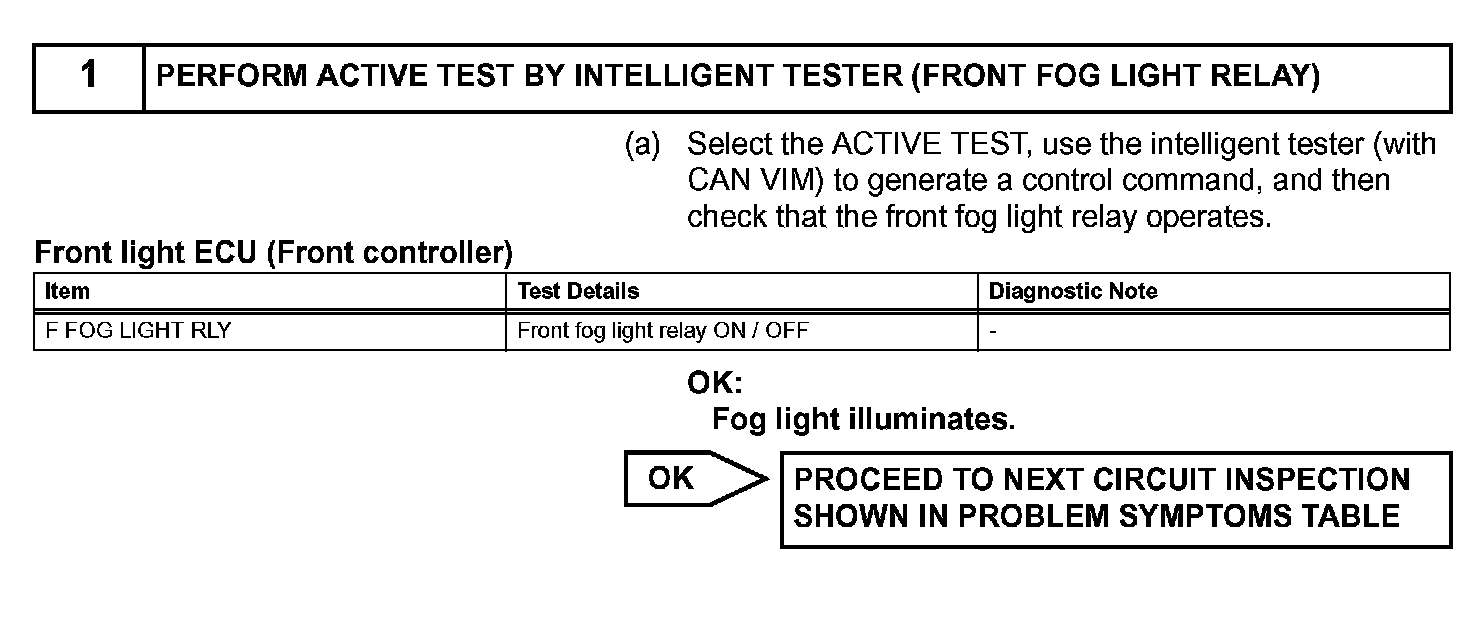

Step 1:

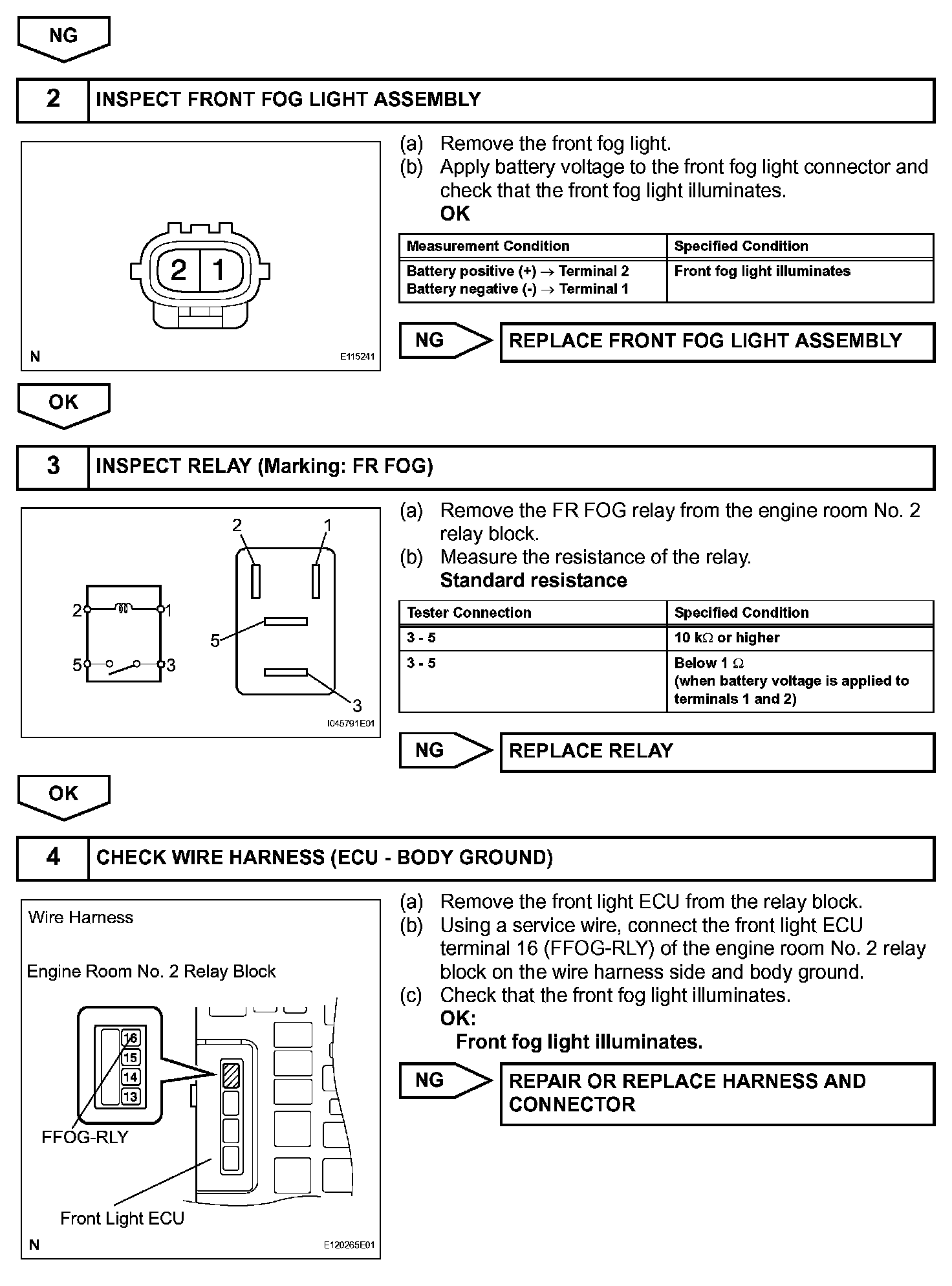

Step 1 (Continued)-4:

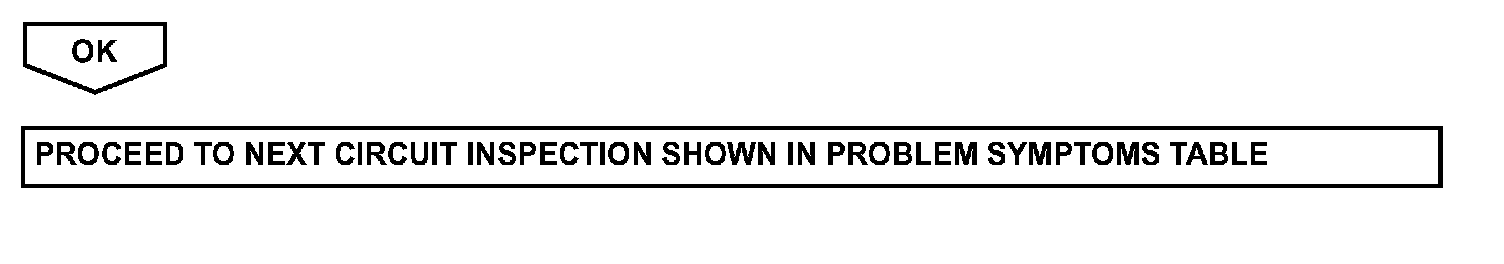

Step 4 (Continued):

INSPECTION PROCEDURE
