Door Courtesy Light Circuit
Door Courtesy Light CircuitDESCRIPTION
The door courtesy light illuminates when the door is opened and turns off when closed.

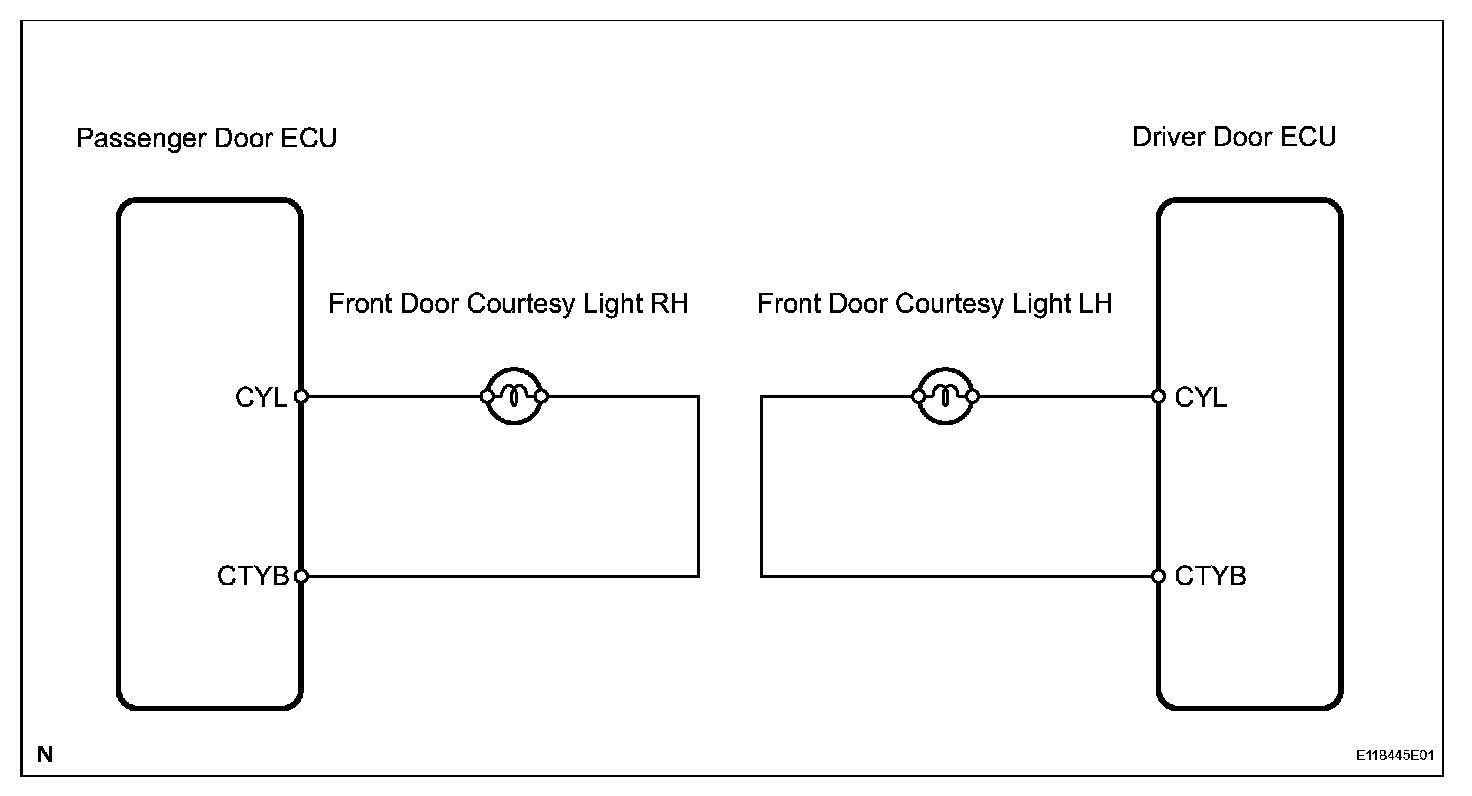

Wiring Diagram:
Step 1:

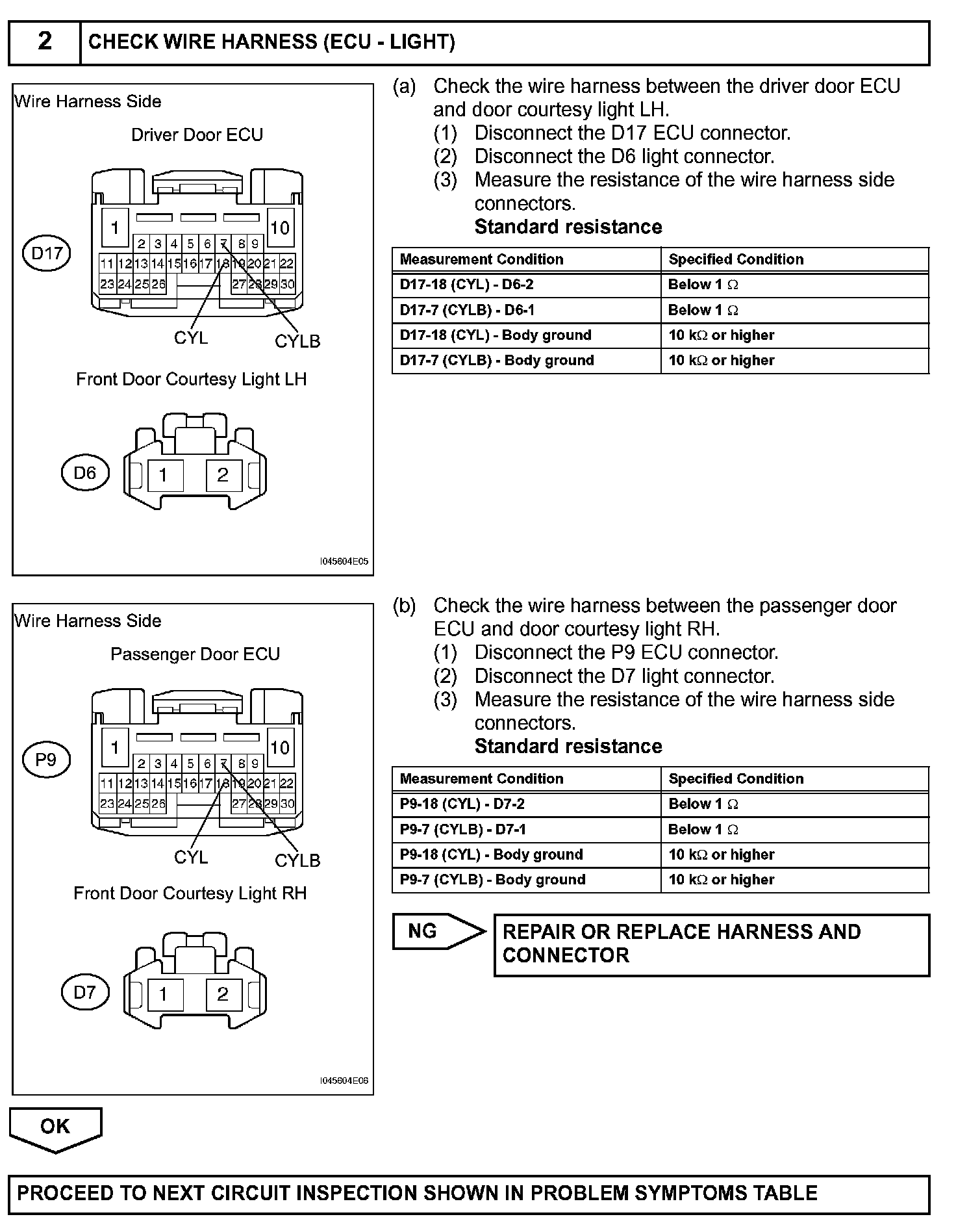

Step 2:
INSPECTION PROCEDURE
DESCRIPTION
The door courtesy light illuminates when the door is opened and turns off when closed.
INSPECTION PROCEDURE
