Buckle Illumination Circuit
Buckle Illumination CircuitDESCRIPTION
When the courtesy signal is received from the door ECU, the driver side junction block illuminates the buckle light on the opened door side.

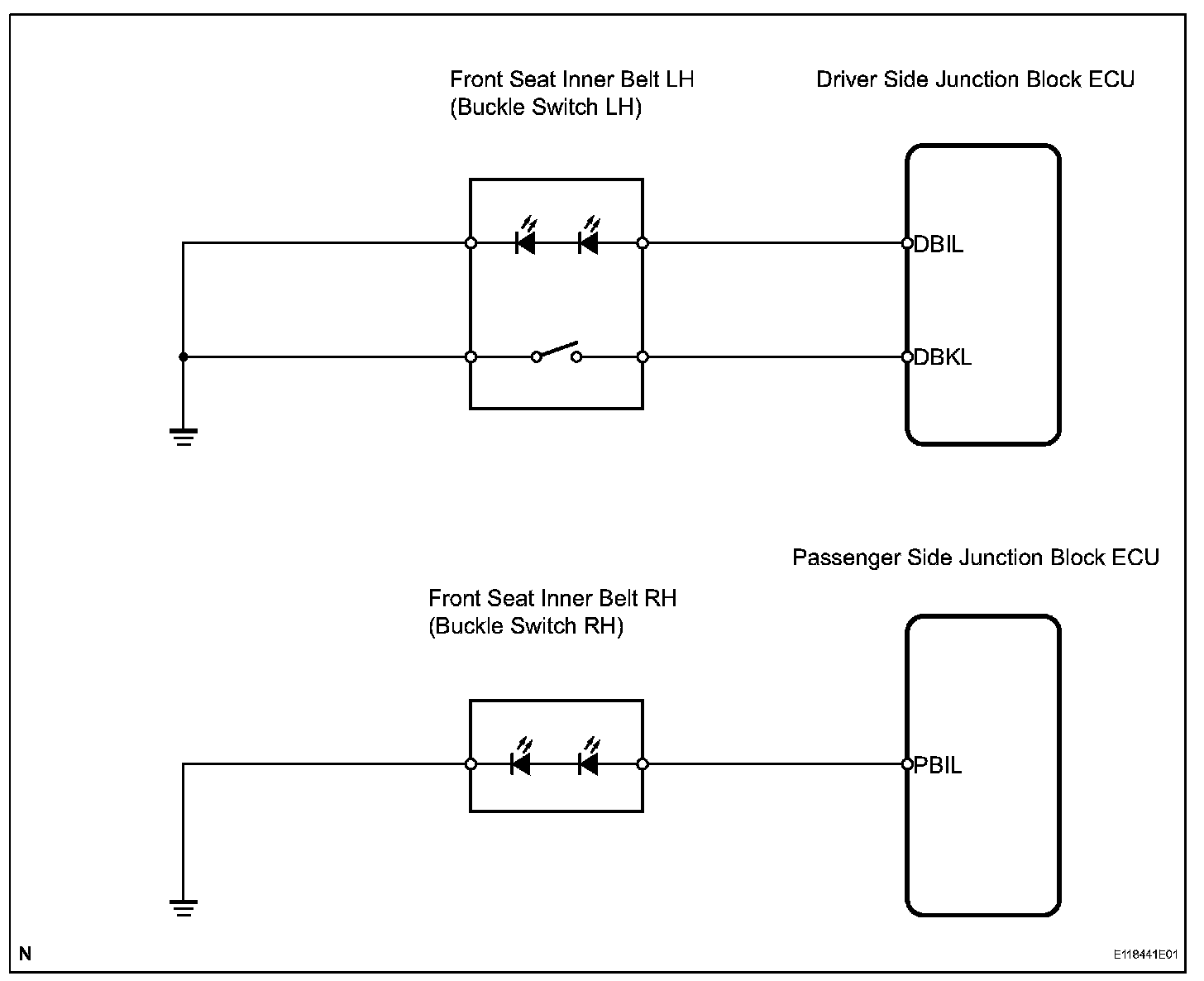

Wiring Diagram:
Step 1:
Step 1 (Continued)-2:

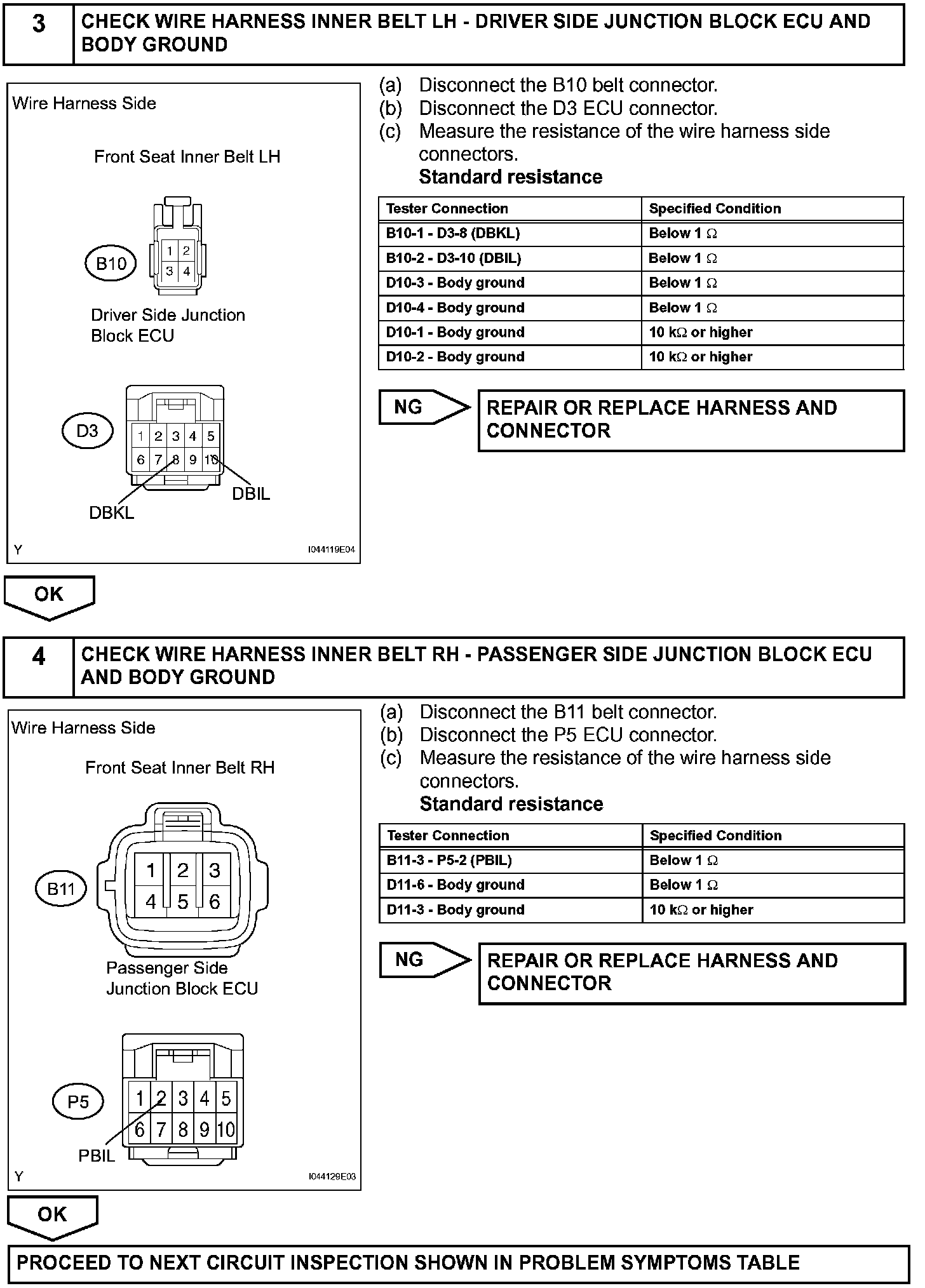

Step 3-4:

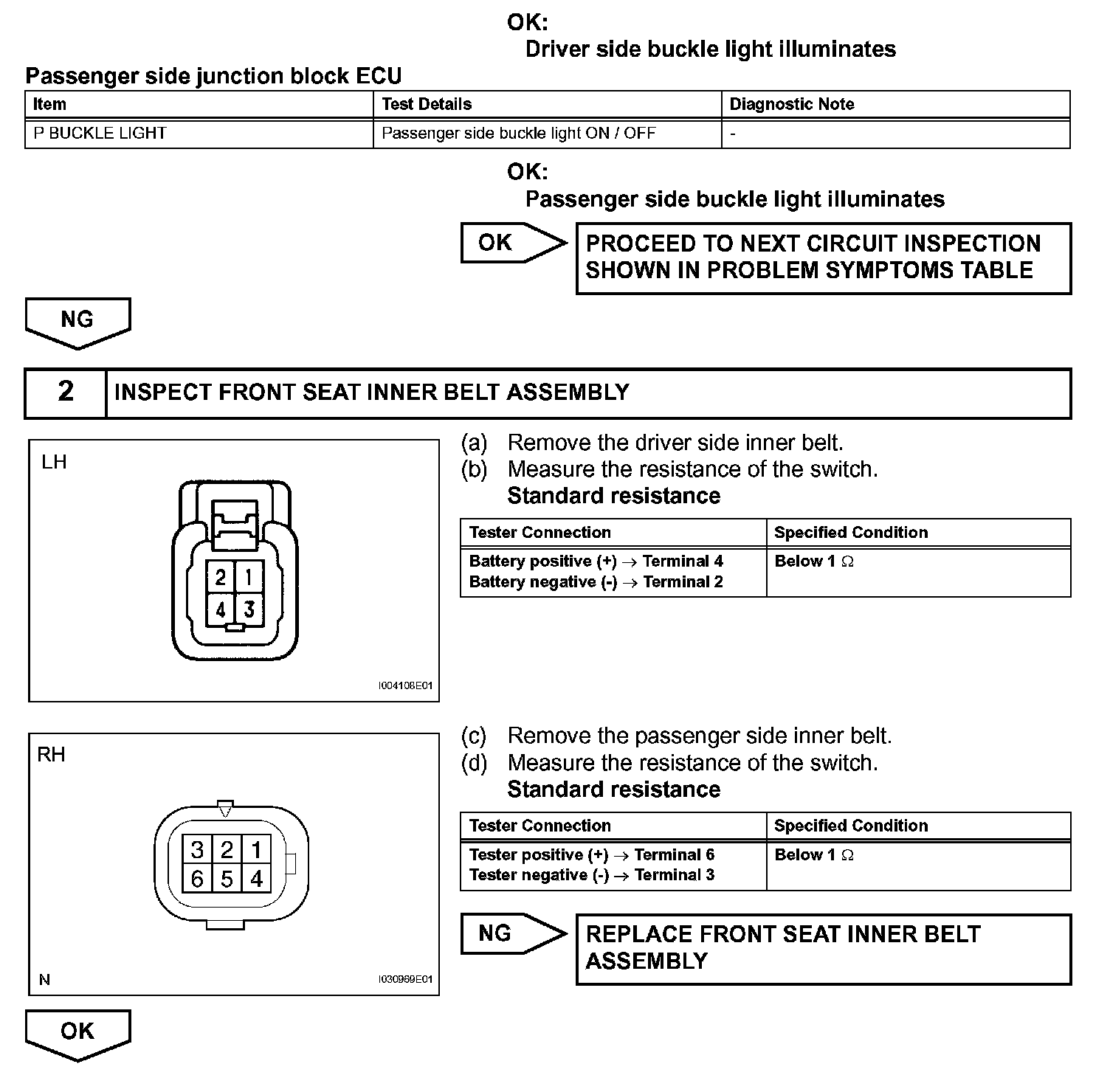

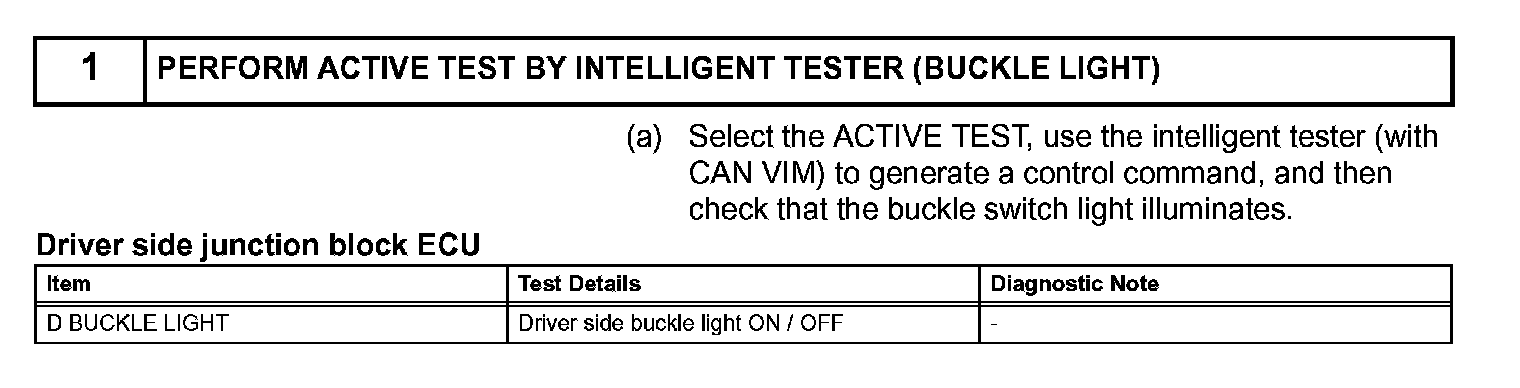

INSPECTION PROCEDURE
