Back-Up Lamp Circuit

Back-up Light Circuit

DESCRIPTION

When the PNP switch R position signal is received from the luggage room junction block ECU, the backup light illuminates.

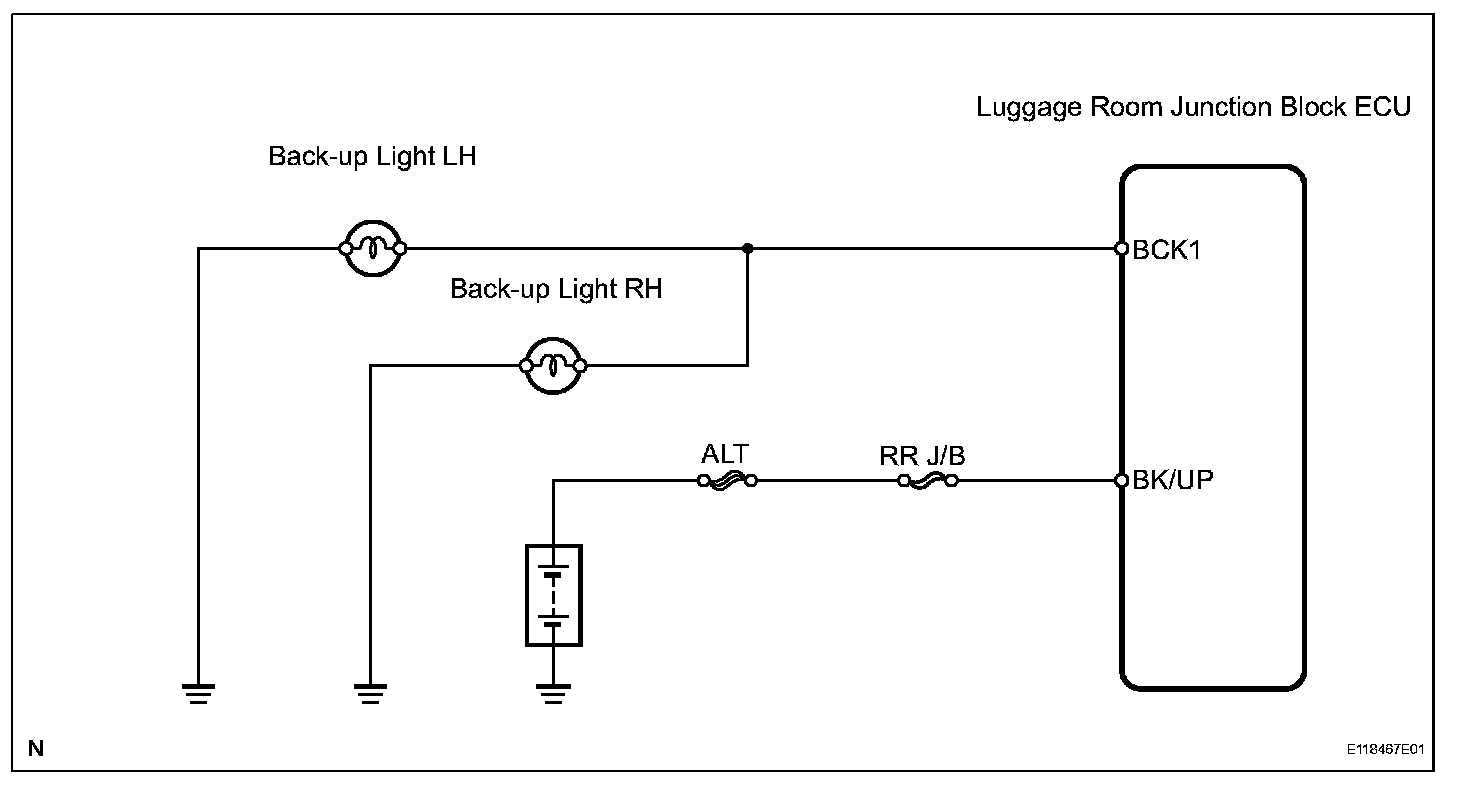

Wiring Diagram:

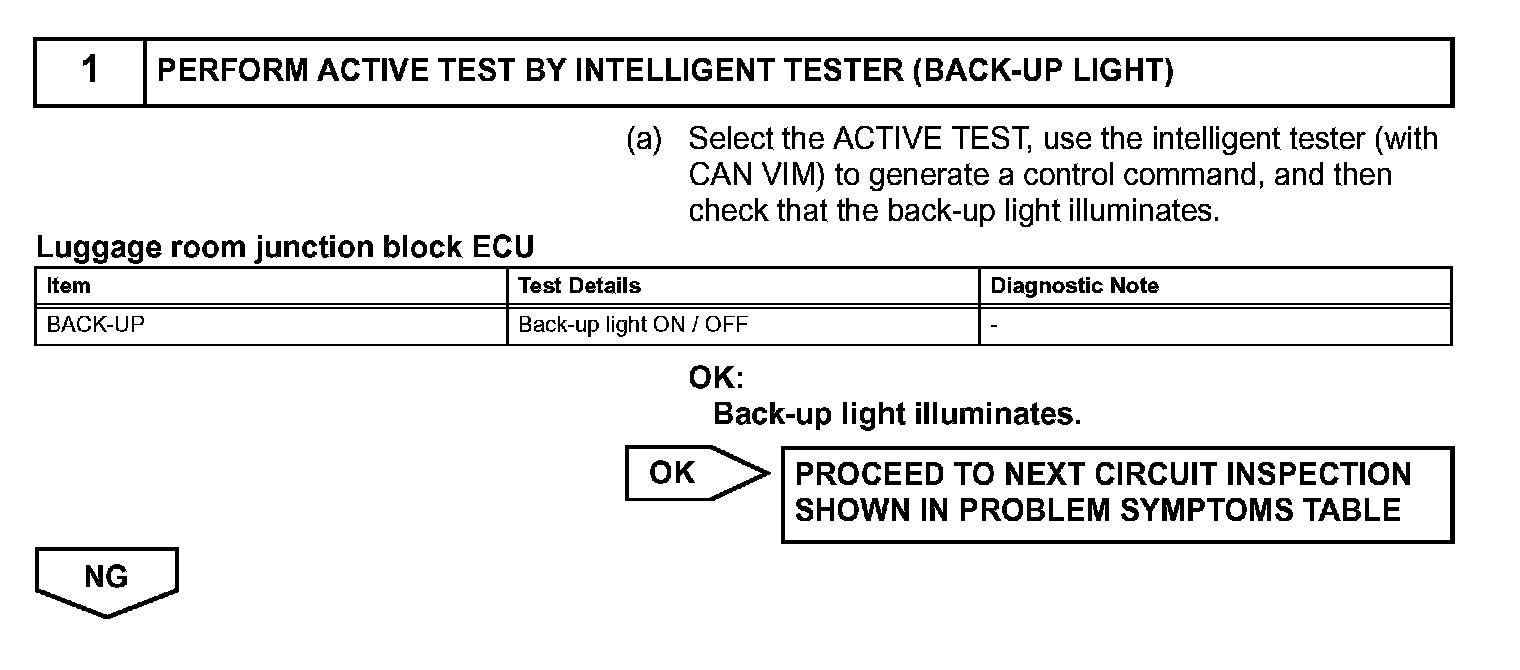

Step 1:

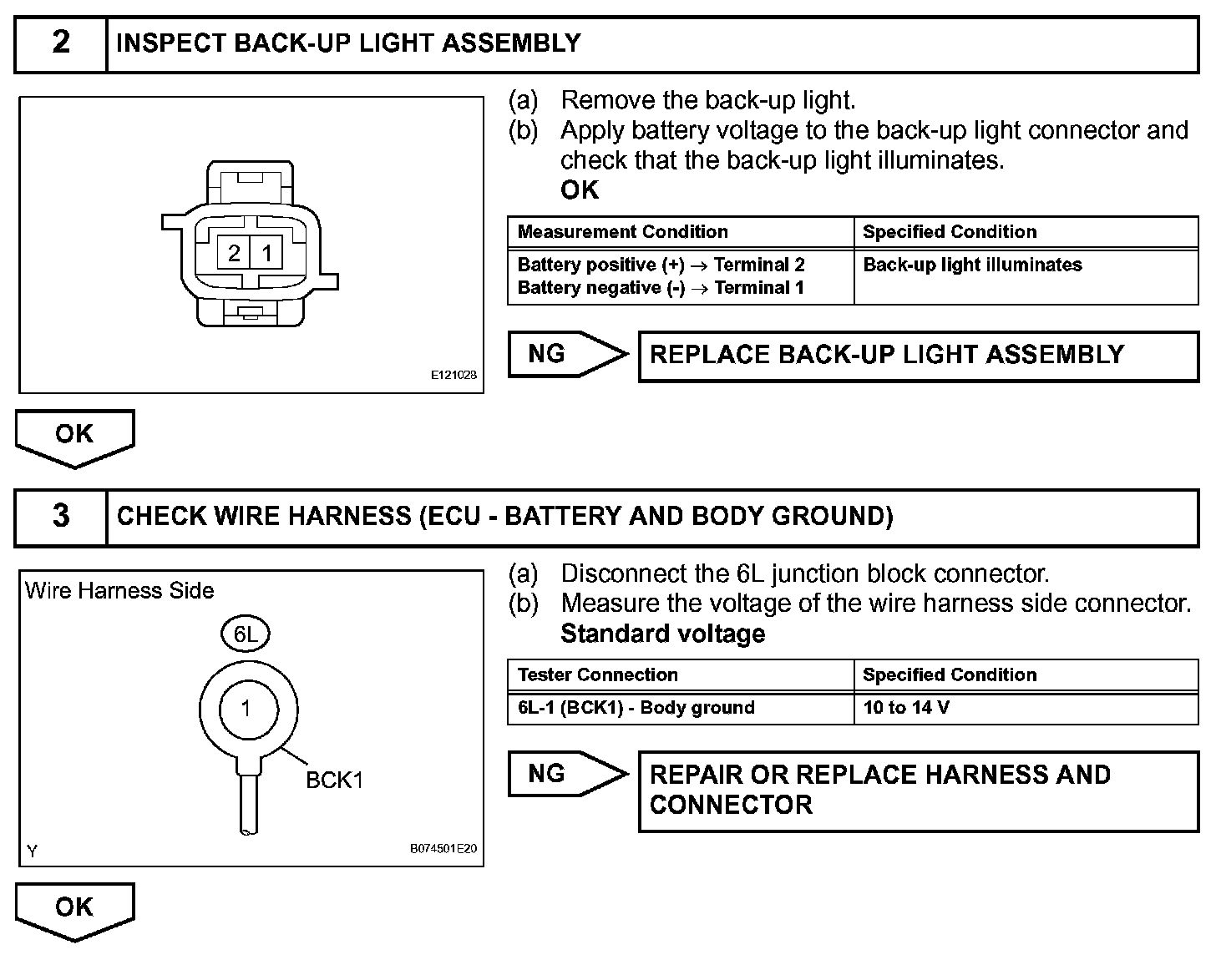

Step 2-3:

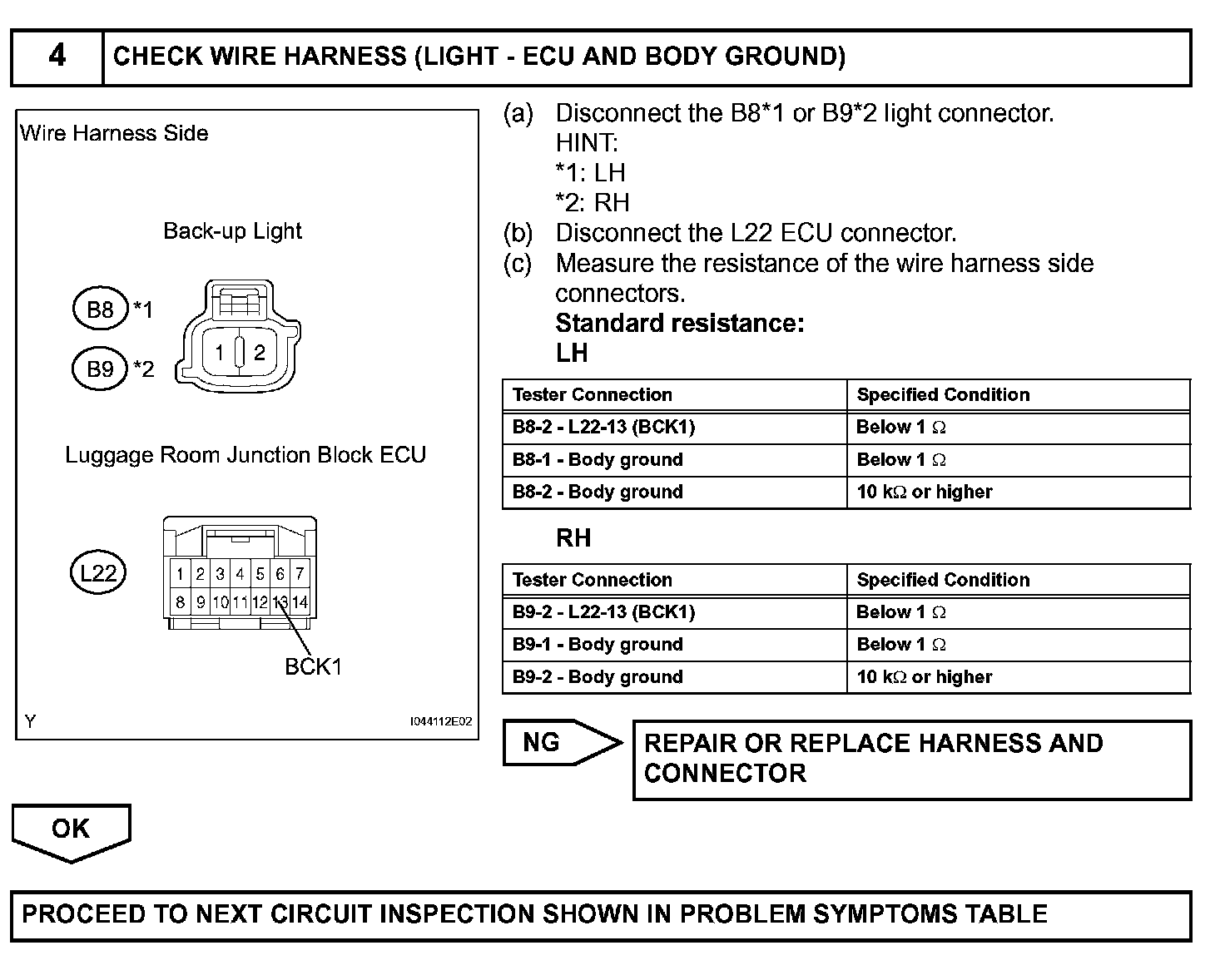

Step 4:

INSPECTION PROCEDURE
