Overhaul

DISASSEMBLY




1. REMOVE REAR COMBINATION LIGHT BULB

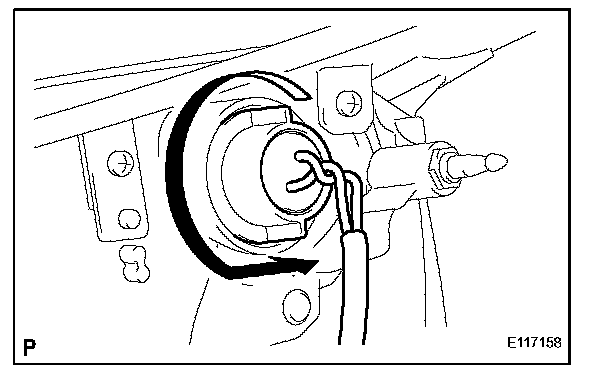

a. Turn the bulb in the direction indicated by the arrow and pull to remove it.

REASSEMBLY




1. INSTALL REAR COMBINATION LIGHT BULB
a. Insert the bulb into the light, and turn it in the direction indicated by the arrow to install it.
