Front Side Marker Light Assembly

Front Side Marker Light Assembly:

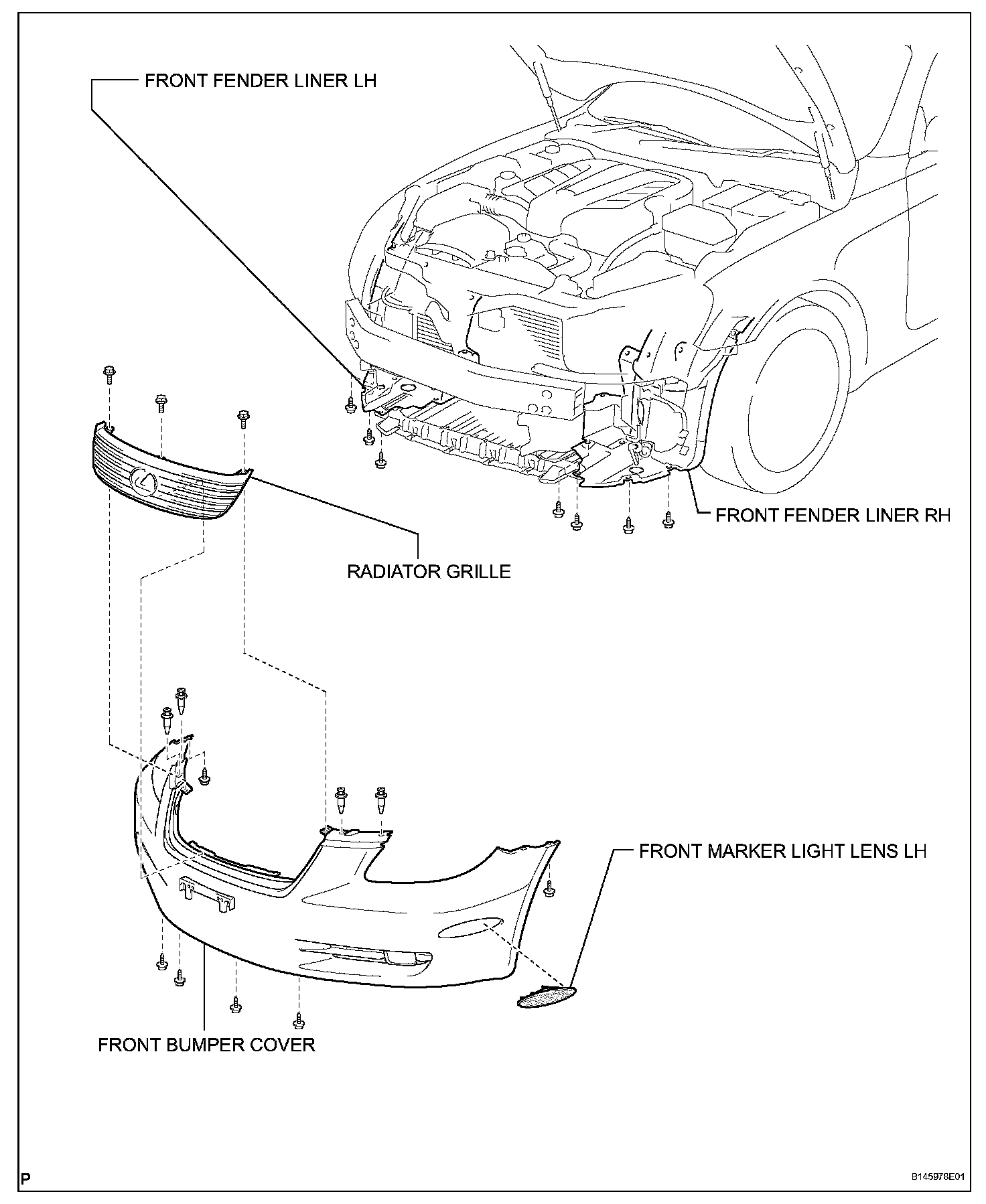

FRONT SIDE MARKER LIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE RADIATOR GRILLE
3. REMOVE FRONT FENDER LINER LH
4. REMOVE FRONT FENDER LINER RH
5. REMOVE FRONT BUMPER COVER




6. REMOVE FRONT MARKER LIGHT LENS LH

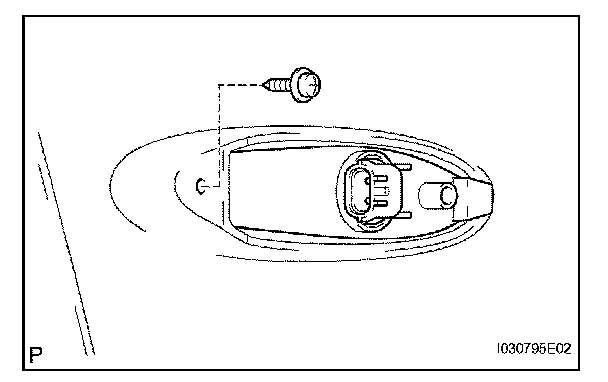

a. Remove the screw and lens.

INSTALLATION




1. INSTALL FRONT MARKER LIGHT LENS LH

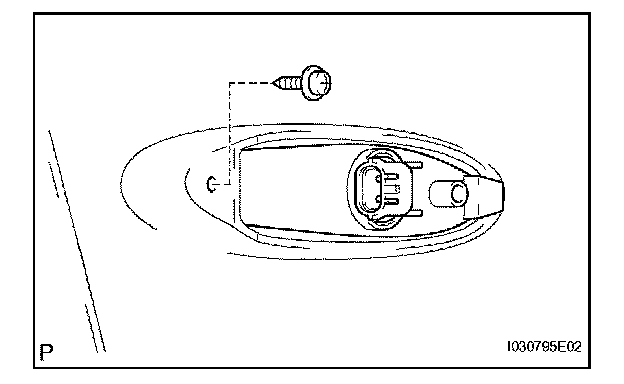

a. Install the lens with the screw.

2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT FENDER LINER RH
4. INSTALL FRONT BUMPER COVER
5. INSTALL RADIATOR GRILLE
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
