Low Pitched Horn
Low Pitched Horn
INSPECTION
1.
INSPECT LOW PITCHED
HORN
a.

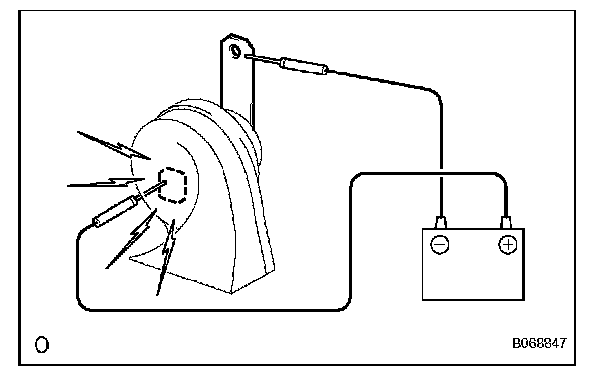

Apply battery voltage to the
horn
and check the operation of the horn.

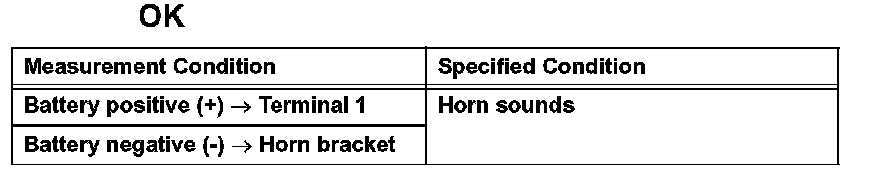

If the result is not as specified, replace the
horn
.
