Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

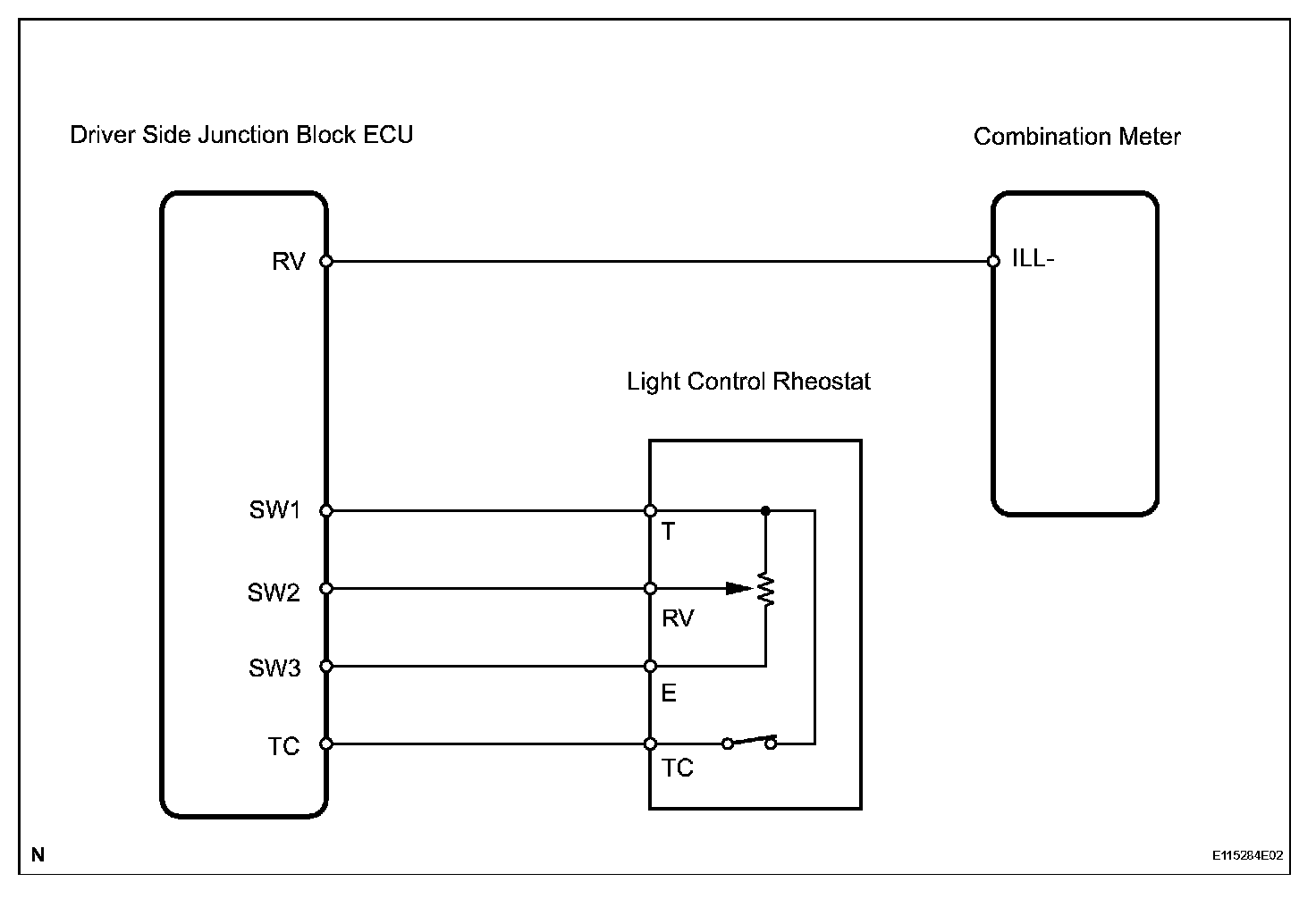

Wiring Diagram:

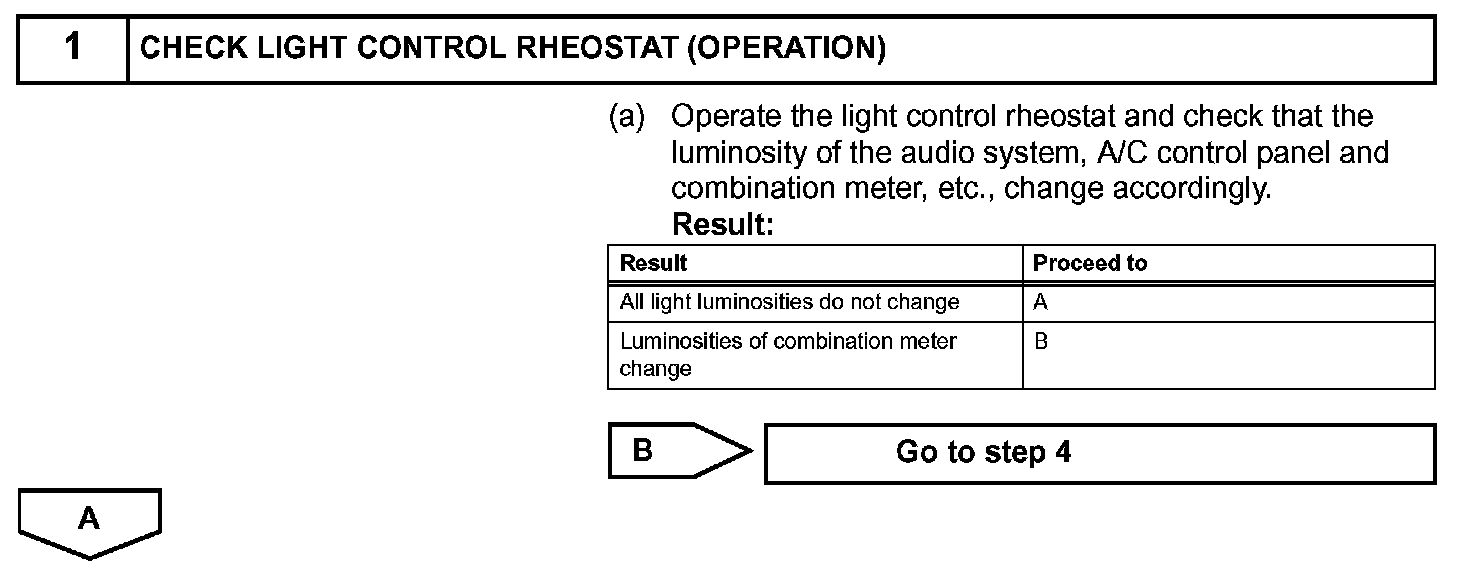

Step 1:

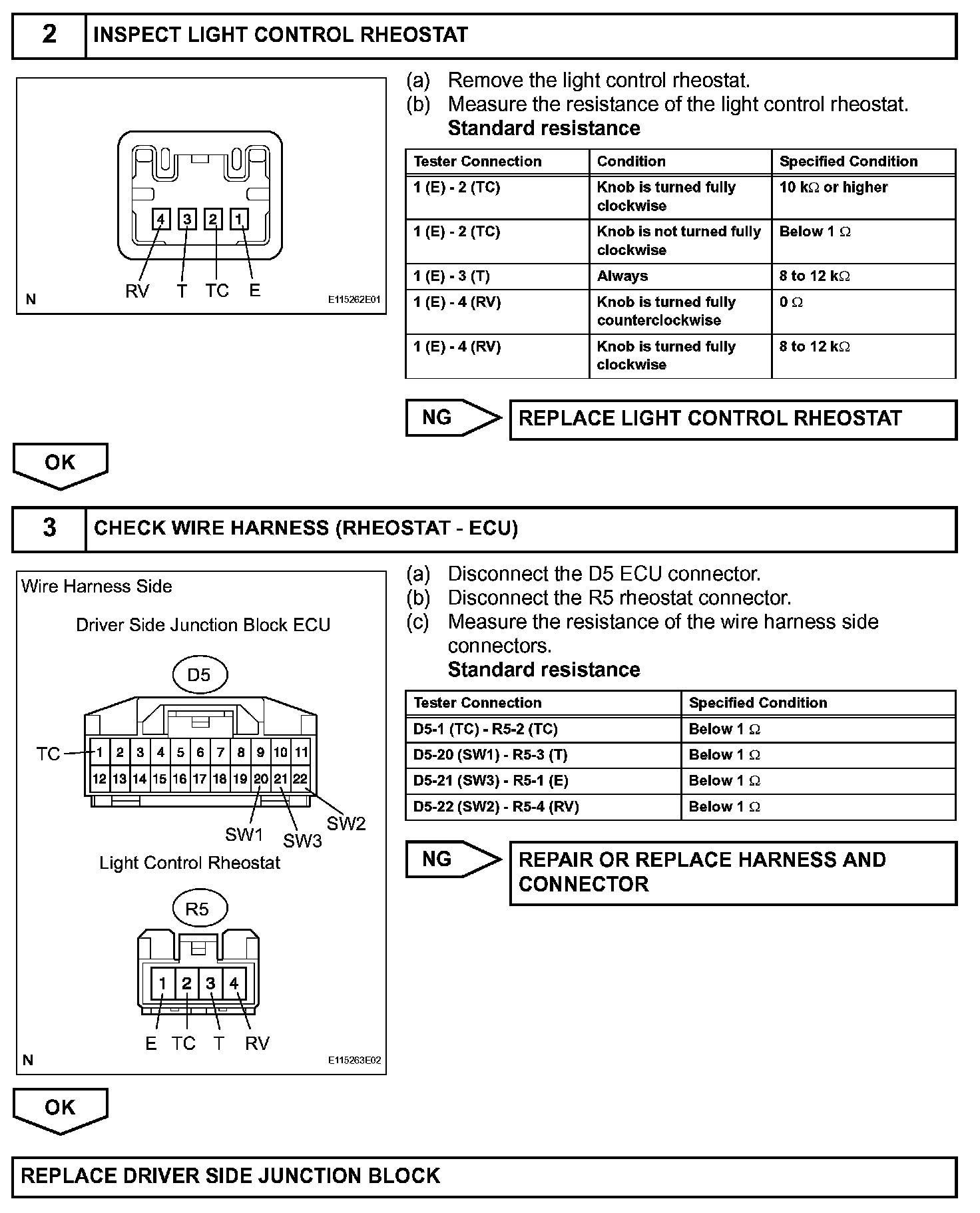

Step 2-3:

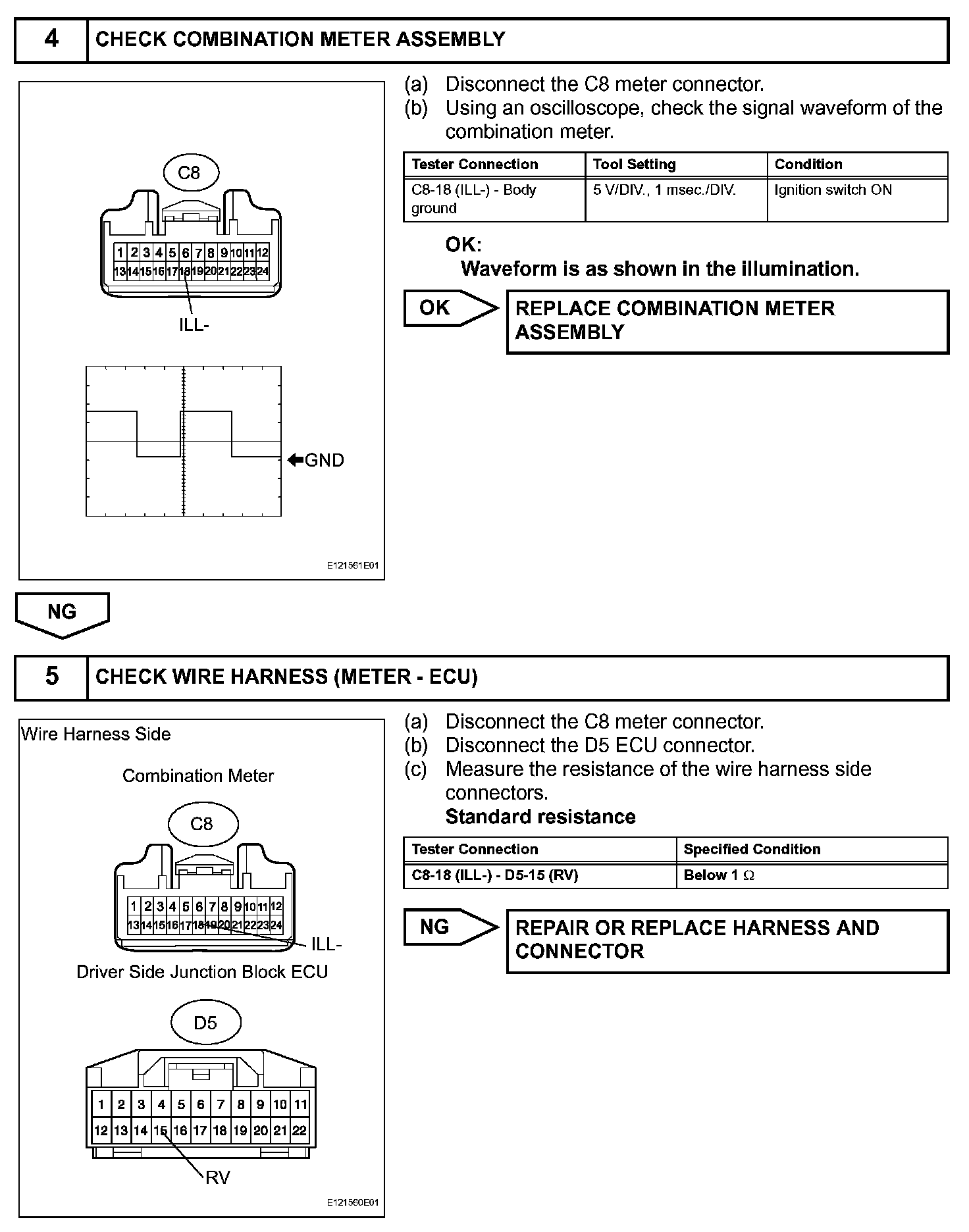

Step 4-5:




Step 5 (Continued):




INSPECTION PROCEDURE
