Home >> Lexus >> 2007 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Indicator Lights Do Not Illuminate

Indicator Lights Do Not Illuminate

Indicator Lights do not Illuminate

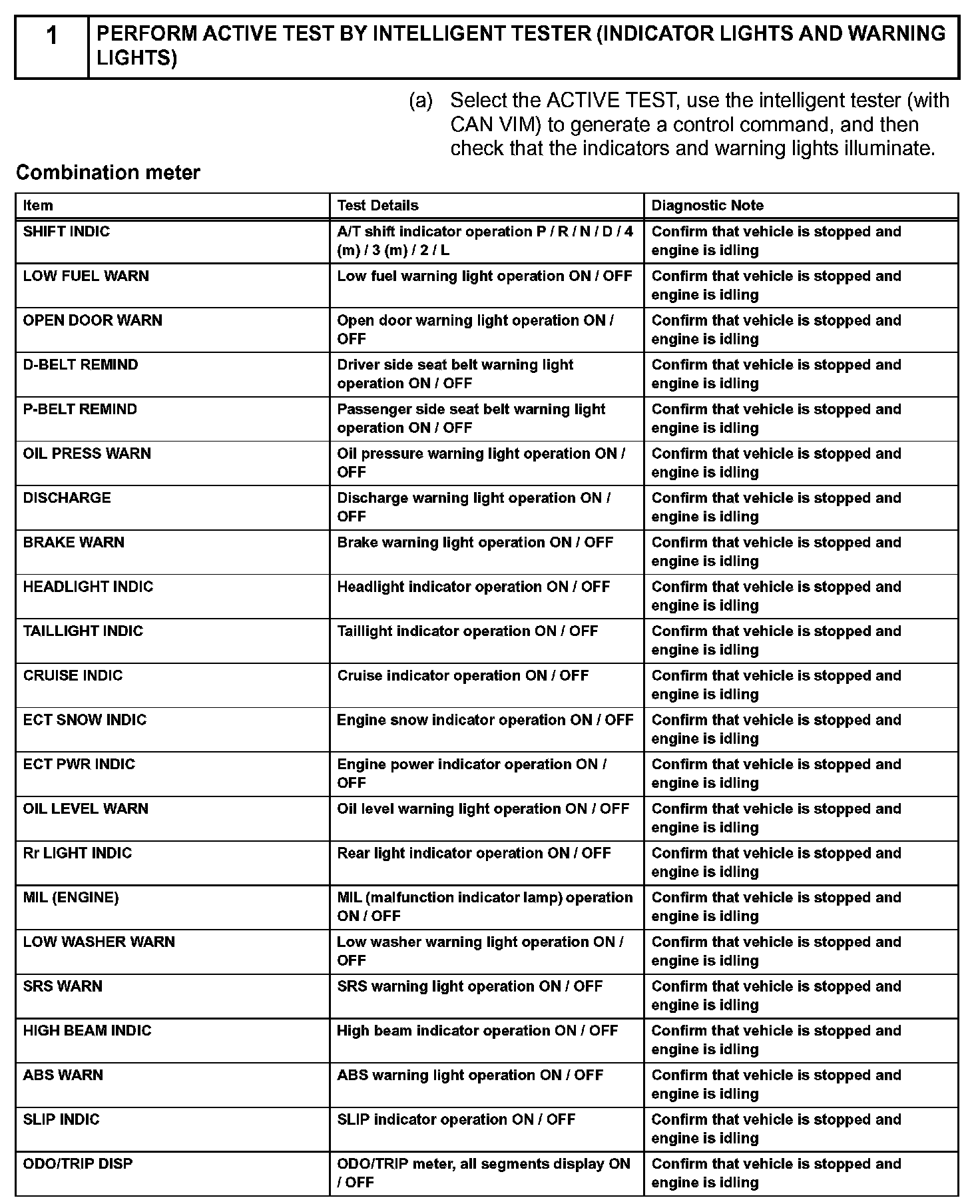

Step 1:

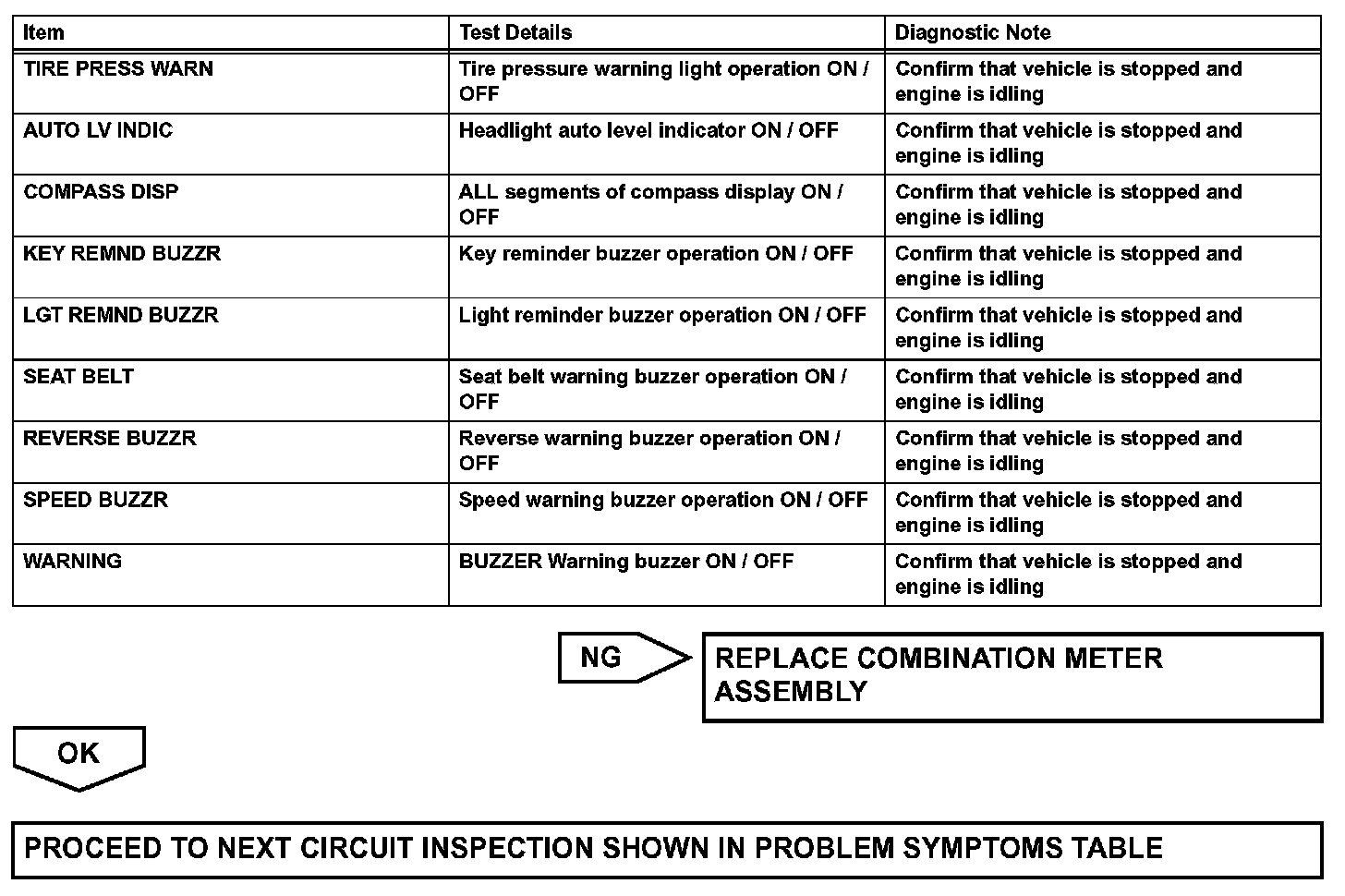

Step 1 (Continued):




INSPECTION PROCEDURE
