Fail Safe Chart

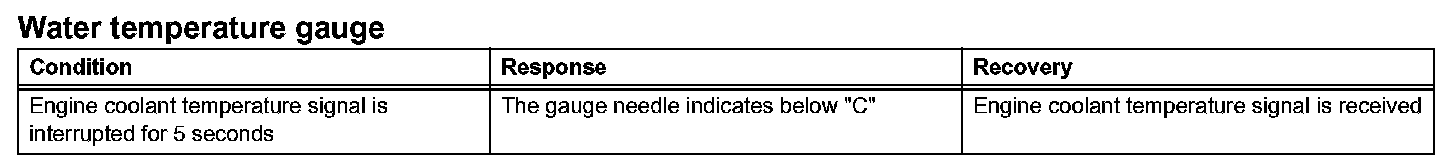

Water Temperature Gauge:

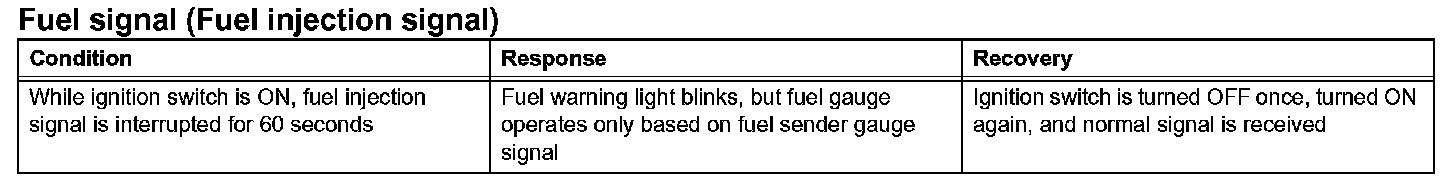

Fuel Signal (Fuel Injection Signal):

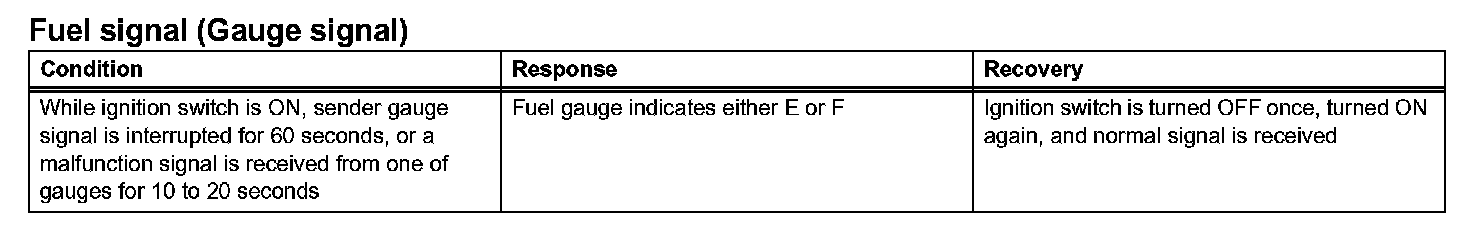

Fuel Signal (Gauge Signal):

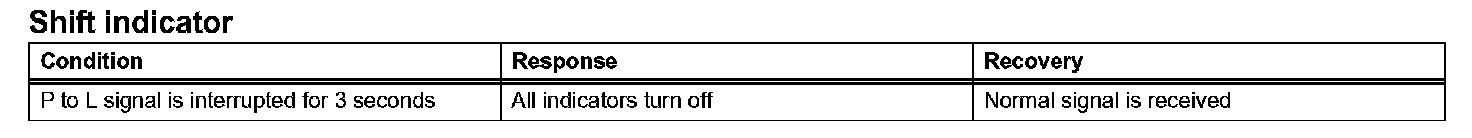

Shift Indicator:

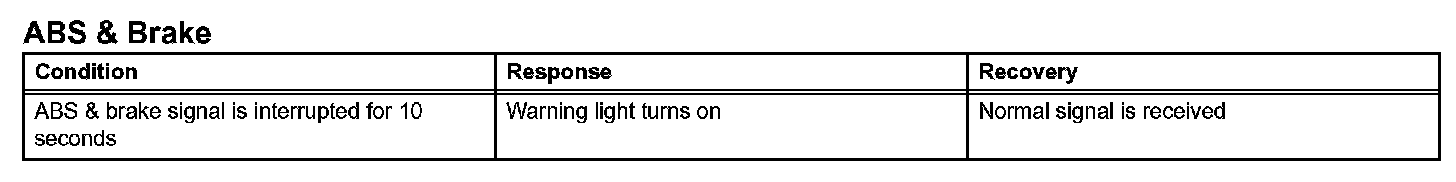

ABS & Brake:

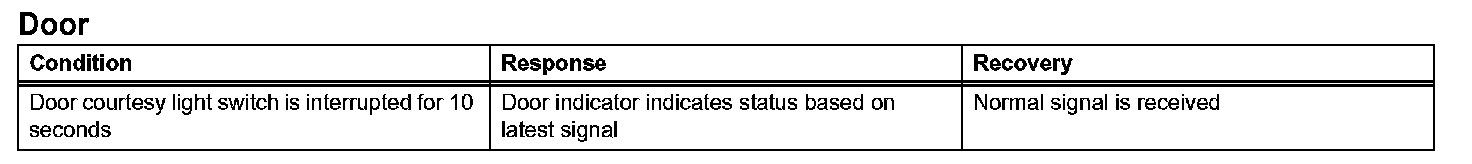

Door:

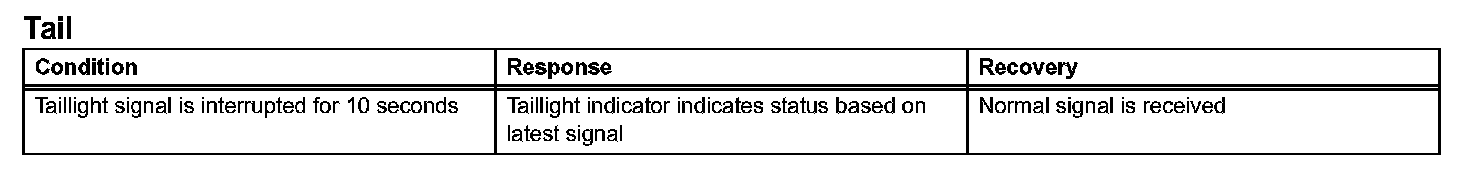

Tail:

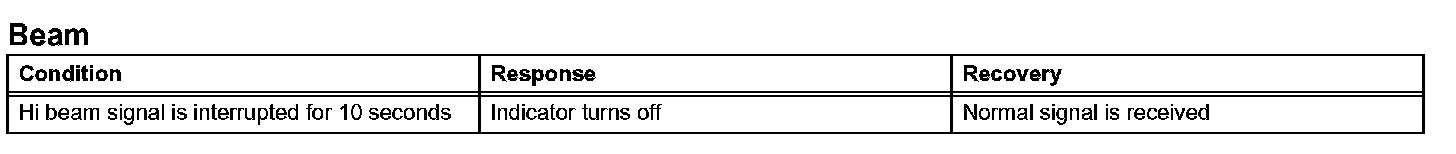

Beam:

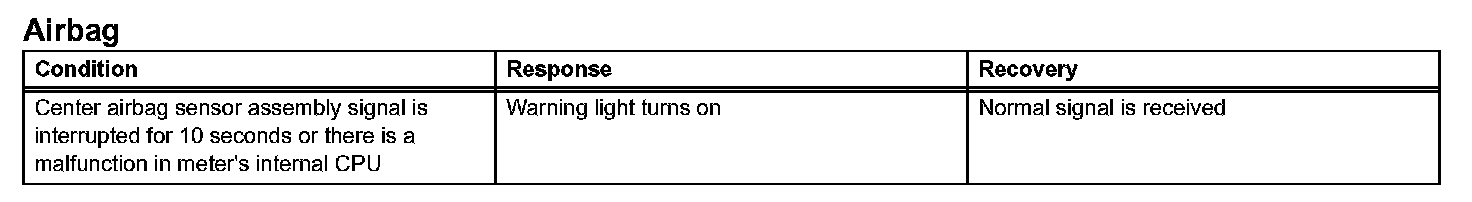

Airbag:

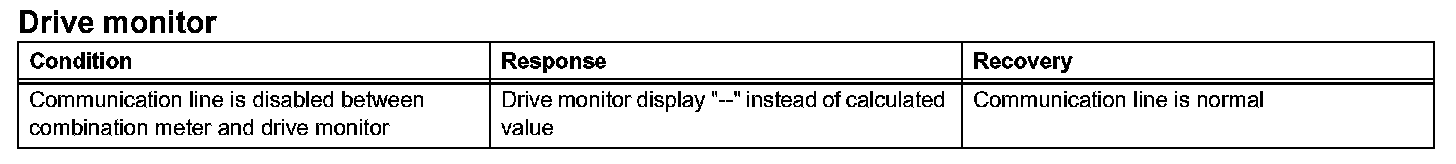

Drive Monitor:
