Tachometer Malfunction

Tachometer Malfunction

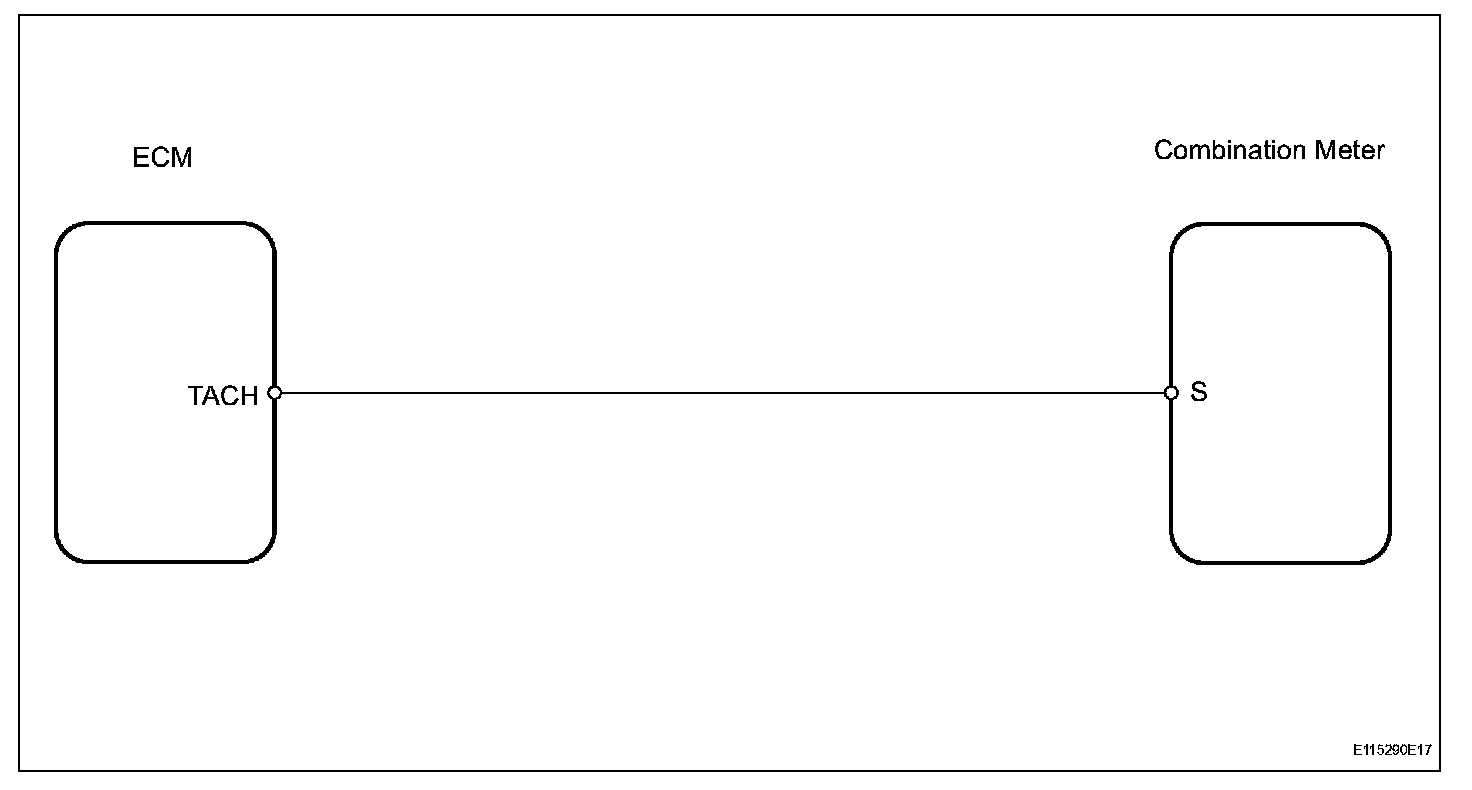

Wiring Diagram:

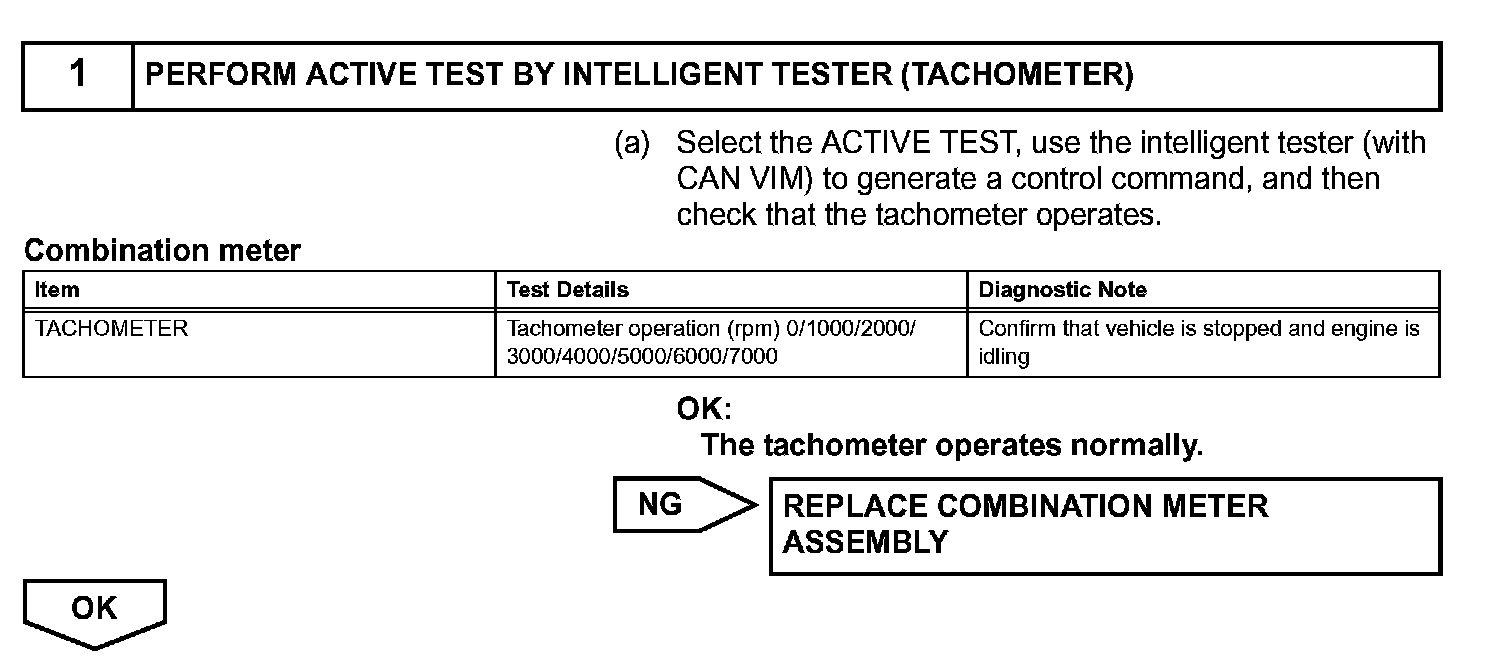

Step 1:

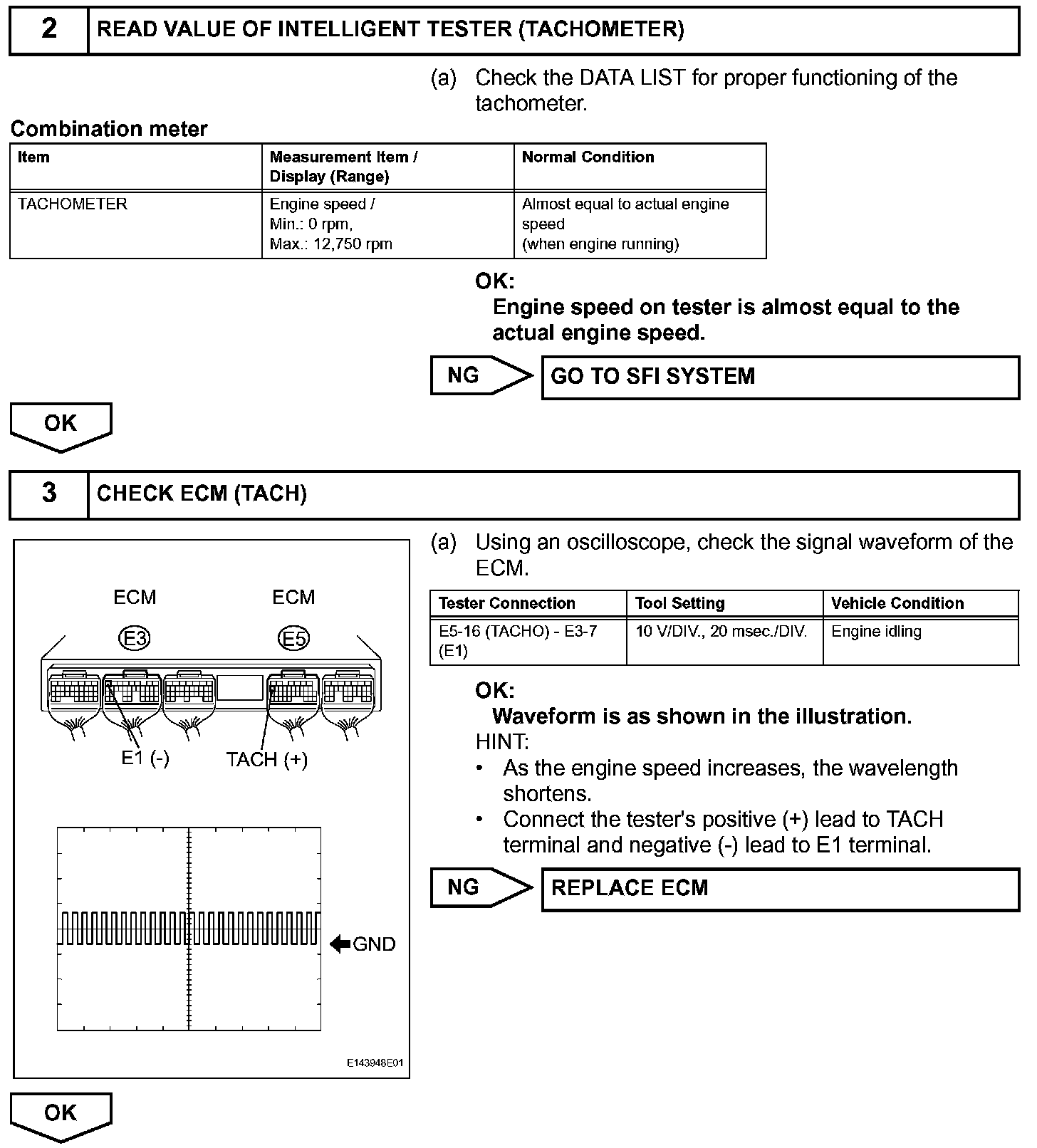

Step 2-3:

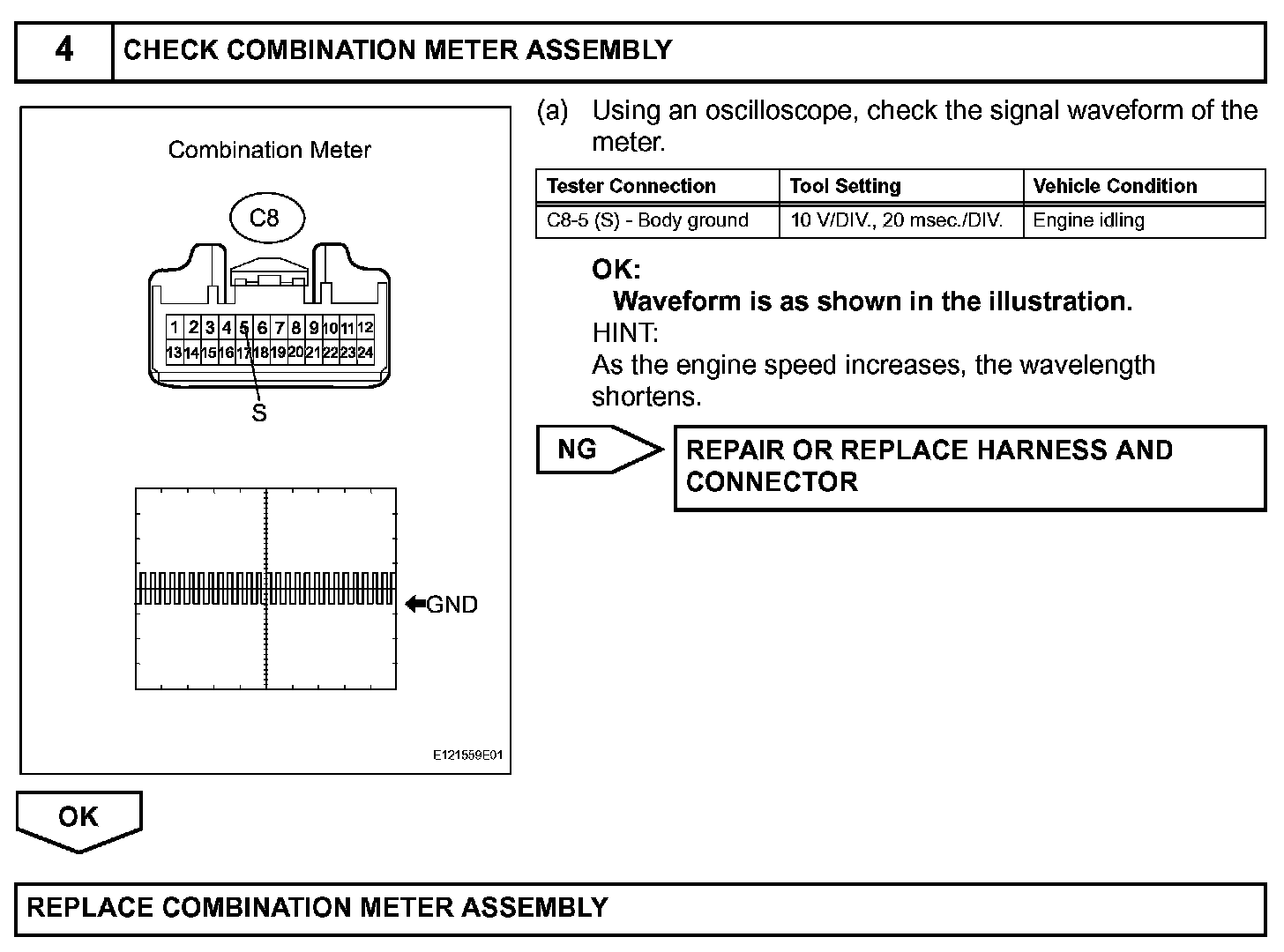

Step 4:




INSPECTION PROCEDURE
