ODO / Trip Switch Malfunction

ODO / Trip Switch Malfunction

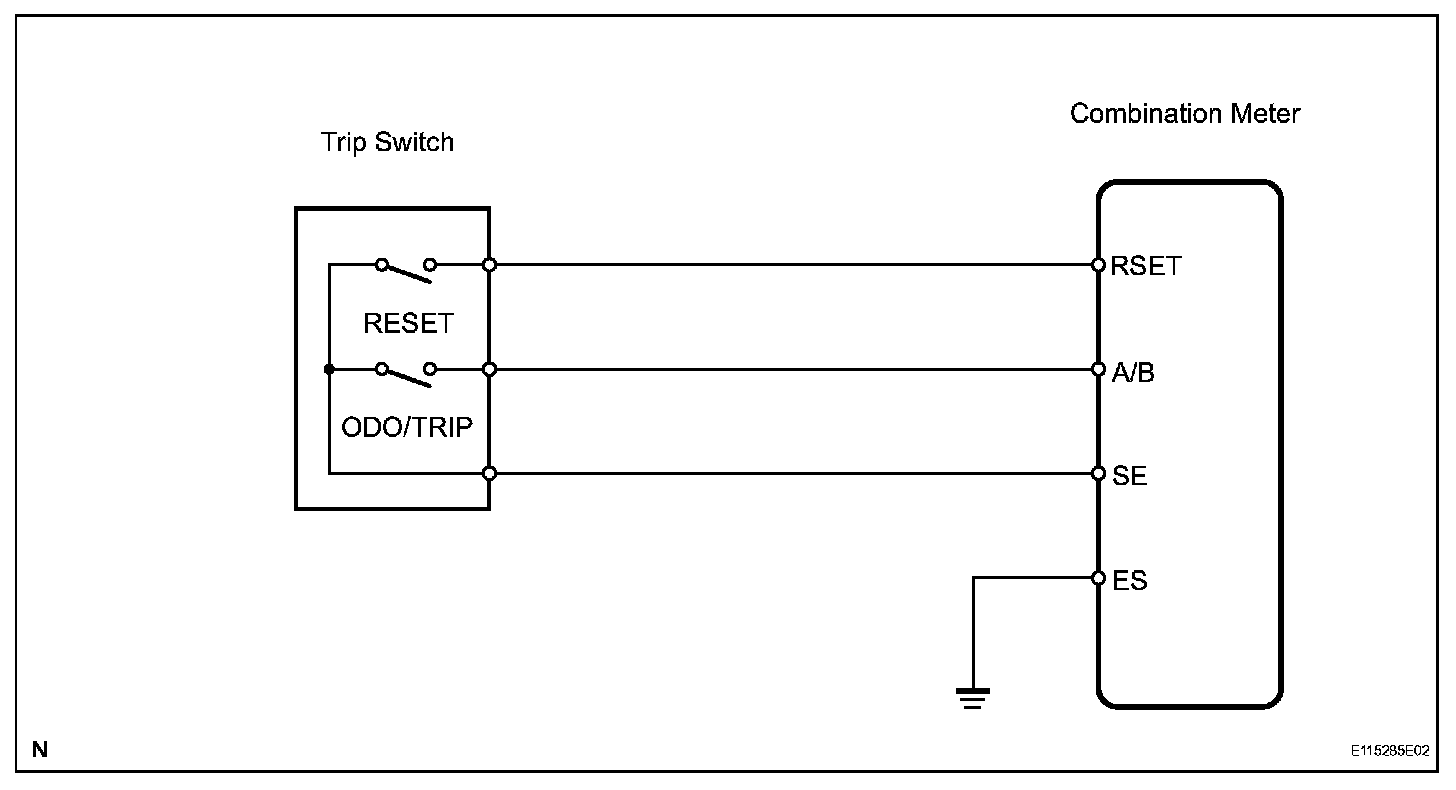

Wiring Diagram:

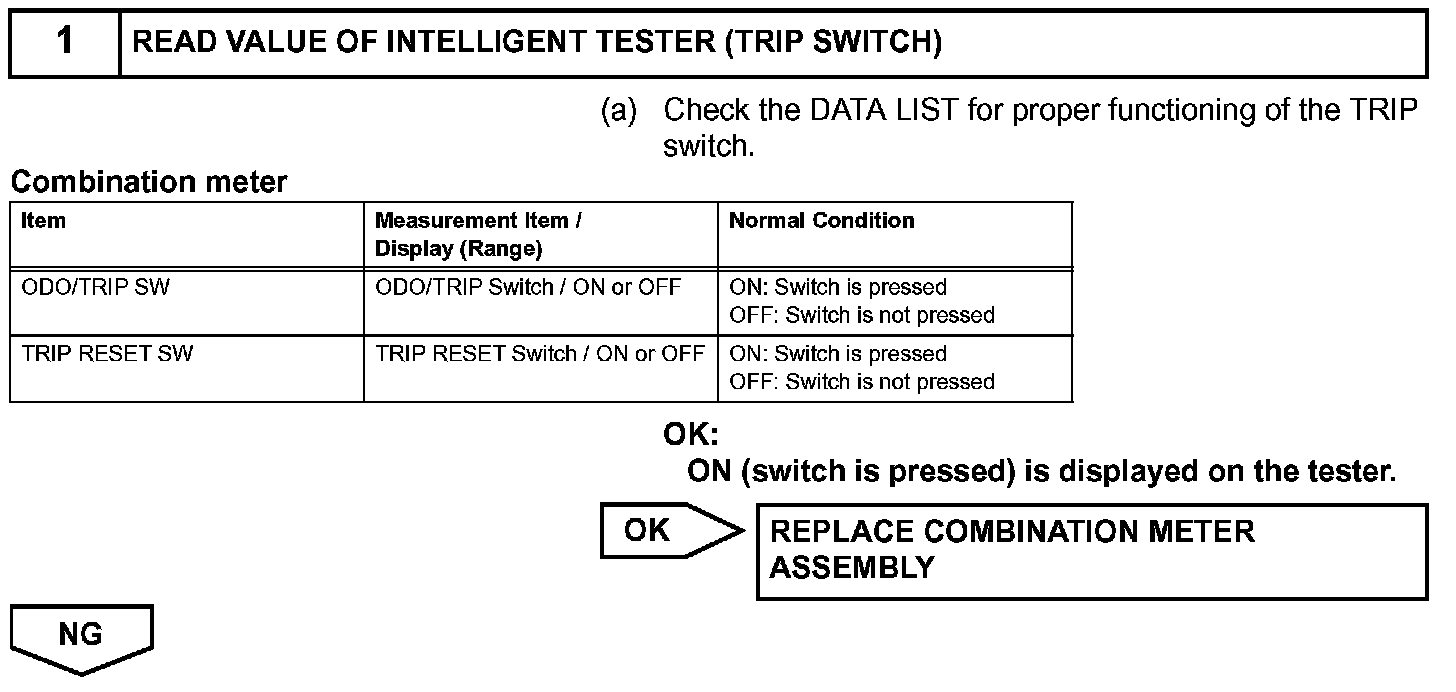

Step 1:

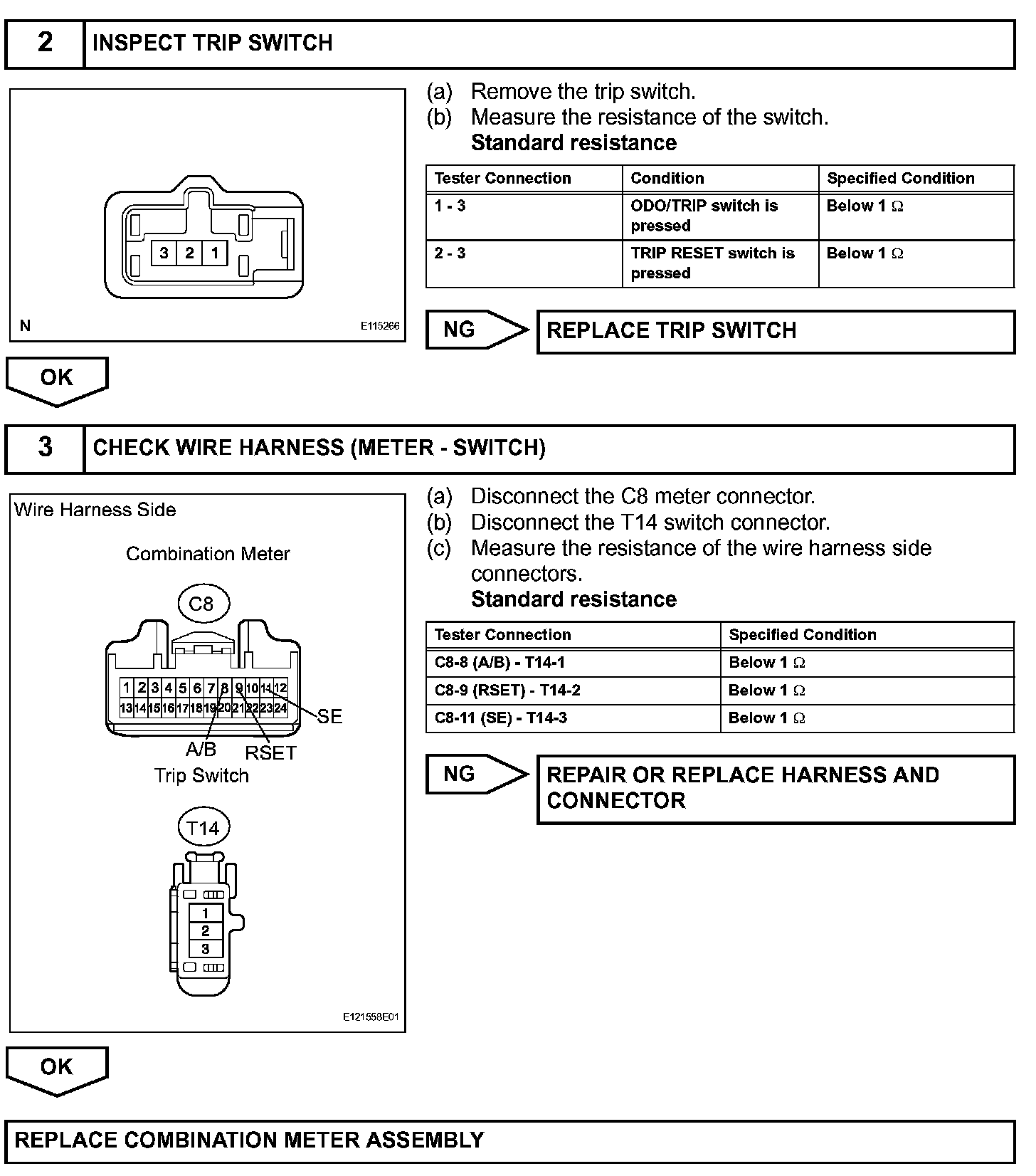

Step 2-3:

INSPECTION PROCEDURE
