Engine Coolant Temperature Receiver Gauge Malfunction
Engine Coolant Temperature Receiver Gauge Malfunction
Engine Coolant Temperature Receiver Gauge Malfunction

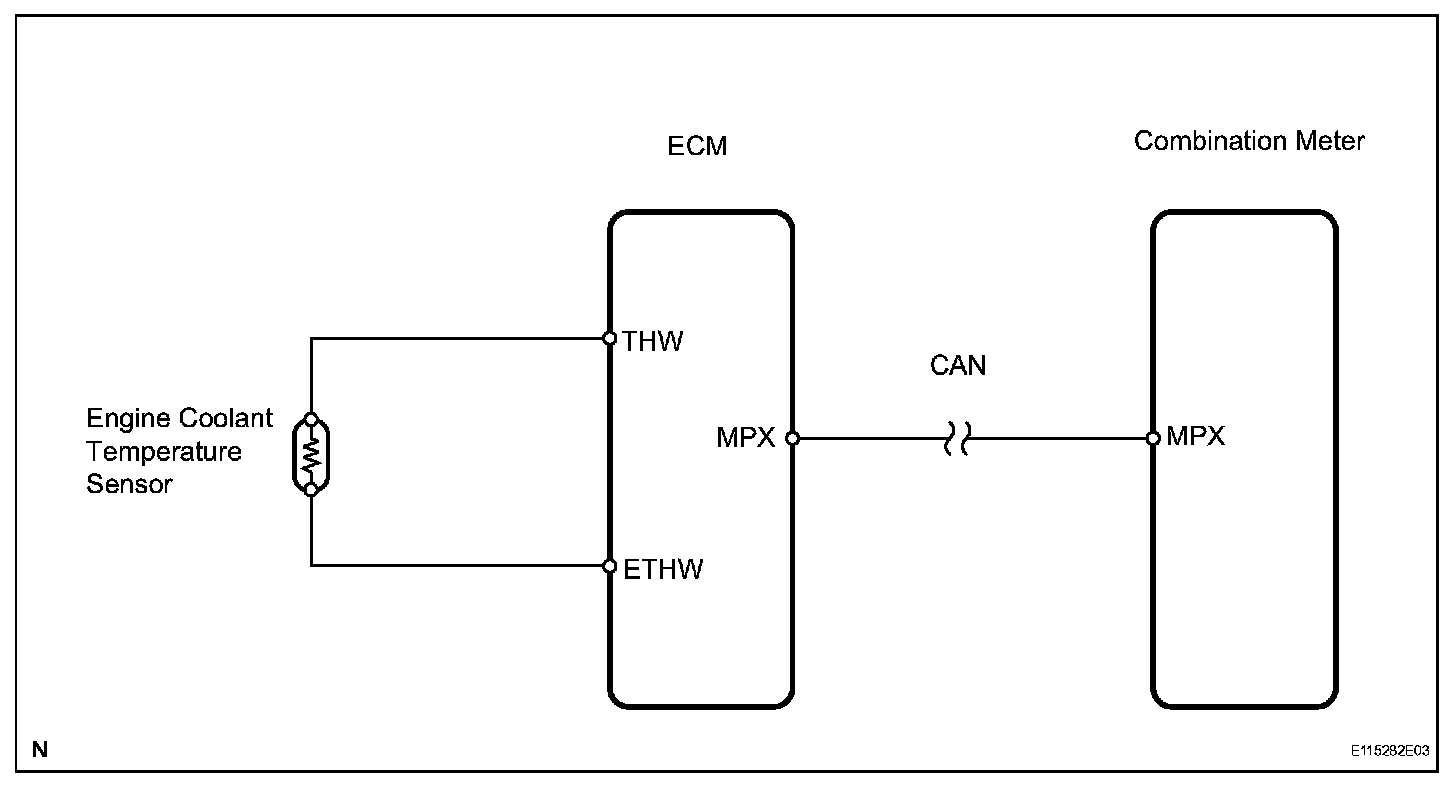

Wiring Diagram:

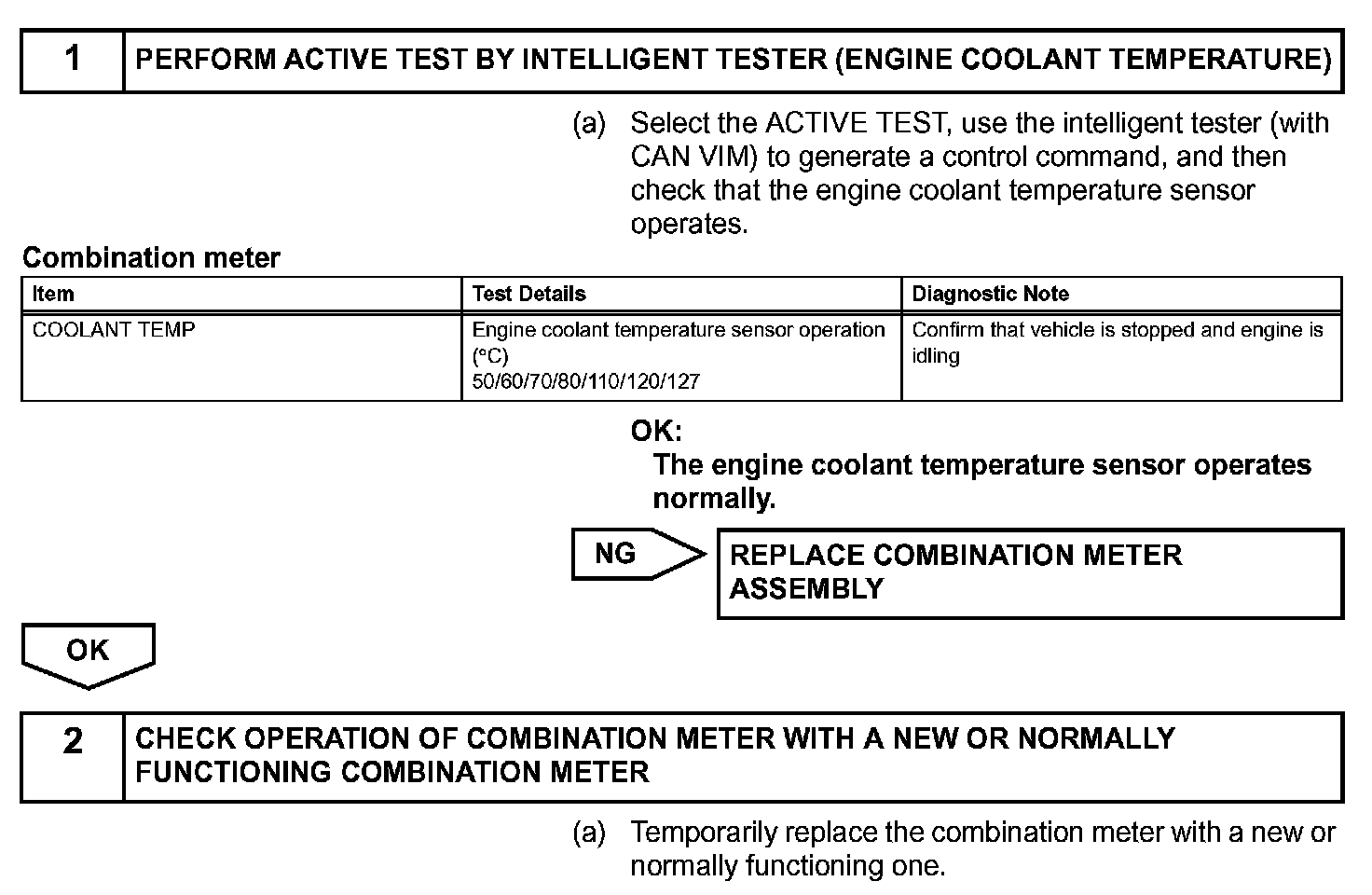

Step 1-2:

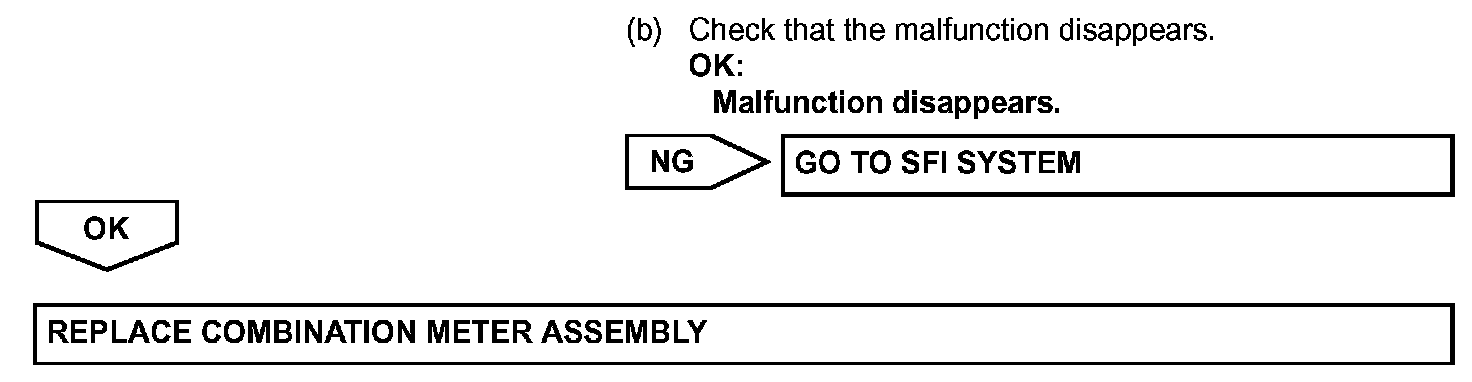

Step 2 (Continued):
INSPECTION PROCEDURE
