Overhaul

DISASSEMBLY

1. REMOVE COMBINATION METER GLASS

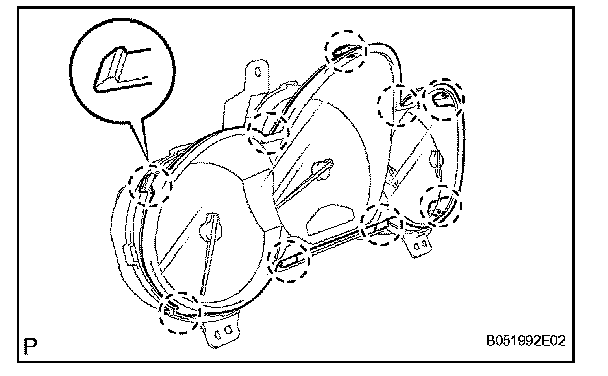

a. Detach the 9 claws and remove the glass.

REASSEMBLY

1. INSTALL COMBINATION METER GLASS




a. Attach the 9 claws to install the glass.
